| Wave Solder Unloader with Rail Overview
The Wave Solder Unloader with Rail is used after the wave soldering machine in DIP and THT production lines. Its main job is to receive soldered PCBs and move them forward to cooling, inspection, repair, testing, or assembly. After wave soldering, PCBs may still have high surface temperature, so stable unloading is important for both product safety and operator safety. This equipment uses a high-temperature antistatic belt, fan cooling, motor control, and a strong steel body. The standard size is 12004851400 mm. PCB width supports 50–400 mm and can be customized for special boards.
| Product Features In DIP Line

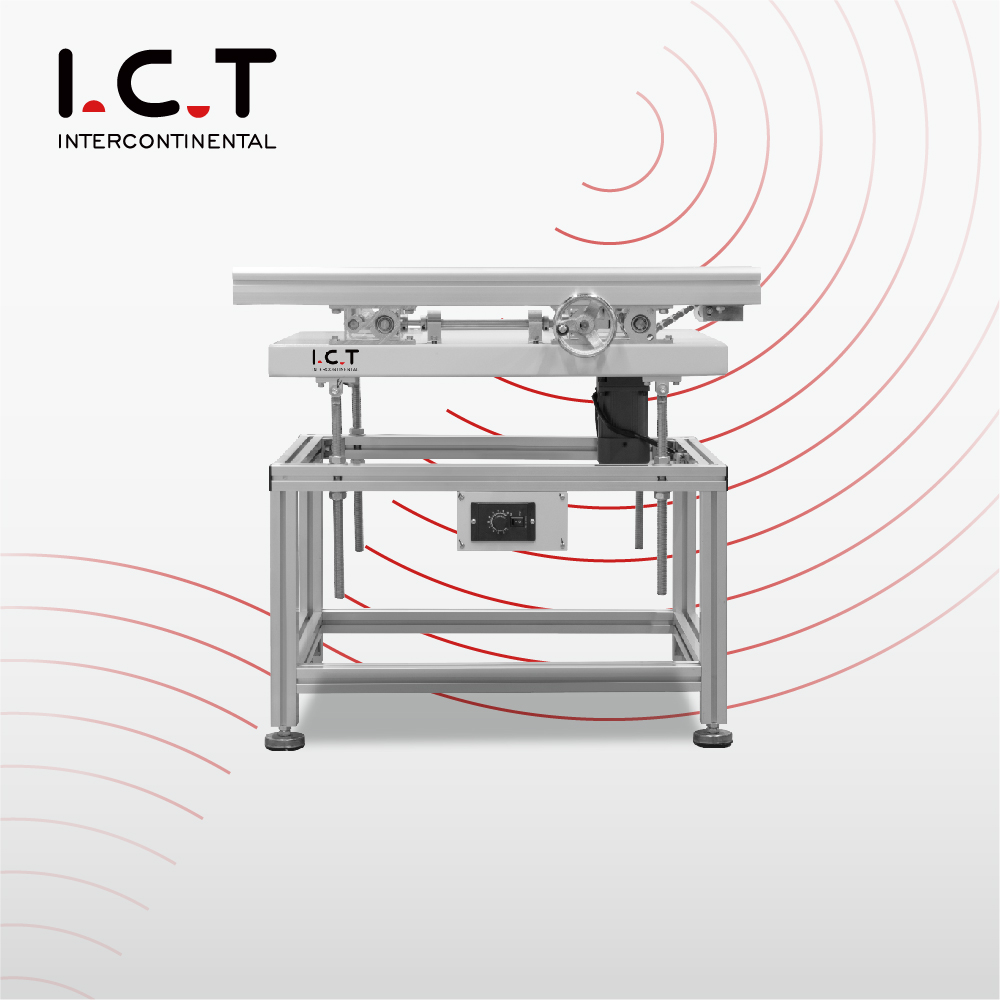

The Wave Loader is normally installed before the wave soldering machine. In a complete DIP line, it receives PCBs from a manual insertion line, automatic insertion machine, or conveyor, and then feeds the boards into the soldering process. The machine uses an aluminum structure, adjustable rail width, motor control, and variable speed adjustment. It supports PCB width from 50 to 350 mm and PCB thickness from 0.6 to 6.0 mm. The loader helps reduce unstable manual feeding and makes the connection between insertion and soldering smoother. For factories producing THT boards, this front-end transfer step helps keep the process rhythm more controlled.
| Configuration: | |
|---|---|
| Motor | 2HP,made by AIDELI |
| Inverter | 2HP,made by AIDELI |
| Main body | 40×40mm, aluminium |
| Rail | 40×60mm,aluminium |
| Specification: | |
|---|---|
| Dimension(mm) | 800*600* 950mm/set |
| PCB Width | 50 – 350mm(adjustable) |
| PCB Thickness | 0.6 – 6.0mm |
| Transport Height | 750±20mm |
| Control Mode | Motor |
| Power | Max 20 VA |
| PCB Direction | L to R or R to L |
| Power Supply | 1 PH AC 220V 50/60Hz (Option:110V to 380V) |
| Weight | 220Kg/set |

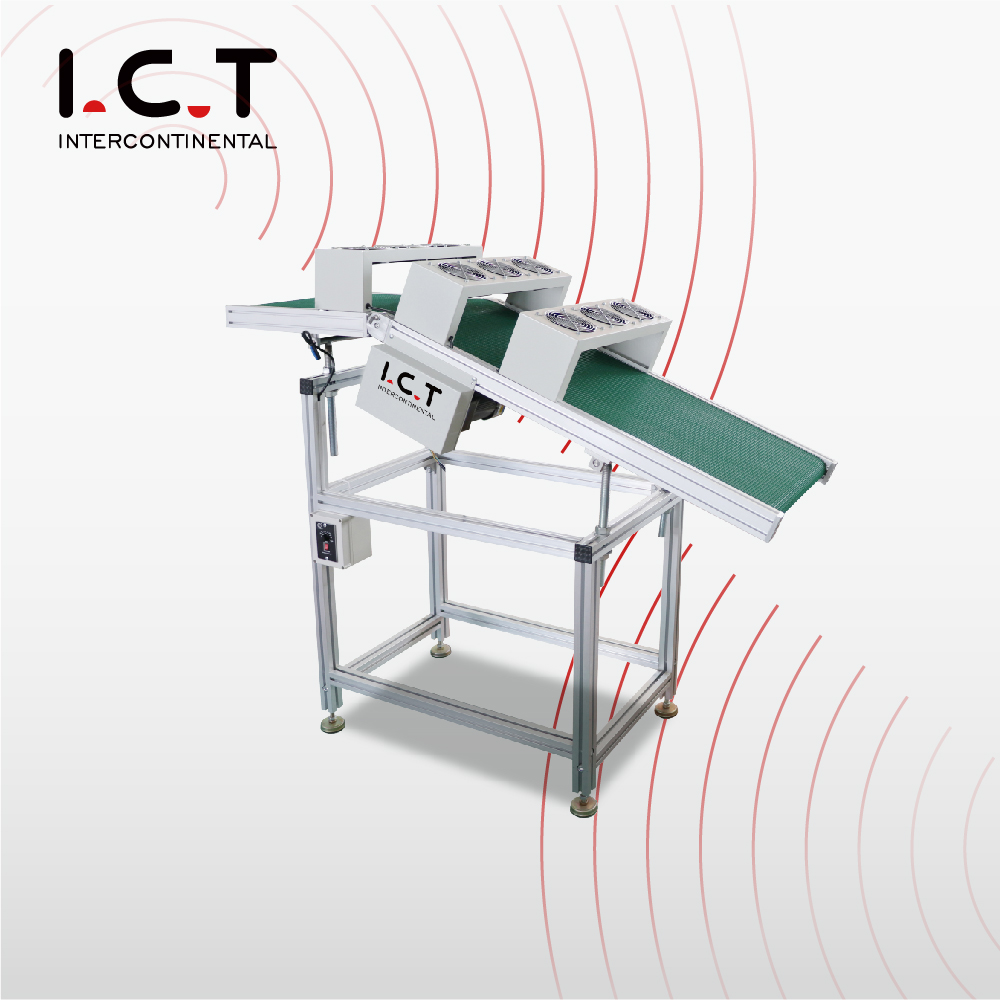

The Wave Unloader is placed after wave soldering. It works as the back-end transfer point for hot PCBs leaving the soldering area. A high-temperature antistatic belt moves the board forward, while cooling fans help reduce heat during transfer. The steel body gives better stability, and the conveying height can be adjusted to connect with different wave soldering machines and downstream equipment. As a Wave Unloader with Rail, it supports smooth line connection and keeps the PCB transfer path organized. It is suitable for DIP lines that need stable unloading, cooling, and safe board movement after soldering.
In a DIP production line, the Wave Solder Unloader with Rail is usually installed directly behind the wave soldering machine. Before this step, the PCB goes through component insertion, board transfer, fluxing, preheating, and soldering. After soldering, the board enters the unloading conveyor area. The next process can be cooling, DIP AOI, visual inspection, manual repair, functional testing, or final product assembly. This machine works like an outfeed conveyor for wave soldering machine applications, helping move the PCB away from the hot soldering section in a clean and stable way. It also reduces direct operator contact with newly soldered boards.
| Configuration: | |
|---|---|
| Motor | 2HP,made by AIDELI |
| Inverter | 2HP,made by AIDELI |
| Main body | 40×40mm, steel |
| Belt | High temperature antistatic belt(Non slip belt optional) |
| Specification: | |
|---|---|
| Dimension(mm) | 1200*485*1400mm |
| PCB Width | 50 – 400mm (can be customized) |
| Transport Height | 1300 - 750±20mm |
| Control Mode | Motor |
| Cooling Mode | Fan |
| Power | Max 20 VA |
| PCB Direction | L to R or R to L |
| Power Supply | 1 PH AC 220V 50/60Hz (Option:110V to 380V) |
| Weight | 290Kg/set |
| DIP Line Equipment List
I.C.T provides full DIP production line equipment for through-hole assembly factories. Related machines include manual insertion lines, automatic insertion machines, wave soldering machines, selective soldering machines, DIP AOI, soldering robots, conveyors, loaders, unloaders, and other PCB handling systems. The Wave Soldering Unloader is often used together with the I.C.T-Acrab series wave soldering machine and front-end transfer equipment. For new factory projects, I.C.T can plan the full line based on PCB size, component type, production capacity, and workshop space. A complete DIP line helps Customers connect insertion, soldering, cooling, inspection, and repair in one organized production flow.
| Product Name | Purpose in DIP Line |
|---|---|
| PCB SMT line | Turnkey Ful-auto SMT assembly line |
| Automatic Insert Machine | Automatically places components onto PCBs with precision for DIP production line. |
Melts solder to form solid joints on PCBs during THT plug-in process. | |
Applies solder selectively to specific areas for accurate THT assembly | |
Inspects solder joints and placement defects on DIP assembled PCB. | |
Checks internal solder quality and hidden defects in THT components. | |
| Belt Assembly Line | Transports PCBs smoothly through the DIP line for efficient assembly and inspection. |
