| High-End PCB Reflow Soldering Oven
The Lyra is a high-end SMT Reflow Oven built for top PCB soldering. It uses fresh design to boost heat performance and control. Siemens PLC locks temperature within 0.7°C for steady results. Leading heating modules space zones ideally for even spread and repeat.
Windows screen switches Chinese-English fast with password lock. It logs operations, measures curves, simulates runs, diagnoses faults, monitors live, and saves files auto. Board path displays in real time. New cooling zone changes slopes easily. Third-party guards add protection. Complies with CE, CCC, UL.
Inverter motors tune hot air for lead-free Hot Air Reflow Oven For Pcb Soldering. Zero gas source, motor lifts cover with rod support. Imported parts ensure smooth work and low fixes. Flux system option keeps chamber clean. Closed speed loop holds accuracy. Central support, dual rails, external water cool available. This SMT Reflow Oven fits all soldering types in lines.
| Feature
In the SMT Reflow Oven, PC links with Siemens PLC to hold heat at 0.7°C precision. This keeps stability high and stops solder issues on PCBs. System tracks every run, analyzes temperature curves, and predicts via simulation. Faults alert right away for quick fixes. All data saves automatically for checks later. Live board movement shows on screen. Language flip makes it simple for any user. Passwords protect settings from changes. Full process watch runs non-stop. Built-in diagnosis spots problems early. This control works for tough lead-free jobs. Results match batch after batch. Waste drops from bad joints. Output rises in busy lines. Users rely on it daily. Hot Air Reflow Oven For Pcb Soldering stays exact always. Extra features like virtual tests plan safe.
Efficient Heating System
Top modules in the SMT Reflow Oven design best zone gaps for uniform heat. Repeatability stays strong across many boards. It supports varied lead-free processes well. Hot air motors use inverters to set speeds per need. Internal and external parts separate to last longer. Sealed body has few holes to hold performance. Nitrogen setup recycles at entry and exit. This cuts gas use and oxygen low. All areas from preheat to cool get nitrogen if added. Condenser links for clean flow. Follows IPC-7530 and JEDEC standards. Energy use drops in operation. Seals keep data same after years. This makes Hot Air Reflow Oven For Pcb Soldering very efficient. PCBs heat without hot or cold spots.
Closed-loop in the SMT Reflow Oven controls speed to ±2mm/min exact. PCBs glide without bumps or stops. Center support plus dual transmission add firmness. External water cooling option improves results. No gas needed simplifies install. Furnace cover opens by motor with safety bar. High-grade imported parts run quiet and long. Maintenance stays cheap and easy. No tools required for most service. Reminders pop for regular care. Economy setting saves power. Transport view updates live. It handles extended production hours. Suits small to large boards. Line throughput goes up. Stable setup reduces errors. This ensures reliable Hot Air Reflow Oven For Pcb Soldering. Dual rails prevent shifts.
| SMT Reflow Oven Specification
Model | L8 | L10 |
Dimension (L*W*H)mm | 5000x1300x1530 | 5800x1300x1530 |
Weight | Approx. 2100KG | Approx. 2315KG |
Number Of Heating Zones | Up8/Bottom8 | Up10/Bottom10 |
Length Of Heating Zones | 3110mm | 3892mm |
Rail Width Adjustment | Manual adjustment (Option: Automatic) | |
Exhaust Volume | 10M3/min*2 Exhausts | |
Control System | PLC+Computer | |
Temperature Control Method | PID + SSR | |
Transmission Agent | Chain + Mesh | |
Electric Supply Required | 5 Wire System 3P, N, PE 380 VAC ± 5%, 50 Hz. Other voltages upon request | |
Power For Warm Up | 64KW | 80KW |
Power Consumption | 10KW | 12KW |
Warming Time | Approx.25 minute | |
Temp. Setting Range | Room Temp.-- 300°C | |
Conveyor Height | 900+/-20mm | |
Conveyor Speed Range | 300~2000mm/mi | |
Fixed Rail Side | Front Fixed (Option:Rear Fixed) | |
Cooling Method | Forced-Air Motor and fan (Standard) | |
| SMT Line Equipment List

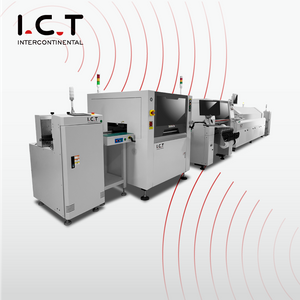

Our High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Customer Success Video
A client from Uzbekistan came to our I.C.T factory to view their new full SMT line before shipping. They checked the L10 model, close to our SMT Reflow Oven in tech and build. The setup covered DECAN S1 pick-and-place, 5151 solder printer, AOI AI-5146 inspector, NG/OK loaders, belt conveyors, paste mixer, and cold storage cabinet. They noted perfect even soldering from the oven zones. All machines worked smooth with no halts. Our experts gave detailed on-site demos and tips. The client loved the high performance and reliability of I.C.T gear. This trip confirmed their choice and built strong partnership. The Hot Air Reflow Oven For Pcb Soldering impressed with consistent quality output.
| Professional Training & Support
I.C.T provides full support for the SMT Reflow Oven from start to end. We handle installation, upkeep, and training at your site. Engineers answer queries fast via phone or remote. We tweak processes to match changes in production. Upgrades come when tech advances. Spare parts ship quick worldwide. Global service centers stay ready. This covers all needs for Hot Air Reflow Oven For Pcb Soldering. Customers face no stops or worries. Training builds user skills for daily runs. Remote tools fix most issues online. On-site visits solve complex cases. Full docs and videos aid learning. Service plans fit any budget.
| Customer Praise
Clients praise our engineers for solving issues in hours with expert knowledge. The SMT Reflow Oven gets compliments for steady work and few breakdowns. Packing uses strong materials to arrive safe anywhere. Quick replies to emails or calls build trust. On-site help during install makes start easy. Equipment quality lasts years without fade. Hot Air Reflow Oven For Pcb Soldering wins for clean joints every time.
| Our Certification
Our SMT Reflow Oven carries CE, RoHS, ISO9001 approvals for safety and green use. Patents protect unique designs inside. It meets CCC, UL specs too. Rigorous tests check each part before ship. This guarantees top reliability.
| About I.C.T and Our Factory
I.C.T owns R&D and production in a 12000m² modern factory. Team of 89 includes 20 skilled engineers. Growth speeds since 2012 founding. We serve over 1600 clients in 72 countries. Strict quality checks run at every step. Full management system ensures best output. This supports complete SMT lines with SMT Reflow Oven.
