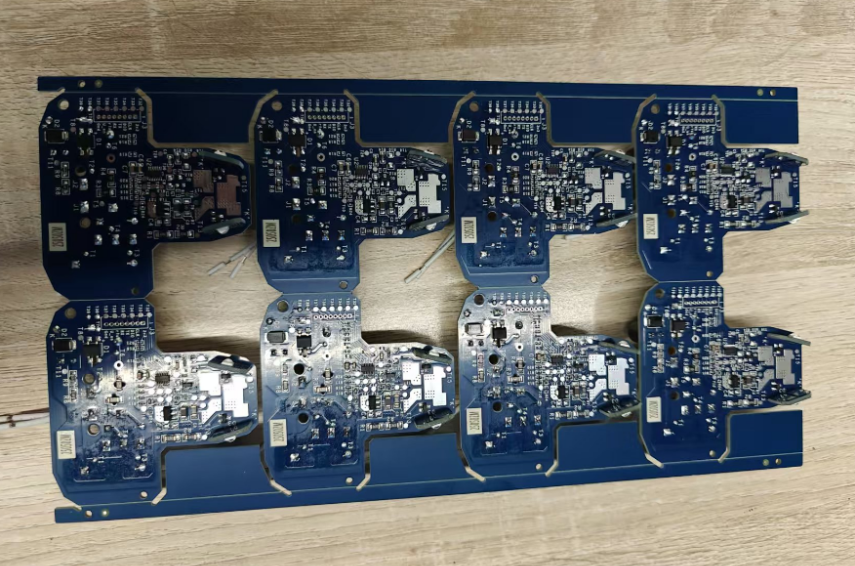

Beauty Devices PCBA Top

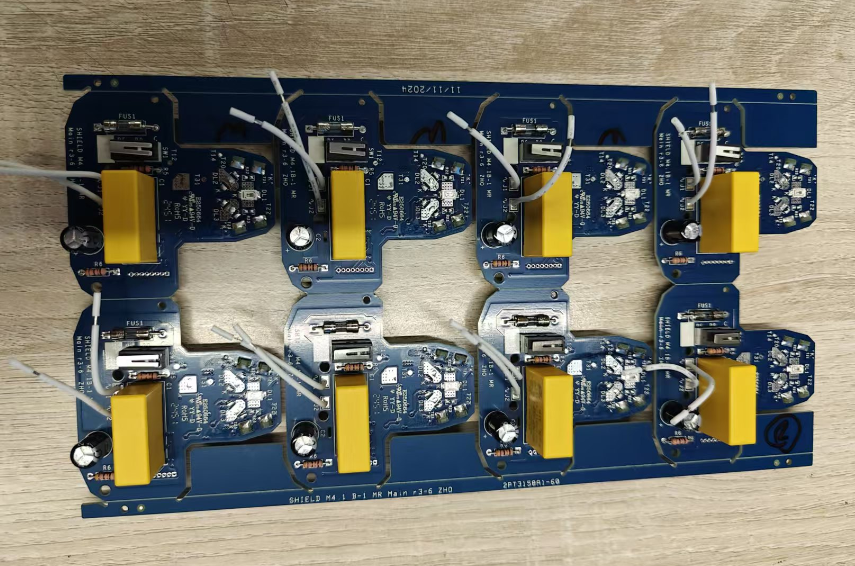

Beauty Devices PCBA Bot
With the rising demand for personal care devices and at-home aesthetic medical devices, the beauty tech industry is rapidly evolving. These devices are no longer simple skincare tools — they are sophisticated health & wellness smart devices powered by precision electronics.
I.C.T has supported global manufacturers in the PCBA production of a wide range of personal beauty & skincare electronics, including:
EMS (Electrical Muscle Stimulation) facial toning devices
LED skincare therapy masks
RF (Radio Frequency) anti-aging and skin tightening tools
Ultrasonic facial cleansers
Smart cleansing brushes connected via app or Bluetooth
These products combine compact form factors with complex control systems, requiring high-accuracy surface mount assembly and DIP processes. The trend toward smart wellness devices continues to drive innovation in this sector.

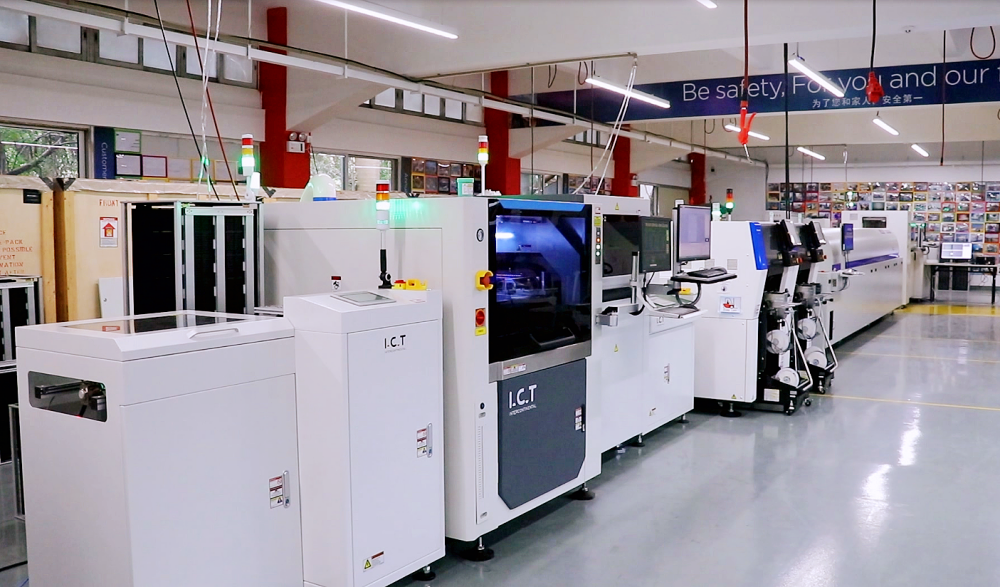

In March 2025, I.C.T delivered a fully automated SMT & DIP production line to a leading manufacturer of smart beauty technology products. Their featured PCBA, measuring 275mm x 255mm, was engineered for use in high-end personal skincare devices with tight tolerance and multi-function circuit design.
Laser marking → Solder paste printing → SPI inspection → SMT component placement → Reflow soldering (10 heating zones) → AOI inspection → PCB flipping for bottom-side mounting
PCB Loader ———————————————— PCB loading
PCB Translational Vacuum Loader —————— PCB loading
Laser marking machine ——————————— Printing labels
PCB SMT Stencil Printer ——————————— Solder paste printing
SPI ———————————————————— Solder paste detection
PCB Reject Conveyor ———————————— NG board rejecting
High-speed Pick and Place machine —————— Component placement
Universal placement machine ————————— Component placement
Aisle Elevate Conveyor ———————————— PCB transmission, front and back communication
Reflow Oven ———————————————— Reflow soldering
Cooling Conveyor —————————————— PCB cooling
Vertical buffer ———————————————— PCB buffer
AOI ———————————————————— Optical inspection
PCB Reject Conveyor ————————————— Screening NG/OK products
Magazine buffer ——————————————— PCB buffer, board collection
PCB Flipper ————————————————— PCB flipping
NG/OK unloader ——————————————— OK and NG board collection
Build your high-precision SMT line with I.C.T — Contact US NOW >>>
Manual component insertion → Horizontal and odd-form component auto-insertion → Spray fluxing → Wave soldering → In-circuit testing (FCT) → PCB cutting (V-CUT) → Final packaging and storage
Insertion Line --------- ---------- - Manual component insertion
Wave soldering --------- ---------- - Plug-in component soldering
Wave Unloader --------- -------- PCB take-up conveyor
Assembly Belt line --------- -------- PCB Conveyor
PCB Wave Soldering Loader --------- ---------- PCB Transfer
Horizontal Insertion Machine --------- --------- Automatic component insertion
PCB Conveyor ------------------ ----------------- PCB transfer
PCB Conveyor ------------------ ----------------- Fixture Placement
Odd Form Insertion Machine ---------- --------- Automatic component insertion
Insertion line ------------------ ------------------ Manual Insertion
Spraying machine ---------------- --------------- Spray Flux
Wave soldering Machine ----------- ------------ Plug-in component soldering
Wave Soldering Belt Unloader --------- -------- PCB take-up conveyor
AGV Robot ------------------- ------------------ Fixture return transfer
Assembly Belt line --------------- -------------- PCBA transfer
FCT tester ------------------- ------------------- PCBA Function Test
V-CUT----------------------- -------------------- PCBA Depaneling
DIP Assembly Line
DIP Manual Insertion Line
Set up your DIP line for beauty electronics — Talk to I.C.T Today >>>
| Feature | Specification |
|---|---|
| SMT Capacity | 2,160 pcs/h |
| DIP Capacity | 2,160 pcs/h |
| Max PCB Width | 340mm |
| Max Power Consumption | 260kW |
| Operational Power Load | 52kW |
| Total Line Footprint | 42m x 12m = 504㎡ |
| Workforce Requirement | 30 (5 engineers, 23 operators, 2 QC) |
This line is suitable for mid-to-high-end wellness electronics, especially compact PCBA production for smart facial devices and AI-powered personal care electronics.
Explore how I.C.T helped a global beauty electronics brand automate their factory.
Beauty device PCBAs are among the most complex and sensitive assemblies in consumer wellness electronics. Manufacturing them requires addressing multiple process challenges with precision engineering and smart factory solutions.
During SMT assembly, components must be precisely positioned on the PCB pads. As components become smaller and pin pitches narrower, placement accuracy becomes more critical.
* Solution:
We deploy high-precision imported placement machines with placement accuracy up to ±30μm. In addition, high-resolution cameras enable accurate recognition of fine-pitch devices like BGA and QFP, ensuring reliability in personal care device PCB assembly.
Beauty PCBs often contain a wide range of components — resistors, capacitors, chips, connectors — each varying in size and shape.
* Solution:
To manage this, we apply a 1+1 configuration: one high-speed mounter for small passive components (e.g. capacitors, resistors) and one multifunctional mounter for larger items like connectors and ICs. This approach maximises efficiency and compatibility for personal beauty & skincare electronics.
Consistent and accurate solder paste printing is crucial for successful SMT processes.
* Solution:
Before printing, solder paste is brought to room temperature and centrifugally stirred using a solder paste mixer to activate its properties. We then use a high-precision stencil printer with accuracy of ±0.025mm, ensuring optimal solder deposit quality for smart wellness devices.
For long-term device reliability, precise control of the reflow profile is essential.
* Solution:
We use professional reflow profiling equipment and train customers to verify temperature settings at the start of every shift. Our 10-zone reflow oven ensures consistent thermal control across PCBs, supporting the durability of at-home aesthetic medical devices.
Different components have varying heat sensitivities. Uneven heat distribution can damage sensitive parts during reflow.
* Solution:
Our 10-zone ovens start with low-temperature preheating and soak stages, followed by gradual heating to match each component's heat profile. The oven's small-loop air circulation design gently directs warm air around the solder joints to reduce thermal shock and ensure smooth transitions.
Productivity is key in smart beauty device manufacturing, but speed must not compromise accuracy.
* Solution:
By separating small and large components in parallel mounting, the line reaches a theoretical speed of 180,000 CPH and a real output of 90,000–100,000 CPH, optimising throughput for health & wellness smart electronics.
Post-placement inspection is essential to detect misalignment, solder bridges, or shorts.
* Solution:
We equip the line with Automated Optical Inspection (AOI) systems to monitor and validate each board's quality, ensuring the highest consistency across batches.
Environmental factors such as humidity and temperature fluctuations can affect solder quality and PCB reliability.
* Solution:
We help customers design SMT workshops that meet ISO 14644 cleanroom standards. Workshop conditions are maintained at 24±2°C temperature and 40–60% humidity, ensuring equipment and process stability for sensitive beauty tech PCBAs.
We offer not only equipment, but complete factory-level solutions, from layout design to installation and after-sales service. I.C.T's systems are made to:
Fit small and irregular beauty device designs
Deliver precision and repeatability
Improve quality assurance
Boost production efficiency
Ensure global-local support
Let us help you automate your beauty device production.
Fast, reliable, scalable SMT & DIP solutions await.
