RC-500L
I.C.T
| Quantity: | |
|---|---|
| Smart Reject Conveyor for Zero-Mix Production Lines

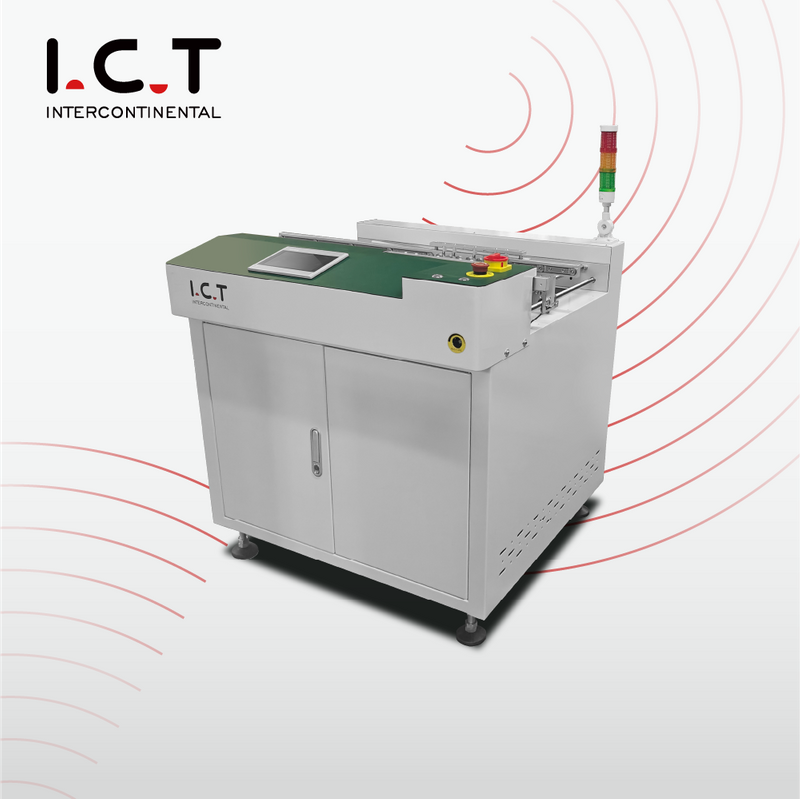

The I.C.T Reject Conveyor is the most reliable SMT PCB Reject Conveyor on the market today. When AOI or SPI marks a board as NG, this smart unit instantly drops it to the lower layer while good boards continue smoothly on the upper layer — no manual handling, no line stop, no mixing risk. Upgraded aluminum rails, high-speed cylinders and Industry 4.0 PLC guarantee 100% accurate separation 24/7. One-button width sync, bright tower lights and full CE protection make the Reject Conveyor a must-have for every high-quality SMT factory worldwide.
| Complete Conveyor Series Including Advanced Reject Models

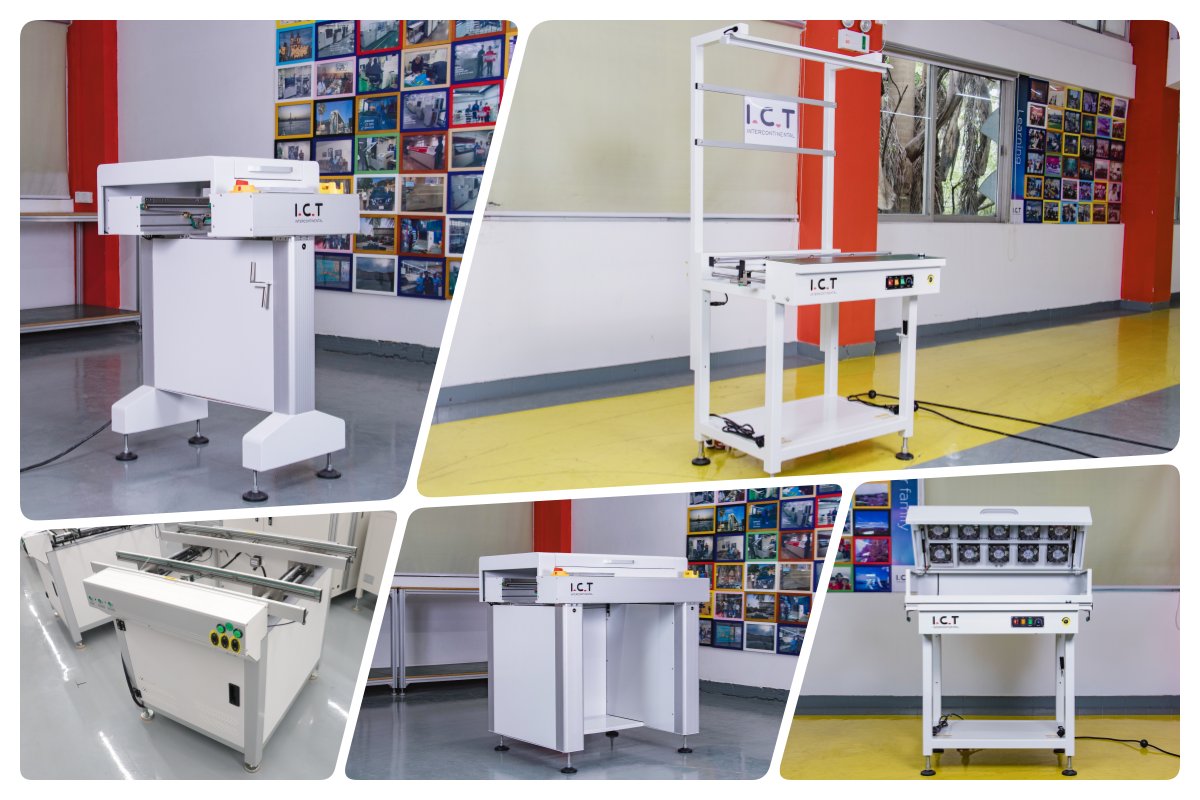

I.C.T supplies over ten conveyor types so every line runs perfectly. Standard linking conveyors simply transfer boards. Inspection stations add bright lights. Telescopic and cooling units fit special needs. The flagship Reject Conveyor comes in single-layer drop, dual-layer pass/reject, or multi-segment with large NG buffer. The SMT PCB Reject Conveyor can also add barcode verification before rejection. Every model can be customized in length, speed, buffer size and communication protocol to match your exact quality control process.
| Detailed Product Features

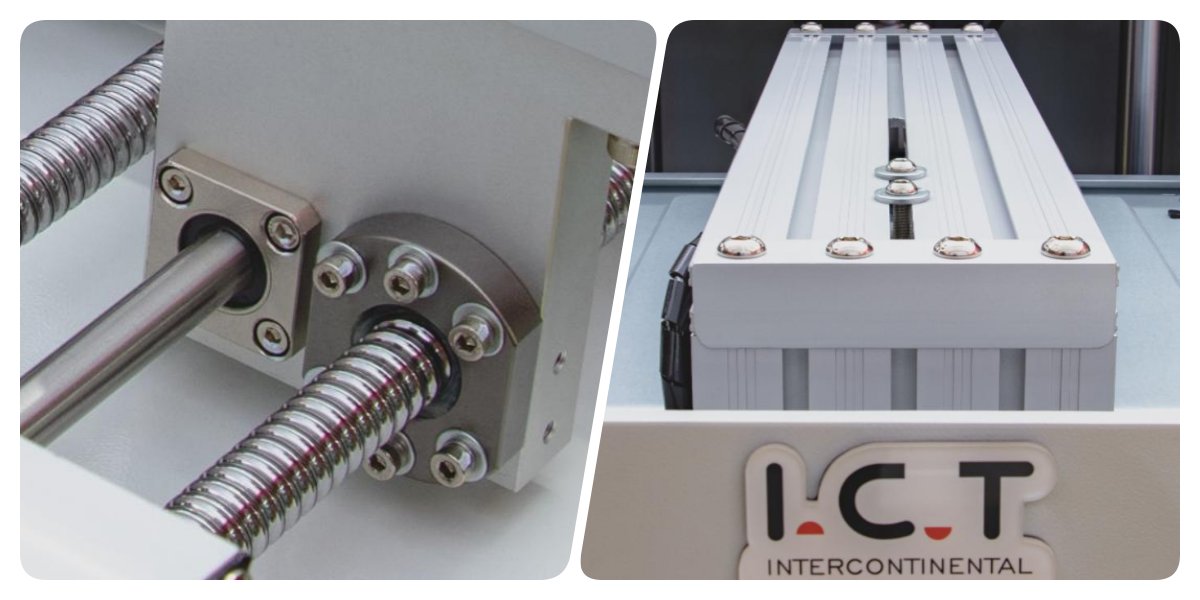

Aviation-grade aluminum profiles and precision linear rails keep the Reject Conveyor perfectly straight for years. Reinforced steel base plates and anti-vibration design eliminate shaking even at top speed. All mechanical parts meet strict ISO and CE standards so the machine delivers flawless board separation after millions of cycles.

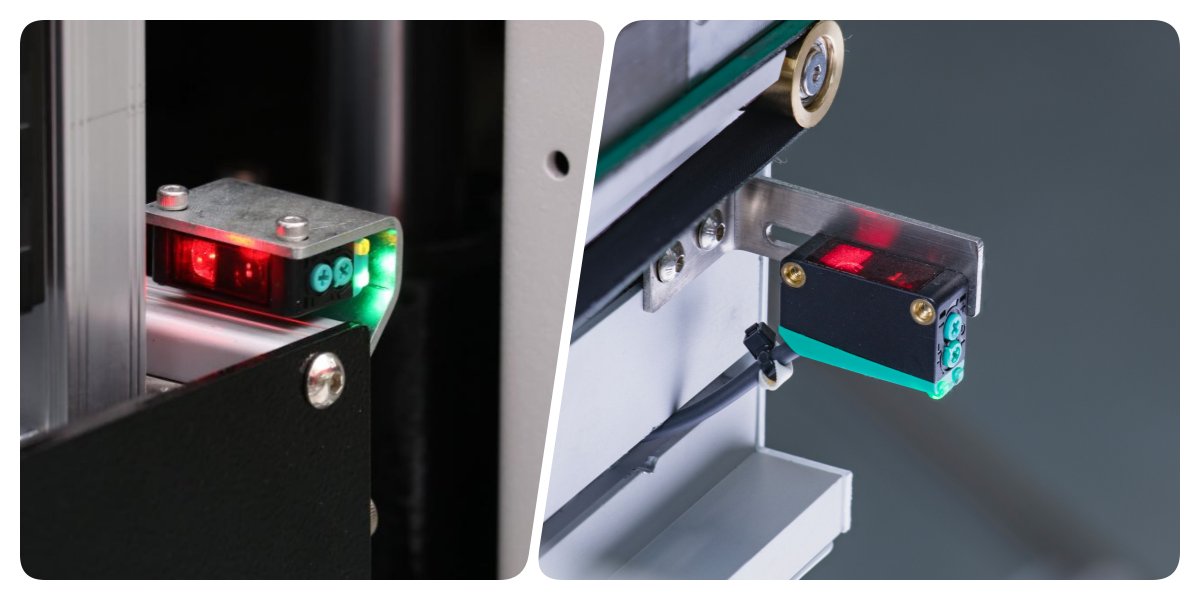

Top-brand photoelectric sensors detect NG signals in milliseconds. Powerful pneumatic cylinders drop bad boards gently and instantly. Bright three-color tower lights and oversized emergency buttons are visible across the floor. Full ESD grounding protects sensitive components during high-speed movement.

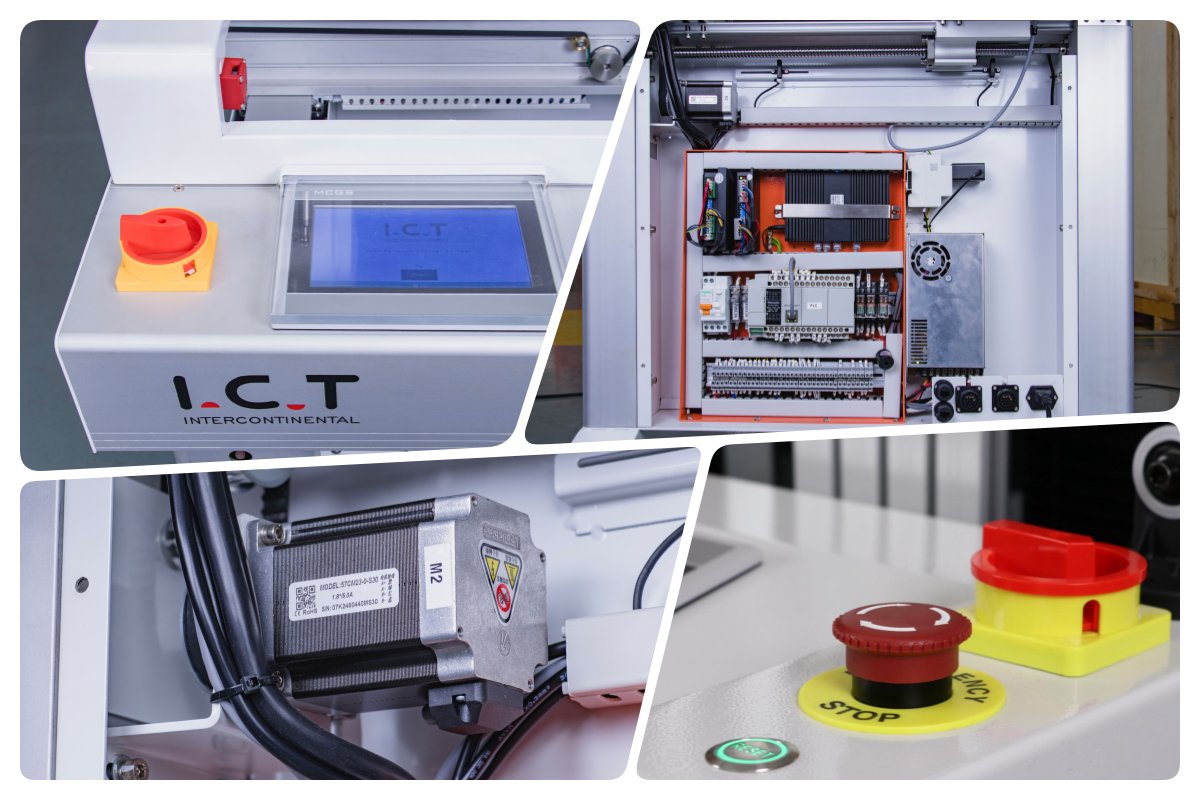

7-inch color touch screen plus reliable PLC makes setup incredibly fast — change speed, width or reject rules in seconds. Optional Industry 4.0 module supports Hermes, CFX and all major AOI/SPI interfaces. Software updates and remote diagnostics are free for life.

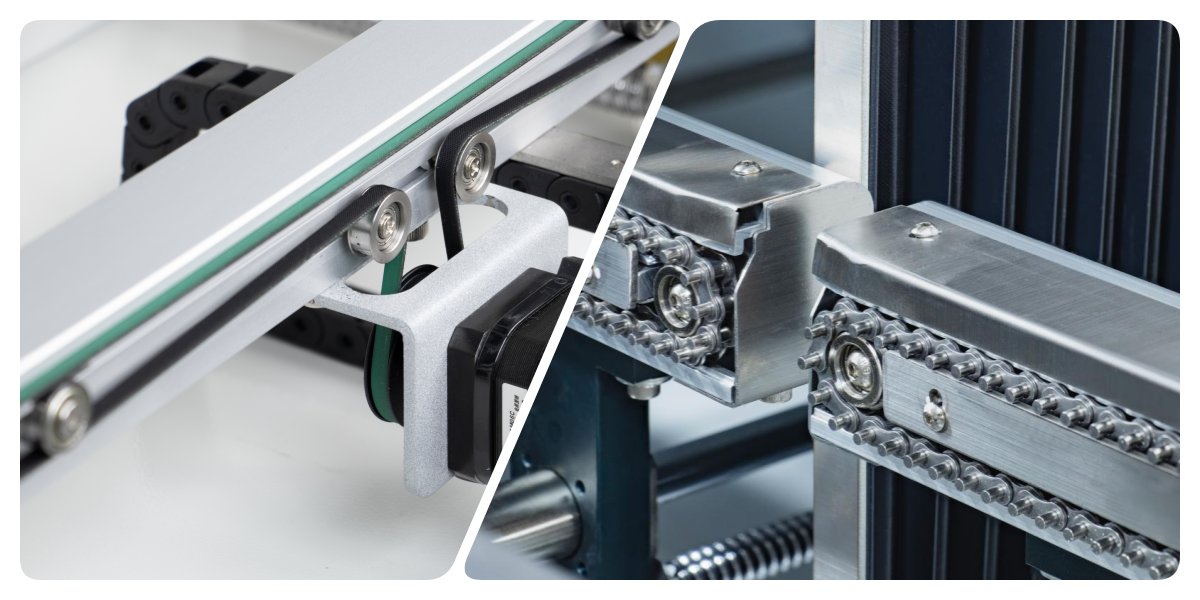

Standard 3 mm ESD flat belt runs quiet and clean for normal boards. Switch to stainless-steel chain when boards are heavy or hot after reflow — the chain never slips and handles higher loads perfectly. Both systems work flawlessly with the Reject Conveyor’s instant drop motion.
| Reflow Oven Specification
| Parameter | Specification |
|---|---|
| PCB Width | 50–400 mm (500 mm optional) |
| Conveyor Height | 900 ± 20 mm |
| Transfer Speed | 0.5–20 m/min adjustable |
| Power Supply | AC 220 V 50/60 Hz |
| Power Consumption | 50–150 W |
| Direction | Left to Right (Right to Left optional) |
| Belt Material | 3 mm ESD flat belt or chain |
| Control Mode | PLC + Touch Screen |
| One-button Width Adjust | Optional (whole line sync) |
| CE Safety Standard | Full cover + sensor protection |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List

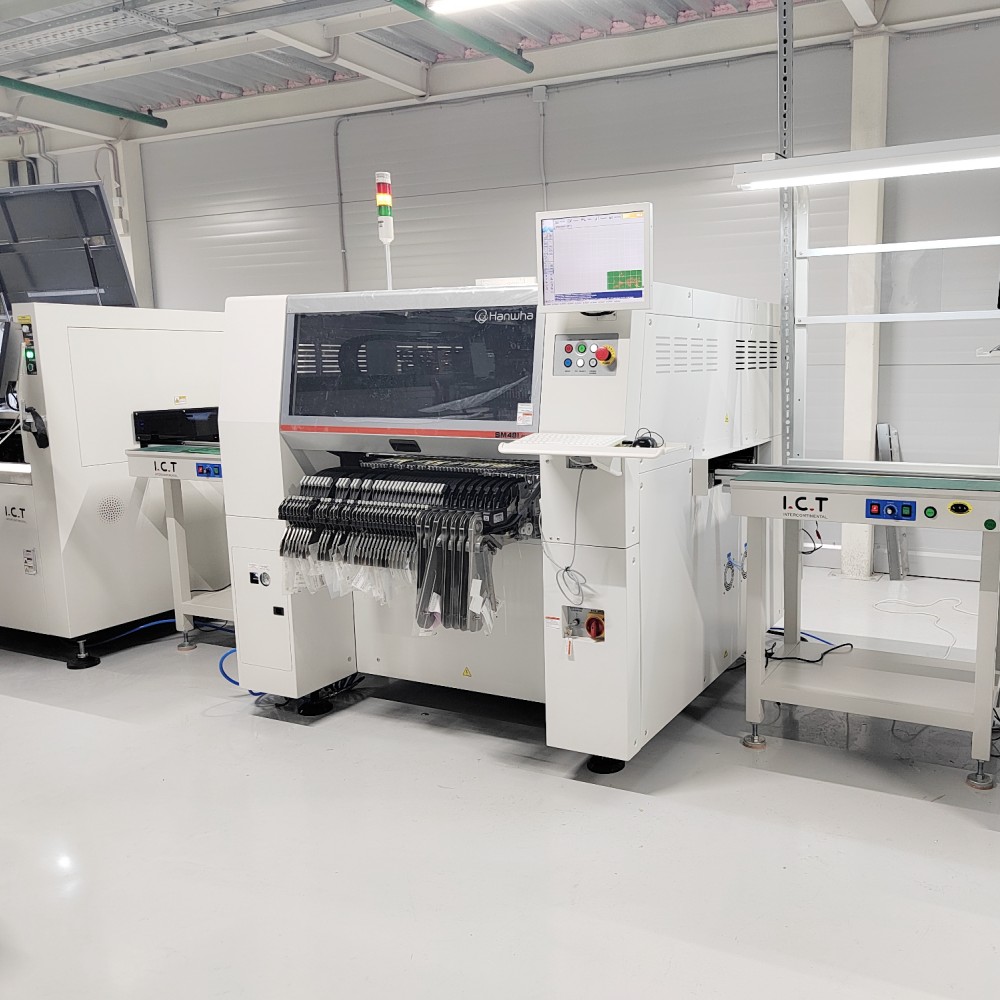

Our High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Customer Success Story
Two experienced I.C.T engineers flew to Uruguay to launch a complete high-speed line for a leading smart electric-meter manufacturer. The package included magazine loaders, printers 471 & 481, Lyra622 mounter, AOI, reflow oven W2, multiple Reject Conveyors, roller lines and workstations. Within seven days our team finished installation, signal connection with AOI and full operator training. The SMT PCB Reject Conveyor now separates every bad board perfectly, and the customer reports zero mixing errors since day one.
| Professional Training & Support
From line layout design to daily mass production, I.C.T never leaves your side. We offer free online and on-site training, lifetime free software upgrades, and 7×24 remote support. When needed, our engineers arrive within 48 hours anywhere in the world. Spare parts ship same-day from eight global warehouses — your production never stops.
| Customer Praise
“The Reject Conveyor completely eliminated mixing — best investment we ever made!” “Wooden crates survived two months at sea — machines arrived perfect.” “Engineers stayed until the AOI connection worked 100% and trained everyone.” “Support replies in minutes, even on weekends!” “Zero bad boards reach the next station — amazing!”
| Our Certification
Every I.C.T machine carries CE, RoHS and ISO9001 certificates plus dozens of invention patents. Each Reject Conveyor passes a strict 48-hour full-load aging test before delivery. Quality is built in every day — that’s why customers trust us year after year.
| About Us and Factory
Founded in 2012 in Dongguan, China, I.C.T has grown rapidly into a leading global SMT solution provider with nearly 90 passionate employees and a modern 12,000 m² factory. We design and manufacture all core components in-house under strict quality systems. More than 1,600 customers from 72 countries run our equipment every day. With eight overseas offices and continuous fast growth, I.C.T keeps delivering reliable SMT PCB Reject Conveyor and world-class service worldwide.
