I.C.T HNOUL-L | ng/ok SMT unloader
I.C.T
ng/ok SMT unloader
| Quantity: | |
|---|---|

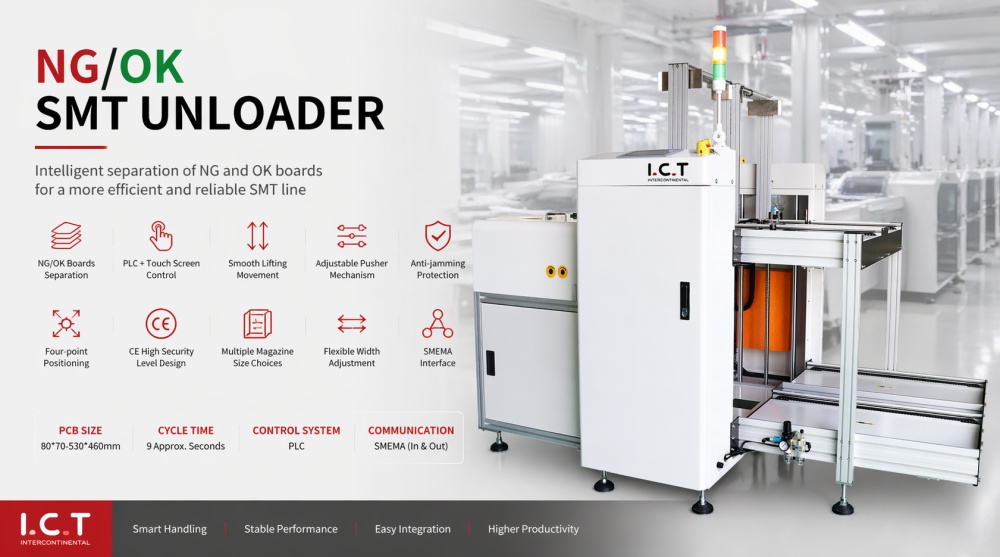

| SMT NG/OK Magazine Unloader
The SMT NG/OK Magazine Unloader is designed to automate the separation and unloading of NG and OK PCBs in your SMT production line. This machine features adjustable settings for width and pitch, accommodating a variety of PCB sizes. With its SMEMA compatibility, it integrates seamlessly with other equipment in the production line, ensuring smooth automation. Built for durability and reliability, the unloader minimizes downtime and reduces the need for frequent maintenance, optimizing your overall production process.
| Detailed Product Features
a. Efficient Separation of NG and OK PCBs
The unloader is specifically designed to handle NG (No Good) and OK (Good) PCBs, automatically separating them after the soldering or inspection process. By efficiently categorizing good and defective boards, the unloader improves overall product quality and reduces waste. The quick and reliable separation process minimizes the risk of manual errors and keeps your production line running smoothly.
b. Adjustable Settings for Flexibility
Equipped with adjustable width and pitch controls, the SMT NG/OK Magazine Unloader is adaptable to a wide range of PCB sizes. Whether you’re working with small or large PCBs, the machine can be easily adjusted to handle different board sizes without the need for additional modifications or equipment. This flexibility makes the unloader suitable for various production setups and changing production requirements.
c. SMEMA Compatibility for Seamless Integration
The unloader is fully compatible with the SMEMA standard, enabling seamless integration with other machines in your SMT production line. This compatibility ensures smooth data exchange and synchronization between devices, creating an automated, efficient workflow. With its easy integration, the unloader helps optimize production processes and reduce downtime caused by manual intervention.
d. Durable and Low-Maintenance Design
Built with durability in mind, the SMT NG/OK Magazine Unloader is designed for continuous operation in demanding environments. Its robust construction reduces wear and tear, and its low-maintenance features help minimize downtime. The machine’s components are designed for easy servicing, reducing the need for frequent repairs and ensuring long-term, uninterrupted production.
LED inspection lights, metal chain conveyors, and ionizer fans stand ready. Automatic width motors and segment transport control handle special requirements. Every option arrives fully tested. These choices let the smt mini pcb magazine loader match any SMT layout precisely.
| Specification
| Specification | Model HNU250 | Model HNU330 | Model HNU390 | Model HNU460 |
|---|---|---|---|---|
| Dimension (mm) | 178014501680 | 206516301680 | 266017601680 | 266019501680 |
| PCB Size (mm) | 8070330*250 | 8070445*330 | 8070530*390 | 8070530*460 |
| Rack Size (mm) | 355320563 | 460400563 | 535460570 | 535530570 |
| PCB Thickness | 0.4-5.0mm | 0.4-5.0mm | 0.4-5.0mm | 0.4-5.0mm |
| PCB Weight | ≤2.0kg | ≤2.0kg | ≤2.0kg | ≤2.0kg |
| PCB Component Height | ±15mm | ±15mm | ±15mm | ±15mm |
| Time Feed PCB | Seconds 9 Approx. or Specify | Seconds 9 Approx. or Specify | Seconds 9 Approx. or Specify | Seconds 9 Approx. or Specify |
| Indexing Pitch | 10.20.30.40.50mm or Specify | 10.20.30.40.50mm or Specify | 10.20.30.40.50mm or Specify | 10.20.30.40.50mm or Specify |
| Control System | PLC | PLC | PLC | PLC |
| Power | Max 300VA | Max 300VA | Max 300VA | Max 300VA |
| Air Supply | 4-6bar, 10ltr/Min | 4-6bar, 10ltr/Min | 4-6bar, 10ltr/Min | 4-6bar, 10ltr/Min |
| Transport Height | 910±30mm (or Customer Specified) | 910±30mm (or Customer Specified) | 910±30mm (or Customer Specified) | 910±30mm (or Customer Specified) |
| Transport Belt | 3.8mm Anti-static Flat Belt | 3.8mm Anti-static Flat Belt | 3.8mm Anti-static Flat Belt | 3.8mm Anti-static Flat Belt |
| Power Supply | 1 PH AC 220V 50/60Hz (Option: 110V to 380V) | 1 PH AC 220V 50/60Hz (Option: 110V to 380V) | 1 PH AC 220V 50/60Hz (Option: 110V to 380V) | 1 PH AC 220V 50/60Hz (Option: 110V to 380V) |
| Weight | 360 Kg | 380 Kg | 420 Kg | 460 Kg |
| Option | Dual size magazine, Automatic width adjustment, MES System | |||
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
We deliver Smart SMT Assembly Line that provide fully automatic, high-speed, and ultra-reliable PCBA manufacturing. Our proven setup starts with the PCB Loader Unloader, moves to a precision automatic printer for perfect solder paste application, continues with LED SMT machines for accurate component placement, passes through a Vacuum Reflow Soldering for strong solder joints, and finishes with AOI Testing Machine to catch any defect. Every machine communicates seamlessly, reducing labor and boosting first-pass yield. This complete solution meets automotive, medical, consumer, and LED industry standards while keeping operating costs low and uptime extremely high
| Customer Success Story-Successful SMT Line Delivery in Germany
I.C.T successfully delivered a fully automated SMT production line to a client in Germany’s LED industry in April 2026. Our engineers provided on-site technical support, including installation and training of the entire line, which included the SMT NG/OK Magazine Unloader, pick-and-place machines, reflow ovens, and conveyors. The customer reported significant improvements in production efficiency and a reduction in operational delays following the installation.
| On-Site Support and Training
I.C.T offers comprehensive on-site installation and training services to ensure the smooth operation of the SMT NG/OK Magazine Unloader. Our engineers handle the installation, integration, and training, ensuring your team can operate the equipment with confidence. We also offer remote technical support to resolve any issues quickly, ensuring minimal downtime and optimizing your production process.
| Customer Praise
“The installation of the SMT NG/OK Magazine Unloader was smooth, and the training provided was excellent. Since incorporating the unloader into our production line, we’ve seen a significant improvement in efficiency, and the separation of NG and OK boards is now fully automated. We are very satisfied with I.C.T’s products and support.” – A satisfied customer in the electronics industry.
| Global Certifications and Quality Standards
The SMT NG/OK Magazine Unloader meets international safety and quality standards, including CE, RoHS, and ISO9001. These certifications ensure that the unloader is built to the highest standards of safety, reliability, and environmental compliance, making it a trusted solution for your SMT production line.
| About I.C.T and Our Manufacturing Capabilities
I.C.T is a global leader in providing advanced SMT and DIP solutions. With over 20 years of experience, we specialize in designing and manufacturing high-quality equipment for the electronics industry. Our facilities are equipped with cutting-edge technology, and we maintain strict quality control processes to ensure the highest level of performance and reliability. We serve clients in over 70 countries, delivering tailored solutions that optimize production efficiency and ensure reliable performance across a variety of industries.
