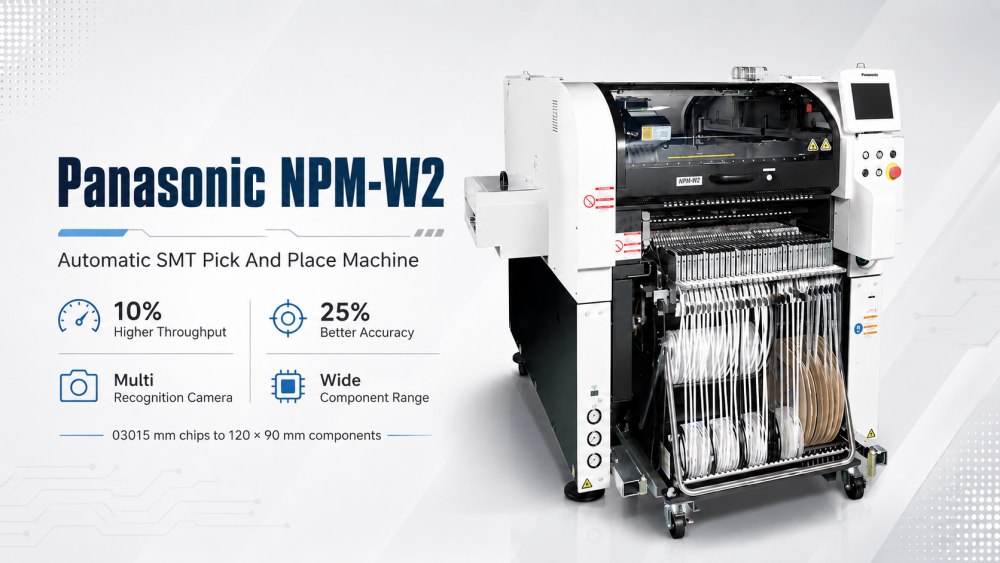

The Panasonic Pick And Place Machine NPM-W2 is designed for factories that need stable SMT PCB mounting, high placement accuracy, and flexible component handling. Compared with the original NPM-W platform, this model improves throughput by about 10% and accuracy by about 25%, helping manufacturers improve line performance without changing the whole production concept. It supports a wide component range, from tiny 03015 mm microchips to large components up to 120 × 90 mm, 40 mm tall, and long connectors up to about 150 mm. For factories producing consumer electronics, industrial boards, computer-related PCBAs, or power modules, the Panasonic NPM-W2 Pick And Place Machine offers a practical balance between speed, precision, and production flexibility.
The NPM-W2 uses a Multi Recognition Camera that combines several inspection functions in one system. It supports 2D alignment, component thickness inspection, and 3D coplanarity measurement. This is useful for factories that need more stable placement quality, especially when the PCB includes small chips, ICs, connectors, or mixed-size components. Better recognition before placement can reduce mounting defects and make later AOI results easier to control. For an Automatic SMT Pick And Place Machine, recognition quality is not just a camera feature. It directly affects soldering stability, rework rate, and final product reliability.
The Panasonic SMT PCB Mounting Machine can handle very small and large components in one production platform. The product data shows support from 03015 mm microchips to large components up to 120 × 90 mm and 40 mm height. It can also support nearly 150 mm long connectors. This range is helpful for factories that produce different PCB products on the same line. One board may have small passive parts, while another may include large connectors or special devices. A wider component range gives engineers more room when planning future products.
The NPM-W2 improves the original NPM-W capability with higher output and better accuracy. In real SMT production, this improvement helps the full line run with fewer bottlenecks when printing, placement, reflow, and inspection are matched correctly. The Best Pick And Place Machine For SMT Line should not only mount components quickly. It should also keep placement stable during long production hours. With proper line design, material preparation, and process control, the NPM-W2 can support both batch production and flexible manufacturing needs.
Panasonic SMT PCB Mounting
Higher productivity and quality with printing, placement and inspection process integration
Versatility for large PCBs and components
5M* process control “APC-5M” for good production and stable operation * 5M: The variable elements of a production site: huMan, Machine, Material, Method, and Measurement
Various skill-less and manpower-saving features including Auto Setting Feeder
| Specification
| Specification Item | NPM-W2 |
|---|---|
| PCB Dimensions (mm) | Single conveyor Batch mounting: L 50 mm × W 50 mm ~ L 750 mm × W 550 mm 2-position mounting: L 50 mm × W 50 mm ~ L 350 mm × W 550 mm Dual conveyorDual transfer (Batch): L 50 mm × W 50 mm ~ L 750 mm × W 260 mm Dual transfer (2-position): L 50 mm × W 50 mm ~ L 350 mm × W 260 mm Single transfer (Batch): L 50 mm × W 50 mm ~ L 750 mm × W 510 mm Single transfer (2-position): L 50 mm × W 50 mm ~ L 350 mm × W 510 mm |
| Placement Head Max Speed | 42,000 CPH (0.086 s / chip) 35,000 CPH (0.103 s / chip) |
| Placement Head Placement Accuracy (Cpk ≥ 1) | ±40 μm / chip ±30 μm / chip |
| Component Dimensions | 03015 chip ~ L 120 × W 90 × T 30 / T 40 or L 150 × W 25 × T 30 / T 40 |
| Maximum Number of Component Supply | 120 |
| Tape Width Calculation | 4 mm, 8 mm |
*Values such as maximum speed may vary depending on operating conditions.
*Please contact I.C.T for details.
