SM482plus
Hanwha
| Quantity: | |
|---|---|
| Reliable Hanwha SMT Pick and Place Machine
The SMT pick and place machine from Hanwha offers reliable performance for modern electronics manufacturing. These machines deliver high speed and accuracy, making them ideal for SMT lines. Common features include on-the-fly vision recognition for faster placement, mixed use of electric and pneumatic feeders to reduce costs, and easy software for quick setup. They handle various PCB sizes and components with precision. I.C.T supplies these advanced SMT pick and place machines, along with complete line planning, installation, and training services to help customers build efficient production systems worldwide.
| Model Introduction

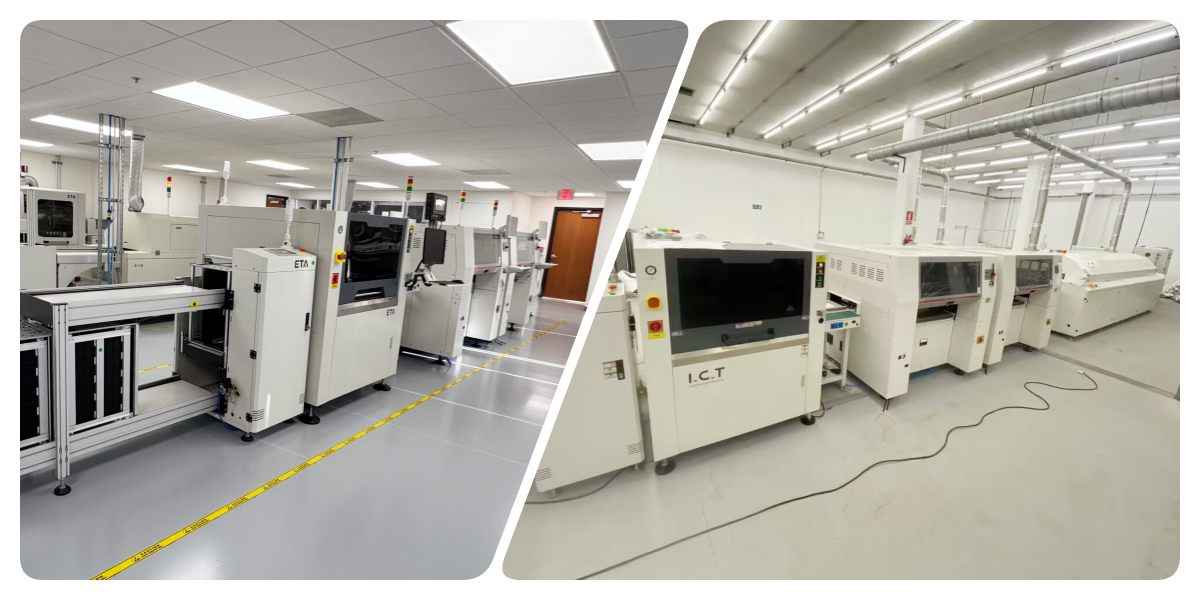

High-Speed Model: SM471Plus
The SM471Plus is a high-speed SMT pick and place machine with one gantry and 10 spindles per head. It achieves up to 78,000 CPH optimum speed, suitable for small chips like 0402. With flying vision, it offers good accuracy for high-volume production in industries like consumer electronics and mobile devices.

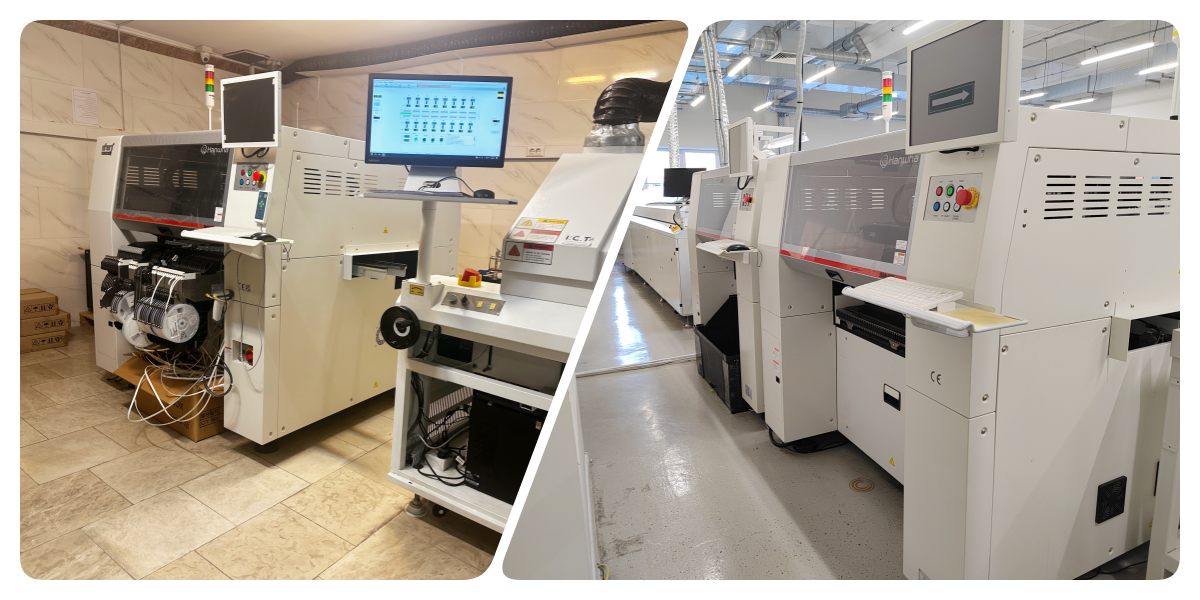

Flexible Mid-Speed Model: SM481Plus
The SM481Plus provides flexible placement with one gantry and 6 spindles per head. It reaches 40,000 CPH and handles larger components up to BGA/QFP with higher accuracy. This model suits diverse applications in automotive and appliance manufacturing where varied part sizes are common.

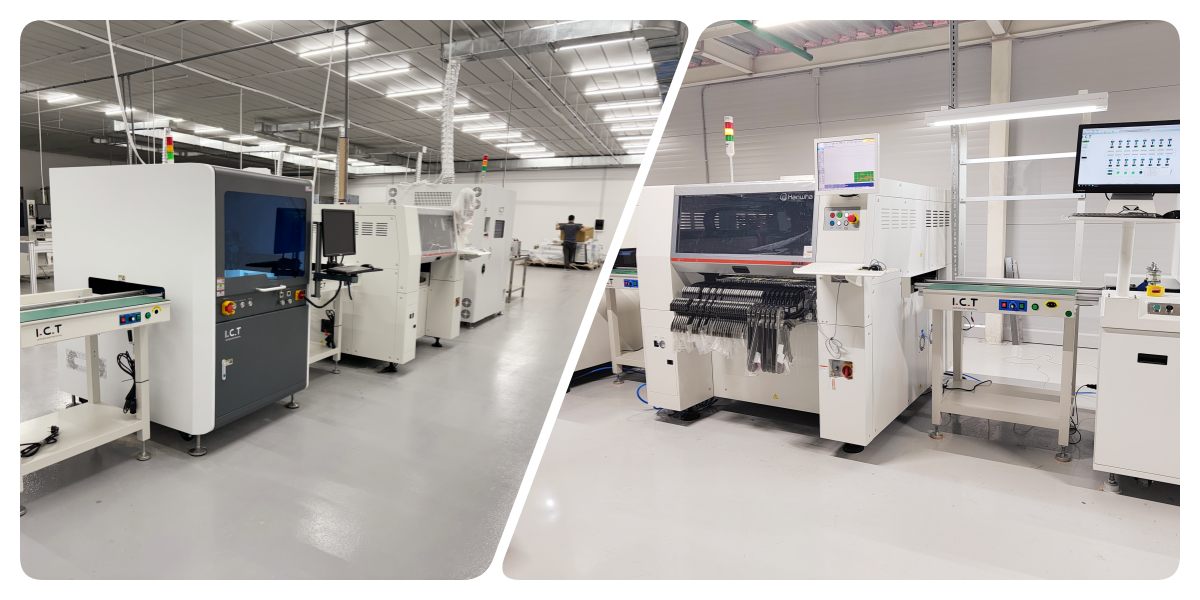

Multi-Functional Model: SM482Plus
The SM482Plus is a versatile SMT pick and place machine with one gantry and 6 spindles. It delivers 30,000 CPH and excels at odd-shaped components. Ideal for industries needing flexible production, like lighting and industrial electronics, it supports larger PCBs up to 1,200mm.

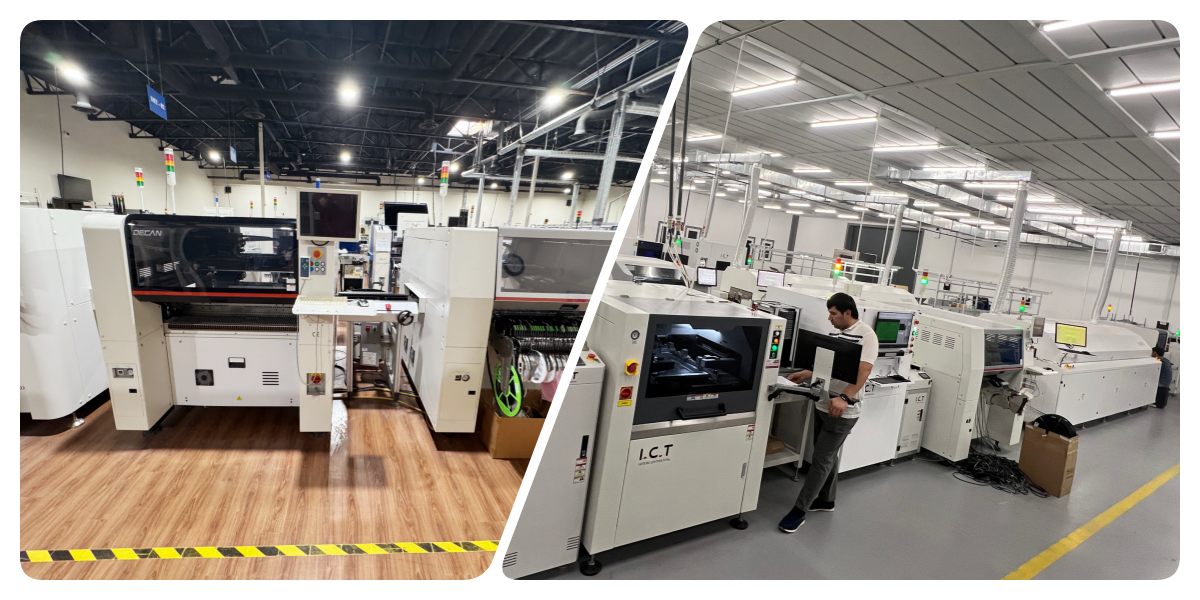

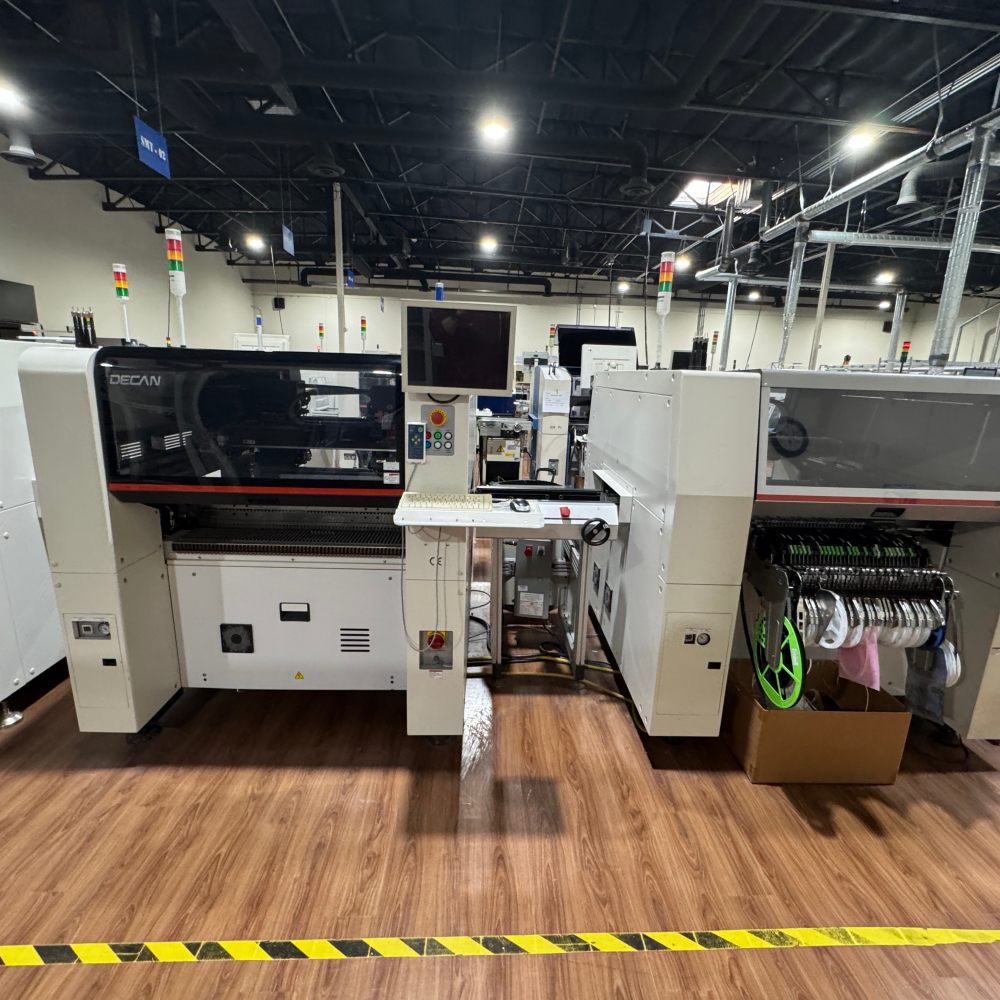

Advanced Flexible Model: DECAN L2
The DECAN L2 features two gantries with 6 spindles per head for multi-functional placement. It places up to 56,000 CPH and handles wide components up to 55mm. This model fits LED and large board production in lighting and display industries, with options for dual-lane efficiency.
| Specification
| Parameter | SM471Plus | SM481Plus | SM482Plus | DECAN L2 |
|---|---|---|---|---|
| Placement Speed (Optimum) | 78,000 CPH | 40,000 CPH | 30,000 CPH | 56,000 CPH |
| Number of Spindles | 10 Spindles/Head (1 Gantry) | 6 Spindles/Head (1 Gantry) | 6 Spindles/Head (1 Gantry) | 6 Spindles/Head (2 Gantries) |
| Placement Accuracy (Chip) | ±40µm (0402) | ±40µm (0402) | ±40µm (0402) | ±28µm (03015) |
| Placement Accuracy (IC) | ±50µm | ±30µm | ±30µm | ±25µm |
| Component Range | 0402 ~ □14mm (H12mm) | 0402 ~ □42mm (H15mm) | 0402 ~ □55mm (H15mm) | 0402 ~ □21mm (H12mm, up to □55mm opt.) |
| Max PCB Size (Standard) | 510 x 460mm | 460 x 400mm | 740 x 460mm | 510 x 460mm |
| Max PCB Size (Option) | 610 x 460mm | 1,500 x 460mm | 1,200 x 510mm | Up to 1,200 x 460mm |
| Feeder Capacity (8mm) | 120ea | 120ea | 120ea | 120ea |
| Vision System | Flying Vision | Stage Vision | Stage Vision | Flying Vision |
| More SMT Related Products
I.C.T provides complete high-quality SMT lines beyond the SMT pick and place machine. Our full PCBA production solutions include vacuum loaders for clean board handling, automatic solder paste printers for precise application, multi-zone reflow ovens for strong soldering, and advanced AOI systems to detect defects. These machines work together seamlessly in tight, efficient lines. This setup delivers high yield, low cost, and reliable performance for demanding industries like automotive, medical, lighting, and consumer electronics. Boards come out ready for real-world use. We offer full planning and support to build your ideal SMT production system.
| Product Name | Purpose in SMT Line |
|---|---|
| SMT Line | Turkey Fully Automated Traceable High-End SMT Line. |
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| Inspection Machine | SMT inspection devices like AOI, SPI, X-ray, and stencil inspecter. |
| Traceability Equipment | Records and tracks production data. |
| Customer Success Video
The video shows I.C.T engineers traveling to Tajikistan to support an LED customer. It captures unloading of equipment, including two full SMT lines with multiple Hanwha SMT pick and place machines, one DIP line, one coating line, one dispensing line, and one LED bulb assembly line. Engineers install and assemble the machines on site, provide hands-on training to local staff, and demonstrate successful production of various LED products like bulbs. The video ends with the customer sharing positive feedback on the smooth setup and high-quality output achieved.
| Service and Training Support
I.C.T offers complete service and training for SMT equipment. Our team provides demand analysis, line planning, installation, and on-site training. Engineers travel globally for technical support, ensuring quick setup and smooth operation. We also help with process optimization and upgrades to keep your production efficient and reliable.
| Client Testimonials
Customers praise I.C.T engineers for professional and patient support. They love the reliable Hanwha SMT pick and place machines for stable performance. Safe packing ensures safe delivery, and our team responds quickly to questions. Many say the training helps them start production fast with good results.
| Certifications and Standards
I.C.T holds key certificates like CE for safety, RoHS for environmental standards, and ISO9001 for quality management. We also have multiple patents for innovative solutions. These ensure our SMT pick and place machines and services meet global standards for reliability and compliance.
| About I.C.T Company and Factory
I.C.T is a leading SMT solution provider with our own R&D and production facilities. We have 89 staff, including 20 engineers, and have grown rapidly since 2012. Serving over 1600 customers in 72 countries, we cover full electronics manufacturing lines. Our factory follows strict testing and quality systems to deliver reliable equipment worldwide.
