| Powerful SMT Assembly Machine

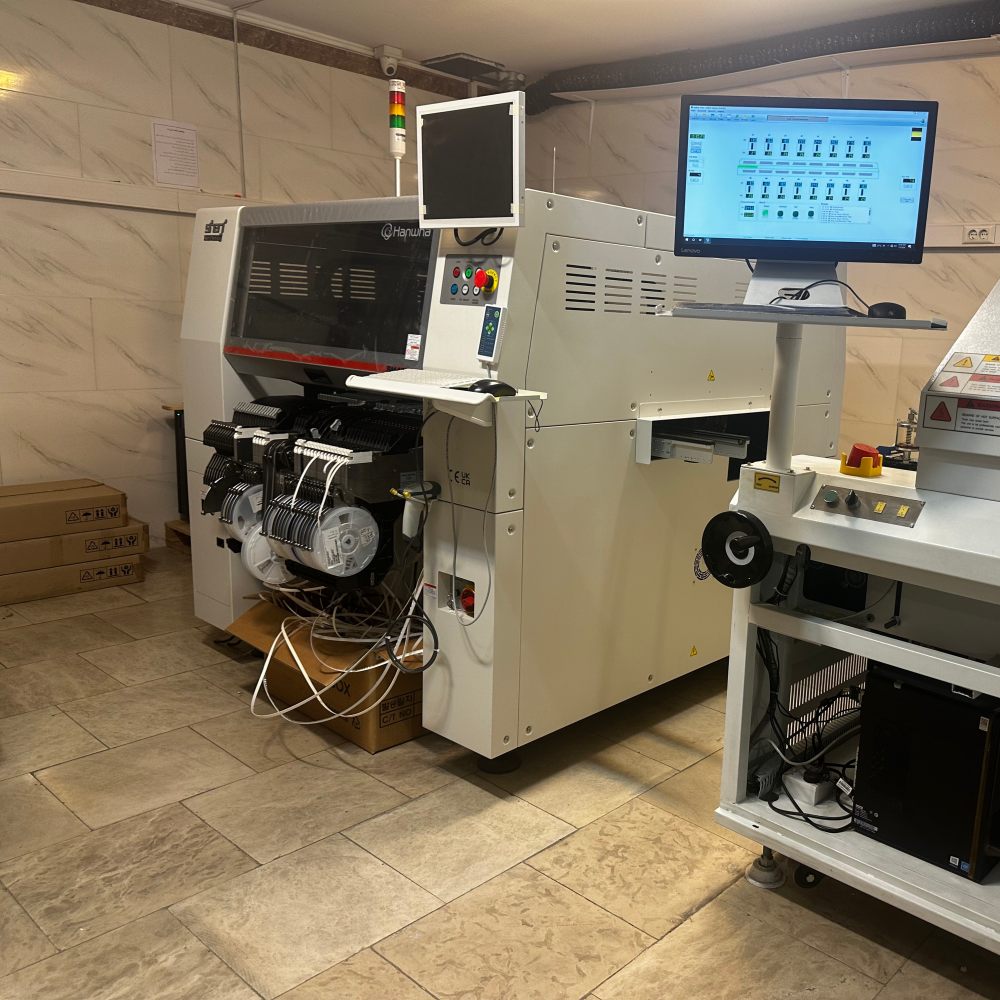

The SMT assembly machine from Hanwha represents the finest in Korean engineering, trusted by leading manufacturers worldwide. Every model shares sophisticated common technologies: on-the-fly vision recognition that identifies components without stopping motion, seamless mixing of electric and pneumatic feeders that work with your existing inventory, and intuitive software that makes programming remarkably simple. These machines accommodate a wide variety of PCB dimensions and component types while maintaining exceptional accuracy. I.C.T proudly distributes these outstanding SMT assembly machines and delivers comprehensive solutions—from initial line design through installation and thorough staff training—ensuring customers achieve world-class production anywhere on the globe.
| Model Introduction
High-Speed Model: SM471Plus
The SM471Plus stands as the flagship high-speed nozzle pick and place machine, equipped with one gantry and ten spindles per head. It achieves an impressive 78,000 CPH under optimal conditions using flying vision, perfect for 0402 micro-chips. Accuracy remains ±40µm for chips and ±50µm for ICs. Major consumer electronics and smartphone manufacturers select this SMT assembly machine when absolute volume and velocity are required. Standard PCB handling reaches 510×460mm, with larger options readily available.
Flexible Mid-Speed Model: SM481Plus
The SM481Plus offers refined flexibility with one gantry and six spindles per head, delivering 40,000 CPH while managing components up to 42mm. Stage vision enhances IC accuracy to ±30µm. Automotive and appliance producers favor this model for its ability to switch smoothly between diverse part sizes. Single-lane configuration accepts extra-long boards up to 1,500mm, providing genuine versatility for sophisticated mixed-production environments.
Multi-Functional Model: SM482Plus
The SM482Plus excels in challenging applications using one gantry with six spindles to maintain 30,000 CPH. It masters odd-form components and large boards up to 1,200×510mm, keeping IC accuracy at ±30µm via stage vision. LED lighting and industrial electronics companies rely on this SMT assembly machine when unusual shapes or oversized panels demand flawless execution without compromising line speed.
Advanced Flexible Model: DECAN L2
The DECAN L2 commands respect with twin gantries, each carrying six spindles, producing 56,000 CPH while handling components up to 55mm. Flying vision delivers extraordinary ±28µm chip accuracy. Large-panel LED manufacturers and high-mix facilities choose this advanced nozzle pick and place machine for dual-lane capability and boards extending to 1,200mm, bringing true heavy-duty performance to demanding SMT lines.
| Specification
| Parameter | SM471Plus | SM481Plus | SM482Plus | DECAN L2 |
|---|---|---|---|---|
| Placement Speed (Optimum) | 78,000 CPH | 40,000 CPH | 30,000 CPH | 56,000 CPH |
| Number of Spindles | 10 Spindles/Head (1 Gantry) | 6 Spindles/Head (1 Gantry) | 6 Spindles/Head (1 Gantry) | 6 Spindles/Head (2 Gantries) |
| Placement Accuracy (Chip) | ±40µm (0402) | ±40µm (0402) | ±40µm (0402) | ±28µm (03015) |
| Placement Accuracy (IC) | ±50µm | ±30µm | ±30µm | ±25µm |
| Component Range | 0402 ~ □14mm (H12mm) | 0402 ~ □42mm (H15mm) | 0402 ~ □55mm (H15mm) | 0402 ~ □21mm (H12mm, up to □55mm opt.) |
| Max PCB Size (Standard) | 510 x 460mm | 460 x 400mm | 740 x 460mm | 510 x 460mm |
| Max PCB Size (Option) | 610 x 460mm | 1,500 x 460mm | 1,200 x 510mm | Up to 1,200 x 460mm |
| Feeder Capacity (8mm) | 120ea | 120ea | 120ea | 120ea |
| Vision System | Flying Vision | Stage Vision | Stage Vision | Flying Vision |
| More SMT Related Products

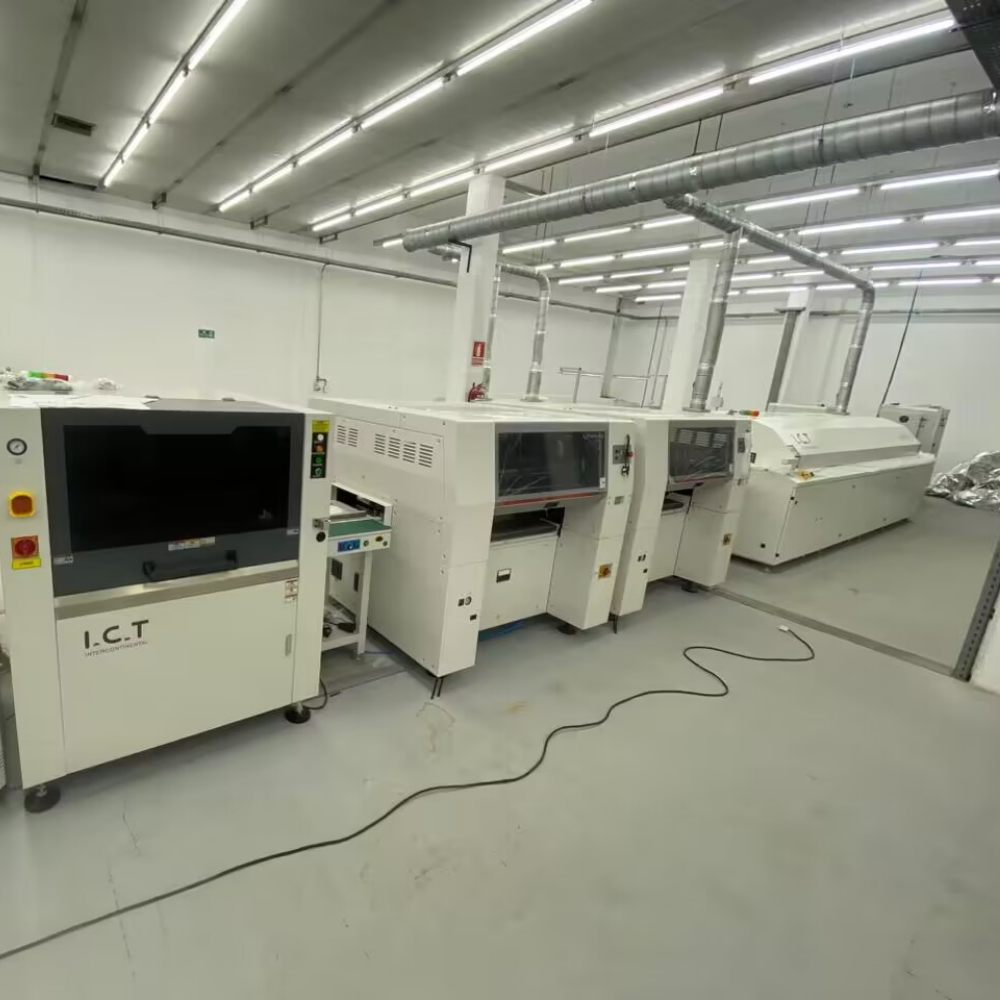

I.C.T creates complete, premium-grade SMT production lines centered around the SMT assembly machine. Our portfolio includes vacuum loaders that maintain spotless board condition, precision solder paste printers, multi-zone reflow ovens that forge unbreakable joints, and state-of-the-art AOI systems that detect every possible defect. All stations integrate perfectly for uninterrupted flow. This total solution dramatically increases yield, reduces overall cost, and performs reliably under the toughest conditions in automotive, medical, lighting, and consumer electronics manufacturing. Finished boards leave the line fully prepared for real-world applications, backed by our comprehensive planning and lifelong support.
| Product Name | Purpose in SMT Line |
|---|---|
| SMT Line | Turkey Fully Automated Traceable High-End SMT Line. |
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| Inspection Machine | SMT inspection devices like AOI, SPI, X-ray, and stencil inspecter. |
| Traceability Equipment | Records and tracks production data. |
| Customer Success Video
In Tajikistan, two I.C.T engineers arrived to launch a major LED production facility. The client received two complete SMT lines featuring multiple SMT assembly machines, plus DIP, coating, dispensing, and dedicated LED bulb assembly lines. The video documents safe unloading, precise installation, detailed operator training, and successful first runs producing every type of LED lighting product. Local staff quickly mastered the equipment. The customer concluded with heartfelt praise for the rapid startup and exceptional quality achieved.
| Service and Training Support
I.C.T provides thorough, professional service and training with every SMT assembly machine. We begin with detailed requirement analysis and custom line design, followed by careful transportation, expert installation, and intensive on-site training. Our engineers travel globally to offer immediate technical assistance and process optimization. This complete support system guarantees minimal downtime and maximum long-term performance for every customer.
| Client Testimonials
Customers consistently commend the skill and patience of I.C.T engineers during installation and training. They trust the SMT assembly machine for day-in, day-out reliability. Secure packing survives the longest journeys intact, and our response team answers questions the same day. Most clients report starting volume production quickly with outstanding quality and virtually zero waste.
| Certifications and Standards
I.C.T maintains all major international certifications that confirm quality and safety. We carry CE marking for European compliance, RoHS for environmental responsibility, ISO9001 for rigorous management systems, and numerous patents protecting our original innovations. These credentials assure every customer that their SMT assembly machine and our services meet the highest global standards for performance, safety, and sustainability.
| About I.C.T Company and Factory
I.C.T operates its own advanced R&D and manufacturing facilities in China, employing 89 dedicated professionals including 20 experienced engineers. Since founding in 2012 we have expanded rapidly, now serving over 1600 satisfied customers across 72 countries with complete electronics manufacturing solutions. Every process follows strict quality inspection and control procedures, ensuring dependable, high-performance equipment reaches clients worldwide.
