| SMD Printer Overview
High-Precision Smt Automatic Printer for Reliable Production
The smd printer from I.C.T sets a new standard in SMT solder paste application, combining speed, accuracy, and automation for modern factories. This Stencil Screen Printer delivers a 7-second cycle time with ±0.01mm repeatability and ±0.025mm printing precision. It features automatic PCB calibration, adjustable squeegee pressure, independent printing, and stencil cleaning to eliminate manual errors and waste. Built with premium components from Panasonic motors, Rexroth guides, and Omron sensors, it integrates Industry 4.0 and MES systems for real-time process monitoring and data exchange. Ideal for consumer electronics, automotive, LED, and general PCB assembly, this Pcb Printer Solder Paste Printing supports glue printing and SMEMA compatibility for easy line connection. I.C.T's rigorous quality checks ensure long-term stability, helping you achieve higher yields, lower costs, and scalable production in a solder paste printer line.
| Feature
The arch bridge suspension print head uses dual high-precision stepping motors to control squeegees independently, ensuring stable pressure from 0-15kg and speeds of 10-200mm/sec. Printing accuracy reaches ±0.025mm, with adjustable angles of 45°/55°/60° for solder or glue. Real-time pressure feedback and automatic balancing prevent defects like bridging or insufficient paste. Programmable separation methods detach squeegee, stencil, and substrate smoothly. This setup in the smd printer minimizes waste, supports fine-pitch components, and maintains perfect paste formation across runs, making it essential for high-quality solder paste printer line operations.
A unique belt conveyor drives PCBs at up to 1500mm/s with precise motor control to avoid jams and ensure exact positioning. Side clamps, vacuum nozzles, and optional retractable Z-pressure hold boards firmly for full stencil contact. Transport height is 900±20mm, with flexible left-right or bidirectional flow. Magnetic pins and up-down tables adjust for PCB warpage under 1%. The system changes products in under 5 minutes. Durable parts like NSK bearings reduce maintenance. This design boosts throughput in the Smt Automatic Printer, integrating smoothly into any Pcb Printer Solder Paste Printing setup.
Dry, wet, vacuum, or manual modes clean stencils thoroughly, with CCD separated from the cleaning area for safety. Unique spray distributes alcohol evenly from top to bottom, while software controls consumption to save materials. A dedicated exhaust motor provides strong, consistent vacuum. Automatic cleaning after prints keeps holes clear and prevents contamination. This feature in the Stencil Screen Printer ensures continuous operation without quality drops, ideal for long production shifts in a solder paste printer line.
| Specification
| Model | I.C.T-4034 | I.C.T5134 | I.C.T-5151 |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 737*737 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*340 | 50*50 ~ 510*510 |
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right | ||
| Support System | Magnetic Pin/Up-down table adjusted/support block | ||
| Clamping System | Side clamping(vacuum nozzle,Automation retractable Z pressure is option) | ||
| Printer Head | Two independent motorised printhead | ||
| Squeegee Type | Stainless steel(standard),plastic | ||
| Cleaning System | Dry, Wet, Vacuum | ||
| Inspection | 2D Inspection(Standard) | ||
| Power Supply | AC:220±10%,50/60HZ,3Kw | ||
| Control Method | PC Control | ||
| Dimension(mm) | 1220*1355*1500 | 1220*1355*1500 | 1220*1550*1500 |
| Model | I.C.T-6534 | I.C.T-6561 | I.C.T-9060 |
| Frame Size(mm) | 650*400 ~ 850*750 | 650*400 ~ 850*850 | 737*400 ~ 1100*900 |
| PCB Size(mm) | 50*50 ~ 650*340 | 80*50 ~ 650*610 | 80*50 ~ 900*600 |
| Dimension(mm) | 1330*1370*1500 | 1330*15450*1500 | 1580*1545*1500 |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.

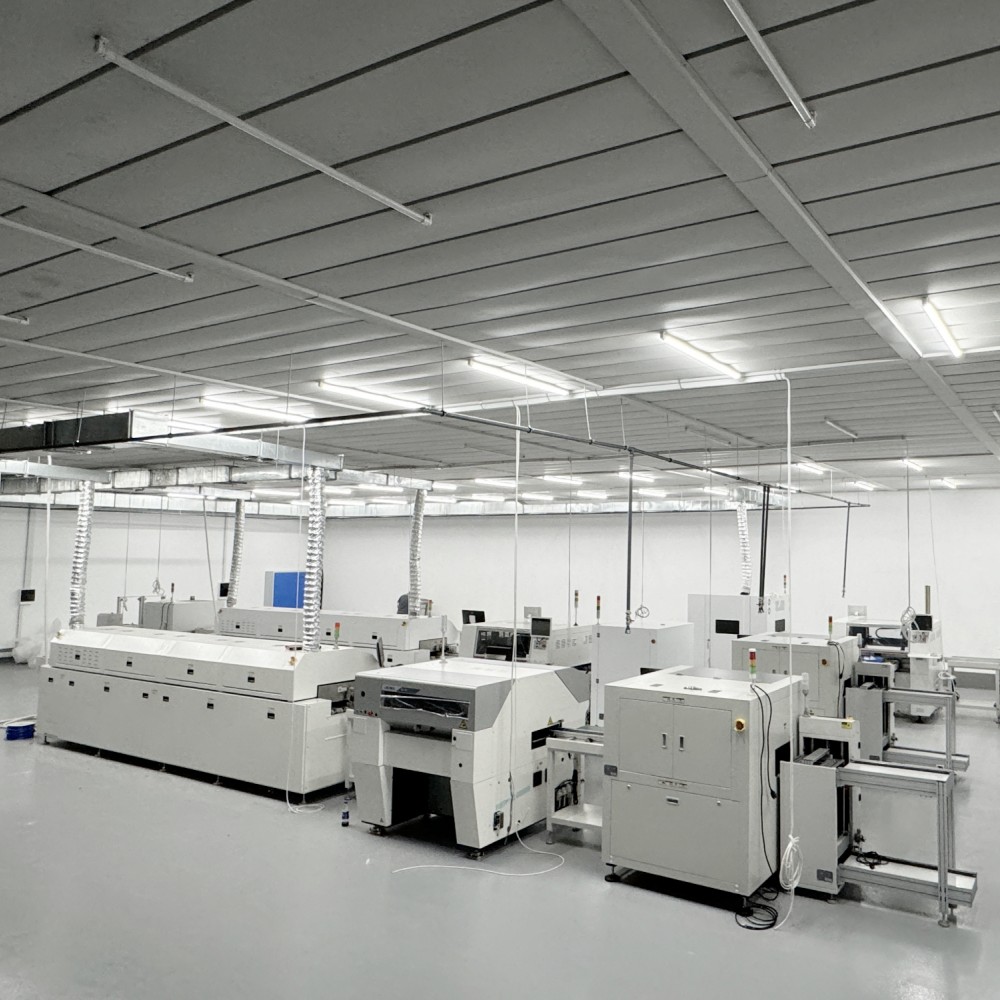

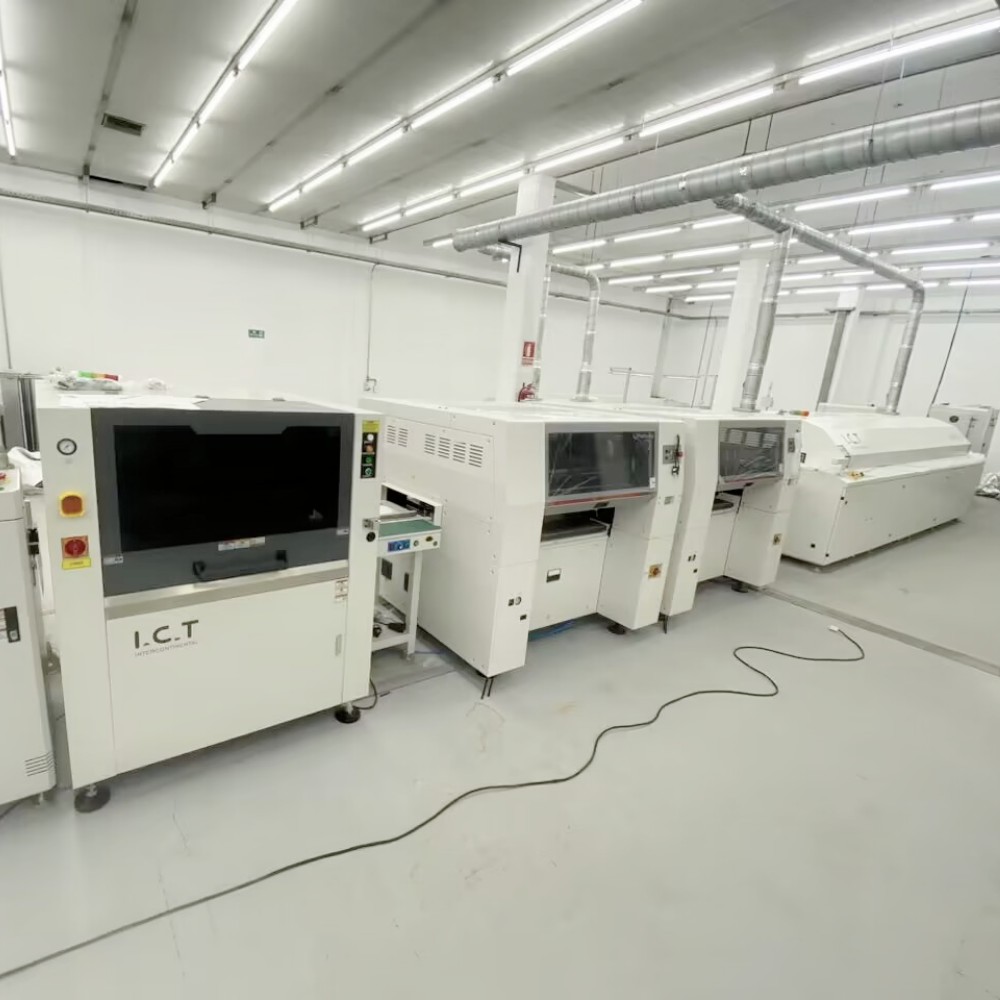

| SMT Line Equipment List
Our High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Product Name | Purpose in SMT Line |
|---|---|
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| AOI Machine | Inspects solder joints and placement defects. |
| SPI Machine | Checks solder paste height and quality. |
| Traceability Equipment | Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer |
| Customer Success Video
I.C.T engineers flew to North America to install and support two full SMT production lines for a beauty instrument manufacturer. The lines featured laser marking machines, smd printer with SPI, Panasonic placement machines, Heller reflow ovens, AOI inspection, PCB conveyors, PCBA cleaning units, and automatic solder paste storage warmers. Our team managed complete installation, equipment alignment, software linking, and process optimization under tight schedules. We provided in-depth training for local operators, resolved issues on-site, and fine-tuned for maximum efficiency. The lines achieved 99% uptime and passed rigorous production acceptance testing quickly. Now, the client produces high-volume beauty devices for international markets. This project demonstrates I.C.T's global expertise in overseas deployments, delivering turnkey solutions that build reliable, high-output systems.
| Service and Training Support
Complete Support and Professional Training
I.C.T provides full lifecycle services for your smd printer, starting with demand analysis, line planning, and custom solutions. Our worldwide team handles on-site installation, commissioning, and integration with existing equipment. Training programs include hands-on sessions for operation, maintenance, troubleshooting, and Industry 4.0/MES setup, available remotely or in-person. With eight branches and 24/7 support, we offer rapid response, spare parts supply, and periodic audits to keep performance optimal. We cover process optimization, upgrades, and risk reduction to lower costs and boost productivity. Partner with I.C.T for worry-free transitions from planning to full-scale production in your Smt Automatic Printer environment.
| Positive Feedback from Customers
Customers appreciate I.C.T's reliable service and equipment. "The engineers praised our quick issue resolution and thorough training on the smd printer," notes an automotive client. A North American beauty firm says, "The Stencil Screen Printer exceeds expectations with zero defects and fast cycles." Packaging earns compliments: "Secure crates protected everything during long-distance shipping." Response times impress: "Problems solved in hours with immediate parts delivery." These testimonials highlight our engineers' expertise, durable machines, safe transport, and prompt support, fostering long-term partnerships.
| Certifications and Standards
I.C.T holds CE for equipment safety, RoHS for environmentally friendly materials, and ISO9001 for comprehensive quality management systems. We own multiple patents in printing accuracy, cleaning efficiency, separation control, and transport stability. These credentials ensure every smd printer meets international standards from design through manufacturing and testing.
| About I.C.T Company and Our SMT Factory
Global SMT Solution Provider
Established in 2012, I.C.T has expanded rapidly with 89 employees, including 20 engineers, across 12,000m² facilities in Dongguan, China. We operate eight branch offices and serve over 1,600 customers in 72 countries. Our in-house R&D, production, and strict quality processes—like 48-hour burn-in tests and precision calibrations—guarantee reliable products under ISO9001. With $30 million registered capital, we emphasize integrity, simplicity, openness, coordination, and sharing. Globalization meets localization through worldwide support, helping clients build or upgrade SMT lines from zero to high-volume. Our growth reflects trusted partnerships and innovative full-factory solutions.
