SMT Stencil Printer
| Quantity: | |
|---|---|

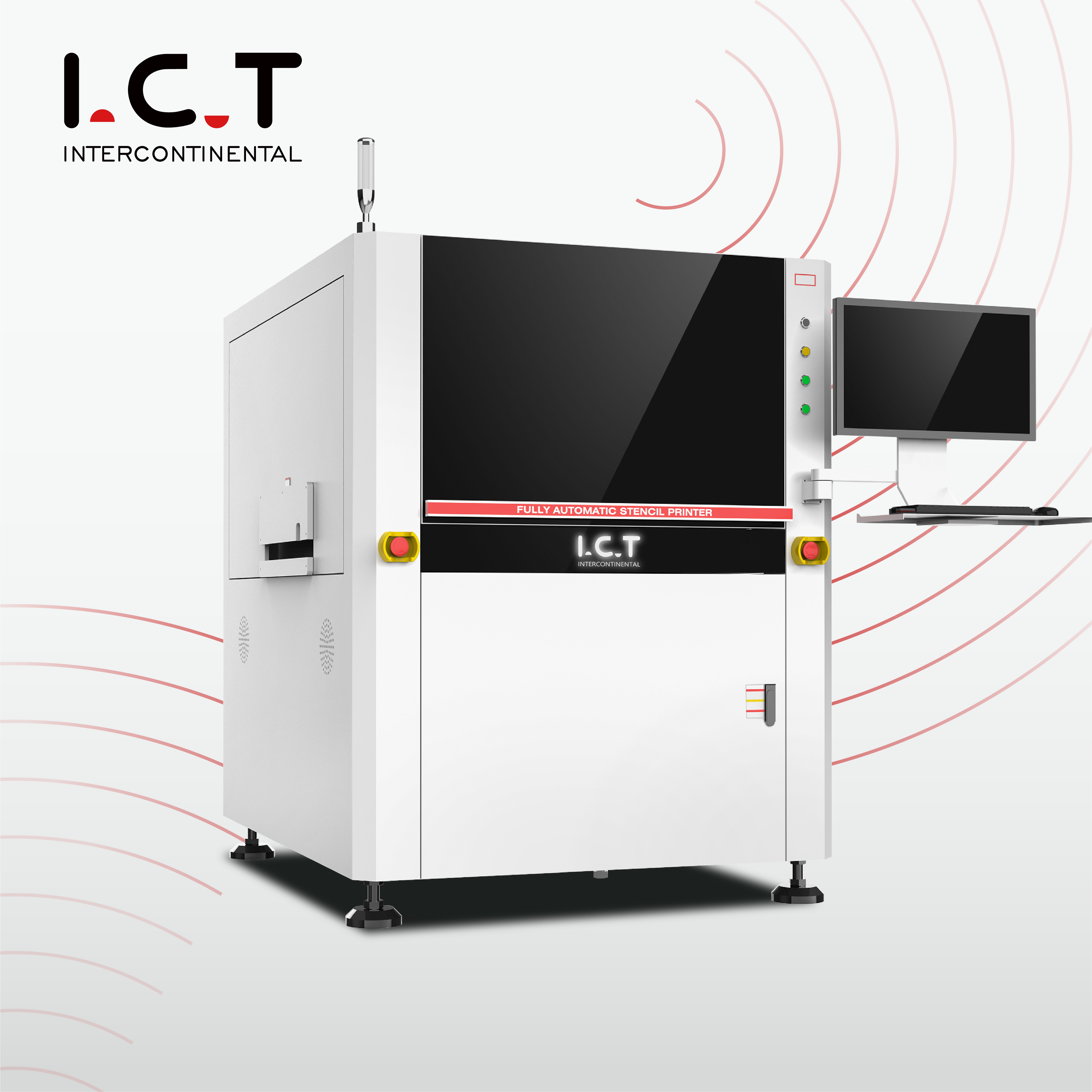

| SMT Fully Automatic Stencil Printer
The SMT Fully Automatic Stencil Printer from I.C.T is a top choice for efficient SMT printing. With a fast 7-second cycle and high repeatability of ±0.01mm, it meets various needs like LCD TV and vehicle electronics production. This machine features automatic PCB calibration, adjustable squeegee pressure, and advanced cleaning systems. Designed for simplicity and performance, it supports stencil sizes from 470370mm to 737737mm and PCB sizes up to 400*340mm. I.C.T’s expertise ensures reliable results, making it ideal for modern manufacturing lines worldwide.
| Feature
The SMT Stencil Printer delivers high precision with a repeat positioning accuracy of ±0.01mm and printing accuracy of ±0.025mm. This ensures consistent solder paste application on PCBs, reducing errors in production. The machine uses advanced servo control components for stable operation, making it perfect for detailed electronics like LED and STB products. Its reliable performance saves time and improves quality, meeting the needs of global manufacturers.
This fully automatic SMT stencil printer features an automatic PCB calibration system. It adjusts the PCB position accurately before printing, ensuring perfect alignment with the stencil. This feature, combined with a programmable lifting platform, supports various PCB thicknesses from 0.4mm to 6mm. It enhances production efficiency and is ideal for diverse applications, including family cinema and vehicle electronics.
The printer includes a versatile cleaning system with dry, wet, and vacuum modes. Separating the cleaning part from the CCD ensures effective stencil maintenance. A unique spray system cleans evenly from top to bottom, while software controls alcohol and paper use to save materials. This feature reduces downtime and maintains high-quality printing for general electronics products.
| Specification
| Model | I.C.T-4034 | I.C.T5134 | I.C.T-5151 |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 737*737 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*340 | 50*50 ~ 510*510 |
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right | ||
| Support System | Magnetic Pin/Up-down table adjusted/support block | ||
| Clamping System | Side clamping(vacuum nozzle,Automation retractable Z pressure is option) | ||
| Printer Head | Two independent motorised printhead | ||
| Squeegee Type | Stainless steel(standard),plastic | ||
| Cleaning System | Dry, Wet, Vacuum | ||
| Inspection | 2D Inspection(Standard) | ||
| Power Supply | AC:220±10%,50/60HZ,3Kw | ||
| Control Method | PC Control | ||
| Dimension(mm) | 1220*1355*1500 | 1220*1355*1500 | 1220*1550*1500 |
| Model | I.C.T-6534 | I.C.T-6561 | I.C.T-9060 |
| Frame Size(mm) | 650*400 ~ 850*750 | 650*400 ~ 850*850 | 737*400 ~ 1100*900 |
| PCB Size(mm) | 50*50 ~ 650*340 | 80*50 ~ 650*610 | 80*50 ~ 900*600 |
| Dimension(mm) | 1330*1370*1500 | 1330*15450*1500 | 1580*1545*1500 |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
Our High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Product Name | Purpose in SMT Line |
|---|---|
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| AOI Machine | Inspects solder joints and placement defects. |
| SPI Machine | Checks solder paste height and quality. |
| Traceability Equipment | Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer |
