I.C.T-T8 | Hot Air 8 Trays Electric Reflow Convection Oven with High Quality

High Performance reflow oven, compact body, high-quality reflow soldering oven, high-end CBS SMD reflow oven, for SMT PCBA production line.
Buy it with your trusted partner! I.C.T brings 26 years of experience in the SMT industry.
Highlights: On-site installation and training Available, 24/7 Customer Service. Highly Trained Experts.Accurate and economical. Vision guided DIY kit. Easy To Assemble. Open Source Software.
  • I.C.T-T8
  • I.C.T
Availability:
Quantity:

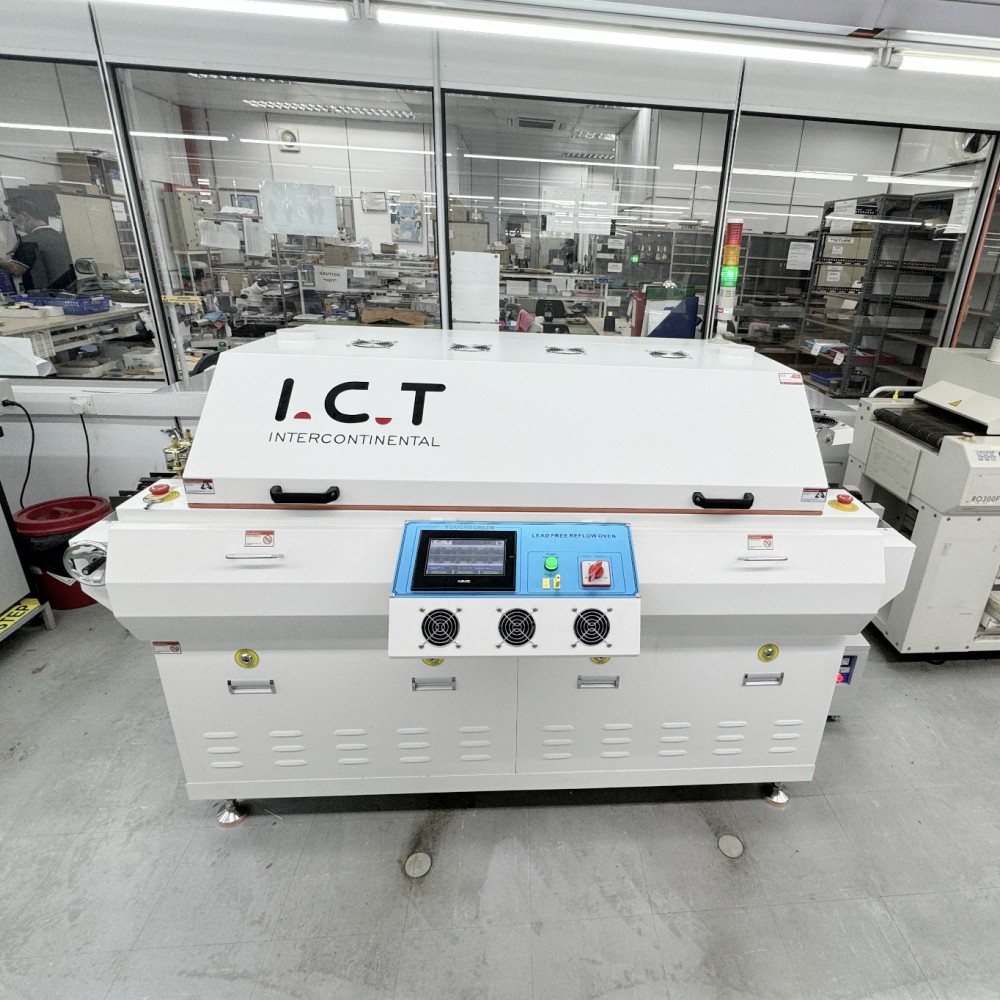

Hot Air 8 Trays Electric Reflow Convection Oven with High Quality

Introduction

Reflow Soldering Oven

1. Control System: Touch screenPLC control system,accurate temperature control and more stable,ensures temperature stability rate to be
more than 99.99%.
2. First-class heating module,the effective utilization and thermal compensation efficiency, temperature control accuracy± 1℃.
3. Products comply with CE, CCC, other standards and specifications.
4. User-friendly design: fault detection (such as heaters abnormal alarm, etc.), regular maintenance reminders, the economy functions and tool-free maintenance, reducing equipment failure rates.
5. Heating module: Transverse reflow design makes temperature from each zone is not influenced by neibour to ensure accurate temperature curve, while ensuring a high production capacity and heat exchange capacity to achieve high adaptability (to meet the soldering of automotive,communications,computers and mobile phones consumer electronics.)
6. Hot air motor with independently inverter controlled, set operating frequencies depending on different technology to meet a variety of lead-free processes.
7. Main parts:Imported main parts ensure equipment runs smoothly and lower the maintenance cost.
8. Closed-loop transmission speed control systems,transportation accuracy ± 2mm/min,ensuring stable transmission speed.

9. Central support is optional.


Reflow Soldering Oven Design concept

Design concept

Reflow Soldering Oven Transportation system

Transportation system

Reflow Soldering Oven Chamber system

Chamber system

Reflow Oven Hot-air system

Hot-air system

Reflow Oven Heating system

Heating system

Reflow Oven Operating system

Operating system



Model T4 T6 T8
Dimension (L*W*H)mm
2000x890x1250
2500x890x1250
3100x890x1250
Weight
Approx.550KG
Approx.850KG
Approx.950KG
Number Of Heating Zones
Up4/Bottom4
Up6/Bottom6
Up8/Bottom8
Length Of Heating Zones
980mm
1550mm 2100mm
Power For Warm Up
20kw 26kw 30kw
Power Consumption
5kw 7kw 9kw
Transmission Agent
Mesh+Rail
Max.Width Of PCB
300mm
Conveyor Height
900+/-20mm


FAQ

Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.



Q:Are you a trade company or a manufacturer?
A: OEM & ODM service are available.



Q: What is your delivery date?
A: The delivery date is about 35 days after receipt of payment.



Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.



Q: What your main customers?
A: Huawei,Foxconn,Vtech,Sumida,Kemet,Vishay,Bosch,Canon.



Q:  Why choose us?
A: Leading SMT Supplier in China; Trade assurance to USD 560,000+; Professional after-sales service team.
