SS-330
I.C.T
| Quantity: | |
|---|---|
| Selective Soldering Wave Machine Overview
Fully designed and built in our own Dongguan factory, the I.C.T Selective Wave Soldering Machine is the ultimate off-line Selective Wave Soldering Process for high-mix, medium-volume factories that demand flexibility without sacrificing quality. The PCB stays perfectly still while a feather-light cast-aluminum gantry—running on Panasonic servos and precision rails—delivers flux and solder exactly where needed in just 1.5 seconds per point. Inline nitrogen heating produces mirror-bright joints with almost no waste. Operators set every parameter—paths, temperatures, spray volume, wave height—on a large Windows touchscreen and store endless programs for instant changeovers. Auto wave calibration, live CCD, German jet valve, and titanium pot make this Selective Wave Soldering Machine a true 24/7 workhorse.
| DIP Line Equipment List
German high-frequency pulse valve shoots micro-dots of low-solids flux (<10%) repeatable to 0.02 mm. Pressurized tank plus digital flow meter keep pressure rock-solid even when the tank is almost empty. Residue slides into a pull-out tray for two-second cleanup. Japanese SMC pneumatics and front gauges make daily checks effortless. Automatic extraction pump guarantees constant supply. This precision flux system activates every pad perfectly on the Selective Wave Soldering Machine.
Fully adjustable bottom IR is standard; top hot-air convection or extra IR optional. Open-grid layout plus thick high-temp insulation spreads heat uniformly across the whole board. Premium heaters and plug-in motors run silent and tool-free for years. Boards exit perfectly activated and warp-free, ready for flawless joints at 1.5-second cycles.
German electromagnetic pump and titanium pot create a rock-steady mini wave that never drifts or leaks. Control N2 flow, solder temp, wave height, and auto-calibration straight from the touchscreen. Inline nitrogen delivers mirror-bright fillets and virtually zero dross. Laser monitors height, nozzles self-clean, and 900 hours of video are stored for traceability. This is the unbreakable heart of every Selective Wave Soldering Machine.
Three-section roller conveyor plus pneumatic side/top clamps hold boards up to 20 kg dead-still. Heavy-duty rails and high-precision servos move PCBs smoothly station to station. Thick or double-sided assemblies clear with ease. Built for nonstop duty in any off-line Selective Wave Soldering Process.
CE-certified PLC, Cat-6 wiring, and full MES connectivity deliver lightning-fast response and bulletproof reliability. Guided wizards, picture-based edits, auto nozzle detection, and multi-language menus slash training time. Remote diagnostics keep the Selective Wave Soldering Machine earning around the clock.
Large color touchscreen, step-by-step guides, one-tap live CCD preview, and voice alerts make operation dead simple. Switch instantly between English, Chinese, Japanese, or Russian. Custom tower lights and Wi-Fi upgrades keep everyone informed without leaving the floor.
| Specification
| On-line Selective Wave Soldering Machine | ||||
| Model | I.C.T SS540 | I.C.T SS550 | I.C.T SS550P1 | I.C.T SS550P2 |
| On-line Modular | Spray + Preheating & Soldering | Spray + Preheating + Soldering | Spray + Preheating + Soldering +Soldering | Spray + Preheating + Soldering + Soldering+ Soldering |
| Soldering System | ||||
| Nozzle Quantity | 1 | 1 | 2 | 3 |
| Solder Pot Quantity | 1 set | 1 set | 2 set | 3 set |
| Double Pot (Option) | N/A | Option | Option | Option |
| Solder Pot Power | 2.35kw | 2.35kw | 4.70kw | 7.05kw |
| Flux System | ||||
| Flux Storage Tank | 1L | 1L | 2L | 2L |
| Flux Support | Flux Alarm, Automatic | |||
| Spray Nozzle | Germany Jet Valve (Spot and line spraying) 1 set | |||
| Spray Nozzle Size | 130um (180um, 210um Option) | |||
| Spray Speed | 0~20mm/s | |||
| Spray Nozzle Move Speed | 0~400mm/s | |||
| Preheating System | ||||
| Preheating Mode | Hot air and IR | Hot air and IR | Hot air and IR | Hot air and IR |
| Preheating Area | L500*W500mm | L500*W500mm | L500*W500mm | L500*W500mm |
| Preheating Zone | Top hot air: 2, Bottom IR: 1 | |||
| Bottom Preheating Power | Max.12kw | |||
| Top Preheating Power | Max.6kw | |||
| Warm-up Time | Approx.15min (setting 150℃) | |||
| Control Mode | PC+PLC | |||
| Transport System | ||||
| PCB Size (with fixture) | 120*60~500*500mm | |||
| PCB Replacement | Online | |||
| PCB Top Clearance | 120mm | |||
| Transport Height | 900±20mm | |||
| Transport Width | 60~500mm | |||
| Dimension：mm | L1850*W1850*H1480 | L2560*W1750*H1480 | L2560*W1950*H1480 | L2600*W1950*H1480 |
| Weight | Approx: 800kg | Approx: 1200kg | Approx: 1300kg | Approx: 1500kg |
| DIP Line Equipment List
Pair your Selective Wave Soldering Machine with I.C.T’s fully automatic DIP line—the perfect front-end for high-mix THT production. The turnkey package includes a high-speed DIP inserter for dead-accurate component placement, SMEMA-compatible wave loader that feeds boards smoothly into the off-line Selective Wave Soldering Process, a gentle wave unloader that catches finished PCBs without stress, and a buffered assembly belt for final inspection and touch-up. All modules are CE-certified, built in-house, and designed for lightning-fast changeovers at 1.5-second cycles. With global spare-parts hubs and on-site support in 72 countries, I.C.T keeps your entire through-hole flow—from insertion to selective soldering—running at maximum efficiency and minimum cost
| Product Name | Purpose in DIP Line |
|---|---|
Automatically places components onto PCBs with precision for DIP production line. | |
Melts solder to form solid joints on PCBs during THT plug-in process. | |
Applies solder selectively to specific areas for accurate THT assembly | |
| Post-wave Inline AOI | Inspects solder joints and placement defects on DIP assembled PCB. |
| Customer Success Video
In early 2025 a major Vietnamese camera-brand supplier flew in for final acceptance of their new Selective Wave Soldering Machine. Our engineers loaded their real production boards, ran full 1.5-second cycles while the customer watched perfect THT joints form live on the CCD, then trained their team for two full days on programming, daily care, and troubleshooting. They left 100% ready to hit volume the day the crate arrived—another example of I.C.T’s true global partnership.
| Professional Service and Training
From factory acceptance and crating to installation, startup, and lifetime support, we’ve got you covered worldwide. Twenty senior engineers plus local teams in 72 countries deliver on-site or remote training whenever you need it. Spare-parts warehouses on three continents and real 24/7 hotlines keep your off-line Selective Wave Soldering Process at peak uptime for decades.
| Customer Praise
Customers keep telling us our engineers are patient, sharp, and truly care about their success. They love the pinpoint flux accuracy, rock-steady wave, and how fast the Selective Wave Soldering Machine pays for itself in higher yields and zero rework at 1.5-second cycles. Export crates arrive flawless, and same-day remote fixes have turned first-time buyers into lifelong partners worldwide.
| Industry Certifications
Every Selective Wave Soldering Machine carries CE safety certification, RoHS compliance, ISO9001 quality system, and multiple patents on jet valves, pumps, and laser calibration. These globally trusted marks prove you’re getting safe, green, battle-tested technology you can rely on anywhere.

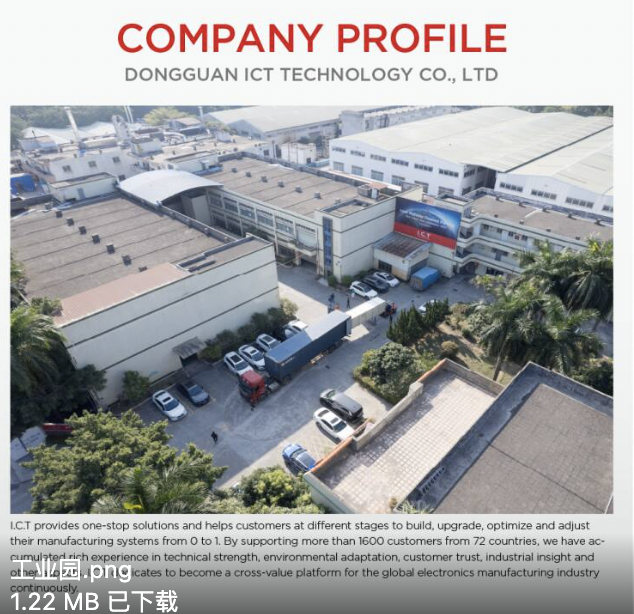

| About I.C.T Company and Factory
Since 2012 we’ve grown into a 12,000 m² state-of-the-art campus with 89 team members, 20 dedicated engineers, and 8 global branches. Everything—R&D, fabrication, assembly, and burn-in testing—happens in-house. We serve over 1,600 factories in 72 countries with complete turnkey SMT and THT solutions, and every Selective Wave Soldering Machine leaves backed by rigorous inspection and proven quality systems.
