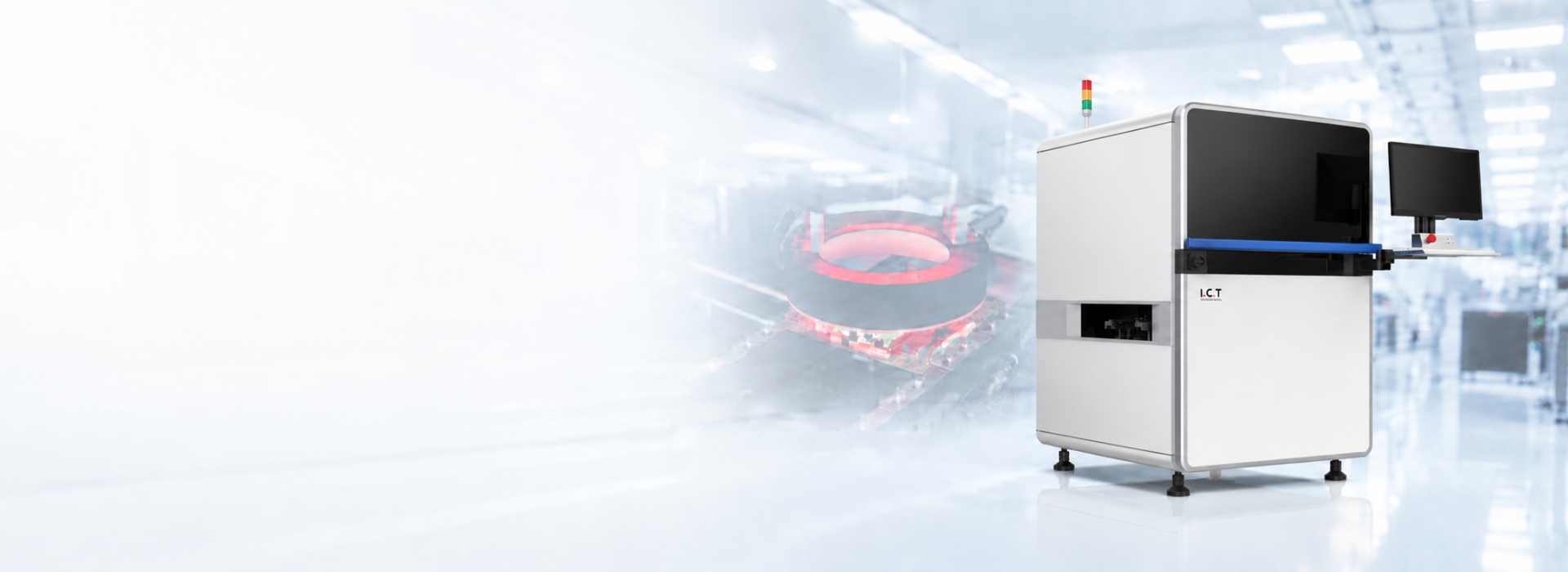

AOI Inspection Solutions for SMT & DIP & Coating Lines
Detect component defects, solder joint issues, THT process errors and conformal coating defects with inline and offline AOI systems.
SMT AOI · DIP AOI · THT Solder Inspection · Coating AOI
I.C.T provides inline and offline AOI inspection solutions
for SMT solder joints, DIP component placement, THT soldering, conformal coating inspection, and repair verification.
What if a single invisible defect could cost you an entire production batch? In modern electronics manufacturing, even the smallest solder issue can lead to product failure, returns, or costly rework. That’s why more manufacturers are moving beyond manual inspection and relying on automated optical inspection machines to ensure every PCB meets strict quality standards. At I.C.T, we understand how critical this step is, and we design AOI systems that help you detect problems before they impact your production. An AOI inspection machine is an intelligent visual inspection system that uses high-resolution cameras, advanced lighting, and smart algorithms to automatically detect defects on PCBs and PCBAs. Instead of relying on human eyes, you can use an AOI system to achieve faster, more consistent, and more reliable PCB quality control. Whether you are running an SMT production line or handling PCBA testing, our AOI solutions are built to help you improve defect detection, reduce errors, and maintain stable production performance.

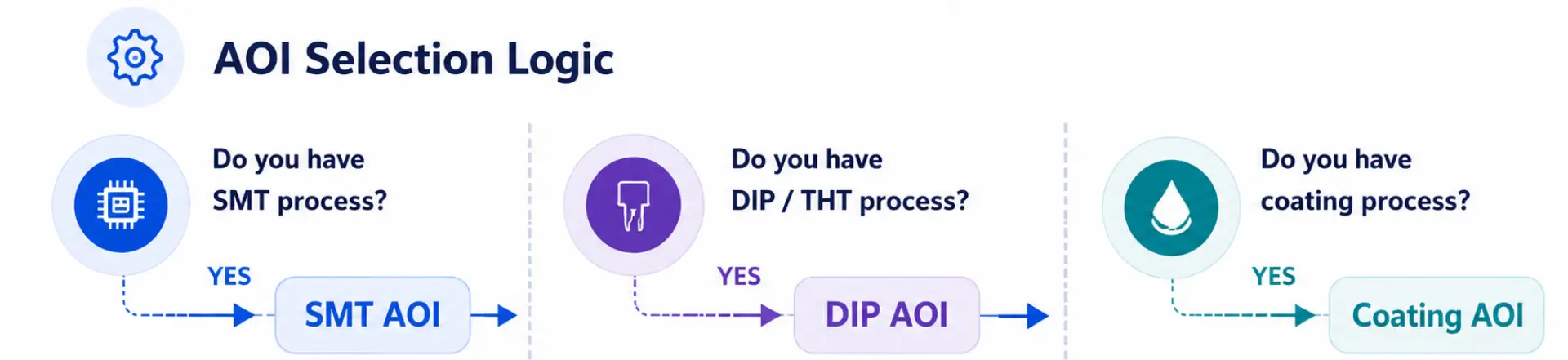

How to Choose the Right AOI Machine?
Understand inspection requirements in SMT, DIP, and coating processes to select the most suitable AOI solution for your production line.

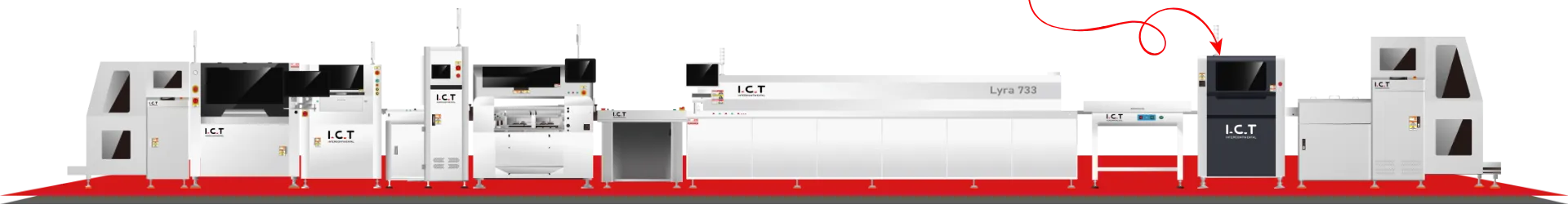

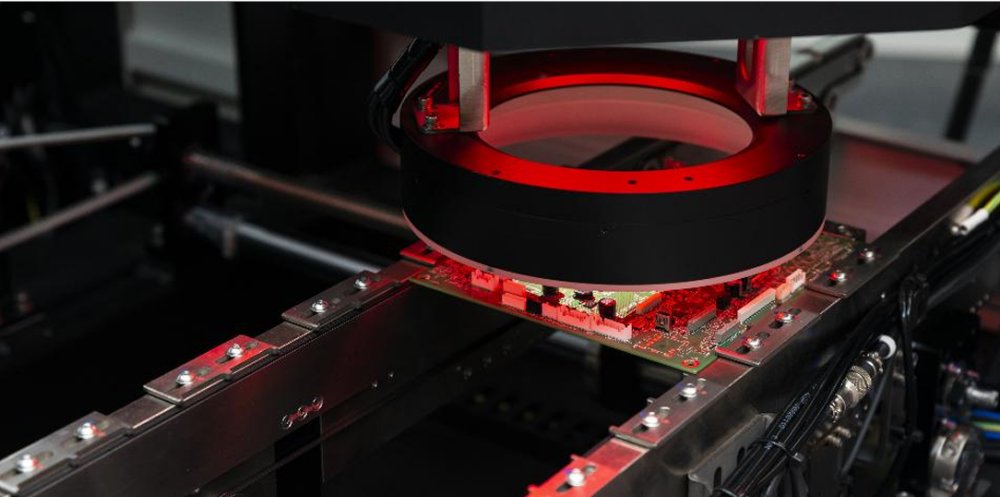

When do you need SMT AOI?
High-speed SMT production lines
High-density PCB assembly
Strict solder quality requirements
Real-time defect detection requirement
What problem does it solve?
Component misplacement before reflow
Solder defects after reflow
Reduce rework rate
Improve yield stability
Ensures placement accuracy and solder quality before and after reflow soldering

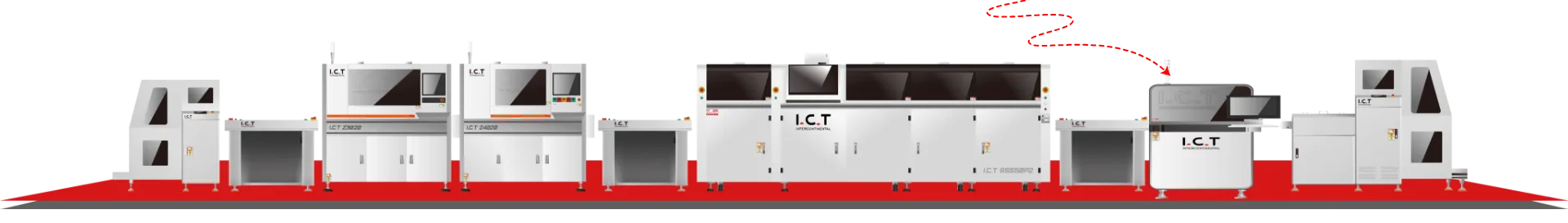

When do you need it?
Through-hole assembly process
Manual or semi-auto insertion
Wave / selective soldering line
High human error risk

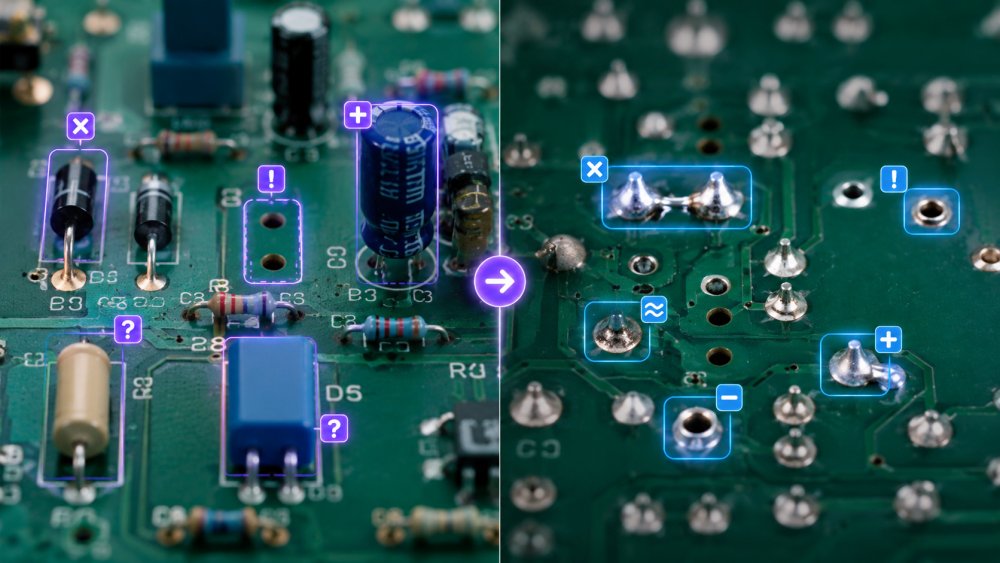

Before Soldering AOI
After Soldering AOI
Ensures correct component insertion and reliable solder joint quality in THT production.

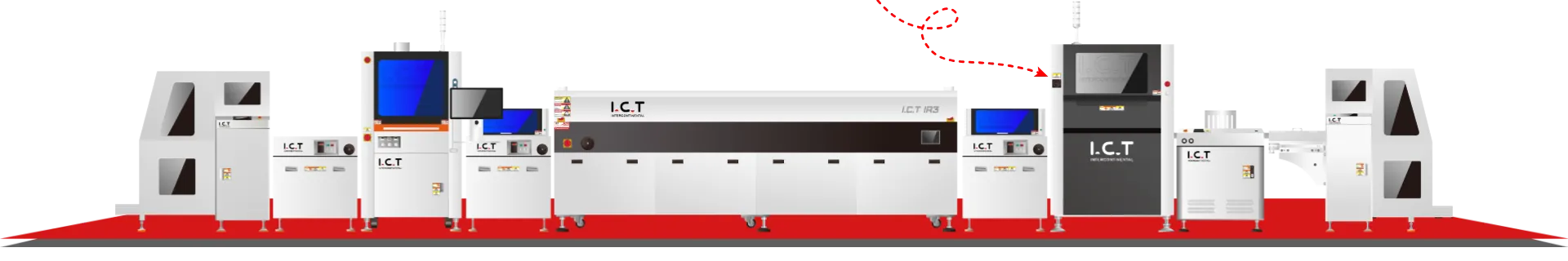

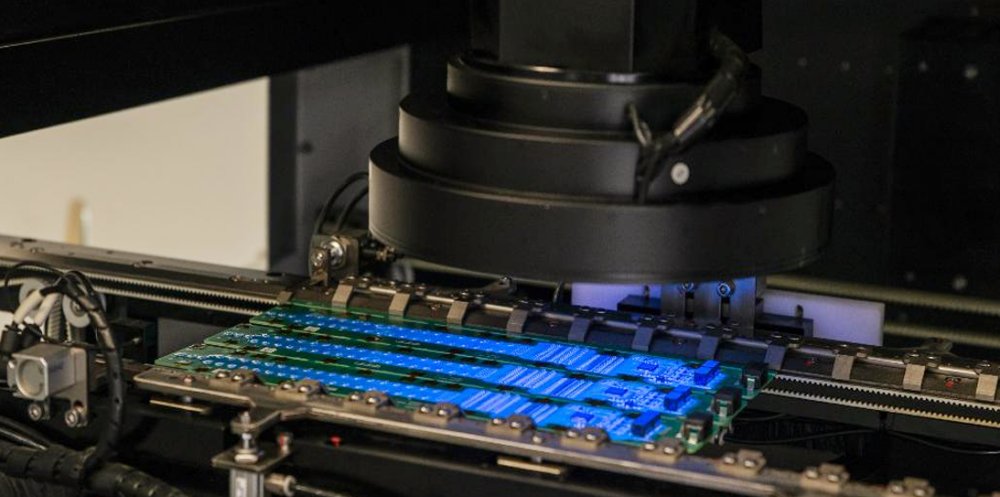

When do you need coating AOI?
Automotive electronics
Power supply boards
Outdoor / industrial electronics
Moisture protection required products
What does it detect?
Missing coating
Excess coating
Bubble / voids
Foreign particles
Uneven thickness
Width deviation
Ensures coating integrity and long-term protection of PCB in harsh environments.
Why Choose I.C.T AOI Solutions?
We provide more than AOI machines — we deliver complete inspection solutions with global support, integration capability, and proven production experience.
Full SMT Line Integration
SMT + DIP + Coating full process coverage
Compatible with major SMT brands (JUKI / Yamaha / Hanwha / Panasonic)
Seamless MES / ERP connection
Real-time production data feedback

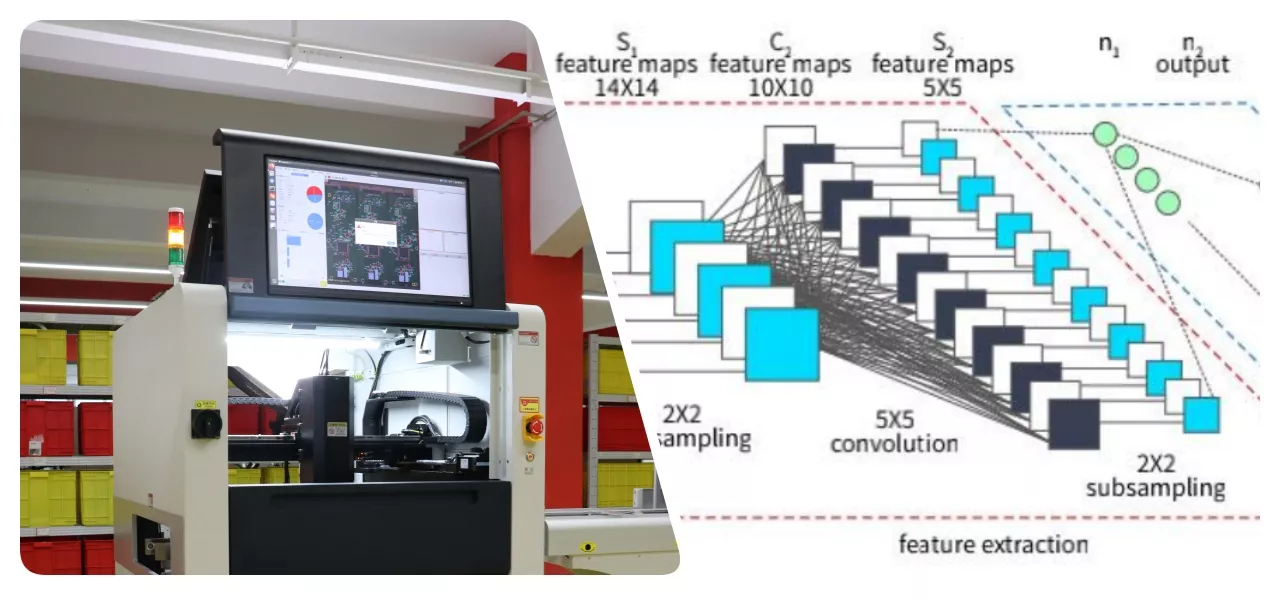

AI-Based Defect Detection System
Deep learning-based defect recognition
High-speed image processing
Stable false-call reduction system
Multi-angle inspection capability
Onsite Installation & Global Service
Overseas engineers available
On-site installation & training
Remote support within 24 hours
Spare parts global supply system
Trusted by Global Manufacturers
1700+ global customers
80+ countries installation cases
Automotive / EMS / LED / Power electronics
Stable production line deployment experience
What You Gain with I.C.T AOI
Higher production yield
Lower rework cost
Faster inspection cycle
Stable quality control
Need AOI Solution for Your Factory?
Talk to our engineers and get a customized AOI proposal for your production line.
Why AOI Inspection Is Better Than Manual Inspection in Modern Electronics Manufacturing
Faster and More Consistent Inspection Performance
In modern electronics manufacturing, speed and consistency are critical for maintaining stable PCB quality control. Manual inspection often struggles to keep up with high-volume SMT production, especially when dealing with complex boards and tight tolerances. With an automated optical inspection machine, you can achieve continuous, high-speed inspection without interruptions or human variability. At I.C.T, our AOI system is designed to work as an inline inspection system, ensuring every PCB is checked in real time during the production process. This not only improves inspection efficiency but also supports consistent results across your entire SMT production line.
Higher Accuracy and More Reliable Defect Detection
Manual inspection makes it difficult to identify micro-level defects, especially in dense PCB assemblies. Issues such as solder bridges, insufficient solder, or component misalignment can easily be missed. An advanced AOI defect detection system uses high-resolution imaging and intelligent algorithms to perform precise solder joint inspection and component inspection, significantly improving detection accuracy. By using an AOI inspection system for PCBA manufacturing, you can reduce false calls, minimize defects, and ensure reliable PCBA testing results. This level of precision is essential for industries such as consumer electronics, industrial PCB applications, and telecom PCB production, where quality and reliability directly impact performance and customer satisfaction.
Technical Specifications

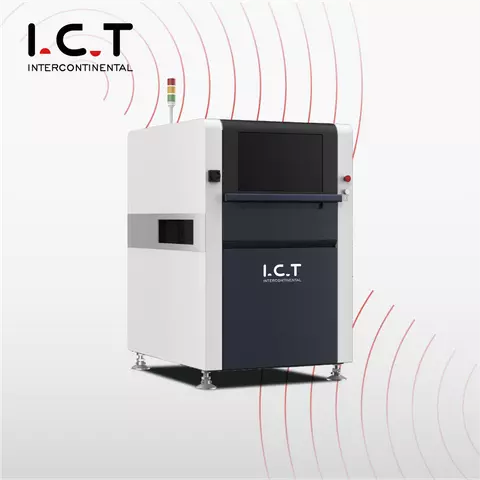

I.C.T AI-5146 SMT Production Line Online AOI Inspection Machine
Designed for inline inspection in SMT production lines, this automated optical inspection machine supports both pre-reflow and post-reflow detection. It delivers high-speed, high-accuracy inspection for stable PCB quality control. Inspection Type: Inline AOI system for SMT production line Camera: 12MP high precision industrial camera Resolution: 10μm / 15μm high accuracy inspection

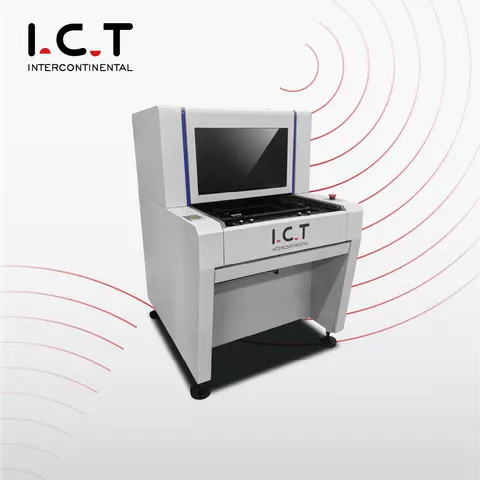

I.C.T-V8 Off-line Automated Optical Inspection AOI Machine
This offline AOI system is designed for flexible PCB inspection without modifying the production line. It provides reliable defect detection and is ideal for PCBA testing in small to medium manufacturing environments. Inspection Type: Offline PCB inspection machine Camera: 5MP industrial camera Resolution: 15μm inspection accuracy

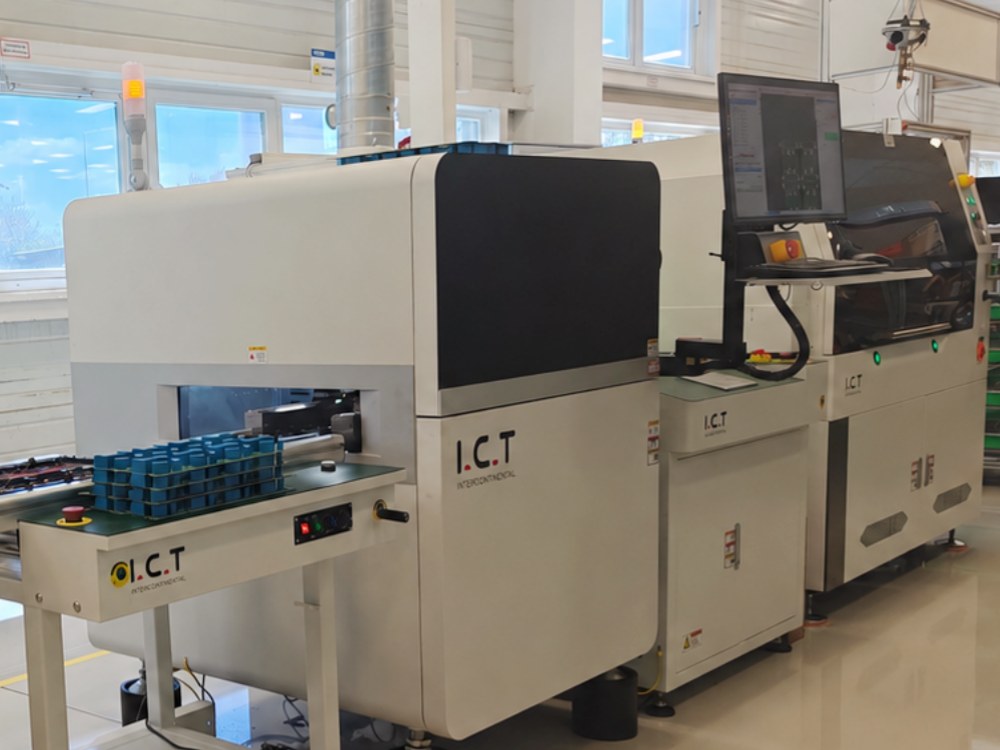

I.C.T AI-4540 DIP Inverted Camera Online AOI Machine
Engineered for DIP production lines, this inline AOI system enables accurate inspection after THT soldering. It ensures reliable detection of soldering defects and component errors in PCBA manufacturing. Inspection Type: Inline AOI system for DIP production line Camera: 5MP high precision camera Resolution: 20μm inspection accuracy
What Defects Can an AOI Inspection Machine Detect?
Solder Joint Defects
One of the most critical functions of an automated optical inspection machine is accurate solder joint inspection. Poor solder quality can directly affect product reliability and lead to failures in the field. With an advanced AOI system, you can quickly identify issues that are difficult to detect manually. Solder Bridge: Unintended connection between pads Insufficient Solder: Weak or incomplete solder joints Excess Solder: Too much solder causing short circuits Cold Solder Joint: Poor bonding leading to unstable connections
Component Placement Defects
In high-density SMT production, precise component inspection is essential for maintaining PCB performance. Manual inspection often misses small alignment issues, but an AOI inspection system can detect even minor placement errors. Missing Component: Component not mounted on PCB Misalignment: Component shifted from correct position Wrong Component: Incorrect part placed on board Reverse Polarity: Component installed in wrong orientation
PCB Surface and Assembly Defects
Beyond components and soldering, an AOI defect detection system also identifies surface-level issues that impact overall PCB quality control. These defects can affect both functionality and appearance. Foreign Material: Dust or debris on PCB surface Stains or Contamination: Residue affecting circuit performance Scratches or Damage: Physical defects on PCB surface Glue Overflow: Excess adhesive affecting nearby components
Functional and Identification Defects
Modern AOI systems also support inspection tasks beyond physical defects, helping improve overall electronics manufacturing quality control and traceability in PCBA testing processes. Barcode / QR Code Errors: Incorrect or unreadable codes OCR Recognition Errors: Missing or incorrect printed characters Mixed Board Detection: Incorrect PCB type in production line Assembly Verification: Ensuring correct component configuration
Contact Us
Contact I.C.T today to find the right AOI inspection solution for your production needs.
FAQs
Q: What does an AOI inspection machine actually do in SMT production?
A: An AOI inspection machine detects PCB defects like solder issues and component errors in real time.
Q: How does an automated optical inspection machine detect defects?
Q: Why is an AOI system important for PCB quality control?
Q: How much does an AOI inspection machine cost for manufacturers?
Q: What types of defects can an AOI system identify in PCBA?
Sucessfull SMT Cases
-
I.C.T sent engineer Tony to India to support a computer motherboard manufacturer with new equipment integration, troubleshooting, process training, and production verification. -
I.C.T completed the delivery, installation, and on-site training of a full SMT & DIP production line for a power supply manufacturing project in Kazakhstan. After the equipment arrived at the Customer’s factory, I.C.T engineers Andy and Billy provided overseas technical support, including machine positioning, hardware installation, software setup, process testing, SMT operation training, AOI inspection training, DIP line guidance, wave soldering training, and basic maintenance instruction. With I.C.T’s support, the Customer’s engineering team gained the ability to operate the full line more confidently and prepare for stable power supply PCB assembly production. -
This article introduces a complete SMT production line project delivered in Germany for LED manufacturing. It covers the full process from equipment installation and system integration to on-site engineer training and trial production. With structured technical support, the customer successfully achieved stable production and gained the ability to operate the SMT line independently. -
Customized SMT Solutions for LED lighting Manufacturing To meet the customer`s requirements for product and production capacity , we provided a customized SMT solution. This included SMT production line, LED lens dispensing line, PCBA conformal coating line, LED bulb assembly line, and related peripheral equipment.
