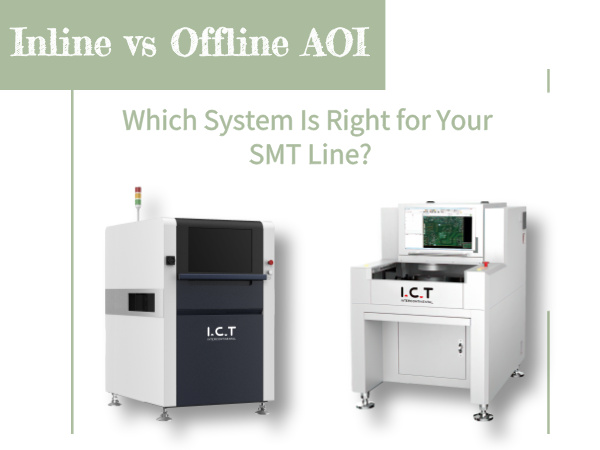

You need the right AOI inspection machines for your SMT line, and understanding Inline vs Offline AOI is crucial. Inline AOI is ideal for high-volume, automated environments, allowing you to quickly detect issues and integrate seamlessly with other inspection systems like 3D AOI, SPI, and AXI. On the other hand, if you produce small batches or are testing new ideas, offline AOI offers more detailed inspections and typically has lower initial costs. Choosing between Inline vs Offline AOI depends on your production volume, quality requirements, and future growth plans.
· Inline AOI checks each board right away on busy lines. It gives quick feedback to find problems early. This helps keep the quality high.
· Offline AOI is good for small batches or prototypes. It also works well for tricky boards. It gives detailed checks and more choices. It does not stop the main line.
· Pick inline AOI if you make many boards fast. Choose offline AOI for small jobs or lots of changes. Use it if you need strict quality checks.
· Using both inline and offline AOI can help with all needs. You get fast checks and detailed checks for mixed lines.
· Train your team and set clear goals. Match your AOI system to your budget and plans. This will help make better products and cut down waste.
Inline AOI systems are important in SMT lines today. These machines are put right into the production line. Each PCB goes through the machine as it moves along. The system checks the boards in real time. This helps you find problems right away. You can fix mistakes before they get worse. Inline AOI is best for fast and busy factories. It works well with other inspection tools like 3D AOI, SPI, and AXI.
· Inline AOI checks every board as it moves past.
· You get quick feedback to fix problems fast.
· The system matches the speed of your line.
· It does automated optical inspection without slowing things down.
Tip: If you want to make more boards and keep quality high, inline AOI is a good choice.
Offline AOI systems are not part of the main line. You use these machines to check random samples or small batches. Offline AOI gives you more choices. It is good when inline AOI costs too much for your needs. You can check printed circuit boards and assemblies for mistakes. These include placement errors and soldering problems.
· Offline AOI is great for testing new ideas or small jobs.
· You can use it at the start, middle, or end of production.
· The system helps you meet tough quality rules in some industries.
· Some offline AOI uses AI and 3D pictures to find more defects.
When you look at inline vs offline AOI, you see they fit different jobs. Inline AOI is best for big, busy lines. Offline AOI is better for small or tricky work. Both systems help you do automated optical inspection and make your products better.
You should think about how each system fits your SMT line. Inline AOI connects right to your production line. It checks every board as it moves. You get instant feedback from the system. This helps you catch problems fast and fix them early. Inline AOI works well with other inspection tools. These tools include automated x-ray inspection. You get a full view of your process. Offline AOI is not part of the main line. You use it away from the main workflow. It does not stop your main work. You can check boards at different times. You can also do detailed checks on hard designs.
Speed is important in making products. Inline AOI checks boards as they move. It keeps up with fast lines. It does not slow down your work. You get quick results and can fix defects fast. Automated x-ray inspection can also run inline. But it is often slower and used offline. It is good for hidden solder joints. Offline AOI works at its own speed. It is slower than inline AOI. But you can look closely at each board. This helps when you need careful checks or have small batches.
Cost and space are big factors in your choice. Inline AOI costs more at first. You need space on your line for it. You also pay for setup. Over time, it saves money by cutting waste. It also helps you work better. Offline AOI costs less to start. You do not need to change your line. You do not need extra gear. This is good for small jobs or if you need to be flexible. Automated x-ray inspection adds to your costs. But it is needed for some defect types.
Aspect | Inline AOI | Offline AOI |
Speed | Real-time inspection built into production lines; high speed for big jobs. | Works away from the line; slower but allows close checks. |
Cost | Costs more at first but saves money by making work better. | Slower; cost depends on batch size or tricky checks. |
Integration | Built into lines for fast defect finding and fixing. | Not on the line; checks boards without stopping work. |
Flexibility | Not as flexible; made for fast, steady work. | More flexible; good for tricky jobs and close checks. |
Typical Use | Used in electronics and cars where speed matters. | Used in aerospace, defense, and medical for careful checks. |
Technology | Uses AI and machine learning for better results. | Also uses AI and machine learning for close checks. |
Note: Inline vs offline AOI systems both have strong points. Inline AOI is best for fast, busy lines like SMT and DIP. Offline AOI is better for tricky boards, test runs, or when you need close checks. Automated optical inspection and automated x-ray inspection together help you reach your quality goals.
Inline AOI systems check boards fast right on your SMT line. You can find problems early and keep making products. These systems are very accurate and spot small mistakes. They can see missing or crooked parts. Inline AOI gives steady checks for long times. Many machines use special lights and network software. This helps you collect and look at data easily.
But inline AOI has some downsides. It costs a lot at first, and you need space on your line. Some systems cannot see some solder joints or hidden problems. This happens when light cannot reach those spots. If the software or lights are not set up well, you might get more false calls or miss defects. As parts get smaller, you may need to upgrade to 3D AOI to find more problems. Automated x-ray inspection can help you see hidden solder issues, but it costs more.
Note: Inline AOI is best if you want speed and steady checks, but you might need automated x-ray inspection for hard boards.
Strengths | Weaknesses |
Fast, real-time inspection | High first cost |
Very accurate | Hard to see hidden defects |
Steady checks for long times | False calls from bad setup |
Easy data collection | Need upgrades for tiny parts |
Offline AOI lets you be more flexible. You can check boards at any time. You can do careful checks or look at small batches. This system is good for new ideas or when you must meet strict rules. You do not have to stop your main line. You can use automated x-ray inspection to find hidden problems. Offline AOI usually costs less to start. You can move it where you need it.
But offline AOI is slower than inline AOI. You cannot check every board right away. If you only use offline AOI, you might miss problems during fast runs. You may need more people to move boards and use the machine. For the best checks, you can use offline AOI with automated x-ray inspection. This is good for jobs in aerospace or medical fields.
Tip: Pick offline AOI if you want more choices, careful checks, or need automated x-ray inspection for special jobs.
First, look at how many boards you make each day. This is the most important thing when picking an AOI system. If you make a lot of boards, inline AOI is the best choice. Inline AOI checks every board as it moves down the line. You get fast feedback and can fix problems right away. Inline AOI keeps up with busy lines, so your work does not slow down.
If you make small batches or change designs a lot, offline AOI is better. Offline AOI lets you check samples or certain boards. You do not have to stop your main line. You can look closely at boards and change your checks when needed.
· High production means inline AOI is worth the cost.
· Inline AOI gives fast checks and finds problems quickly.
· Offline AOI is good for small jobs or changing work.
· Pick AOI that matches your speed to save money.
Tip: Make sure your AOI system matches how many boards you make. This helps you save money and keeps your line running well.
You want your products to be good and have few mistakes. Inline AOI is great at finding problems early. This helps you keep quality high for big jobs. Inline AOI uses special cameras and software to find missing or wrong parts. You get steady results that help you meet rules.
Offline AOI gives you more time to check boards closely. You can zoom in on hard spots or test boards that need extra care. This is good for jobs with strict rules, like aerospace or medical. Offline AOI can use 3D pictures or AI to check even better.
Both inline and offline AOI help you find more problems. The best one depends on if you need fast checks or deep, careful checks.
Your factory might change over time. You may make new products or more boards. Inline AOI checks boards in real time and gives quick feedback. This helps you keep quality high as you grow. Inline AOI is best for fast, busy places where you need to catch problems fast.
Offline AOI is best when you need to change things often. You can check different boards, mix jobs, or switch programs easily. Offline AOI fits many ways of working and saves time when you change jobs. It is great for testing, R&D, and small batches when you need to change your process a lot.
· Offline AOI can check many types of boards and jobs.
· You can use offline AOI with or without extra tools.
· Inline AOI helps you grow by keeping checks fast and part of your line.
Note: If you change jobs a lot or check many board types, offline AOI lets you adjust easily.
Money is always important when you pick a system. Inline AOI costs more at first. You need to buy the machine and set it up in your line. You might need new software too. Over time, you save money because you waste less and find problems early. But the first cost is high.
Offline AOI costs less to start. You do not have to change your line or buy extra gear. This is good for small companies or those with less money. You can add more offline AOI machines as you grow, so it is easy to expand.
· Inline AOI: Costs more at first but saves money later.
· Offline AOI: Costs less at first and is easy to add more later.
Tip: Think about the total cost, not just the price to buy. Look at how each system will help your quality, speed, and growth in the future.
If you have a busy SMT line, you need to check many boards each day. Inline AOI is fast and works right in your line. It checks every board as it moves along. You get quick feedback and can fix problems right away. This stops mistakes from moving to the next step.
Offline AOI is not good for this job. You must put each board in by hand. This takes a lot of time and slows things down. Even if the machine is fast, moving boards in and out wastes time. High-volume SMT lines need fast checks and quick feedback. Offline AOI cannot keep up with this need.
Tip: Use inline AOI for high-volume work. It saves time, lowers mistakes, and keeps your line working well.
If you make new designs or small orders, you need to change setups a lot. Offline AOI gives you more choices. You can check boards at any time. You do not have to stop your main line or do hard setups.
Inline AOI is harder to use here:
· You spend lots of time setting up each new board.
· Operators must set inspection rules for every change.
· This setup can slow your project, especially if you need to change things.
· Inline AOI works best with flat, simple boards. New prototypes often have tricky shapes and parts.
· Prototype lines are often manual and change a lot. AOI systems may miss some mistakes.
· AOI only checks the SMT line. Many mistakes happen during manual work, which AOI does not check.
· Setup and tuning can take days, which is too long for quick projects.
Offline AOI lets you check boards when you want. You can look at details and make changes fast. This is good for research, testing, and small jobs.
Note: For new designs and small batches, offline AOI helps you stay flexible and find problems early.
If you do both big and small jobs, you need to switch between them. You can use both AOI systems together. Inline AOI checks big jobs fast and keeps your line moving. Offline AOI helps with special projects. You can use it for close checks, new designs, or boards that need extra care.
Some factories use both systems at the same time. You get the speed of inline AOI and the choices of offline AOI. You can also use offline AOI to check boards that did not pass inline AOI. This helps you meet tough quality rules and handle many types of work.
Scenario | Best AOI Choice | Why It Works Well |
High-Volume Production | Inline AOI | Fast, automated, real-time feedback |
Prototyping/Small Batch | Offline AOI | Flexible, easy setup, detailed analysis |
Mixed Production | Both Inline & Offline | Covers all needs, maximizes efficiency |
When you look at inline vs offline AOI, think about how you work most of the time. The right mix helps you reach your quality and speed goals.
You want to pick the best AOI system for your SMT line. This checklist can help you make a smart choice:
1. Production Volume
o Inline AOI is good for busy, automated lines.
o Offline AOI works well for small batches or lots of changes.
2. Quality Goals
o Inline AOI finds problems fast and gives quick feedback.
o Offline AOI lets you do careful checks and special inspections.
3. Budget
o Inline AOI costs more at first but saves money later.
o Offline AOI is cheaper to start and fits smaller jobs.
4. Space and Integration
o Inline AOI needs room on your line and works with other tools.
o Offline AOI sits away from the main line and does not slow things down.
5. Future Growth
o Inline AOI is good if you want to make more boards later.
o Offline AOI is easy to change for new jobs or products.
Tip: Think about what you need now and what you might need later. The right AOI system will help you reach your goals and make your work better.
Many companies make mistakes when picking AOI systems. You can avoid these if you know what to look for.
Some people think more camera megapixels always means better results. But camera sensitivity, field-of-view, and how steady the machine moves are more important. A camera with fewer megapixels but high sensitivity can work better if it gives clearer pictures and faster checks. If you only care about one thing, like megapixels or price, you might miss other important parts like how many defects it finds, how reliable it is, and how easy it is to program. Focusing on just one thing can lead to a bad AOI choice that does not fit your real needs.
Other mistakes people make are:
· Making inspection rules too strict or too easy, which can cause missed problems or too many false alarms.
· Using the wrong lights or camera settings, which can make mistakes harder to see and cause more work.
· Not training workers, which makes checks slower and causes more errors.
· Not updating training when AOI technology changes.
· Forgetting to make inspection steps that fit your own boards.
A real example shows that getting better AOI machines, making custom checks, and training your team can lower defects by 20% and make work faster by 15%. You should look at everything, not just one thing, when you pick your AOI system.
Picking the best AOI system depends on what your SMT line needs. Inline AOI is good for lines that make lots of boards fast. Offline AOI is better for small jobs or testing new ideas. You should match your AOI system to your production goals for the best results:
· You make your products better and waste less.
· You get quick data to help improve your process.
· You can handle tricky PCB designs and fast work.
To do well, follow these steps:
1. Make clear goals for what you want to check.
2. Decide where to put and how to set up AOI.
3. Teach your team how to use the system.
4. Try out and adjust the AOI machine.
5. Link AOI data with other checks you do.
6. Keep making your system better and take care of it.
The right AOI system helps you make better products, spend less, and grow your business.
You can check boards right away with inline AOI. This means you find problems as soon as they happen. Your SMT line keeps moving quickly and does not slow down. You make better products and throw away less.
Yes, you can use both types in the same place. Inline AOI is good for checking lots of boards fast. Offline AOI is better for new designs or special boards. Using both helps you check more things and keep quality high.
You should check and adjust your AOI system often. Most people say to do this every month. Always listen to what the machine maker says for the best results.
Your team needs to learn how to use offline AOI. The machine has many tools and options. Training helps your team find more mistakes and use the system better.
