I.C.T-Lyra622/622N
I.C.T
| Quantity: | |
|---|---|

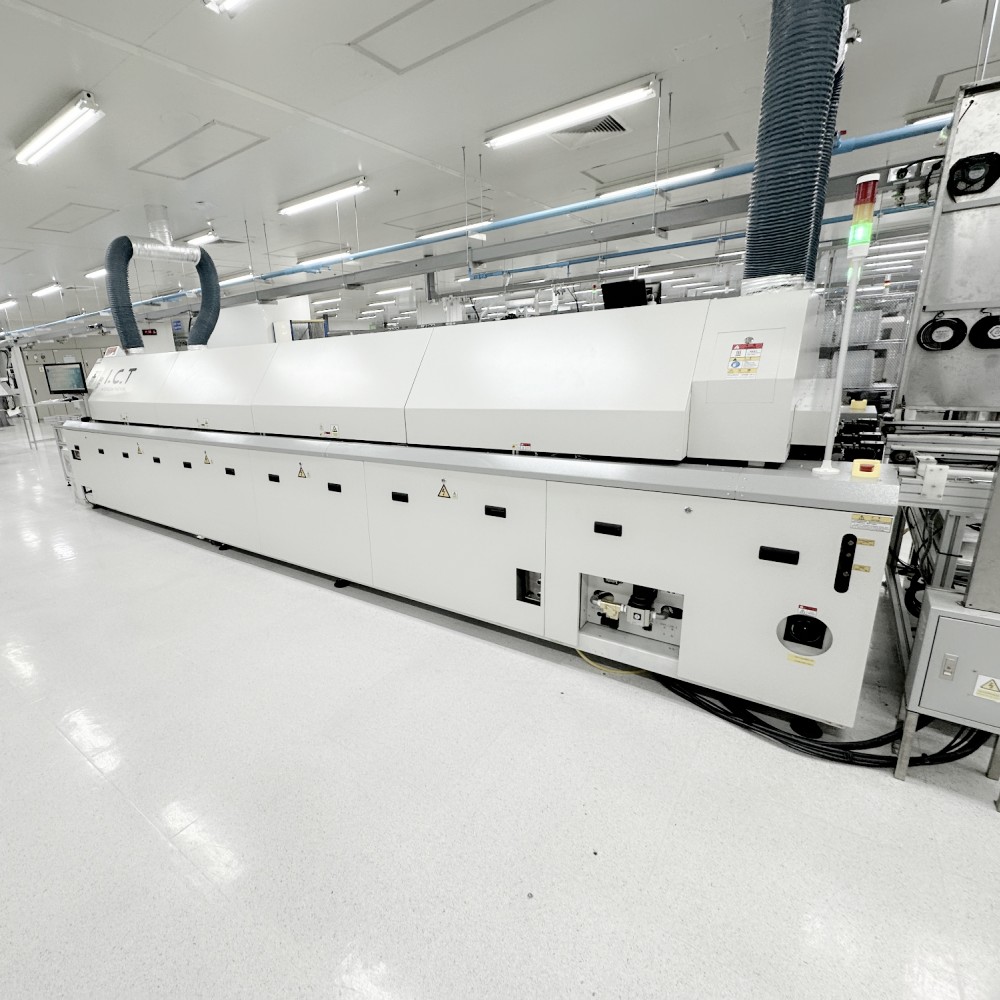

| Top Lyra Reflow Soldering Oven Machine
Lyra is I.C.T best Reflow Soldering Oven Machine for lead-free SMT work. New design gives strong heating and tight control. PC plus Siemens PLC holds temperature inside 0.7°C, stable over 99.99%. Best modules space zones for even heat repeat. Windows switches Chinese-English, sets passwords, logs runs, checks curves, simulates, diagnoses faults, monitors live, saves files. Cooling zone adjusts fast for any slope. Third-party protection adds safety. Meets CE, CCC, UL. Inverter motors set hot air for different processes in SMD Soldering Oven Machine. No gas source, motor lifts cover with rod. Imported parts run smooth, low cost. Flux option keeps clean. Closed-loop speed accurate. Central support, dual lanes, external water cool ready. This Reflow Soldering Oven Machine fits all soldering needs.
| Feature
Reflow Soldering Oven Machine links PC-Siemens PLC for 0.7°C hold. Stability tops 99.99%, no solder defects. Records operations, measures curves, analyzes data, virtual tests, auto fault find, real-time watch, document save, board live view. Language swap simple. Passwords secure. Full monitoring. Self-diagnosis early fix. Handles lead-free complex. Results same every batch. Cuts rework waste. Suits high volume. Trust for daily use. SMD Soldering Oven Machine keeps exact control. Over-temp alarms extra safe. Adapts board types easy.
Efficient Heating System
Premium modules in Reflow Soldering Oven Machine optimize zone gaps. Uniform heat repeats well. Supports lead-free varieties. Inverter motors tune air per tech. Inside-out split lasts longer. Few seals reduce leaks. Nitrogen recycles inlet-outlet. Low oxygen use. Full zones nitrogen optional. Condenser clean flow. IPC JEDEC compliant. Saves energy. Seals hold years. SMD Soldering Oven Machine heats no spots. Process window wide over 700mm.
Loop control Reflow Soldering Oven Machine speed ±2mm/min. Boards move no shake. Center bar dual rails firm. Water chill add-on. No gas easy install. Motor cover safety rod. Imported parts quiet durable. No tools service. Alerts care. Economy save. Live screen transport. Long shifts fine. All board sizes. Line speed up. Error low. SMD Soldering Oven Machine steady flow. Dual lanes no shift.
| SMT Reflow Oven Specification
| I.C.T-LV733 | I.C.T-LV733N | |
| DIMENSIONS AND WEIGHTS | ||
| Dimensions | 7000*1430*1530mm | |
| Required area | 10.05m2 | |
| Weight | ca. 3200 kg | ca. 3300 kg |
| Load per unit area 400 kg/m2 | 400 kg/m2 | |
| PROCESS CHAMBER HEATING | ||
| Length of heating zones | 3730mm | |
| Quantity of preheating zones | 7 | |
| Length of preheating zones | 2675mm | |
| Quantity of peak zones | 3 | |
| Warm up time | ca. 20 min | |
| VACUUM ZONE | ||
| Vacuum maximum pressure | 0.1-12kpa | |
| Vacuum pump flow | 1500/min | |
| Pressure relief time | ≦10S | |
| Product time | ≧40S | |
| COOLING ZONE | ||
| Quantity of cooling zones | 3(top 3/bottom 3) | |
| Length of cooling zones | 1460mm | |
| CONVEYOR | ||
| Transport Level | 900 ±20 mm | |
| PCB Width | L500 - W400mm | |
| Conveyor control | 3-stage, independent control | |
| Conveyor Number | 1 | |
| Adjustable conveyor speed | 300 - 1800 mm/min | |
| INTERFACES | ||
| Type | SMEMA | |
| Voltage supply | 5-Wire System 3P,N,PE 380 VAC ± 5 % 50 Hz Other voltages upon request | |
| Connected load | 65KW | |
| Operating capacity | 16 KW | |
| As the operating efficiency depends on the settings of the process parameters, the values reached actually can differ from the values indicated here. | ||

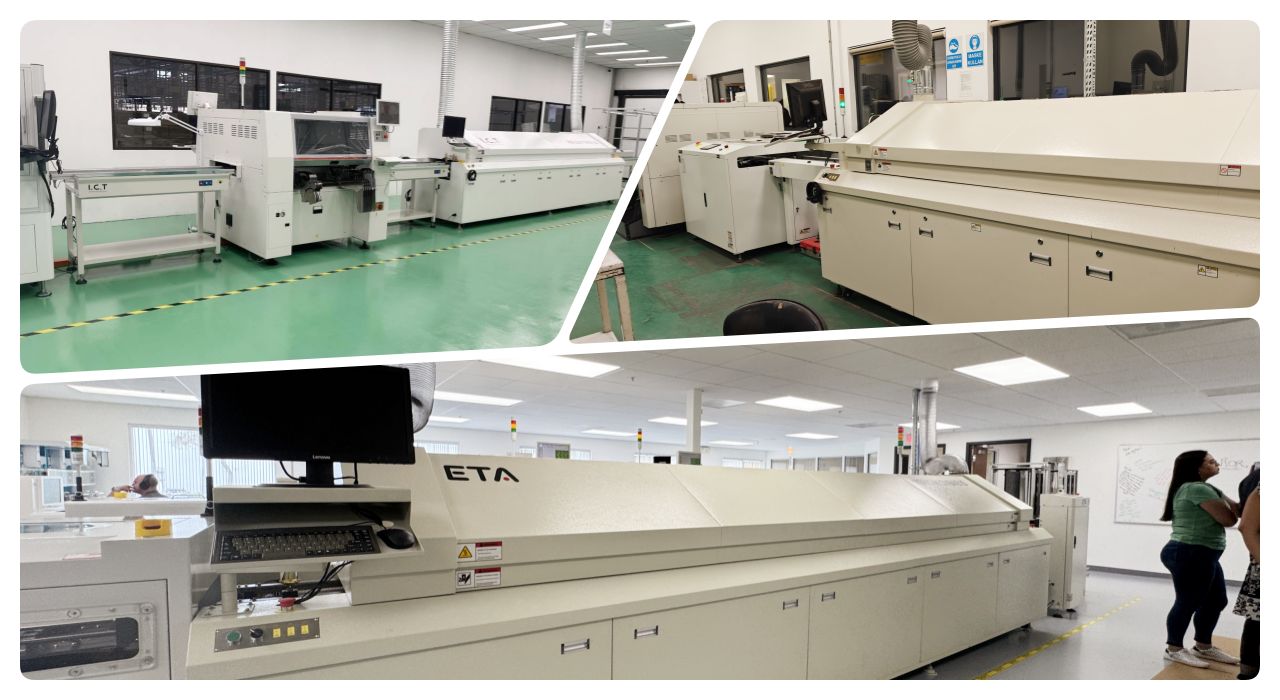

| SMT Line Equipment List
Our High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Customer Success Video
Uzbekistan client visited I.C.T to inspect SMT line buy. Saw L10 like our Reflow Soldering Oven Machine quality. Included DECAN S1 mounter, 5151 printer, AOI AI-5146, loaders, belt, mixer, cabinet. Soldering even perfect. Machines smooth run. Staff guide pro. Loved I.C.T reliable SMT. Built trust future. SMD Soldering Oven Machine gave uniform joints.
| Professional Training & Support
I.C.T full service Reflow Soldering Oven Machine. Install maintain train site. Quick response issues. Optimize process change. Remote fix fast. Parts ship soon. Global ready. Covers SMD Soldering Oven Machine needs. No worry customers.
| Customer Praise
Engineers from various factories commend our rapid on-site fixes that resolve complex issues in under a day, minimizing downtime. The Reflow Soldering Oven Machine earns high marks for consistent reliability across thousands of hours without failures. Secure custom packing with reinforced crates protects during long international shipments, arriving flawless every time. Response times to support tickets average under 15 minutes, even outside business hours. Detailed installation guidance turns newcomers into experts quickly. Equipment maintains top solder quality year after year. Users highlight the intuitive interface and energy savings. Overall, clients call it the smartest investment for their SMT lines, praising the flawless performance of SMD Soldering Oven Machine in daily high-volume production environments.
| Our Certification
I.C.T operates its own advanced R&D center and full production lines within a 12000m² state-of-the-art facility in Dongguan, China. Our team of 89 dedicated professionals includes 20 experienced engineers focused on innovation. Founded in 2012, we achieve over 40% annual growth through customer-centered solutions. We proudly serve more than 1600 active clients across 72 countries globally. Every process follows strict quality inspection protocols from raw materials to final testing. A comprehensive ISO management system guarantees consistency and traceability. This integrated approach allows us to deliver complete SMT turnkey lines, including the reliable Reflow Soldering Oven Machine, helping factories worldwide build efficient, scalable operations with SMD Soldering Oven Machine at the core.
| About I.C.T and Our Factory
I.C.T manages in-house R&D and production in 12000m² facility. 89 staff include 20 engineers. Rapid growth since 2012. Serves 1600+ clients in 72 countries. Strict inspections at every step. Full quality system controls output. Supports complete SMT lines with SMD PCB Reflow Oven. Delivers one-stop solutions globally.
