| DIP Wave Soldering Machine for Through-hold PCB Soldering
The I.C.T W-series DIP Wave Soldering Machine is a practical dip soldering machine semi automatic for THT and DIP assembly lines. This DIP Wave Soldering Machine uses Japanese Kuroda spray nozzle, independent horizontal heating and energy-saving structure to give strong wetting on through-hold PCB soldering with very little dross. Normal power is only 7kW and optional nitrogen protection meets high quality needs. After many years running in automotive, smart meter and consumer electronics factories, this dip soldering machine has become the smart choice for customers who need stable and affordable Through-hold PCB Soldering.
| Feature
Japanese Kuroda nozzle with adjustable spray area and pyramid filter give clean and low-cost flux coating every board. Digital control and stable pressure reduce waste and keep the inside clean – perfect for dip soldering machine semi automatic in daily DIP production.
Third-party over-temperature protection and PLC+PID control give full safety backup. Real-time check and fast stop protect people and machine when running Through-hold PCB Soldering 24 hours.
Independent horizontal heating zones with closed hot-air path and rectifier plate make temperature same on whole board. Warm-up needs only 15 minutes and normal power stays at 7kW – the best energy saving for DIP Wave Soldering Machine.
| DIP Line Equipment List
| Model | W4 | W3 | W2 |
| Dimension:(mm) | 4200X1250X1500 | 3600X1250X1500 | 2900X1160X1500 |
| Weight(kg) | Approx.1500kg | Approx.1200kg | Approx.790kg |
| Power Supply | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz |
| Startup Power | 32kw | 24kw | 16kw |
| Operation Power | 12kw | 9kw | 7kw |
| Control System | PLC | ||
| Spray System | |||
| Transmission Method | Step motor | ||
| Spray Pressure | 0.25Mpa--0.4Mpa | ||
| lux flow | 10--100ml/min | ||
| Exhaust Diameter | Φ200mm | ||
| Exhaust Capacity | 25m3/min | ||
| Preheating System | |||
| Preheating Mode | Hot air | ||
| Control Mode | PID + SSR | ||
| Preheating Zone | 4 | 3 | 2 |
| Preheating Length | 1800mm | 1600mm | 1200mm |
| Preheating Temp. | (Room Temperature)-250°C | ||
| Warm-up Time(min) | Approx.15min (setting 150°C) | ||
| Conveyor System | |||
| PCB Size:LxW(mm) | Min:80x60mm; Max:400x300mm | ||
| Conveyor Speed | 0-2000(mm/min) | ||
| Conveyor Height | 750+/-20 (mm) | ||
| Finger | Double hook claw (Standard) | ||
| Conveyor width control | Manually | ||
| Conveyor Angle | 4~7degree | ||
| Soldering System | |||
| Solder Pot style | Mechanical Motor drive | ||
| Solder Pot Material | Full Titanium (Standard FT) | ||
| Solder pot temperature | 300°C | ||
| Solder pot capacity | Lead-free 350kg | Lead-free 300kg | Lead-free 250kg |
| Other | |||
| Finger cleaning system | Brush | ||
| DIP Line Equipment List
Our DIP production line offers advanced tools for efficient and precise PCB assembly. The fully automated DIP line includes a DIP insertion line for accurate component placement, a wave loader for smooth PCB entry, a wave unloader for safe exit, and an assembly belt line for final checks. This high-quality PCB DIP production line ensures stable operation, reliable THT insertion, and cost-effective assembly, meeting diverse industry needs. With modular designs and global support from I.C.T, it boosts productivity for through-hole tasks.
| Customer Success Video

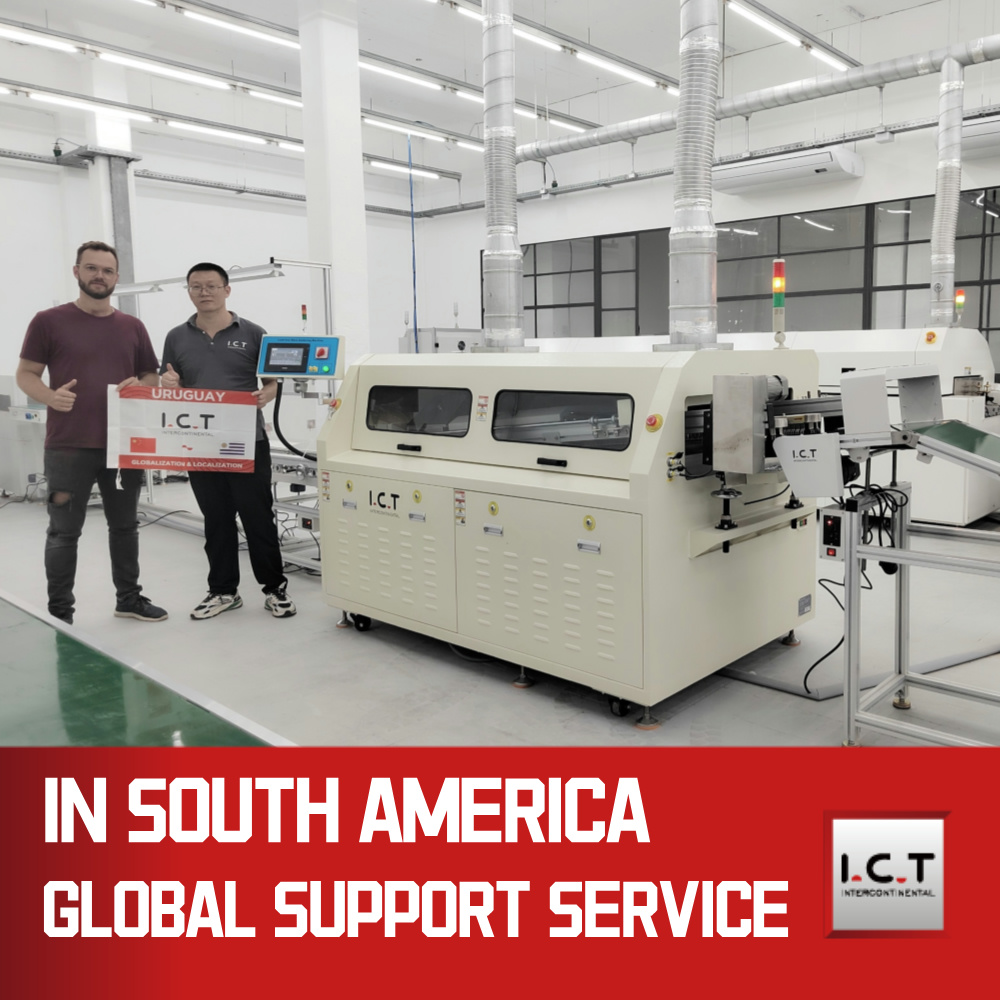

I.C.T engineers went to Uruguay to install and commission the W-series DIP Wave Soldering Machine for a smart meter manufacturer. The customer runs a high-volume DIP production line and needed stable lead-free soldering for complex PCBs with large parts. After our team completed the setup and operator training, the machine reached full speed with only 7kW running power and perfect joint quality. The customer shared a video showing the DIP Wave Soldering Machine running smoothly in their THT assembly line, praising the low energy cost, easy maintenance and excellent after-sales support. This Uruguay smart meter project has become a successful reference for many Latin American DIP lines.
| Expert Services and Training
I.C.T gives full support for every DIP Wave Soldering Machine – from line design and installation to operator training and 7×24 global technical help. Our team makes sure your dip soldering machine and whole THT line run smoothly every day.
| Customer Praise
Customers worldwide like our DIP Wave Soldering Machine for strong stability, very low power cost and clean soldering on big boards. They especially thank the fast global service, good packing for export and easy daily use of this dip soldering machine semi automatic.
| Quality Certifications
Every I.C.T DIP Wave Soldering Machine has CE, CCC, UL, RoHS and ISO9001 certificates plus several patents, fully meeting international safety and green standards for modern THT lines.
| About I.C.T Company and Factory
I.C.T is a full-line solution provider for SMT and DIP production lines with over 25 years experience. Our 12,000㎡ factory in Dongguan has 89 staff including 20 engineers. We design and build all equipment in-house and serve more than 1600 customers in 72 countries. Strict quality control and fast innovation make us the best partner for reliable Through-hold PCB Soldering worldwide.
