I.C.T-OFM Series
I.C.T
| Quantity: | |
|---|---|

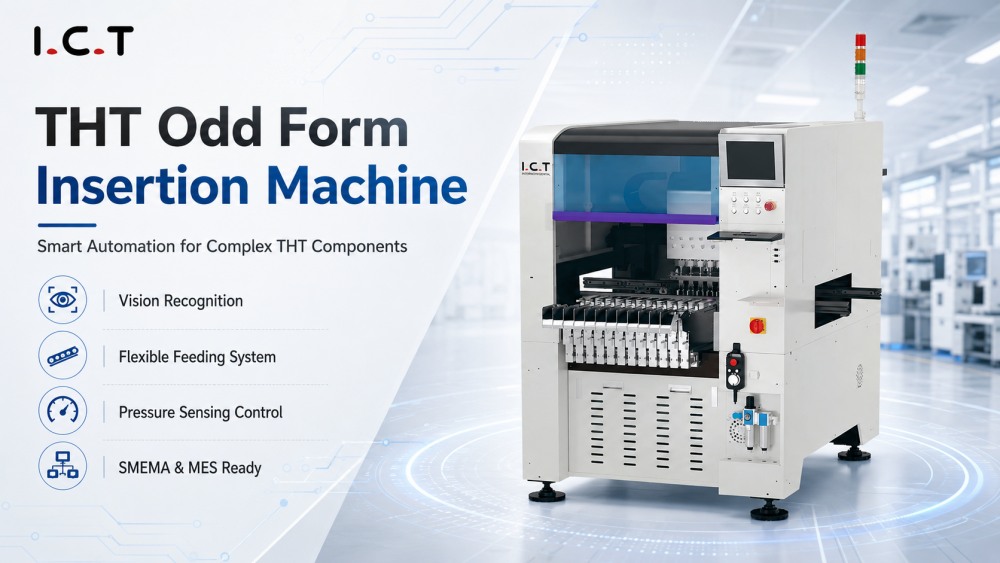

The I.C.T Odd Form Insertion Machine is designed for THT and DIP production lines that need automatic insertion of irregular components. It can handle connectors, switches, sockets, transformers, coils, ports, capacitors, resistors, ICs, RAM, and other special-shaped parts. The machine uses modular design, intelligent operation interface, component library management, embedded feeder design, polarity identification, pressure sensing, and software data management. Compared with manual insertion, it helps reduce labor work, avoid reverse insertion, improve insertion consistency, and support higher production efficiency. The OFM series includes OFM-4 and OFM-6 models, with 4 or 6 insertion heads for different production capacity needs.
| Product Features

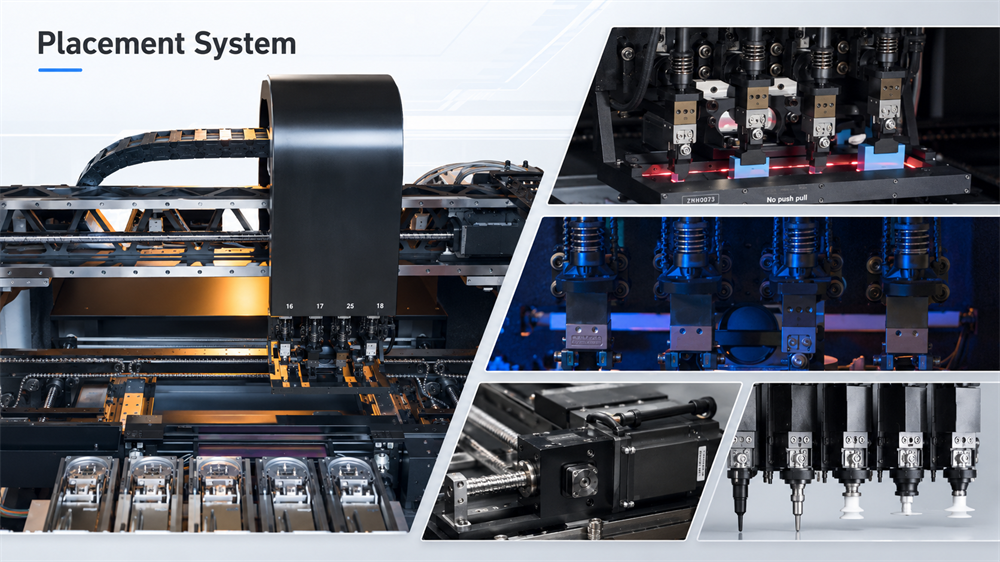

The placement system is the core part of this Odd Form Insertion Machine. It uses a high-speed head, ball screw structure, angle rotary motor, and closed-loop inserting height control to support accurate component insertion. The in-line high-precision camera and algorithm system can identify different component shapes before insertion, helping the machine handle more complex parts in real production. I.C.T also uses a pressure control system during the Z-axis inserting process. This helps the machine identify pin status and control the effective insertion height more safely. For special components, the moving part and nozzle can be customized based on the Customer’s actual component type.

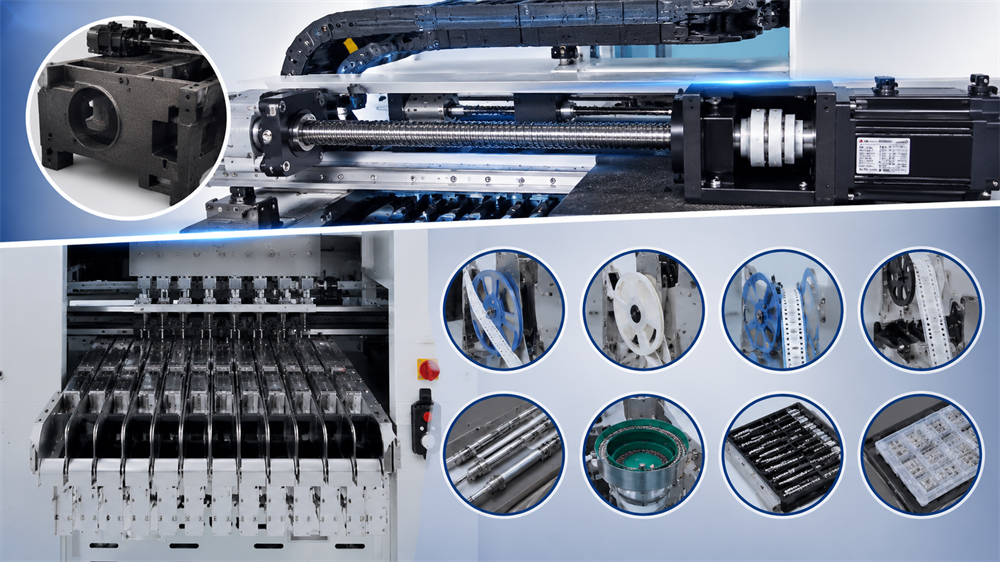

The driver system uses casting parts to keep the machine stable during high-speed movement. The XY axis adopts servo motors and high-level ball screws, which help improve insertion accuracy and long-term running stability. High-quality moving parts support continuous production and reduce vibration during operation. The feeding system uses a stable feeder bank, and double-side feeder bank is optional for higher feeding capacity. The fast plug-in interface makes feeder installation easier, while the guide groove design helps maintain feeding precision. This Advanced Odd Form Insertion Machine can support axial tape, radial tape, radial tape 90°, tube, bowl, and tray feeders, giving factories more flexibility for mixed component production.

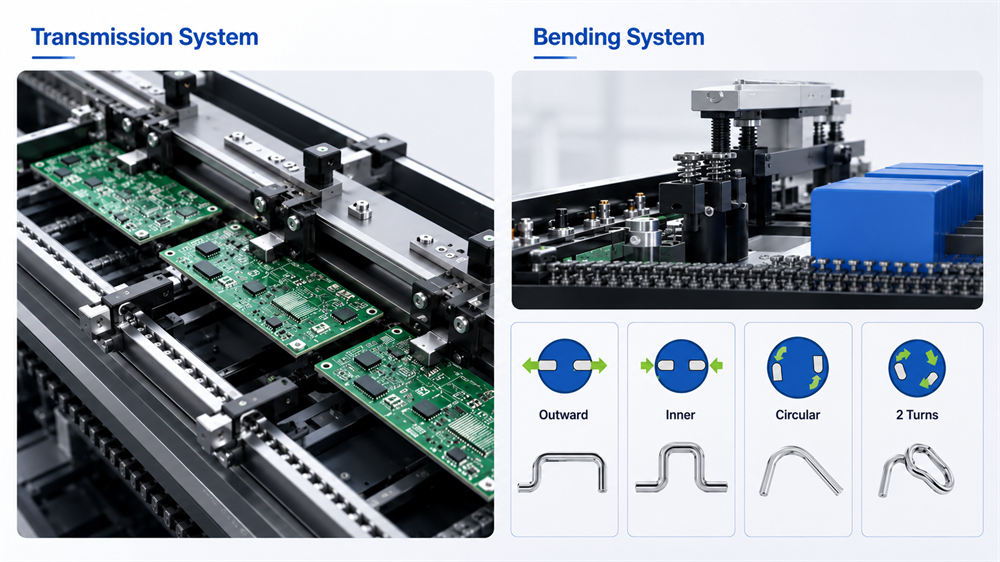

The transmission system uses a three-stage conveyor design to reduce PCB input and output time. A high-precision PCB support table helps keep the board stable during insertion, while the side clamp and top clamp system hold the PCBA firmly. This is important because odd-form parts may require insertion force, and board movement can affect insertion quality. The optional bending system can form leads after insertion according to process needs. It supports outward bending, inner bending, circular angle bending, and 2-turn bending. Although the bending function may reduce machine working efficiency, it can help prevent loose components and support more stable downstream soldering quality.

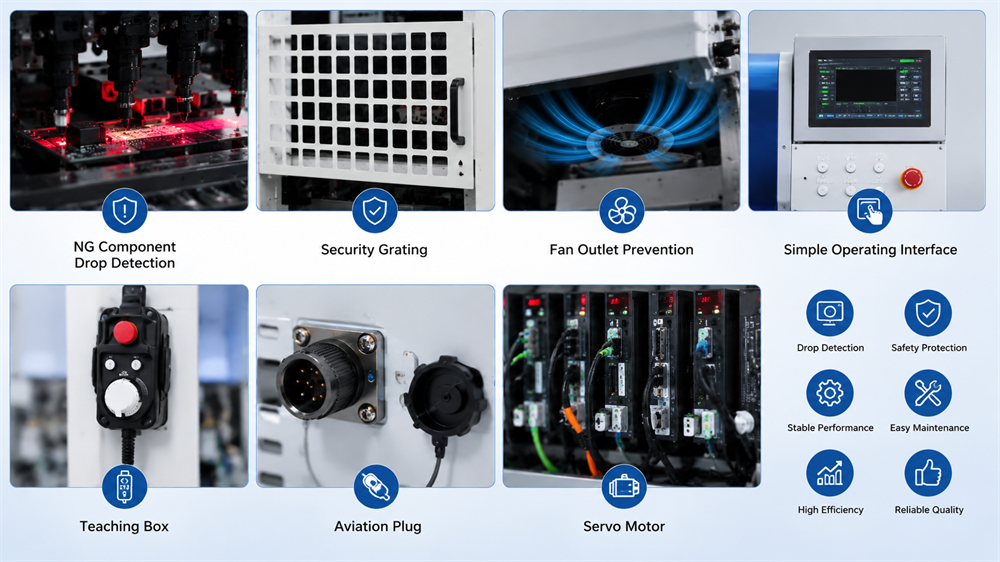

The I.C.T OFM series includes several practical functions for safer and easier production. The machine can support NG component drop detection, security grating, fan outlet prevention, simple operating interface, teaching box, aviation plug, and servo motor design. The intelligent interface makes daily operation easier for technicians, while the component library allows preset component information to be called quickly. The machine also supports data management to reduce human errors. With Industry 4.0 software management, remote monitoring, SMEMA and MES connection, the Odd Form Inserter Machine can be connected to modern PCB assembly production management systems.
| Specification
| Specification | OFM-4 | OFM-6 |
|---|---|---|
| Insert Head | 4 | 6 |
| Feeder Bank | Single Side | Double Side |
| Max. Feeder Input (Radial Tape) | 12 | 24 |
| Feeder Type | Axial Tape, Radial Tape, Radial Tape 90°, Tube, Bowl, Tray Feeder | Axial Tape, Radial Tape, Radial Tape 90°, Tube, Bowl, Tray Feeder |
| Max Component Size | φ50 (35*35) mm | φ50 (35*35) mm |
| Component Height | ≤35mm | ≤40mm |
| Component Pick | Nozzle / Clamp | Nozzle / Clamp |
| Insert Speed | 0.7S | 0.7S |
| Insert Accuracy | ±0.05mm | ±0.05mm |
| Insert Power | ≤98N | ≤29.4N |
| Component Type | Connector, Switch, Socket, Transformer, Coil, Port, Capacitor, Resistor, IC, RAM, etc. | Connector, Switch, Socket, Transformer, Coil, Port, Capacitor, Resistor, IC, RAM, etc. |
| PCB Size (L*W) | 70*70 ~ 410* 500mm | 70*70 ~ 410* 500mm |
| Transport Space (Top) | 35mm | 40mm |
| Transport Space (Bottom) | 20mm | 20mm |
| Max. PCB Weight | 5KG | 5KG |
| PCB Thickness | 0.6~2mm | 0.6~2mm |
| PCB Included Side Width | ≥5mm | ≥5mm |
| PCB Fixed | Servo Motor Lifting + Cylinder Clamping | Servo Motor Lifting + Cylinder Clamping |
| Transport Type | Chain, 3 Section | Chain, 3 Section |
| Transport Direction | L to R (R to L) | L to R (R to L) |
| Transport Width Adjust | Auto | Auto |
| Transport Height | 900±20mm | 900±20mm |
| Insertion Bent Lead Module | Option | Option |
| SMEMA & MES Connection | Standard | Standard |
| PCB Mark CCD | 1 | 1 |
| Component CCD | 4 | 3 |
| Operation System | Windows | Windows |
| Air Supply | 0.5-0.65MPa | 0.5-0.65MPa |
| Max Power | 6.5Kw | 6.5Kw |
| Run Power | 3.5Kw | 3.5Kw |
| Dimension | 1300*1700*2000mm | 1450*1750*2100mm |
| Weight | 1650KG | 1700KG |
*I.C.Tkeepsworkingonqualityandperformance,specificationsandappearancemaybeupdatedwithoutparticularnotice.Ifdifferent,please followthenewlist
| DIP Line Equipment List
I.C.T can integrate the odd form component insertion machine into a complete DIP production line. Related equipment includes manual insertion lines, automatic insertion machines, wave soldering machines, selective soldering machines, DIP AOI, PCB conveyors, loaders, unloaders, repair stations, soldering robots, and functional testing support. In a typical DIP process, SMT boards first finish surface mount production, then move to THT component insertion, soldering, inspection, repair, and final assembly. The odd form placement machine can replace part of the manual insertion work for complex components that are slow or unstable to insert by hand. I.C.T can design the full line based on component type, PCB size, capacity target, factory layout, and soldering method.
| Product Name | Purpose in DIP Line |
|---|---|
| PCB SMT line | Turnkey Ful-auto SMT assembly line |
| Automatic Insert Machine | Automatically places components onto PCBs with precision for DIP production line. |
Melts solder to form solid joints on PCBs during THT plug-in process. | |
Applies solder selectively to specific areas for accurate THT assembly | |
Inspects solder joints and placement defects on DIP assembled PCB. | |
Checks internal solder quality and hidden defects in THT components. | |
| Belt Assembly Line | Transports PCBs smoothly through the DIP line for efficient assembly and inspection. |
| Customer Success Video
In early December, an I.C.T Customer from Hungary visited our factory for the machine acceptance of their customized fully automatic THT insertion line. This project was designed for automated through-hole PCB assembly and included an Odd Form Insertion Machine, I.C.T-Acrab Wave Soldering Machine, and DIP AOI inspection machine. During the factory acceptance process, I.C.T engineers tested the machine connection, component insertion performance, wave soldering process, inspection function, and overall line operation. The Customer checked the equipment closely and discussed production details with our engineering team. This project shows how I.C.T supports Customers with customized DIP automation solutions, from machine selection and line design to testing, training, and final production preparation.
| Comprehensive Service Support
I.C.T supports Customers from early process planning to stable production. Before shipment, our team checks machine configuration, feeder application, nozzle design, PCB transport, component recognition, pressure sensing, safety function, electrical system, and packaging condition. During onsite or remote service, I.C.T engineers help connect the Odd Form Insertion Machine with upstream and downstream machines, such as manual insertion lines, conveyors, wave soldering machines, AOI, and repair stations. Training covers operation interface, feeder installation, component library use, program setup, camera checking, pressure control, insertion testing, bending module use, daily maintenance, and troubleshooting. This support helps Customers reduce setup mistakes and start production faster.
| What Clients Say
Customers often give positive feedback on I.C.T engineers because they explain the process clearly and help solve real production problems during machine setup. They also value the machine’s stable structure, flexible feeder options, customized nozzles, and support for different odd-form components. For overseas shipment, I.C.T uses strong export packaging to protect equipment during long-distance transport. When Customers have questions about component testing, feeder adjustment, insertion accuracy, software settings, or line connection, our sales and technical teams respond quickly and follow up until the issue is solved. This support gives Customers more confidence when moving from manual insertion to automated THT production.
| Certifications and Standards
I.C.T focuses on quality control for SMT and DIP line equipment. Our company works with products and systems supported by CE, RoHS, ISO9001, patents, and other quality documents. For an auto insertion Machine for PCB assembly, quality control includes machine frame stability, servo motion, ball screw accuracy, camera recognition, feeder precision, nozzle matching, PCB clamping, pressure sensing, transport stability, safety protection, and software control. Before shipment, each machine goes through mechanical inspection, electrical testing, function testing, and packaging review. Stable insertion directly affects soldering quality, inspection results, and final product reliability, so I.C.T pays attention to both equipment quality and project process details.
