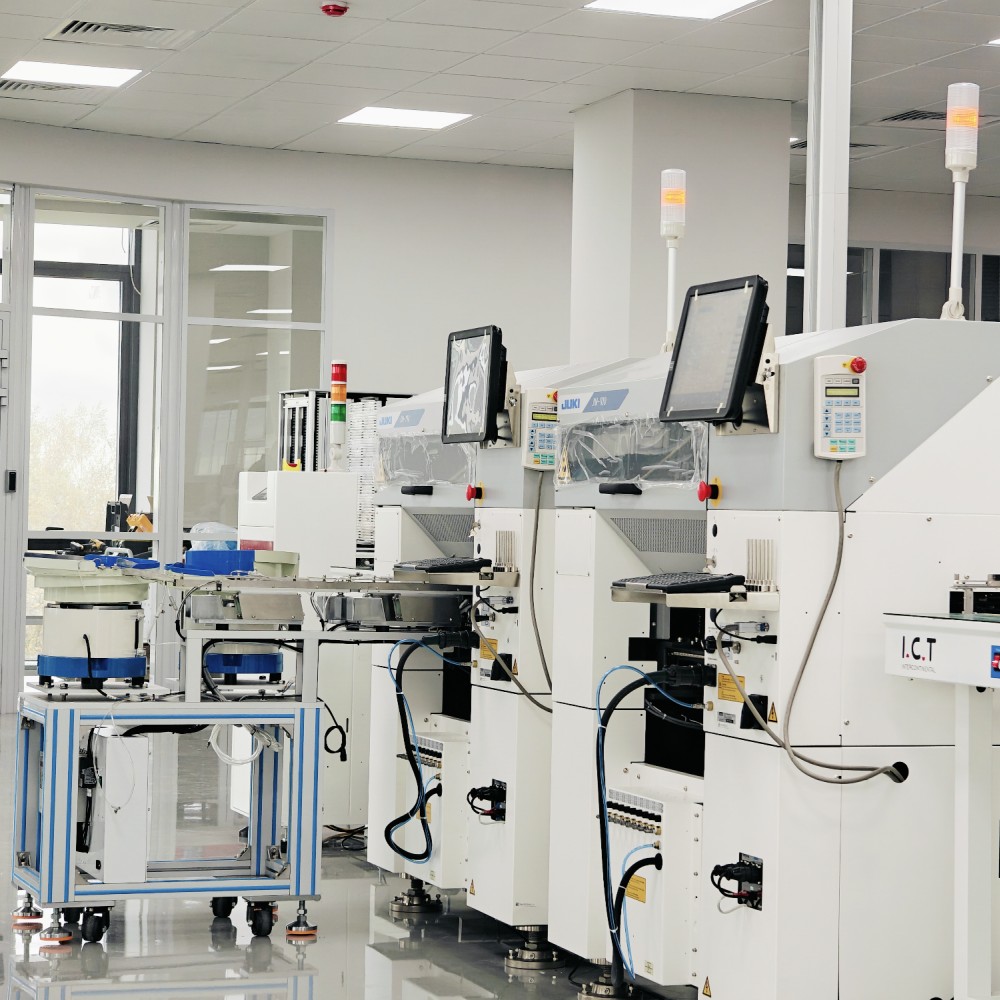

The I.C.T axial component placement machine designed for DIP and THT PCB assembly lines. It is used to automatically insert axial lead components such as resistors, diodes, inductors, fuses, jumpers, and similar taped parts. The machine supports 25000 CPH insertion speed, with 10 or 20 standard feeder inputs. More feeder inputs, such as 30, 40, 50, or 100, can be optional based on production needs. It supports component span from 5 to 22mm and jumper span from 5 to 26mm. With compact structure, automatic recovery, high-density feeding, and 0–360° insertion direction, it helps reduce manual insertion work and improve DIP production efficiency.
| Product Features
The insert system uses a stable mechanical structure and high-quality parts to support long-term operation. Its high-precision coordinate positioning system helps keep insertion accurate during continuous production. Different axial components can be changed quickly without greatly affecting production efficiency, which is useful for mixed PCB assembly. As an Automatic DIP THT Insertion Axial Component Placement Machine, it is designed to handle repeated insertion tasks with steady control.
The conveyor system uses a 360° rotating platform, and the servo motor controls the insertion angle accurately. The cylinder push plate helps position the PCB with small error. A mechanical baffle structure gives reliable long-life support, while step belt PCB transmission and sensor stop control keep board movement continuous. The traditional mechanical width adjustment structure also helps reduce calibration and maintenance time.
The bend system is designed for high-speed and stable lead forming. During bending, the process is built to protect both the PCB and the component, reducing the risk of board damage or part damage. The structure is easy to replace and maintain, which helps improve daily production efficiency. The core parts use high-quality materials, and the moving parts use imported materials for better durability. This makes the axial placement machine practical for factories that need stable lead forming after insertion.
The jumper system uses an independent feeding method. Its precise motor control helps improve feeding accuracy. The machine supports multiple jumper wire diameters from 0.5 to 0.7mm. This is useful when the Customer needs jumper insertion together with axial component insertion on the same production platform.
The feeding system is built for high adaptability. It can support automatic re-run feeding and non-stop refeeding, helping reduce production interruptions. Standard feeder input can be 10 or 20 pieces, while 30, 40, 50, and 100 inputs can be optional. This makes the machine suitable for high-density and high-mix components. For factories that produce different PCB models, the feeding system helps keep parts prepared and improves production continuity.
The control system is designed based on Industry 4.0 and EU CE standards. It uses a specially developed IO control center to match the machine’s operation needs. Full closed-loop control supports faster response and higher working efficiency. The modular control system also helps reduce maintenance cost. As a THT insertion machine, it gives operators a clearer control process and supports more stable production management.
The machine supports auto recovery, which helps the machine return to production faster after certain insertion issues. The insertion direction can be set from 0° to 360° by 1° increments, giving more freedom for different PCB layouts. Component lead bend angle is 35°±15°, and lead bend length is 1.2–2.2mm. The machine supports components such as jumper wires, capacitors, transistors, diodes, inductors, resistors, and fuses. It also supports Chinese and English language operation, more than 2000 programs, LCD touch screen control, and microcomputer operation. These details make the machine a practical tht placement machine for modern DIP production.
| Specification
| Specification | A131M | A131H |
|---|---|---|
| Component Feeder Input | 10pcs (Option: 30, 40, 50, 100pcs) | 20pcs (Option: 30, 40, 50, 100pcs) |
| Insertion Speed | 25000CPH, Max 0.12s/point (0.14s, 0.16s, 0.18s/point changeable) | 25000CPH, Max 0.12s/point (0.14s, 0.16s, 0.18s/point changeable) |
| Insertion Span | Component: 5~22mm, Jumper: 5~26mm | Component: 5~22mm, Jumper: 5~26mm |
| Jumper Feeder | 0.5~0.7mm, Independent Feeding | 0.5~0.7mm, Independent Feeding |
| Insertion Recovery | Auto recovery | Auto recovery |
| Insertion Direction | 0~360° direction by 1° increment | 0~360° direction by 1° increment |
| Component Lead bend Angle | 35°±15° | 35°±15° |
| Component Lead bend Length | 1.2~2.2mm | 1.2~2.2mm |
| Component Type | Jumper, Capacitor, Transistor, Diode, Inductor, Resistor, Fuse etc., 52-90mm Standard Package | Jumper, Capacitor, Transistor, Diode, Inductor, Resistor, Fuse etc., 52-90mm Standard Package |
| Insertion Precision | 0.05mm | 0.05mm |
| PCB Size | 50*50~380*380mm | 50*50~380*380mm |
| Insertion Area | 50*50~370*370mm | 50*50~370*370mm |
| PCB Weight | <1.0Kg | <1.0Kg |
| PCB Thickness | 1.0~2.0mm | 1.0~2.0mm |
| PCB Fixed | Pin + Clamp | Pin + Clamp |
| Transport Height | 900±20mm | 900±20mm |
| Transport Direction | R~L (Optional: L~R) | R~L (Optional: L~R) |
| Transport Time | 3-4s | 3-4s |
| Operate | Microcomputer, LCD Touch Screen | Microcomputer, LCD Touch Screen |
| Language | Chinese, English | Chinese, English |
| Program Quantity | 2000+ | 2000+ |
| Air Pressure | 0.45~0.6Mpa | 0.45~0.6Mpa |
| Air Source Flow | 110L/min | 110L/min |
| Power Supply | 1P, 220AC±10%, 50/60HZ | 1P, 220AC±10%, 50/60HZ |
| Power | 2.0KVA | 2.0KVA |
| Dimension | L2080*W1750* H1600mm | L2080*W1750* H1600mm |
| Feeder Station Size | 10Feeder: 1360*1000*1460mm, 20Feeder: 1860*1000*1460mm, 30Feeder: 2360*1000*1460mm | 10Feeder: 1360*1000*1460mm, 20Feeder: 1860*1000*1460mm, 30Feeder: 2360*1000*1460mm |
| Weight | 1300kg | 1300kg |
