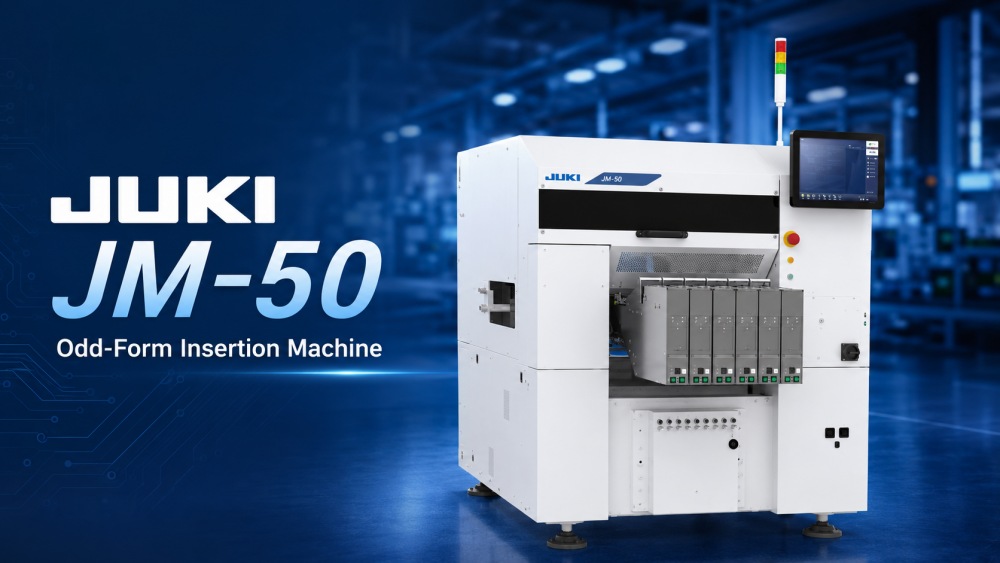

The JUKI JM-50 is Odd form insertion equipment designed for reliable automatic insertion in DIP and THT production lines. It is suitable for factories that produce many product types in small or medium batches. The machine supports various odd-form parts, including radial components, axial components, loose parts, stick parts, tray parts, and special components. With flexible feeder options, 3D vision centering, mini chuck nozzle support, and lead correction jig options, JM-50 helps reduce manual insertion work and improve process consistency. It supports component sizes from 0603 to □50 mm, maximum component height of 30 mm, and PCB weight up to 2 kg.
| Product Features

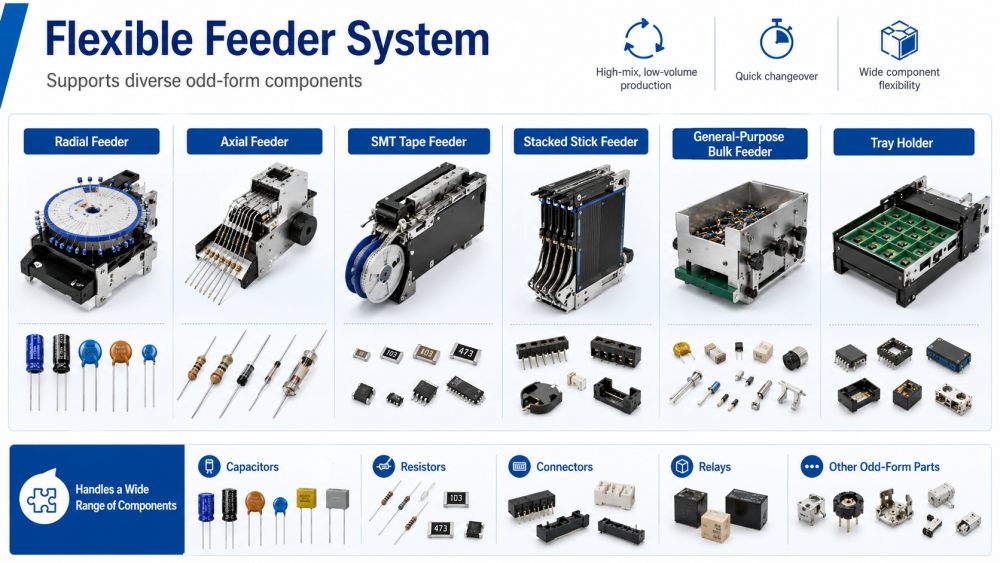

The JUKI JM-50 uses a flexible feeder system to support different odd-form components in one production platform. It can work with radial feeders, axial feeders, stacked stick feeders, general-purpose bulk feeders, tray holders, and SMT tape feeders. This makes it practical for Customers that need to insert many types of parts without changing the whole production method. The feeder design is useful for high-mix low-volume manufacturing, where frequent product changeover is common. As an odd form component insertion machine, JM-50 helps reduce manual labor, shorten changeover time, and give production teams more freedom when handling different component packages.

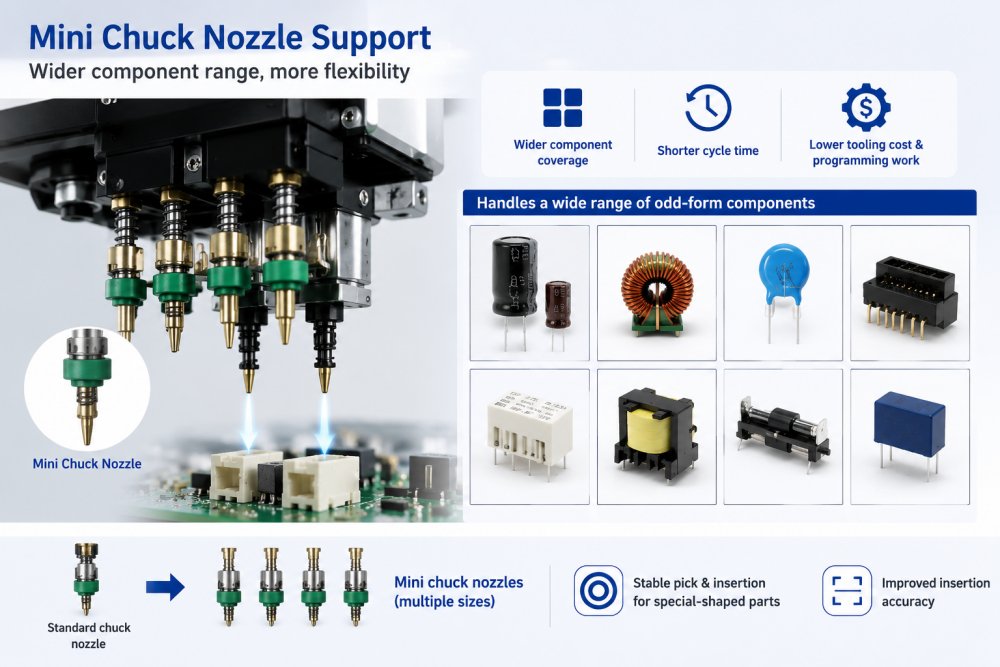

One important advantage of JM-50 is the new mini chuck nozzle design. It supports a wider range of components and helps reduce cycle time, tooling cost, and programming work. For odd-form insertion, some components are difficult to pick with standard tools because their body shape, lead position, or package size is not regular. The mini chuck nozzle gives the machine more flexibility when handling special parts. For factories looking for DIP Automated Inserter Odd Form Component Insertion Equipment, this function helps improve component coverage and supports more stable automatic insertion in real production.

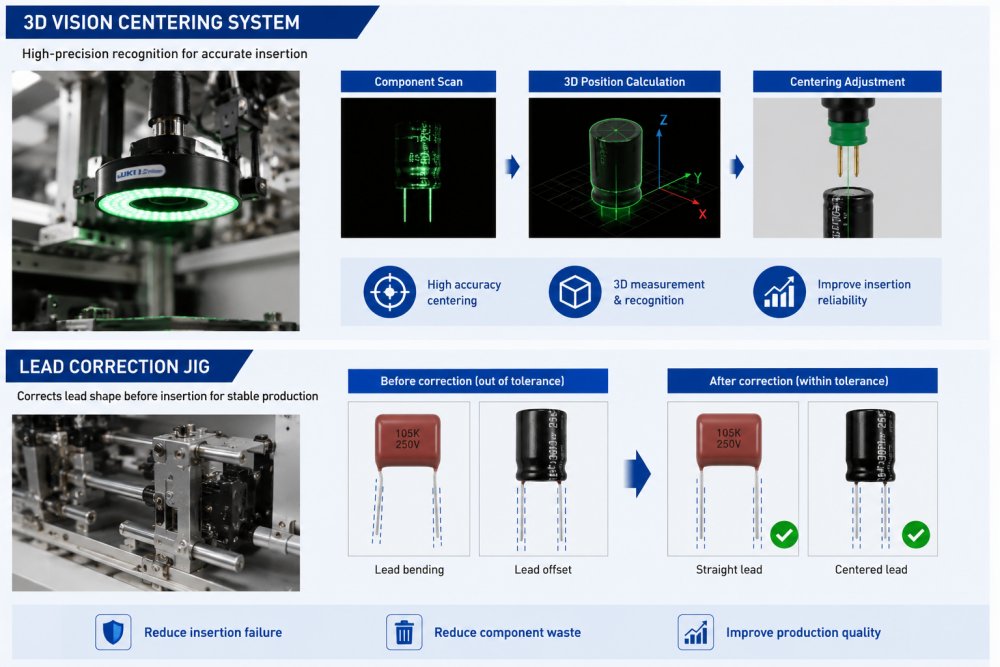

JM-50 can be equipped with a 3D vision centering system and lead correction jig. The vision system helps check component position before insertion, while the lead correction jig helps correct leads that may not be within tolerance. This is important because bent or uneven leads can cause failed insertion, damaged components, or poor production flow. By improving part recognition and lead condition before insertion, the machine helps reduce waste and improves insertion reliability. As an odd form component inserting system, JM-50 is suitable for Customers who need better control over THT component placement quality.
| Specification
| Model | JM-100 | JM-50 | JM-20 | |
| Board Size | 1 time clumping | 410*360mm | 410*360mm | 410*360mm |
| 2 time clumping | 800*360mm | 800*360mm | 800*360mm | |
| Component Height | max.30mm | max.50mm | ||
| Component Size | 0603-50MM | |||
| Placement Speed | 16,000 CPH | 9,000 CPH | 1,550 CPH | |
| Head | 8 | 4 | 6 | |
| Machine dimension (W×D×H) | 1500*1500*1450mm | 1454*1505*1450mm | 1500*1657*1600mm | |
| Mass (Approximately) | 1300kg | 1300kg | 1760kg | |
