| On-line Selective Wave Soldering Machine SS540
The Selective Wave Soldering Machine SS540 is a reliable tool built in China by I.C.T for precise through-hole soldering on PCBs. It suits high-end needs like automotive electronics and power supplies where quality matters most. With fixed PCB boards and moving platforms for spray and solder, it handles high-volume jobs smoothly. Full PC control lets you save paths, temperatures, and flux settings for top traceability. Modular design fits any line, and features like auto wave calibration keep things steady. As the Best Selective Wave Soldering option, it cuts defects and boosts efficiency. I.C.T's 26 years of know-how ensure it's easy to use and backed by experts worldwide.
| DIP Line Equipment List
The Pcba Automatic Selective Wave Soldering Machine uses a smart flux system for even coverage. It has a German high-frequency pulse valve that sprays tiny flux dots, keeping solid content under 10% for clean results. A tray catches drips for quick cleanup, and the nozzle on the XY table hits 0.02mm accuracy. Pressure tanks hold flux steady no matter how much you use, with Japanese SMC parts for smooth flow. Visual gauges on the front make checks simple. This setup cuts waste and jams, making soldering reliable for busy shops.
Preheat in this Selective Wave Soldering Machine warms boards just right before soldering. Bottom IR heating is standard and adjustable, with top hot air for even spread over a big area. High-temp cotton seals in heat to hold steady temps, using top-brand parts that last. The design maxes out the warm zone without hot spots. Plug-in setup means no tools for fixes, so downtime stays low. It preps PCBs fast, around 15 minutes to 150°C, for stronger joints and fewer errors in production.
Soldering shines with this Selective Wave Soldering Machine's strong system. Sweden's PRECIMETER electromagnetic pump keeps the solder wave stable and leak-free. Set temps for solder and N2 right in software, plus quick cast iron heaters that ramp up fast. The stainless steel pot with anti-corrosion coat (or titanium option) handles heat well, while N2 heating wets joints perfectly and cuts dross. It ensures clean, solid bonds on tough components, ideal for high-reliability work like military gear.
The transmission keeps boards moving safe and steady in the Selective Wave Soldering Machine. Special profiles and roller modules handle up to 20kg loads without wobble. Side and top clamps hold PCBs firm from 60 to 500mm wide. Japanese motors drive it all with no collisions, at heights from 900mm. Online swaps mean no stops in flow. This setup fits SMEMA lines easily, supporting flexible factory layouts for smooth, high-speed runs.
Control in the Selective Wave Soldering Machine is built tough for daily use. Keyence PLC with high-end bus meets CE and Industry 4.0 rules, adding modules as needed. Global parts and fast Cat-6 cables link everything quick and sure. It boosts capacity while keeping things stable under load. Trace data for every run helps spot issues early. This backbone runs the whole process without glitches, making it a smart pick for modern plants.
Operation feels simple on this Selective Wave Soldering Machine with guided tools. CCD speeds up programming and spots nozzles auto. Picture mode checks coordinates smartly, with real-time views you switch in one click. Pick Chinese, English, or other languages for your team. MES links for WiFi updates and remote tweaks add smarts. Data traces each solder point for quality checks. It's easy for new users, cutting training time in fast-paced lines.
| Specification
| On-line Selective Wave Soldering Machine | ||||
| Model | I.C.T SS540 | I.C.T SS550 | I.C.T SS550P1 | I.C.T SS550P2 |
| On-line Modular | Spray + Preheating & Soldering | Spray + Preheating + Soldering | Spray + Preheating + Soldering +Soldering | Spray + Preheating + Soldering + Soldering+ Soldering |
| Soldering System | ||||
| Nozzle Quantity | 1 | 1 | 2 | 3 |
| Solder Pot Quantity | 1 set | 1 set | 2 set | 3 set |
| Double Pot (Option) | N/A | Option | Option | Option |
| Solder Pot Power | 2.35kw | 2.35kw | 4.70kw | 7.05kw |
| Flux System | ||||
| Flux Storage Tank | 1L | 1L | 2L | 2L |
| Flux Support | Flux Alarm, Automatic | |||
| Spray Nozzle | Germany Jet Valve (Spot and line spraying) 1 set | |||
| Spray Nozzle Size | 130um (180um, 210um Option) | |||
| Spray Speed | 0~20mm/s | |||
| Spray Nozzle Move Speed | 0~400mm/s | |||
| Preheating System | ||||
| Preheating Mode | Hot air and IR | Hot air and IR | Hot air and IR | Hot air and IR |
| Preheating Area | L500*W500mm | L500*W500mm | L500*W500mm | L500*W500mm |
| Preheating Zone | Top hot air: 2, Bottom IR: 1 | |||
| Bottom Preheating Power | Max.12kw | |||
| Top Preheating Power | Max.6kw | |||
| Warm-up Time | Approx.15min (setting 150℃) | |||
| Control Mode | PC+PLC | |||
| Transport System | ||||
| PCB Size (with fixture) | 120*60~500*500mm | |||
| PCB Replacement | Online | |||
| PCB Top Clearance | 120mm | |||
| Transport Height | 900±20mm | |||
| Transport Width | 60~500mm | |||
| Dimension：mm | L1850*W1850*H1480 | L2560*W1750*H1480 | L2560*W1950*H1480 | L2600*W1950*H1480 |
| Weight | Approx: 800kg | Approx: 1200kg | Approx: 1300kg | Approx: 1500kg |
| DIP Line Equipment List

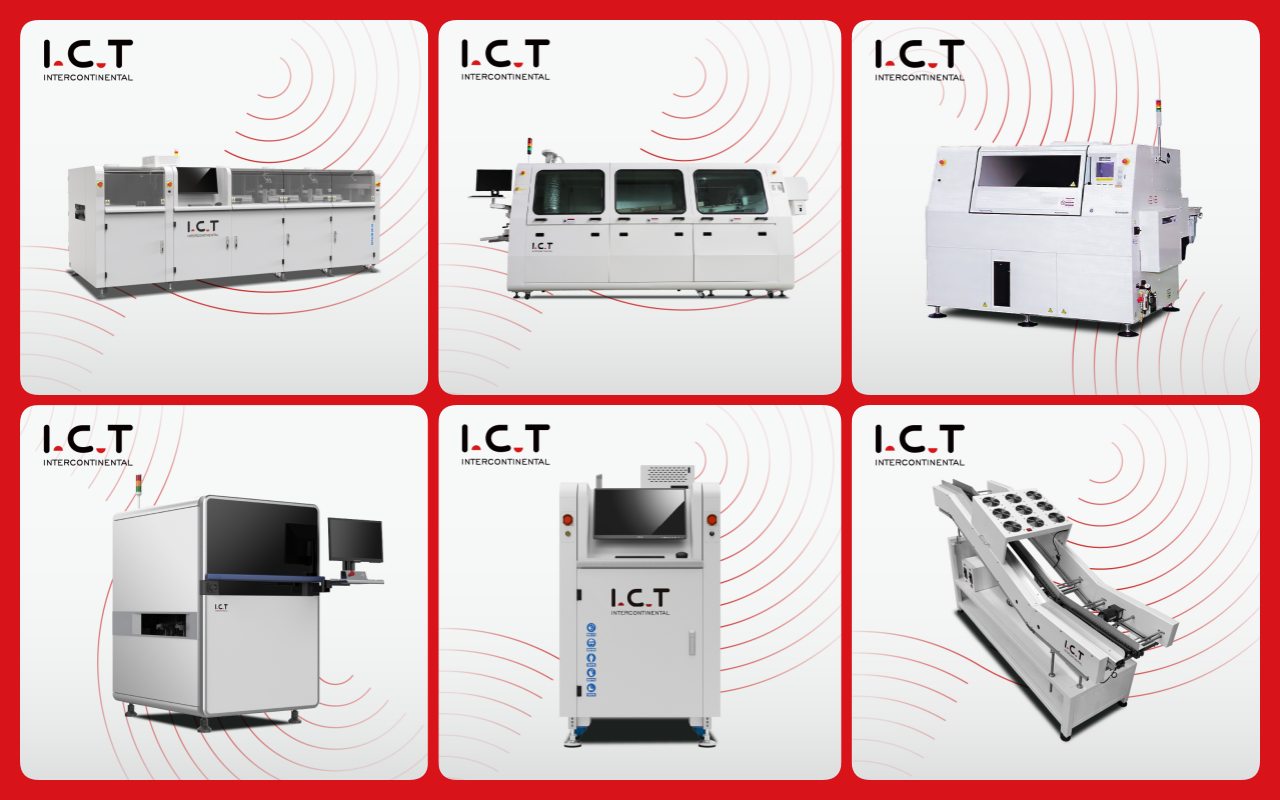

Our DIP production line offers advanced tools for efficient and precise PCB assembly. The fully automated DIP line includes a DIP insertion line for accurate component placement, a wave loader for smooth PCB entry, a wave unloader for safe exit, and an assembly belt line for final checks. This high-quality PCB DIP production line ensures stable operation, reliable THT insertion, and cost-effective assembly, meeting diverse industry needs. With modular designs and global support from I.C.T, it boosts productivity for through-hole tasks.
