| Specification | Details |
|---|---|

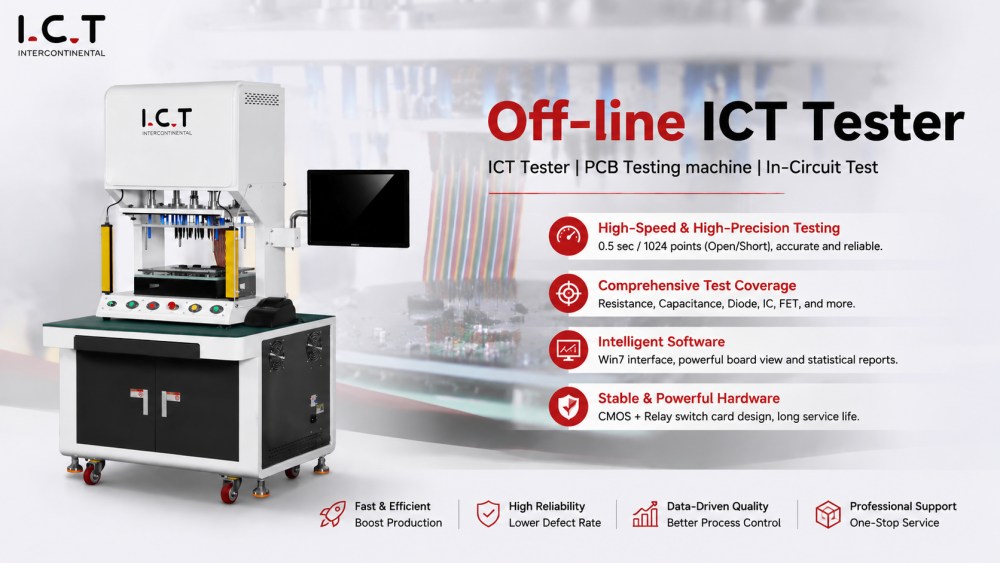

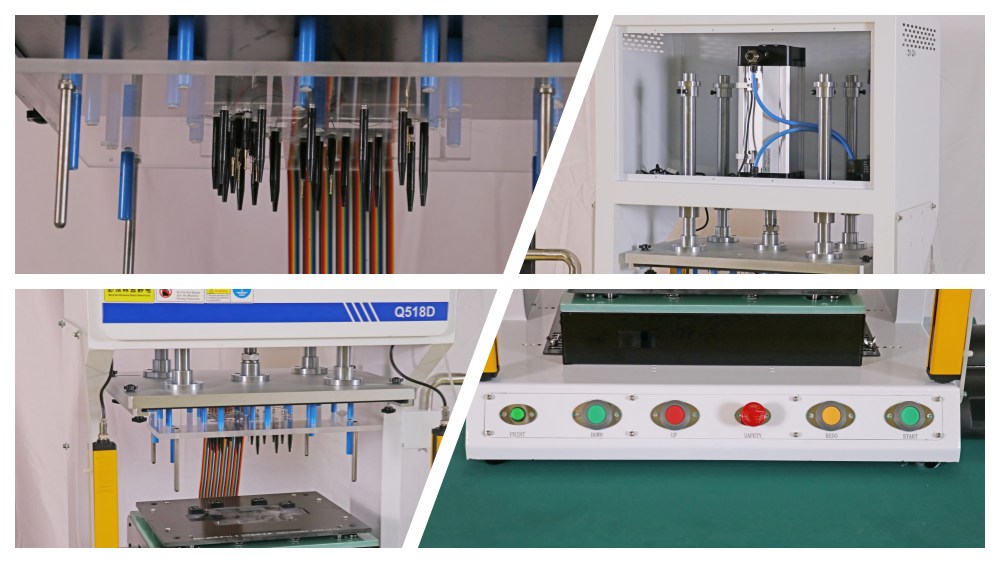

| Model | I.C.T-Q518D |
| PCB Size | 500*380mm (Standard) |
| Test Points | 256 points (Standard, 1024 points optional) |
| Test Speed | 0.5 sec/1024 points (Open/Short) |
| 2ms ~ 40ms/step (Component) | |
| Switch Card | 128/pot |
| Isolated Points | 10/cart |
| Test Range | Resistance: 0.1Ω ~ 40MΩ |
| Capacitance: 1pf ~ 40MF | |
| Inductance: 1μH ~ 50H | |
| Diodes: 0.1V ~ 6V | |
| Stabilized Voltage Diode: 0.1V ~ 15V | |
| Measurement of VCE Saturation at 3 terminals | |
| AC Voltage | 10mVpp ~ 2500mVpp |
| DC Voltage | 10mV ~ ±1250mV |
| AC/DC Current | 10μA ~ 20mA |
| Test Frequency | AC 100 ~ 100KHz |
| Polarity Test of Electrolytic Capacitor | 3-end Test |
| SMD Empty Soldering Test | Optional SMD Open/Short & Empty Soldering Test |
| Measurement Method | Multi-frequency Test or Amplitude Phase Method |
| Main Processor | PC Compatible |
| Operating System | Win7 (English Version) |
| Air Pressure | 3~6 kg/cm² |
| Power Supply | AC 100~240V, 50/60Hz, 3Kw |
| Dimension | 8308301600mm |
| Weight | Approx. 170kg |
| Standard Accessories | Tester (1 set), Fixture (1 pcs), Printer (1 set) |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
I.C.T provides comprehensive SMT production line solutions that cover the full electronics manufacturing process from beginning to end. Our systems integrate board handling, solder paste printing, high-speed component placement, inspection, reflow soldering, and flexible depaneling options including the PCB Manual Depaneling Router Machine for smaller production needs. We support customers with complete factory planning, equipment selection, professional installation, operator training, and continuous optimization. This end-to-end approach helps manufacturers in smartphone, automotive, medical, and consumer electronics industries achieve higher efficiency, consistent quality, and strong competitive advantage in today’s market.
| Product Name | Purpose in SMT Line |
|---|---|
| SMD PCB assembly Line | Turnkey Ful-auto SMT assembly line |
| SMT magazine loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| SMT assembly machine | Mounts components onto PCBs precisely. |
| BGA reflow oven | Melts solder to form solid joints. |
| Customer Success Video
Successful SMT Line Delivery in Portugal
In 2026, I.C.T successfully delivered a fully automated SMT production line to a customer in Portugal, specializing in automotive electronics, including car lights and controllers. The line included the Off-line ICT Tester, which seamlessly integrated with pick-and-place machines, stenciling systems, and reflow ovens. Our engineers provided one-stop installation and on-site training support, ensuring smooth delivery. The customer expressed high satisfaction with the efficiency improvements and seamless operation of the line.
| Service and Training Support
I.C.T provides integrated solutions for SMT, DIP, and Coating production lines, ensuring that each piece of equipment works together to optimize your entire manufacturing process. Our engineers assist with the complete setup, from installation to operational training, ensuring that your team can operate the entire system efficiently. With 24/7 remote support, we ensure continuous assistance, minimizing downtime and improving productivity.
| What Our Customers Say
Our clients consistently praise the seamless integration and efficiency of our complete SMT solutions. By incorporating the Off-line ICT Tester into their production lines, customers have improved throughput, reduced downtime, and enhanced product quality. I.C.T’s comprehensive support system ensures that every stage of the process runs smoothly, helping clients meet production demands while maintaining high standards.
| Certifications and Standards
I.C.T’s equipment, including the Off-line ICT Tester, meets international certifications such as CE, RoHS, and ISO9001. These certifications guarantee that our products are safe, reliable, and environmentally responsible. By providing certified solutions for your entire SMT production line, we ensure that all equipment meets the highest industry standards, offering a compliant and efficient solution for your manufacturing process.
| About I.C.T Company and Factory
I.C.T specializes in providing complete SMT, DIP, and Coating production line solutions. With over 20 years of experience, we offer tailored solutions for your factory, ensuring seamless integration of all equipment. From the design phase to installation and support, we ensure that each component of your production line operates harmoniously. Our commitment to quality, innovation, and customer support has helped over 70 countries optimize their production lines and boost manufacturing efficiency.
