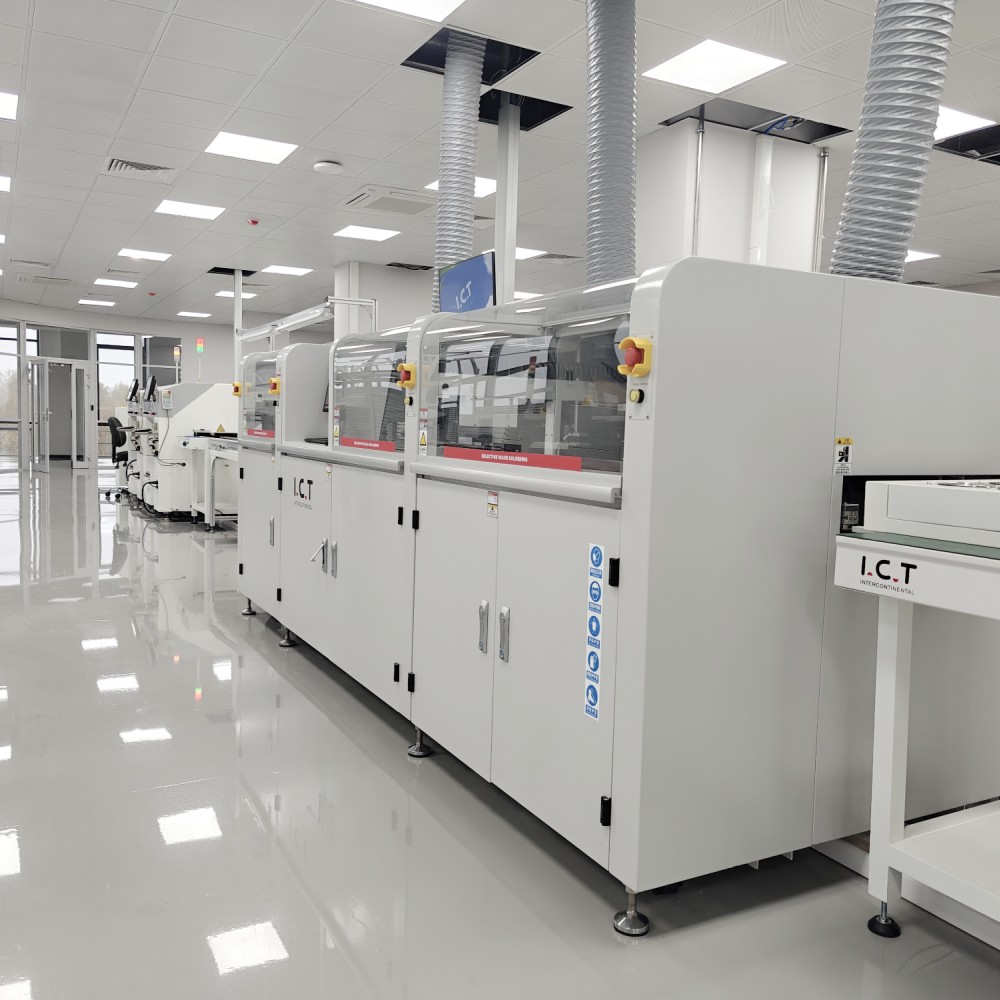

| Off-line Selective Wave Soldering Machine
Built from the ground up in our Dongguan factory, the I.C.T Off-line Selective Wave Soldering Machine is the perfect PCB Selective Wave Soldering Machine when you need maximum flexibility without tying up an entire SMT line. The PCB never moves—only the super-light cast-aluminum gantry glides on Panasonic servos and linear rails to deliver flux and solder exactly where they belong. Inline nitrogen heating gives shiny, full fillets with almost no waste. Operators program everything—paths, temps, spray volume, wave height—on a clean Windows touchscreen and save endless jobs for instant changeovers. Auto wave calibration, live CCD, German jet valve, and titanium pot keep this Off-line Selective Wave Soldering Machine pumping out perfect boards 24/7.
| DIP Line Equipment List
A German high-frequency pulse valve fires micro-dots of low-solids flux (under 10%) with 0.02 mm accuracy. Pressurized tank plus digital flow meter keep pressure rock-steady even when the tank is nearly empty. Residue lands in a pull-out tray for two-second cleanup. Japanese SMC pneumatics and front-mounted gauges make daily checks a breeze. An automatic extraction pump guarantees constant supply. This smart flux system activates every pad perfectly on the Off-line Selective Wave Soldering Machine.
Standard bottom IR is fully adjustable; top hot-air convection or extra IR optional. Open-grid design plus high-temp cotton insulation delivers uniform heat across the entire board. Top-brand heaters and plug-in motors mean zero tools for service and years of quiet running. PCBs come out perfectly flux-activated and stress-free, ready for flawless joints on the PCB Selective Wave Soldering Machine.
German electromagnetic pump and titanium solder pot create an ultra-stable mini wave that never drifts. Control N2 temp, solder temp, wave height, and auto-calibration right from the touchscreen. Inline nitrogen produces mirror-bright fillets and almost zero dross. Laser monitors height, nozzles auto-clean, and 900 hours of video are saved for traceability. This is the heart that makes the Off-line Selective Wave Soldering Machine unstoppable.
Three-section roller conveyor plus pneumatic side and top clamps hold boards up to 20 kg dead-still. Beefy rails and high-precision servos move PCBs smoothly station to station. Double-sided or thick assemblies clear with room to spare. Built for nonstop duty on any PCB Selective Wave Soldering Machine setup.
CE-compliant PLC, Cat-6 wiring, and full Industry 4.0 connectivity give blazing speed and rock-solid reliability. Guided wizards, picture-based coordinate fixes, auto nozzle detection, and multi-language menus cut training time to almost nothing. MES hookup and remote diagnostics keep the Off-line Selective Wave Soldering Machine earning around the clock.
Large color touchscreen, step-by-step guides, one-tap CCD preview, and voice alerts make running the machine dead simple. Switch instantly between English, Chinese, Japanese, or Russian. Custom tower lights and Wi-Fi upgrades keep everyone informed without stepping away from the line.
| Specification
| On-line Selective Wave Soldering Machine | ||||
| Model | I.C.T SS540 | I.C.T SS550 | I.C.T SS550P1 | I.C.T SS550P2 |
| On-line Modular | Spray + Preheating & Soldering | Spray + Preheating + Soldering | Spray + Preheating + Soldering +Soldering | Spray + Preheating + Soldering + Soldering+ Soldering |
| Soldering System | ||||
| Nozzle Quantity | 1 | 1 | 2 | 3 |
| Solder Pot Quantity | 1 set | 1 set | 2 set | 3 set |
| Double Pot (Option) | N/A | Option | Option | Option |
| Solder Pot Power | 2.35kw | 2.35kw | 4.70kw | 7.05kw |
| Flux System | ||||
| Flux Storage Tank | 1L | 1L | 2L | 2L |
| Flux Support | Flux Alarm, Automatic | |||
| Spray Nozzle | Germany Jet Valve (Spot and line spraying) 1 set | |||
| Spray Nozzle Size | 130um (180um, 210um Option) | |||
| Spray Speed | 0~20mm/s | |||
| Spray Nozzle Move Speed | 0~400mm/s | |||
| Preheating System | ||||
| Preheating Mode | Hot air and IR | Hot air and IR | Hot air and IR | Hot air and IR |
| Preheating Area | L500*W500mm | L500*W500mm | L500*W500mm | L500*W500mm |
| Preheating Zone | Top hot air: 2, Bottom IR: 1 | |||
| Bottom Preheating Power | Max.12kw | |||
| Top Preheating Power | Max.6kw | |||
| Warm-up Time | Approx.15min (setting 150℃) | |||
| Control Mode | PC+PLC | |||
| Transport System | ||||
| PCB Size (with fixture) | 120*60~500*500mm | |||
| PCB Replacement | Online | |||
| PCB Top Clearance | 120mm | |||
| Transport Height | 900±20mm | |||
| Transport Width | 60~500mm | |||
| Dimension：mm | L1850*W1850*H1480 | L2560*W1750*H1480 | L2560*W1950*H1480 | L2600*W1950*H1480 |
| Weight | Approx: 800kg | Approx: 1200kg | Approx: 1300kg | Approx: 1500kg |
| DIP Line Equipment List
Our DIP production line offers advanced tools for efficient and precise PCB assembly. The fully automated DIP line includes a DIP insertion line for accurate component placement, a wave loader for smooth PCB entry, a wave unloader for safe exit, and an assembly belt line for final checks. This high-quality PCB DIP production line ensures stable operation, reliable THT insertion, and cost-effective assembly, meeting diverse industry needs. With modular designs and global support from I.C.T, it boosts productivity for through-hole tasks.
| Product Name | Purpose in DIP Line |
|---|---|
Automatically places components onto PCBs with precision for DIP production line. | |
Melts solder to form solid joints on PCBs during THT plug-in process. | |
Applies solder selectively to specific areas for accurate THT assembly | |
| Post-wave Inline AOI | Inspects solder joints and placement defects on DIP assembled PCB. |
