Wave Solder Output Conveyor
I.C.T
| Quantity: | |
|---|---|
| Stable Output After Soldering
The Wave Solder Output Conveyor is installed after the wave soldering machine in DIP and THT production lines. Its main job is to receive soldered PCBs and move them to the next process safely. After fluxing, preheating, and soldering, the PCB still carries heat, so direct manual handling is not ideal. This machine uses a high-temperature antistatic belt, fan cooling, motor control, and a rugged steel body to support stable post-soldering transfer. The standard dimension is 12004851400 mm. PCB width supports 50–400 mm and can be customized for special board sizes. It can also match different production directions and factory layouts.
| Product Features In DIP Line
The Wave Loader is placed before the wave soldering machine. In a full DIP line, PCBs first pass through manual insertion, automatic insertion, or transfer conveyors. Then the loader feeds them into the wave soldering process with controlled movement. It uses an aluminum frame, adjustable rail width, variable speed control, and a stable transfer slot. The PCB width range is 50–350 mm, and PCB thickness supports 0.6–6.0 mm. The loader helps reduce unstable manual feeding and keeps the board position more consistent before soldering. This front-end machine gives the soldering process a cleaner starting point.
| Configuration: | |
|---|---|
| Motor | 2HP,made by AIDELI |
| Inverter | 2HP,made by AIDELI |
| Main body | 40×40mm, aluminium |
| Rail | 40×60mm,aluminium |
| Specification: | |
|---|---|
| Dimension(mm) | 800*600* 950mm/set |
| PCB Width | 50 – 350mm(adjustable) |
| PCB Thickness | 0.6 – 6.0mm |
| Transport Height | 750±20mm |
| Control Mode | Motor |
| Power | Max 20 VA |
| PCB Direction | L to R or R to L |
| Power Supply | 1 PH AC 220V 50/60Hz (Option:110V to 380V) |
| Weight | 220Kg/set |

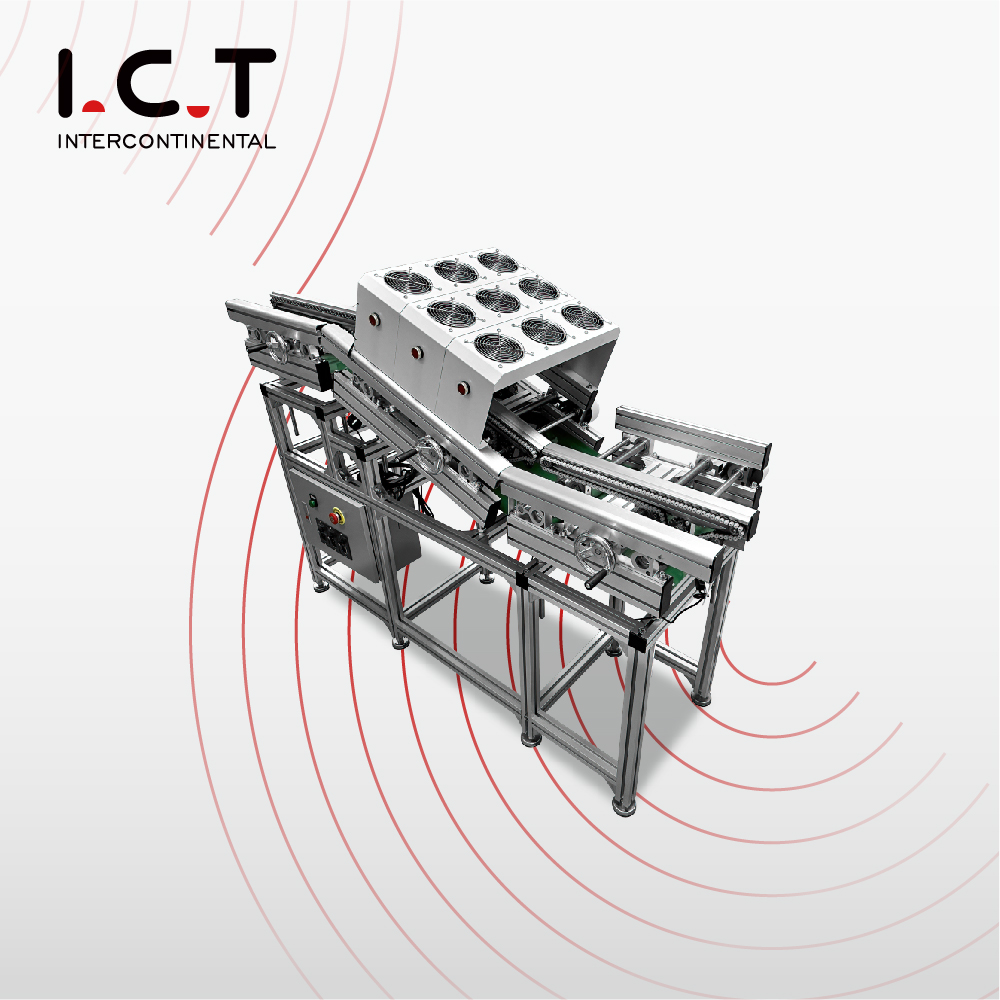

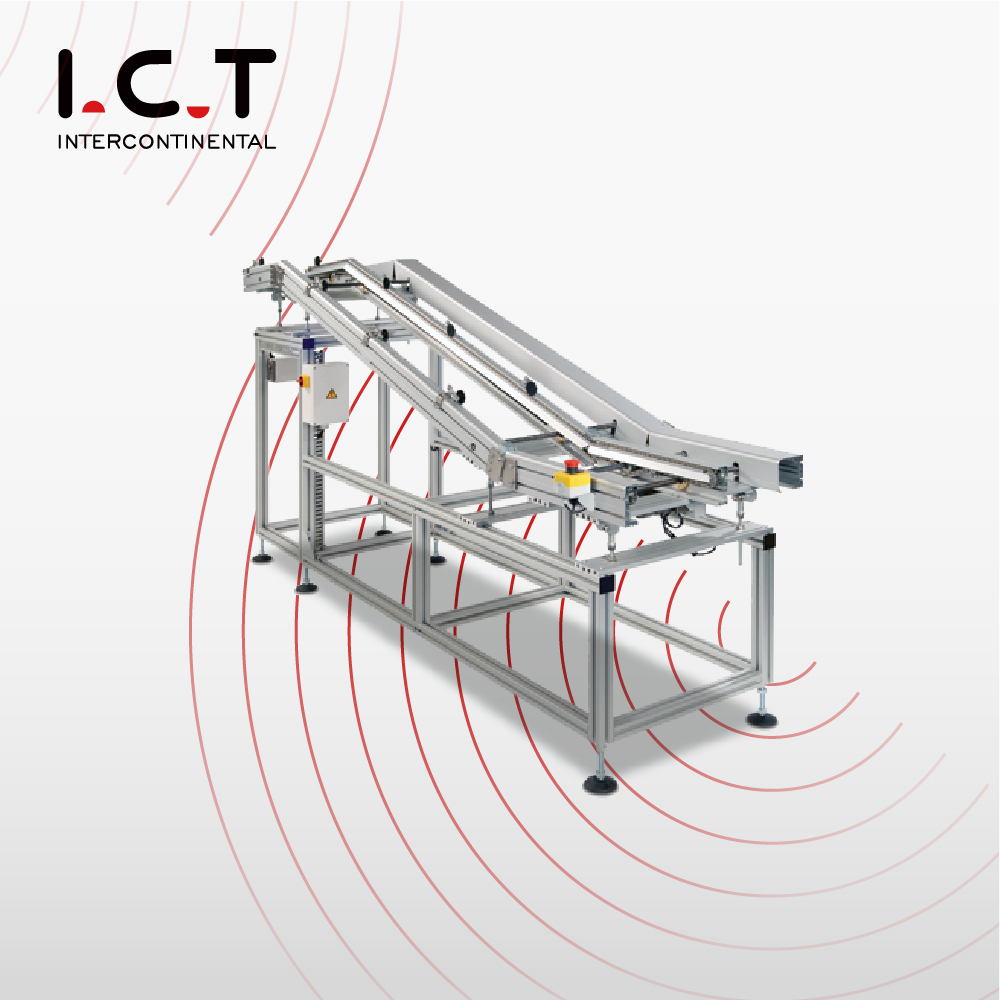

The Wave Unloader works after the wave soldering machine and acts as the output transfer section. This is where the Wave Solder Output Conveyor becomes important. It receives hot PCBs from the soldering area and sends them toward cooling, DIP AOI, visual inspection, manual repair, functional testing, or final assembly. The high-temperature antistatic belt helps protect boards during movement, while the fan cooling design supports safer handling after soldering. The steel frame gives the machine stronger support for daily production. As a Wave Soldering Unloader, it helps make the back-end process more stable and easier for operators to manage.
| Configuration: | |
|---|---|
| Motor | 2HP,made by AIDELI |
| Inverter | 2HP,made by AIDELI |
| Main body | 40×40mm, steel |
| Belt | High temperature antistatic belt(Non slip belt optional) |
| Specification: | |
|---|---|
| Dimension(mm) | 1200*485*1400mm |
| PCB Width | 50 – 400mm (can be customized) |
| Transport Height | 1300 - 750±20mm |
| Control Mode | Motor |
| Cooling Mode | Fan |
| Power | Max 20 VA |
| PCB Direction | L to R or R to L |
| Power Supply | 1 PH AC 220V 50/60Hz (Option:110V to 380V) |
| Weight | 290Kg/set |
| DIP Line Equipment List
I.C.T provides complete DIP production line equipment for through-hole assembly factories. Related products include manual insertion lines, automatic insertion machines, wave soldering machines, selective soldering machines, DIP AOI, soldering robots, PCB conveyors, loaders, unloaders, and other handling systems. In a standard DIP line, the loader is used before the wave soldering machine, and the Wave Solder Output Conveyor is used after soldering for safe board output. I.C.T can plan the whole line according to PCB size, component type, production capacity, workshop space, and inspection needs. This helps Customers connect insertion, soldering, cooling, inspection, repair, and final output in one practical production flow.
| Product Name | Purpose in DIP Line |
|---|---|
| PCB SMT line | Turnkey Ful-auto SMT assembly line |
| Automatic Insert Machine | Automatically places components onto PCBs with precision for DIP production line. |
Melts solder to form solid joints on PCBs during THT plug-in process. | |
Applies solder selectively to specific areas for accurate THT assembly | |
Inspects solder joints and placement defects on DIP assembled PCB. | |
Checks internal solder quality and hidden defects in THT components. | |
| Belt Assembly Line | Transports PCBs smoothly through the DIP line for efficient assembly and inspection. |
