I.C.T | Nitrogen Generator

I.C.T | Nitrogen Generator
I.C.T Modular gas generator adopt PSA (pressure swing adsorption) technology, using air as raw materials, quality selection of adsorbent.

  • I.C.T-3CBM

  • I.C.T

Availability:
Quantity:
Inquire Add to Basket

I.C.T | Nitrogen Generator


Overview

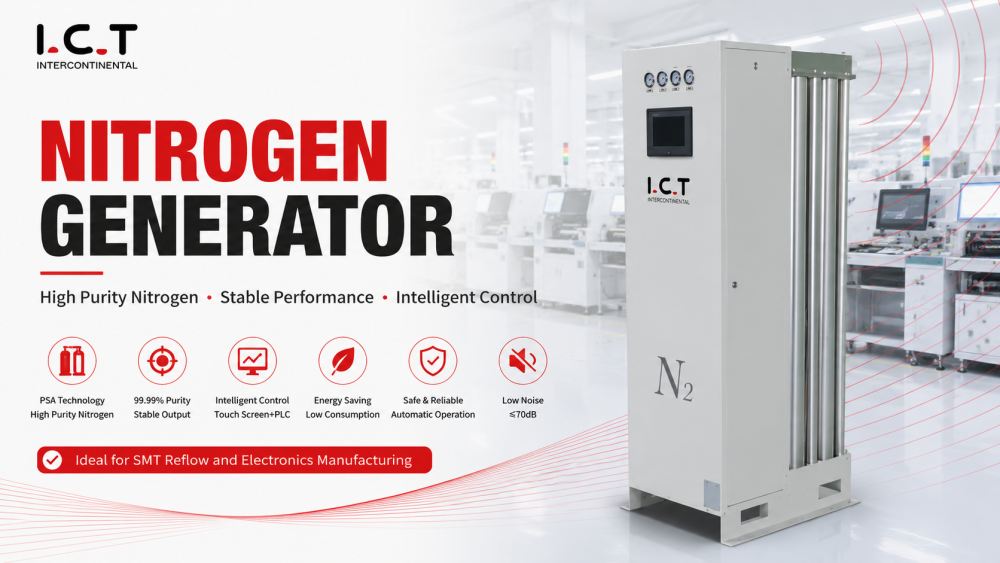

I.C.T Nitrogen generator


Introduction of Nitrogen Generator



I.C.T Modular gas generator adopt PSA (pressure swing adsorption) technology, using air as raw materials, quality selection of adsorbent, and under certain pressure, the adsorbent adsorption capacity of oxygen than nitrogen, through programmable program control pneumatic valve opening and closing to control the adsorber alternate cycle, pressure adsorption and vacuum stripping, complete separation of oxygen and nitrogen, get high purity nitrogen.





Features of Nitrogen Generator:


  1. Standard adsorber, modular production;

  2. Valve switching is automatically controlled by a programmable controller;

  3. On-line monitoring of nitrogen purity;

  4. Unqualified nitrogen is automatically vented;

  5. Automatic standby without nitrogen use;

  6. Real-time online display of valve working status.



Applicationof Nitrogen Generator:


  • Electronic industry applications: SMT reflow



Specification of Nitrogen Generator:

Item I.C.T-3CBM I.C.T-5CBM I.C.T-30CBM I.C.T-35CBM I.C.T-40CBM
Nitrogen production 2Nm3/h 4.3Nm3/h 32Nm3/h 36Nm3/h 42Nm3/h
Nitrogen purity 99.999.% 99.99%
Air pressure 0.7~0.8MPa
Nitrogen pressure 0.6~0.7MPa
Noise 70dB
Power AC220V, 50HZ/60HZ, 0.35KW
Control system Touch screen+PLC
Air consumption 0.3m³/min 0.7m³/min 3.2m³/min 3.6m³/min 4.2m³/min
Matching gas tank Built-in gas tank
Machine size(mm) 570*630*1690 735*630*1690 1930*630*1690 2090*630*1690 2140*630*1840
Machine weight 180kg 260kg 350kg 750kg 800kg

* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.

I.C.T - Our Company

SMT Assembly Conveyor Belt Line

About I.C.T:

I.C.T is a leading provider of factory planning solution. We have 3 wholly-owned factories, providing professional consultation and services for global customers. We have more than 22 years of eletronic overall solutions. We not only provide a complete set of equipment, but also provide full range of technical support and services, and give customers more reasonable professional advice. We help many customersv to set up factories in LED, TV, mobile phone, DVB, EMS and other indutries all over the world. We are to set up factories in LED, TV, mobile phone, DVB, EMS and other indutries all over the world. We are trustworthy.

SMT Assembly Conveyor Belt Line


Exhibition

SMT Assembly Conveyor Belt Line


For SMT Factory Setup, We Can Do for You:

1.  We Provide Full SMT Solution for You

2.  We Provide Core Technology With Our Equipments

3.  We Provide The Most Professional Tech Service

4.  We Have Wealthy Experience on SMT Factory Setup

5.  We Can Solve Any Question About SMT


SMT Assembly Conveyor Belt Line


SMT Assembly Conveyor Belt Line




Packing Method:

Standard Vacuum wooden package


Shipping Way:
1. By air, for sample and small package,international express like DHL, UPS, EMS...
2. By sea, for large package and quantity;
3. Other ways as customer requested.

I.C.T Shippment Vacuum wooden case
