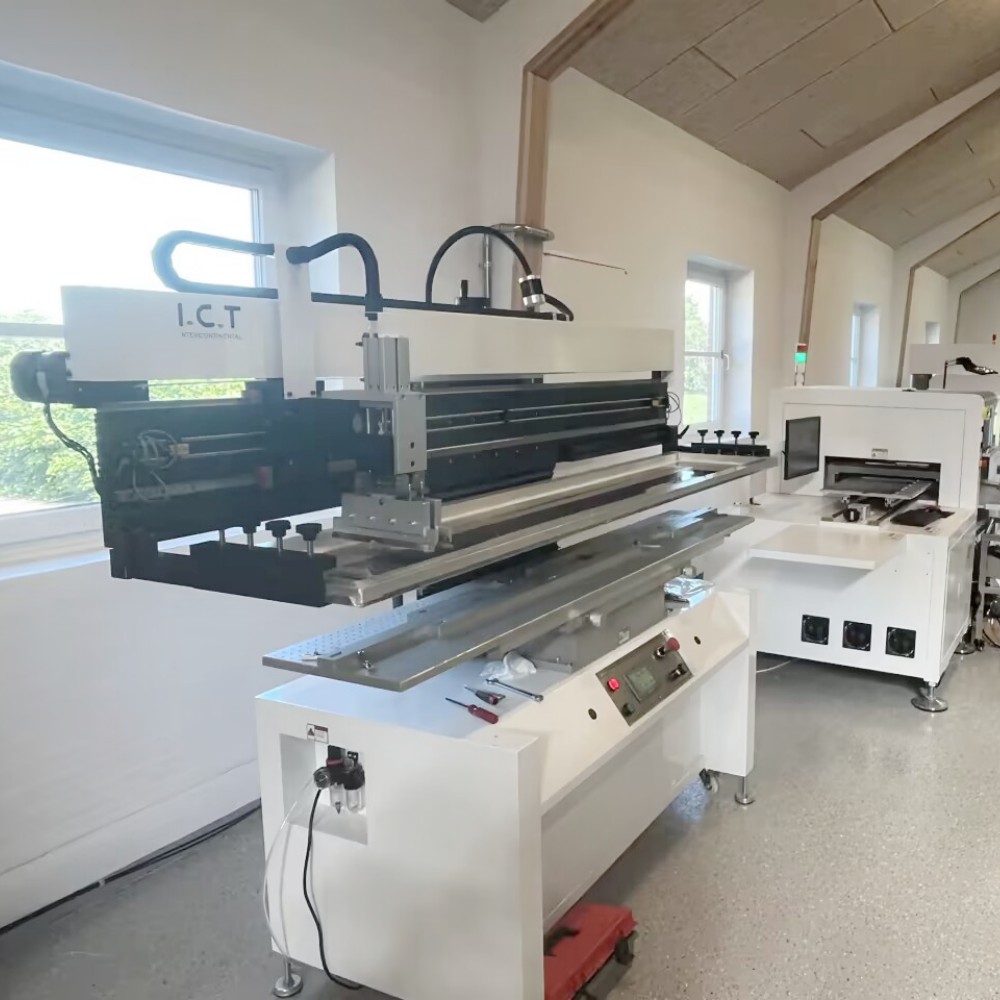

| Reliable Semi-automatic Stencil Printer
The smt stencil printer semi automatic handles high-mix SMT jobs using Taiwan rails and Japan sensors for locked ±0.05mm placement on long runs. Twin cylinders on parallel tracks push paste without bridges or voids. The bench with quick pins secures 0.2-6mm boards in single or layered setups. English screen with guide steps switches to manual, part-auto, or full-auto easily. Low 15-second cycles and 220W intake suit the Semi-Automatic Pcb Stencil Printer for electronics, lighting modules, and custom prototypes with quiet efficiency.
| Feature

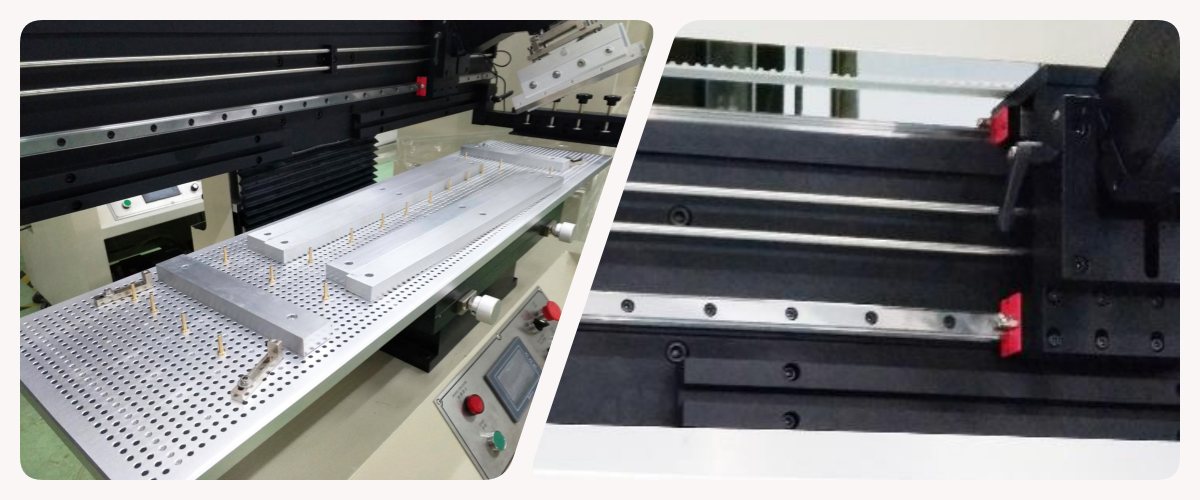

Quick pins and blocks fit anywhere for varied single or double board holes in moments. Taiwan rails with strong stepper motors ensure no shake and simple blade lift for paste add or clean. Edge sensors trim extra path to cut wear. This lets the Dual Squeegee Semi-Automatic Stencil Printer jump from test pieces to 1500mm sheets fast with zero reset or halt.

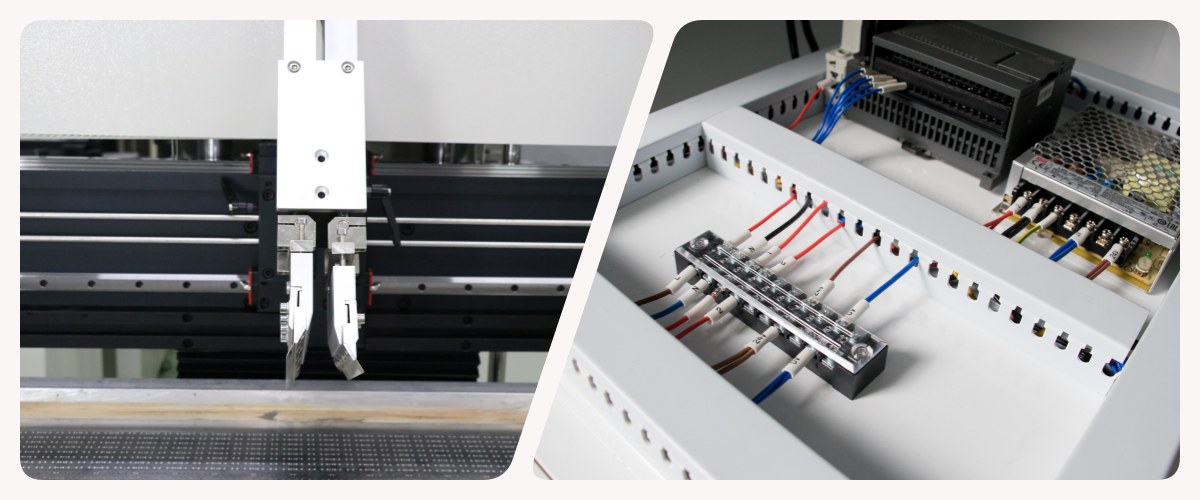

Separate cylinders tune force per blade as twin rails hold 0.01mm flat. Meters and knobs dial 0-200mm/sec for best roll-out. Touch panel in English has demo paths and mode picks for instant change. Delta power units, Omron eyes, and SMC air parts make the Semi-automatic Stencil Printer shift-ready with rare faults and quick tweaks.
| Specification
| Model | P3 | P6 | P12 | P15 |
| Accuracy | +/- 0.05mm | +/- 0.05mm | +/- 0.05mm | +/- 0.05mm |
| PCB Size | 300 x 350 mm | 600 x 350 mm | 1200 x 350 mm | 1500 x 350 mm |
| Platform size | 320 x 400 mm | 700 x 400 mm | 1350 x 400 mm | 1650 x 400 mm |
| Stencil Size(mm) | 370*470-550*650 | 370*470-550*650 | 370*470-1500*650 | 370*470-1750*650 |
| PCB Thickness | 0.2 - 6 mm | 0.2 - 6 mm | 0.2 - 6 mm | 0.2 - 6 mm |
| Stencil Positioning | Manual | Manual | Manual | Manual |
| Cycle Time | < 10 Sec. | < 10 Sec. | < 12 Sec. | < 12 Sec. |
| Power Consumption | 200 W | 200 W | 220 W | 220 W |
| Power Supply | 1 -PH, 220VAC 50/60HZ | 1 -PH, 220VAC 50/60HZ | 1 -PH, 220VAC 50/60HZ | 1 -PH, 220VAC 50/60HZ |
| Air Pressure | 4.5-6 kg/cm | 4.5-6 kg/cm | 4.5-6 kg/cm | 4.5-6 kg/cm |
| Squeegee Speed | 0-200mm/sec | 0-1200mm/sec | 0-200mm/sec | 0-200mm/sec |
| Dimension | 850x750x1650 mm | 1050x750x1650 mm | 1660x750x1650 mm | 2100x750x1650 mm |
| Weight | 280 Kg | 300 Kg | 356 Kg | 430 Kg |
| Squeegee Length | 250mm | 250mm | 250mm | 250mm |
| Platform Height | 950mm | 950mm | 950mm | 950mm |
| Option: Special size can be customized | ||||
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
I.C.T High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Product Name | Purpose in SMT Line |
|---|---|
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| AOI Machine | Inspects solder joints and placement defects. |
| SPI Machine | Checks solder paste height and quality. |
Inspects internal solder joint integrity and detects hidden defects. | |
| SMT Cleaning Machine | Used for cleaning PCBs, stencils, fixtures, nozzles, etc. |
| PCB Cutting Machine | Cut the PCBA into the final product |
| Traceability Equipment | Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer |
| Customer Success Case Study – Saudi Arabia LED Factory
In 2025, a Saudi LED bulb maker added the Semi-automatic Stencil Printer to a full line with JUKI RS-1R placer and L8 reflow. Two I.C.T experts landed in Riyadh, unpacked, wired, and led seven days of hands-on classes covering setup to tweaks. Full output began next shift with perfect paste on 1200mm LED parts and no fixes needed. They noted the even layers, solid crates that took rough shipping fine, and quick fixes that sped launch by weeks.
| Global Service & Training Support
I.C.T offers full-cycle aid to skip issues: free line plans, pre-send checks, site build, 7-10 day real training, first-year parts, always-on chat or share help, and tune-up stops. Twenty pros hit 72 countries with 4-hour answer lock and non-stop hot line. Every Semi-automatic Stencil Printer gets 48-hour burn-in and full review in our 12,000m² certified shop. Buyers get easy start, fast pay-back, and ties that build with their scale.
| Customer Reviews
Over 1600 plants in 72 lands lean on I.C.T all-in packs and world tech reach. They like smart plans that match needs, tough pack for safe trips, deep classes that skill teams quick, fast answers that solve fast, and steady care that runs lines smooth. Users add more gear often, saying better make, less cost, and no stress drive repeat wins and shared growth.
| Certifications and Standards
Each Semi-automatic Stencil Printer has CE, RoHS, ISO9001:2015, and design patents. Lab runs and 100% checks hit EU, US, and global marks for safe and green use. These back our green parts, safe work, steady signals, and tough build – full trust from power up.
| About I.C.T Company and Our Factory
From 2012, I.C.T has a 12,000m² Dongguan site with 89 crew and 20 engineers. We plan, make, and check all gear in ISO9001 steps. Over 1600 users in 72 spots fuel fast rise on solid tools, true cost, and ongoing aid. Eight world spots and local teams keep help near.
