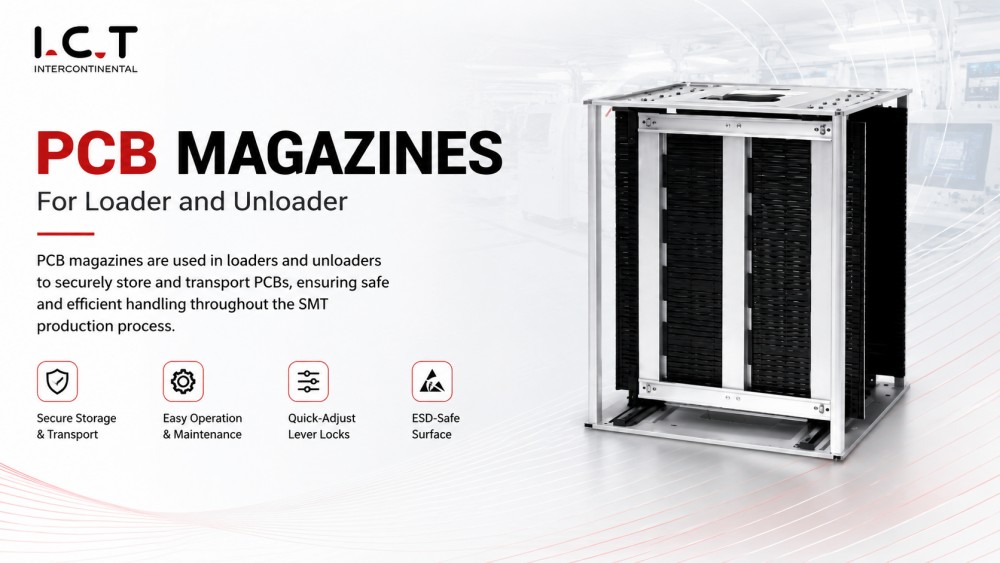

PCB Magazines are designed to store and transport printed circuit boards safely within SMT production lines. They ensure boards remain aligned, protected from mechanical shocks, and properly spaced for automated handling. Each magazine can be loaded onto PCB loaders or unloaders, allowing smooth movement between printing, placement, and soldering stages. I.C.T PCB Magazines of Loader and Unloader improve production line efficiency, reduce handling errors, and provide a stable foundation for continuous high-volume PCB assembly.
PCB racks provide robust protection for printed circuit boards during handling and transport. The structured magazine prevents bending, warping, or misalignment, ensuring safe delivery to each SMT process stage.
Designed for loaders and unloaders, the magazines allow quick and safe insertion and removal of PCBs. ESD-safe surfaces and standardized rack sizes facilitate smooth operation while minimizing operator fatigue.
I.C.T PCB Magazines accommodate different PCB dimensions, from standard to extra-large boards. Adjustable channels and modular design allow compatibility with various production lines and flexible reconfiguration for different products.
Manufactured with industrial-grade steel and high-quality panels, the magazines provide long-term stability and durability. Reinforced frames maintain structural integrity even under frequent handling, ensuring reliable operation throughout production cycles.
| Specification of PCB Magazines::
Inline SMT PCB magazines are designed for the efficient storage and transportation of printed circuit boards (PCBs). They feature easy operation and maintenance with quick-adjust lever locks, an ESD-safe surface.
| Item | PCB Magazines(M) | PCB Magazines(L) | PCB Magazines(LL) | PCB Magazines(XL) | PCB Magazines(XLL) |
| PCB Size(mm) | 330*250mm | 445*330mm | 530*390mm | 530*460mm | 610*460mm |
| Rack Size(mm) | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm | 630*530*570mm |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
SMT production requires smooth PCB movement between printing, placement, soldering, and inspection processes. I.C.T provides complete production line solutions including loaders, unloaders, and PCB Magazines. Proper magazine integration ensures boards are handled safely and consistently, improving workflow efficiency and reducing line downtime.
| Product Name | Purpose in SMT Line |
|---|---|
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| AOI Machine | Inspects solder joints and placement defects. |
| SPI Machine | Checks solder paste height and quality. |
| Traceability Equipment | Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer |
| SMT Cleaning Machine | Used for cleaning PCBs, stencils, fixtures, nozzles, etc. |
| Laser PCB Routing Machine | Cut the PCBA into the final product |
| Customer Success Video
For a U.S. Customer producing USB charging modules for aircraft seating systems, I.C.T provided PCB Magazines as part of the SMT production line solution. These magazines facilitated secure PCB transport between printers, pick and place machines, and soldering processes. Their robust design helped maintain board integrity, ensuring reliable and consistent production. The magazines integrated with loaders and unloaders, improving operational efficiency and minimizing handling errors in high-precision aerospace assembly.
| Service and Training Support
Reliable PCB handling is essential for maintaining SMT line efficiency. I.C.T supports customers in selecting and integrating PCB Magazines of Loader and Unloader into their production workflow. Properly chosen magazines improve material flow, reduce misalignment, and ensure boards move smoothly through each automated stage. This helps factories maintain continuous production, improve throughput, and reduce the risk of PCB damage.
| Customer Feedback
I.C.T provides guidance on PCB magazine selection, installation, and operation. Engineers assist customers with integrating magazines into existing loaders and unloaders, optimizing handling workflow. Onsite support ensures proper usage, reduces setup errors, and improves production reliability. This assistance enables manufacturers to maintain stable SMT line operation and ensures continuous material handling efficiency.
| Certifications and Standards
Each PCB Magazine undergoes rigorous inspection for structural integrity, dimensional accuracy, and safe handling properties. Materials and assembly are tested to ensure boards remain aligned and protected during transport. Certified to international quality standards, these magazines provide long-term durability and reliable performance. I.C.T’s quality control ensures every magazine supports consistent SMT production and reduces risk of handling errors or PCB damage.
