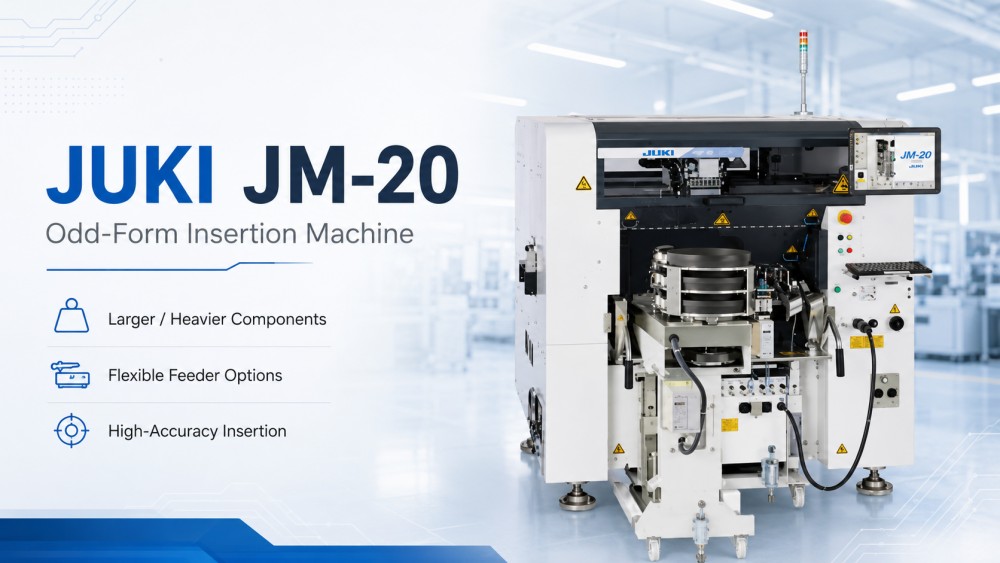

The JUKI JM-20 is a multi task odd-form insertion machine designed for larger boards, heavier components, and high-mix electronics production. It can support automatic insertion, SMT placement, and manual insertion line connection in one flexible platform. Compared with smaller models, JM-20 is better for large components, large PCBs, connectors, radial parts, axial parts, tray parts, stick parts, and bulk components. It supports PCB sizes up to 410×560 mm with single clamp and 800×560 mm with double clamp. The machine uses laser recognition and vision recognition to check component body position and lead tips before insertion, helping improve insertion accuracy and production stability.
| Product Features

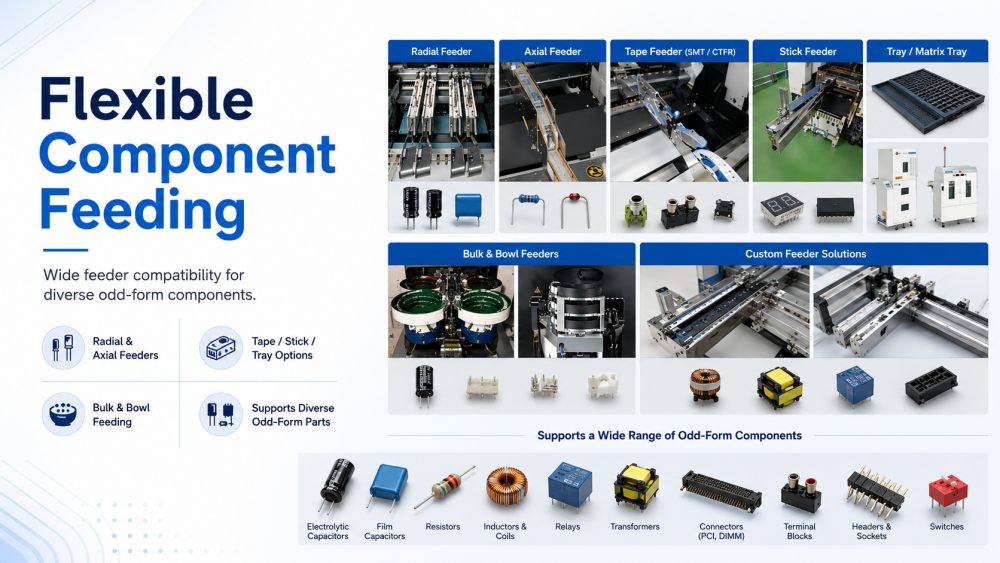

The JUKI JM-20 supports a wide range of feeder options for different odd-form components. It can work with radial feeders, axial feeders, tape feeders, stick feeders, tray holders, matrix tray servers, bowl feeders, and customized feeders. This makes it suitable for factories that produce many product types on the same DIP or mixed assembly line. Components such as aluminum electrolytic capacitors, connectors, coils, relays, transformers, large automotive parts, PCI connectors, and DIMM connectors can be handled based on actual project requirements. This feeder flexibility helps reduce manual insertion work and gives Customers more freedom when building a THT automation process.

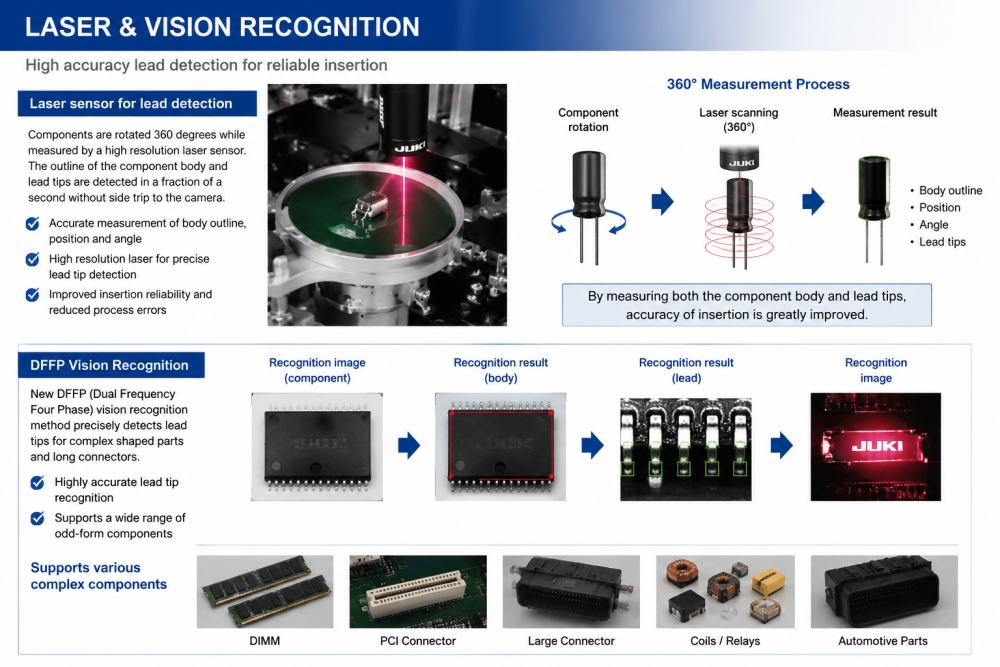

JM-20 uses a laser sensor to measure components while they rotate 360 degrees. The system can check the component outline, position, angle, and lead tips without sending the part to a separate camera position. This saves time and supports more accurate insertion. The machine also supports DFFP vision recognition, which can precisely recognize lead tips for complex components. This is useful for parts with special shapes or long connectors, such as DIMM, PCI, and large automotive components. By checking both the component body and lead position, the machine helps reduce insertion errors and improve process reliability.

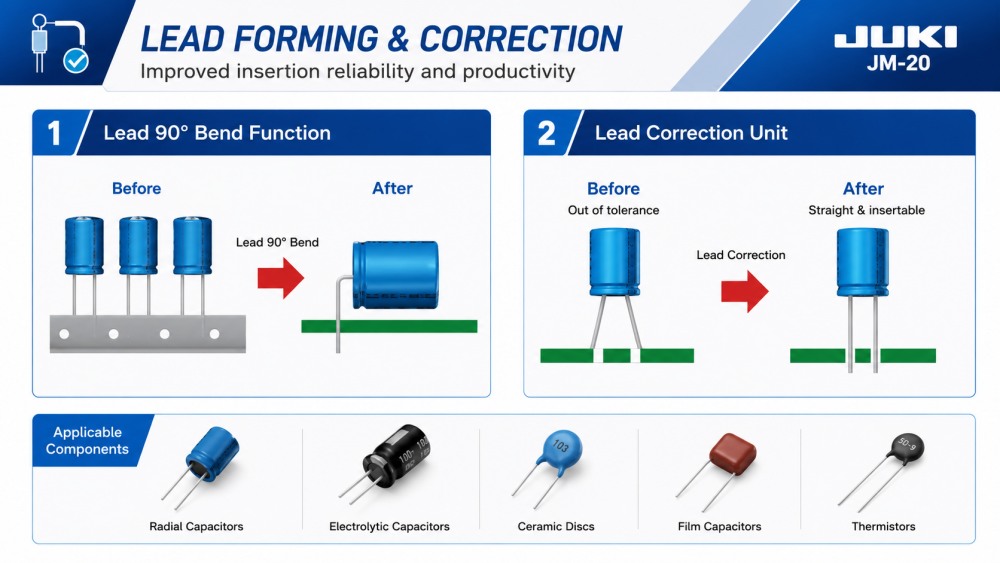

For radial tape aluminum capacitors, the Lead 90° Bend function can cut and form the lead into a 90-degree shape before insertion. This helps reduce manual labor and keeps lead forming more consistent. JM-20 can also use the Lead Correction Unit to correct leads that are outside tolerance before insertion. If a lead is bent or not aligned well, the correction unit helps bring it back into a usable position. This is important for reducing wasted components and avoiding insertion problems. For production teams, these functions help make odd-form insertion more stable and less dependent on manual adjustment.
| Specification
| Model | JM-100 | JM-50 | JM-20 | |
| Board Size | 1 time clumping | 410*360mm | 410*360mm | 410*360mm |
| 2 time clumping | 800*360mm | 800*360mm | 800*360mm | |
| Component Height | max.30mm | max.50mm | ||
| Component Size | 0603-50MM | |||
| Placement Speed | 16,000 CPH | 9,000 CPH | 1,550 CPH | |
| Head | 8 | 4 | 6 | |
| Machine dimension (W×D×H) | 1500*1500*1450mm | 1454*1505*1450mm | 1500*1657*1600mm | |
| Mass (Approximately) | 1300kg | 1300kg | 1760kg | |
