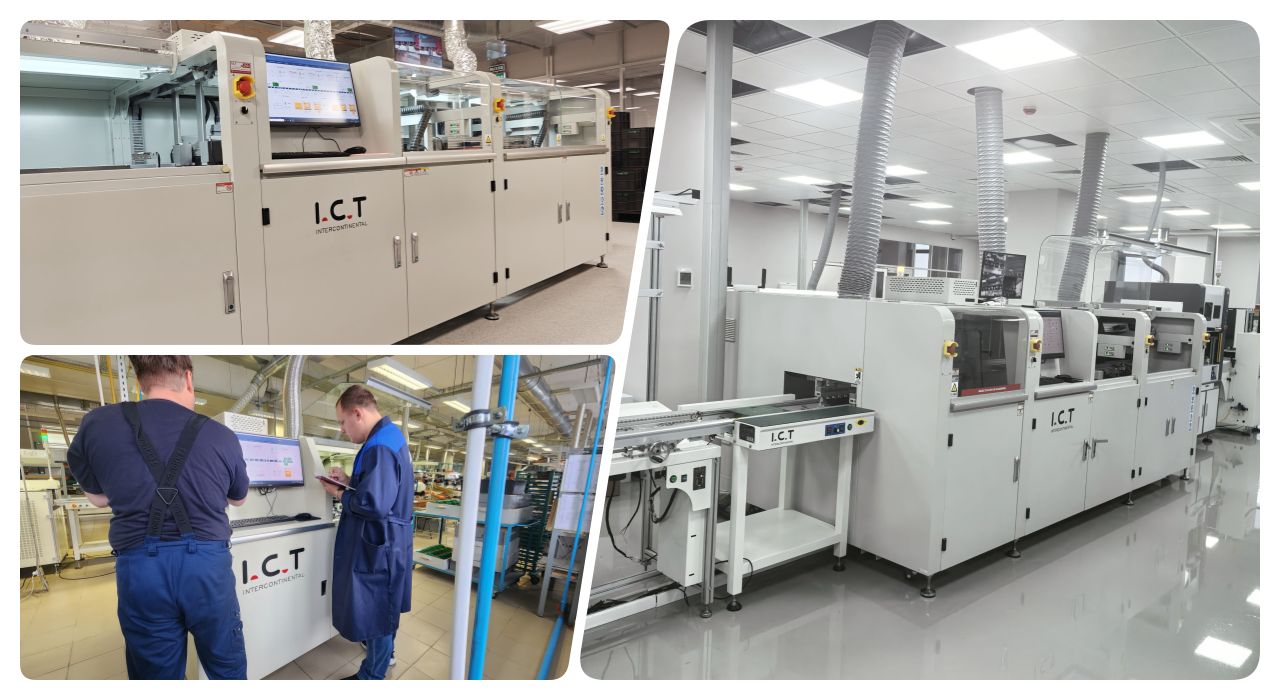

| Selective Wave Soldering Machine for PCB with CE Overview
The I.C.T On-line Selective Wave Soldering Machine SS530/550 is a high-performance solution designed and assembled in China, certified with CE for safety and quality. This selective wave soldering machine for PCB with CE features a fixed PCB plate and moving spray/soldering platform, ideal for high-volume processes. With full PC control, it allows easy settings for solder temperature, flux type, and N2 temperature, ensuring excellent traceability. Built with over 25 years of experience, I.C.T serves more than 1600 customers in 72 countries, offering reliable equipment that enhances production efficiency. The titanium solder pot and German jet valves provide stability, making it a trusted choice for global manufacturers.
| DIP Line Equipment List
The selective wave soldering machine for PCB with CE features a precision flux application system with a German high-frequency pulse injection valve. This technology delivers small flux dots with a solid content less than 10%, ensuring accurate and clean application. The nozzle, mounted on an XY platform with 0.02mm repetition accuracy, minimizes waste and enhances soldering quality. Supported by a pressure tank and SMC pneumatic components, this system maintains stable flux supply, making it ideal for complex PCB soldering tasks.
Efficient preheat optimization is a standout feature of this selective wave soldering machine. Equipped with adjustable bottom preheating and an IR heater on top, the system maximizes the preheating area for uniform heat distribution. The all-round high-temperature cotton design ensures temperature stability, while the maintenance plug-in design allows tool-free servicing. This setup reduces warm-up time to about 15 minutes, boosting productivity for PCB manufacturing.
The soldering system in the selective wave soldering machine for PCB excels with advanced tech. A Swedish PRECIMETER pump maintains a stable solder wave, with software controlling temps and N2 flow. The stainless steel pot with anti-corrosion coating heats fast, while N2 reduces dross for clean joints. It handles complex PCBs with high reliability.
The durable transmission design of this selective wave soldering machine uses special material profiles and a three-part roller system for stability. Thickened customized rails support up to 20kg loads, with a PCBA side and top clamp system ensuring board stability. Japanese motor and pneumatic components enhance reliability, while a transportation buffer zone prevents collisions, making it a robust choice for long-term manufacturing use.
Reliable control integration is achieved with a PLC+ module high-end bus system in this selective wave soldering machine for PCB with CE. This setup ensures stability and scalability, meeting CE standards and supporting Industry 4.0 designs. Global high-quality electrical parts and Cat-6 network cables provide fast communication and sensitive responses, allowing precise control over all soldering parameters for consistent performance.
The user-friendly operating interface of the selective wave soldering machine features a guided programming mode with CCD fast programming and auto nozzle identification. It supports multiple languages like Chinese, English, and Japanese, with real-time data visualization and one-button switching to CCD monitoring. This intuitive design, combined with picture programming and intelligent coordinate verification, simplifies operation and improves efficiency for all users.
| Specification
| On-line Selective Wave Soldering Machine | ||||
| Model | I.C.T SS540 | I.C.T SS550 | I.C.T SS550P1 | I.C.T SS550P2 |
| On-line Modular | Spray + Preheating & Soldering | Spray + Preheating + Soldering | Spray + Preheating + Soldering +Soldering | Spray + Preheating + Soldering + Soldering+ Soldering |
| Soldering System | ||||
| Nozzle Quantity | 1 | 1 | 2 | 3 |
| Solder Pot Quantity | 1 set | 1 set | 2 set | 3 set |
| Double Pot (Option) | N/A | Option | Option | Option |
| Solder Pot Power | 2.35kw | 2.35kw | 4.70kw | 7.05kw |
| Flux System | ||||
| Flux Storage Tank | 1L | 1L | 2L | 2L |
| Flux Support | Flux Alarm, Automatic | |||
| Spray Nozzle | Germany Jet Valve (Spot and line spraying) 1 set | |||
| Spray Nozzle Size | 130um (180um, 210um Option) | |||
| Spray Speed | 0~20mm/s | |||
| Spray Nozzle Move Speed | 0~400mm/s | |||
| Preheating System | ||||
| Preheating Mode | Hot air and IR | Hot air and IR | Hot air and IR | Hot air and IR |
| Preheating Area | L500*W500mm | L500*W500mm | L500*W500mm | L500*W500mm |
| Preheating Zone | Top hot air: 2, Bottom IR: 1 | |||
| Bottom Preheating Power | Max.12kw | |||
| Top Preheating Power | Max.6kw | |||
| Warm-up Time | Approx.15min (setting 150℃) | |||
| Control Mode | PC+PLC | |||
| Transport System | ||||
| PCB Size (with fixture) | 120*60~500*500mm | |||
| PCB Replacement | Online | |||
| PCB Top Clearance | 120mm | |||
| Transport Height | 900±20mm | |||
| Transport Width | 60~500mm | |||
| Dimension：mm | L1850*W1850*H1480 | L2560*W1750*H1480 | L2560*W1950*H1480 | L2600*W1950*H1480 |
| Weight | Approx: 800kg | Approx: 1200kg | Approx: 1300kg | Approx: 1500kg |
| DIP Line Equipment List

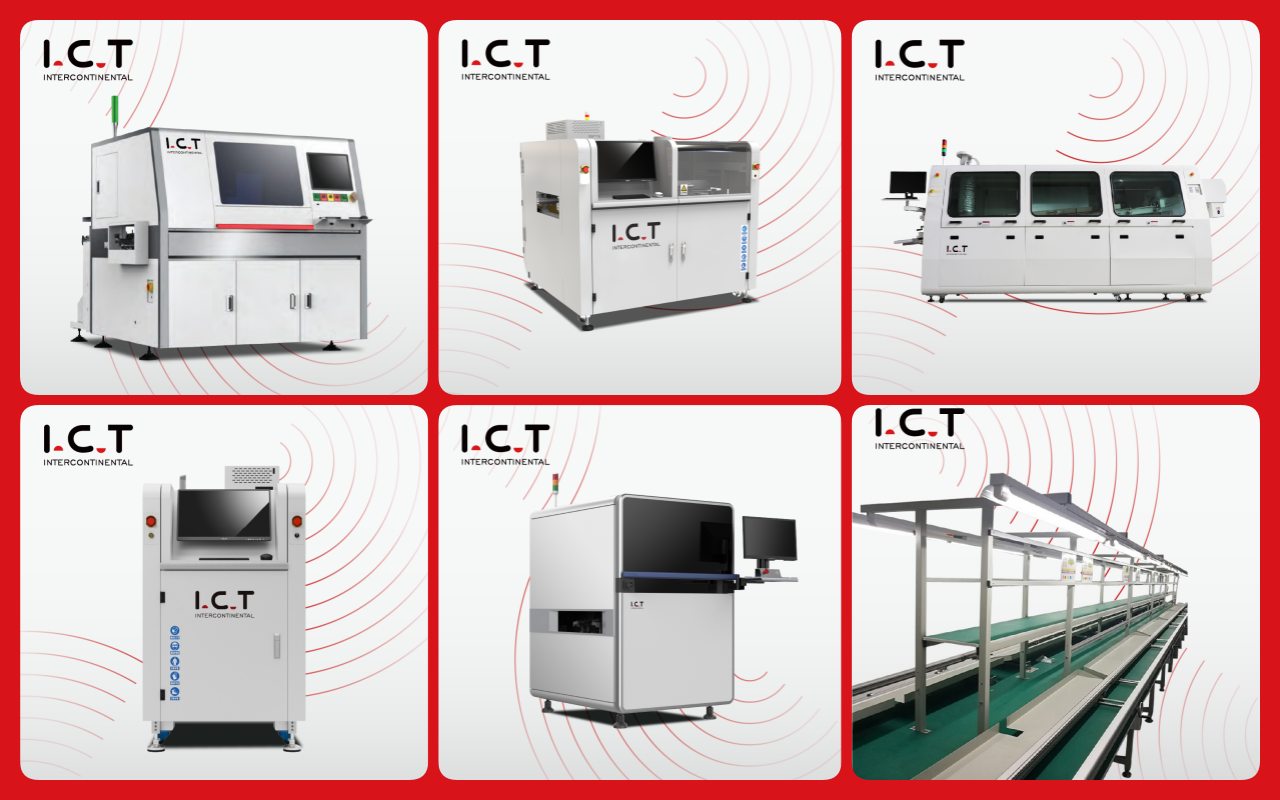

Our DIP production line offers advanced tools for efficient and precise PCB assembly. The fully automated DIP line includes a DIP insertion line for accurate component placement, a wave loader for smooth PCB entry, a wave unloader for safe exit, and an assembly belt line for final checks. This high-quality PCB DIP production line ensures stable operation, reliable THT insertion, and cost-effective assembly, meeting diverse industry needs. With modular designs and global support from I.C.T, it boosts productivity for through-hole tasks.
