Poison Storage Cabinet
I.C.T
| Quantity: | |
|---|---|

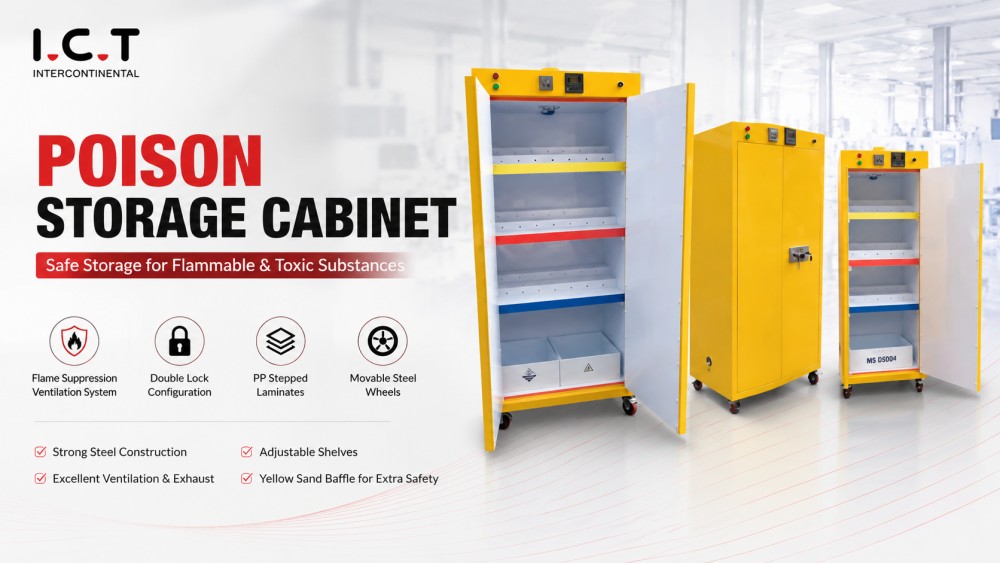

The I.C.T Poison Storage Cabinet is designed to store flammable and toxic materials safely within factories and laboratories. Its robust construction, leak-proof design, and multi-layer polypropylene plates provide both chemical containment and mechanical stability. The cabinet supports easy handling through movable steel wheels and quick-adjust locks. Built-in flame suppression vents ensure adequate ventilation and safety during storage. Suitable for SMT, PCB assembly, and electronics environments, it helps manufacturers protect personnel, reduce chemical risks, and maintain efficient operational workflows.
1.The shell of flammable and toxic products storage cabinet shall be made of 1.2mm cold-rolled steel plate, and the base of cabinet drawer shall be made of 2.0mm cold-rolled steel plate.
2.The internal and external surfaces are pickled, phosphated, epoxy resin powder sprayed and cured by baking.
3. The inner tank of flammable and toxic products storage cabinet (upper, lower, left, right and partition) adopts solid core plate PP (polypropylene resin)Plate; Built in flame suppression device vents are located on both sides of the cabinet to better maintain ventilation and exhaust.
4.The leak proof liquid tank can prevent the overflow of chemical liquid as much as possible. The bottom of the cabinet is provided with H = 160mm yellow sand baffle, and the interior of the cabinet is the lowest.
5.A landfill cavity capable of storing yellow sand with a thickness of not less than 120mm is reserved in the layer for burying inflammables such as metal sodium and huanglin (Bailin)
6.There are four at the bottom of the cabinet Φ 6mm movable steel wheel is convenient for the movement of flammable and toxic products storage cabinet.
7.The movable adjusting rod facilitates the positioning of flammable and toxic products storage cabinet.
8. There are three layers of stepped solid core physical and chemical plates, movable partitions or PP (polypropylene resin) plates in the middle of the cabinet.
9.The body shall meet the requirements of ventilation, and the step height shall be 50mm.
10. In the middle of the top of the cabinet Φ 150 mm air outlet, 150 mm voltage: 220 V power,30W air volume: 650 / h static pressure: 90pa fan.
| Specification of Poison Storage Cabinet:
| Temperature | 0 ~ 99.9 ℃ |
| Humidity | 0 ~ 99.9% RH |
| Door type | Double door / Manual |
| Lock configuration | Double lock configuration |
| Laminate | 3 PP stepped active laminates |
| Color | Yellow |
| Power Supply | 220V |
| Dimension(mm) | 1860*900*510 |
| Weight | Approx:350kg |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
Safe chemical storage is a key part of efficient electronics manufacturing.
I.C.T provides complete SMT, DIP, and coating line solutions with integrated storage, including Poison Storage Cabinets. Proper chemical containment ensures materials are delivered safely to the production line, reducing operational hazards and maintaining smooth workflow. The cabinets are compatible with multiple process environments, supporting both high-volume and small-batch production requirements.
| Product Name | Purpose in SMT Line |
|---|---|
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| AOI Machine | Inspects solder joints and placement defects. |
| SPI Machine | Checks solder paste height and quality. |
| Traceability Equipment | Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer |
| SMT Cleaning Machine | Used for cleaning PCBs, stencils, fixtures, nozzles, etc. |
| Laser PCB Routing Machine | Cut the PCBA into the final product |
| Customer Success Video
For a U.S. Customer producing USB charging modules for aircraft seating systems, I.C.T supplied Poison Storage Cabinets as part of the manufacturing line solution. The cabinets securely stored flammable solder paste and cleaning solvents used across SMT and coating processes. Their leak-proof design, flame suppression vents, and mobility features ensured safe handling, while integrated shelving allowed organized storage. This solution helped the Customer maintain high production efficiency and meet stringent safety standards for aerospace electronics.
| Service and Training Support
Chemical handling can affect production efficiency if materials are not stored correctly. I.C.T helps manufacturers integrate Poison Storage Cabinets into SMT, DIP, and coating workflows. Proper placement reduces risk of spills, improves operator access, and maintains smooth material flow. Cabinets support high-volume production while maintaining safety compliance, allowing factories to focus on operational performance without compromising chemical containment.
| Customer Feedback
I.C.T provides assistance for selecting, installing, and maintaining Poison Storage Cabinets. Engineers advise on optimal placement, chemical compatibility, and integration with production lines. Onsite guidance ensures correct setup, easy access, and efficient use, reducing operational risks. Professional support helps factories maintain consistent safety practices while maximizing production efficiency.
| Certifications and Standards
Each Poison Storage Cabinet undergoes strict quality control including material inspection, structural stability, and functional verification. Cabinets are built from cold-rolled steel and polypropylene plates with epoxy resin coating, ensuring durability and corrosion resistance. Compliance with industry safety standards ensures safe chemical containment, proper ventilation, and operator protection. Certified manufacturing practices guarantee long-term reliability and consistent performance in electronics production environments.
| About I.C.T Company and Factory
I.C.T is a professional electronics manufacturing equipment provider with over 25 years of experience. The company develops complete solutions covering SMT, DIP, Coating, Robot, Assembly, and chemical storage processes. With independent R&D, production, and engineering teams, I.C.T supports customers from planning, equipment supply, installation, training, to process optimization. Serving more than 1,600 customers across 72 countries, I.C.T helps manufacturers maintain safe, efficient, and reliable production systems.
