I.C.T-SS330 / SS430 / SS540 / SS550
I.C.T
| Quantity: | |
|---|---|

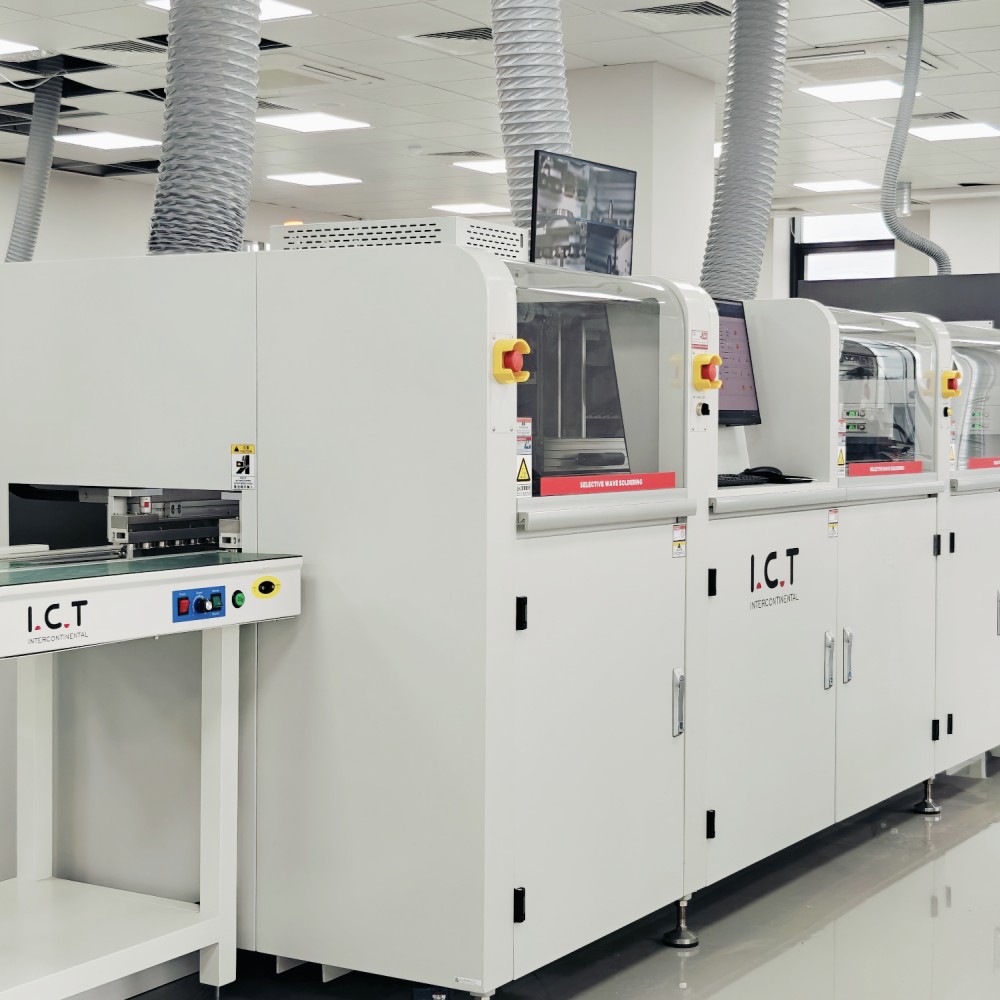

| Selective Soldering Wave Machine Overview
Designed and built in China, the I.C.T selective soldering wave machine is the ultimate Select Offline Wave Soldering Machine for flexible, high-volume PCBA production. The PCB stays perfectly stationary while the lightweight cast-aluminum platform—powered by Panasonic servos and precision linear rails—moves flux and solder heads with whisper-quiet speed and sub-millimeter accuracy. Inline nitrogen heating delivers mirror-bright joints and almost no dross. Every parameter is set and saved in an intuitive Windows interface for bulletproof repeatability. Automatic wave calibration, real-time CCD monitoring, German jet valve, and titanium pot make this selective soldering wave machine the perfect standalone solution that keeps yields sky-high and rework nonexistent.
| DIP Line Equipment List
A German high-frequency jet valve fires tiny, uniform flux dots with solids under 10%. Pressure tank and precision flow meter keep delivery dead-steady regardless of tank level. The nozzle rides an XY platform repeatable to 0.02 mm. Residue drops into a slide-out tray for instant cleanup. All pneumatics are premium Japanese SMC, gauges right on the surface for quick visual checks. An automatic pump feeds flux without interruption. This system nails clean, repeatable coverage every cycle on the selective soldering wave machine.
Fully adjustable bottom IR comes standard; top IR or hot-air convection optional. Open design maximizes heat transfer while thick insulation locks in stable temperatures. Premium heating elements and motors from global leaders run trouble-free for years. Everything is plug-and-play—no tools needed for service. Boards exit evenly activated and stress-free, perfectly ready for flawless joints in the Select Offline Wave Soldering Machine.
German electromagnetic pump produces an ultra-consistent wave peak. Dial in temperature, N2 flow, height, and auto-calibration right from the screen. Titanium pot with external cast-iron heater warms fast and never leaks. Inline nitrogen gives shiny joints and virtually zero dross. Real-time CCD records 900 hours of traceable video. Sealed high-speed XYZ axes, laser wave detection, and automatic nozzle cleaning keep the selective soldering wave machine running 24/7 without a hiccup.
Heavy-duty profiled rails and three-section roller conveyor move boards smoothly and gently. Side and top clamps lock the PCBA dead-still during every step. Thickened rails handle 20 kg loads with ease. Precision drive modules position boards perfectly from flux through solder. The entire transport is engineered for nonstop production on the Select Offline Wave Soldering Machine.
CE-certified PLC and high-speed bus architecture meet Industry 4.0 standards. Cat-6 wiring and best-in-class electronics deliver lightning-fast response and total reliability. Guided programming, auto nozzle recognition, picture-based edits, one-click live view, and multi-language support make setup a breeze. Full traceability keeps quality locked tight on every selective soldering wave machine.
Step-by-step guided mode, automatic nozzle ID, smart picture correction, real-time dashboards, and one-button live CCD switching make operation effortless. Supports Chinese, English, Japanese, Russian and more. Built-in MES, Wi-Fi, remote access, voice alerts, and customizable lights keep operators fully in control of the Select Offline Wave Soldering Machine.
| Specification
| On-line Selective Wave Soldering Machine | ||||
| Model | I.C.T SS540 | I.C.T SS550 | I.C.T SS550P1 | I.C.T SS550P2 |
| On-line Modular | Spray + Preheating & Soldering | Spray + Preheating + Soldering | Spray + Preheating + Soldering +Soldering | Spray + Preheating + Soldering + Soldering+ Soldering |
| Soldering System | ||||
| Nozzle Quantity | 1 | 1 | 2 | 3 |
| Solder Pot Quantity | 1 set | 1 set | 2 set | 3 set |
| Double Pot (Option) | N/A | Option | Option | Option |
| Solder Pot Power | 2.35kw | 2.35kw | 4.70kw | 7.05kw |
| Flux System | ||||
| Flux Storage Tank | 1L | 1L | 2L | 2L |
| Flux Support | Flux Alarm, Automatic | |||
| Spray Nozzle | Germany Jet Valve (Spot and line spraying) 1 set | |||
| Spray Nozzle Size | 130um (180um, 210um Option) | |||
| Spray Speed | 0~20mm/s | |||
| Spray Nozzle Move Speed | 0~400mm/s | |||
| Preheating System | ||||
| Preheating Mode | Hot air and IR | Hot air and IR | Hot air and IR | Hot air and IR |
| Preheating Area | L500*W500mm | L500*W500mm | L500*W500mm | L500*W500mm |
| Preheating Zone | Top hot air: 2, Bottom IR: 1 | |||
| Bottom Preheating Power | Max.12kw | |||
| Top Preheating Power | Max.6kw | |||
| Warm-up Time | Approx.15min (setting 150℃) | |||
| Control Mode | PC+PLC | |||
| Transport System | ||||
| PCB Size (with fixture) | 120*60~500*500mm | |||
| PCB Replacement | Online | |||
| PCB Top Clearance | 120mm | |||
| Transport Height | 900±20mm | |||
| Transport Width | 60~500mm | |||
| Dimension：mm | L1850*W1850*H1480 | L2560*W1750*H1480 | L2560*W1950*H1480 | L2600*W1950*H1480 |
| Weight | Approx: 800kg | Approx: 1200kg | Approx: 1300kg | Approx: 1500kg |
| DIP Line Equipment List
Our DIP production line offers advanced tools for efficient and precise PCB assembly. The fully automated DIP line includes a DIP insertion line for accurate component placement, a wave loader for smooth PCB entry, a wave unloader for safe exit, and an assembly belt line for final checks. This high-quality PCB DIP production line ensures stable operation, reliable THT insertion, and cost-effective assembly, meeting diverse industry needs. With modular designs and global support from I.C.T, it boosts productivity for through-hole tasks.
| Customer Success Video
Vietnamese customer supplying a world-famous camera brand visited our factory to accept their new selective soldering wave machine. Our engineers ran live demos on their actual boards, trained their team on programming, calibration, and daily care, and let them watch perfect joints form in real time on the CCD monitor. The hands-on session gave them 100% confidence for a fast, smooth startup back home and proved I.C.T’s true global support.
| Professional Service and Training
From turnkey installation and commissioning to lifetime maintenance and upgrades, I.C.T has you covered anywhere on the planet. Twenty dedicated engineers handle line layout, process tuning, and in-depth training—on-site or remote. Spare-parts hubs on multiple continents and 24-hour response keep your Select Offline Wave Soldering Machine at peak uptime year after year.
| Customer Praise
Customers rave about our patient, expert engineers who train thoroughly at acceptance and startup. They love how the selective soldering wave machine nails flux dots, holds perfect wave height, and slashes defects with its dead-simple controls. Bulletproof packing arrives pristine every time, and same-day remote fixes plus lightning-fast on-site support make I.C.T the partner they never worry about.
| Industry Certifications
Every I.C.T selective soldering wave machine carries CE for safety, RoHS for eco-compliance, ISO9001 for quality management, and multiple patents on jet valves, pumps, and laser detection. These globally recognized marks prove you’re getting safe, green, innovative Select Offline Wave Soldering Machine performance built to the highest standards.
| About I.C.T Company and Factory
Since 2012 we’ve grown fast with full in-house R&D and a 12,000 m² state-of-the-art factory. Eighty-nine team members—including 20 engineers—and eight branch offices serve over 1,600 customers across 72 countries. Strict inspection and complete quality systems back every selective soldering wave machine, while true turnkey solutions—planning, equipment, training, optimization—help electronics manufacturers worldwide dominate with the Select Offline Wave Soldering Machine.
