| Inline Selective Wave Soldering Machine SS530

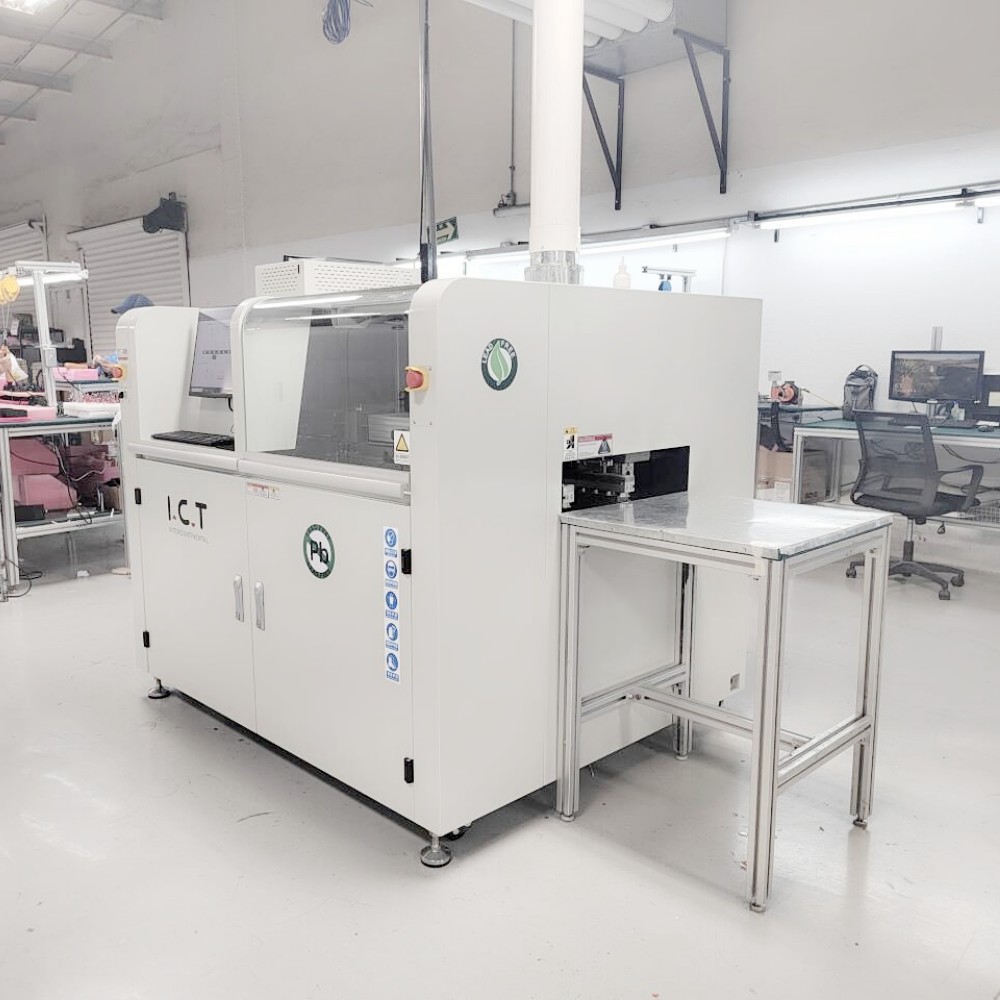

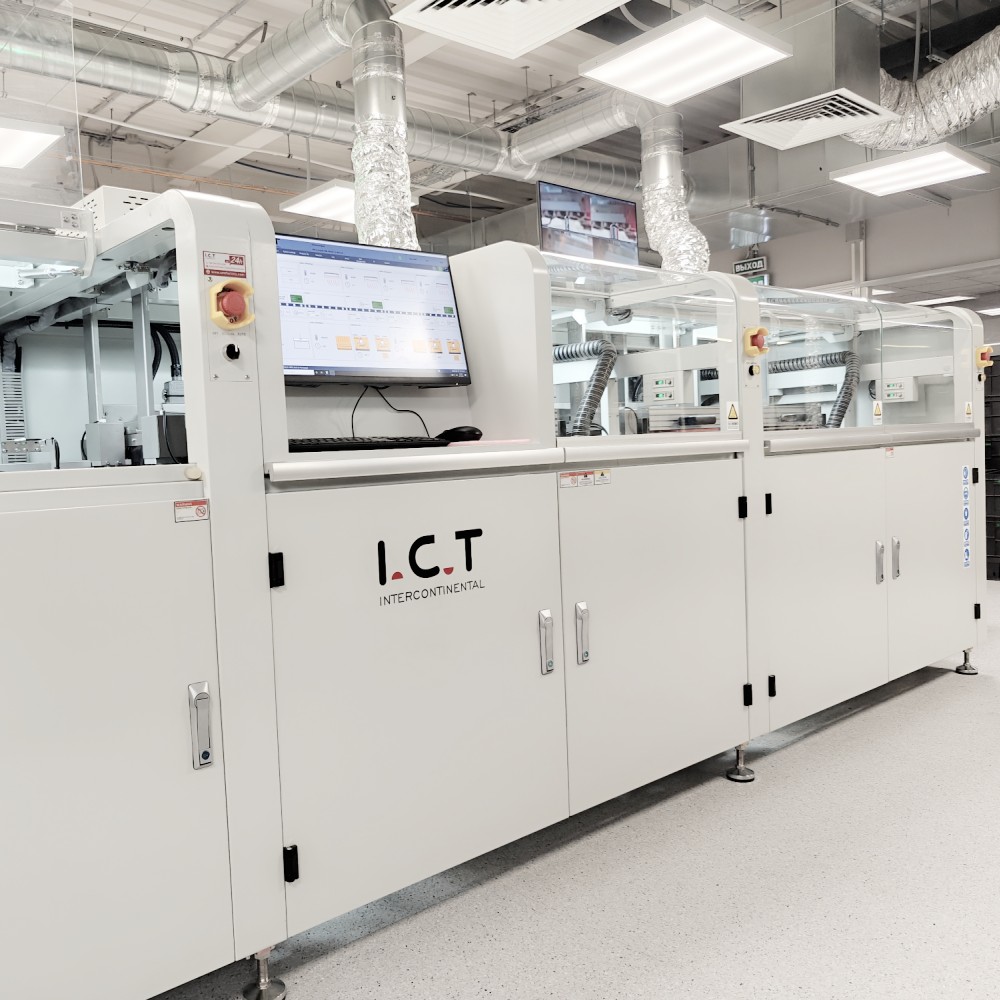

The Inline Selective Wave Soldering Machine SS530/550, crafted by I.C.T in China, is a top choice for efficient through-hole soldering on PCBs. Designed for high-volume production, it keeps PCBs steady while moving the spray and solder platform, ensuring precision for industries like automotive and power supply. Full PC control lets you set and save paths, temperatures, and flux details, offering great traceability. Its modular SMEMA system fits any line, with auto wave calibration and CCD alignment keeping quality high. As a Compact Inline Selective Wave Soldering System, it saves space while delivering reliable performance. I.C.T’s 26 years of expertise make it a trusted global solution.
| DIP Line Equipment List

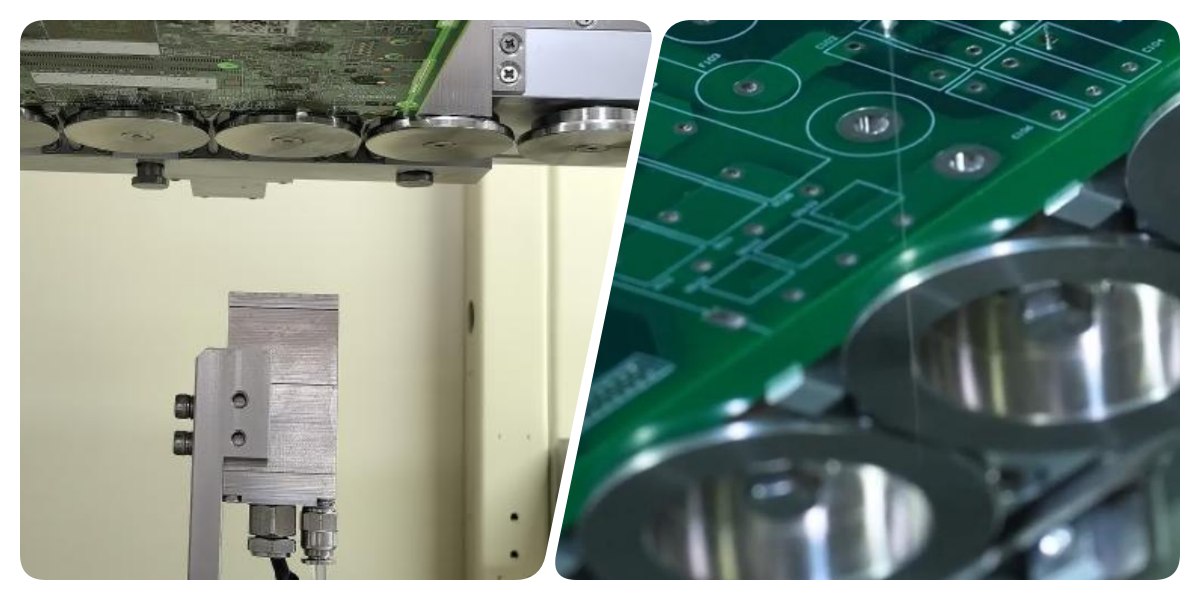

The PCB Selective Wave Soldering Machine features a smart flux system for perfect application. It uses a German high-frequency pulse valve to spray tiny flux dots with solid content under 10%, reducing waste. A tray catches residue for easy cleanup, and the nozzle on an XY platform hits 0.02mm accuracy. Pressure tanks keep flux flow steady, with Japanese SMC parts ensuring smooth operation. Visual gauges on the front simplify checks, making it ideal for busy lines needing clean, consistent results.

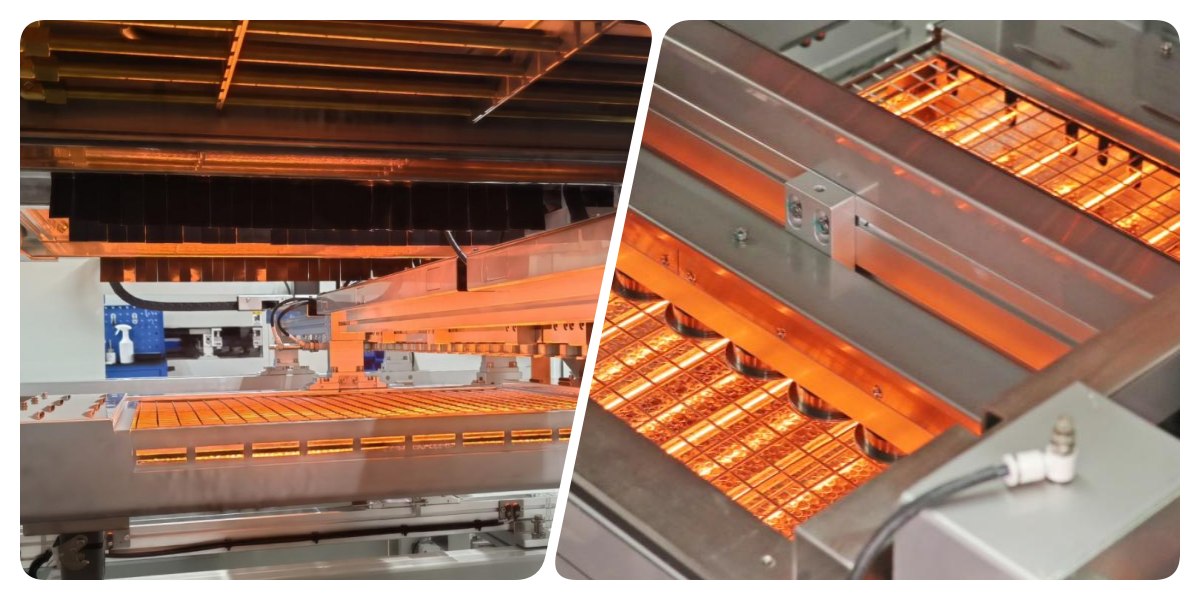

The preheat system in this Inline Selective Wave Soldering Machine preps boards effectively. It includes adjustable bottom IR heating and top hot air for even warmth across a wide area, hitting 150°C in about 15 minutes. High-temp cotton seals heat in, using top-brand parts for stability. The plug-in design needs no tools for maintenance, minimizing downtime. This setup ensures strong joints and cuts errors, perfect for high-speed production.

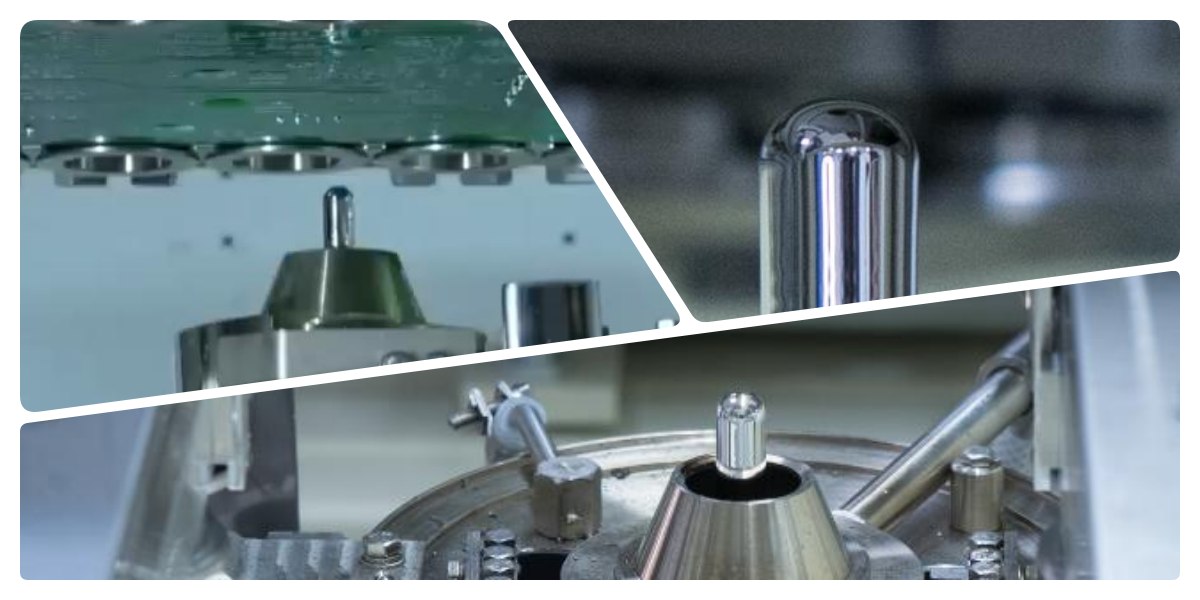

The soldering system shines with advanced tech in the Inline Selective Wave Soldering Machine. A Swedish PRECIMETER pump keeps the solder wave stable, with software controlling temps and N2 flow. The stainless steel pot with anti-corrosion coating (or titanium option) heats fast with cast iron, while N2 reduces dross for clean joints. It handles tough components like military gear, delivering high-reliability welds every time.

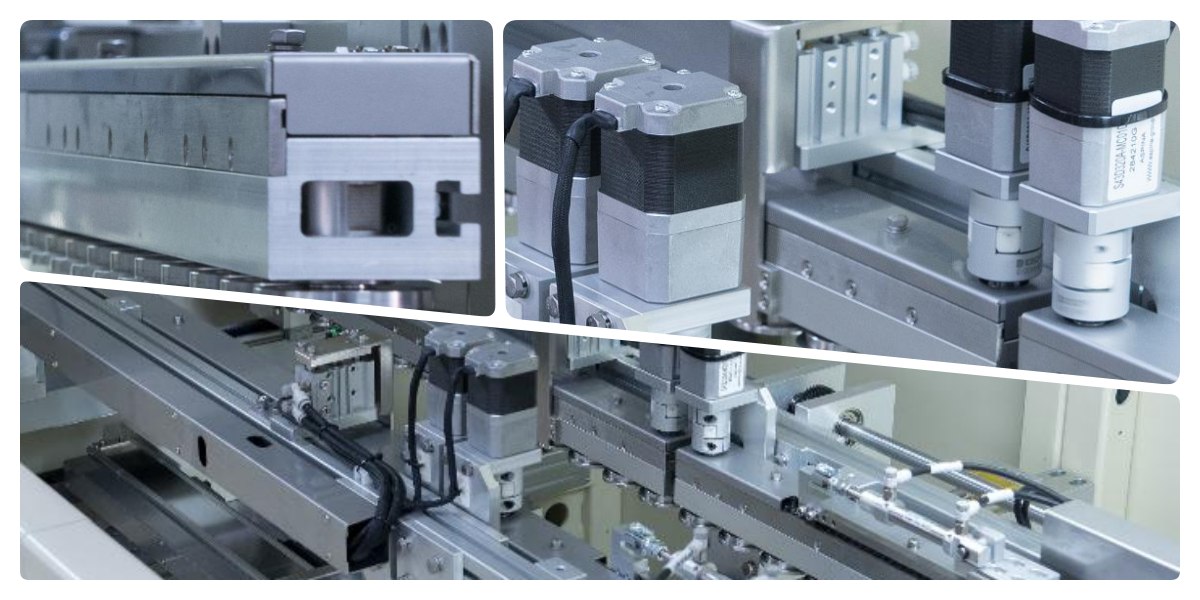

The transmission system ensures smooth PCB flow in this Compact Inline Selective Wave Soldering System. Built with sturdy profiles and rollers, it supports up to 20kg loads with side and top clamps. Japanese motors drive it at 900mm height, fitting SMEMA lines with zero collisions. Online swaps keep production moving, making it a flexible fit for tight factory layouts.

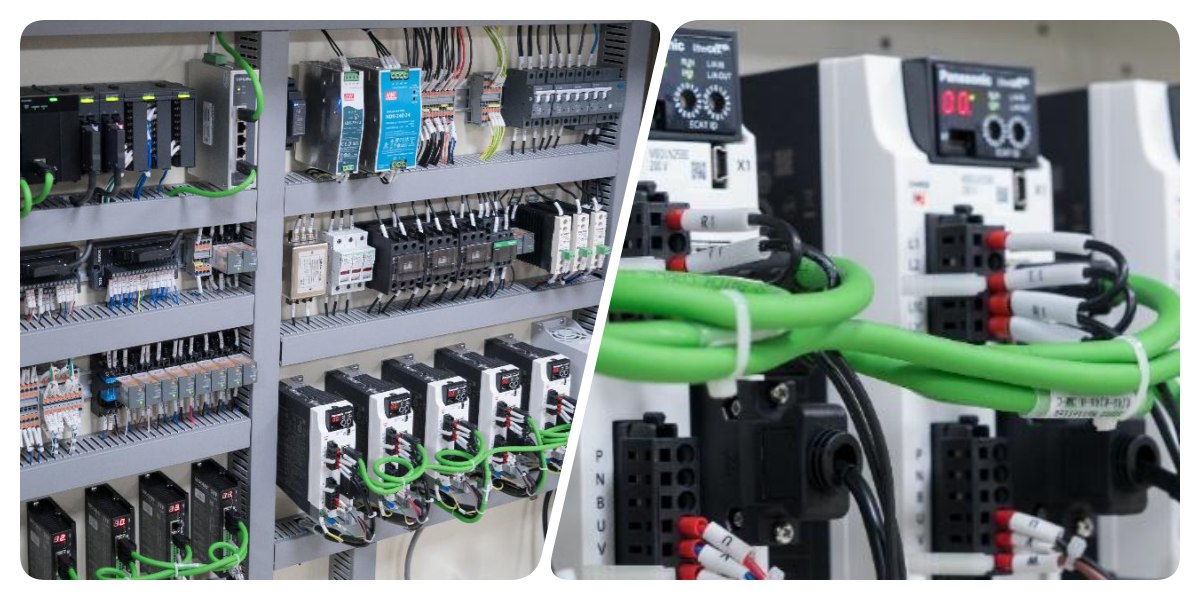

Control is solid in the PCB Selective Wave Soldering Machine with a Keyence PLC system meeting CE and Industry 4.0 standards. Global parts and Cat-6 cables ensure fast, stable communication, boosting capacity as needed. It tracks data for every run, helping catch issues early. This setup runs the machine smoothly, supporting modern production demands.

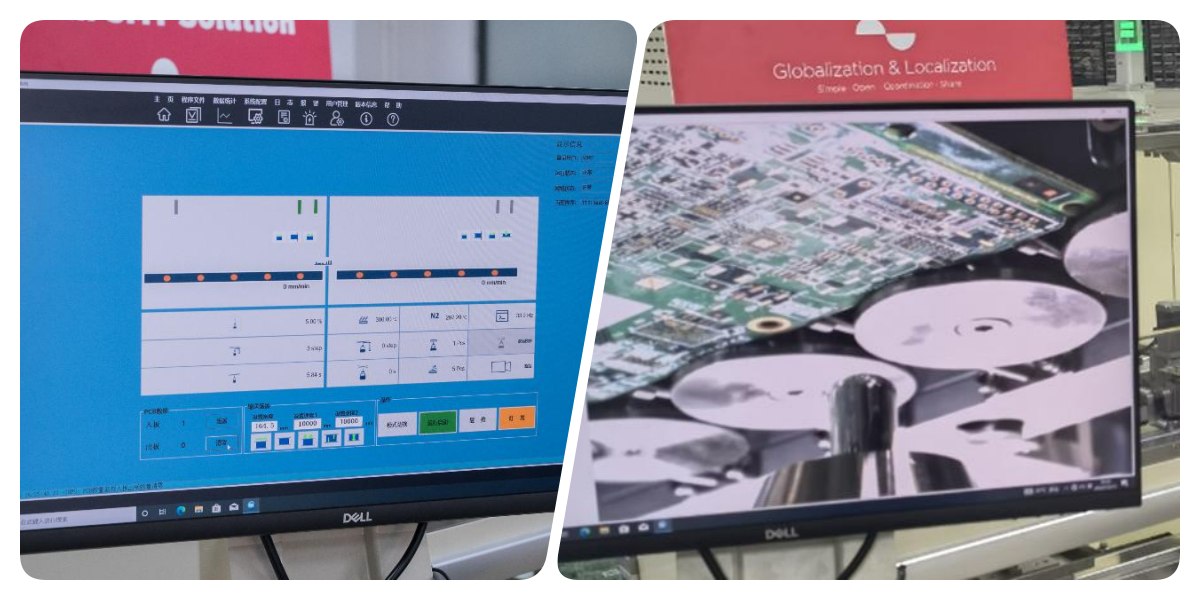

The operating system makes this Inline Selective Wave Soldering Machine easy to use. Guided CCD programming speeds setup, with picture mode for coordinate checks and real-time monitoring in one click. Choose Chinese, English, or other languages, and link to MES for WiFi updates. Data traces each solder point, cutting training time for new users in fast-paced shops.
| Specification
| On-line Selective Wave Soldering Machine | ||||
| Model | I.C.T SS540 | I.C.T SS550 | I.C.T SS550P1 | I.C.T SS550P2 |
| On-line Modular | Spray + Preheating & Soldering | Spray + Preheating + Soldering | Spray + Preheating + Soldering +Soldering | Spray + Preheating + Soldering + Soldering+ Soldering |
| Soldering System | ||||
| Nozzle Quantity | 1 | 1 | 2 | 3 |
| Solder Pot Quantity | 1 set | 1 set | 2 set | 3 set |
| Double Pot (Option) | N/A | Option | Option | Option |
| Solder Pot Power | 2.35kw | 2.35kw | 4.70kw | 7.05kw |
| Flux System | ||||
| Flux Storage Tank | 1L | 1L | 2L | 2L |
| Flux Support | Flux Alarm, Automatic | |||
| Spray Nozzle | Germany Jet Valve (Spot and line spraying) 1 set | |||
| Spray Nozzle Size | 130um (180um, 210um Option) | |||
| Spray Speed | 0~20mm/s | |||
| Spray Nozzle Move Speed | 0~400mm/s | |||
| Preheating System | ||||
| Preheating Mode | Hot air and IR | Hot air and IR | Hot air and IR | Hot air and IR |
| Preheating Area | L500*W500mm | L500*W500mm | L500*W500mm | L500*W500mm |
| Preheating Zone | Top hot air: 2, Bottom IR: 1 | |||
| Bottom Preheating Power | Max.12kw | |||
| Top Preheating Power | Max.6kw | |||
| Warm-up Time | Approx.15min (setting 150℃) | |||
| Control Mode | PC+PLC | |||
| Transport System | ||||
| PCB Size (with fixture) | 120*60~500*500mm | |||
| PCB Replacement | Online | |||
| PCB Top Clearance | 120mm | |||
| Transport Height | 900±20mm | |||
| Transport Width | 60~500mm | |||
| Dimension：mm | L1850*W1850*H1480 | L2560*W1750*H1480 | L2560*W1950*H1480 | L2600*W1950*H1480 |
| Weight | Approx: 800kg | Approx: 1200kg | Approx: 1300kg | Approx: 1500kg |
