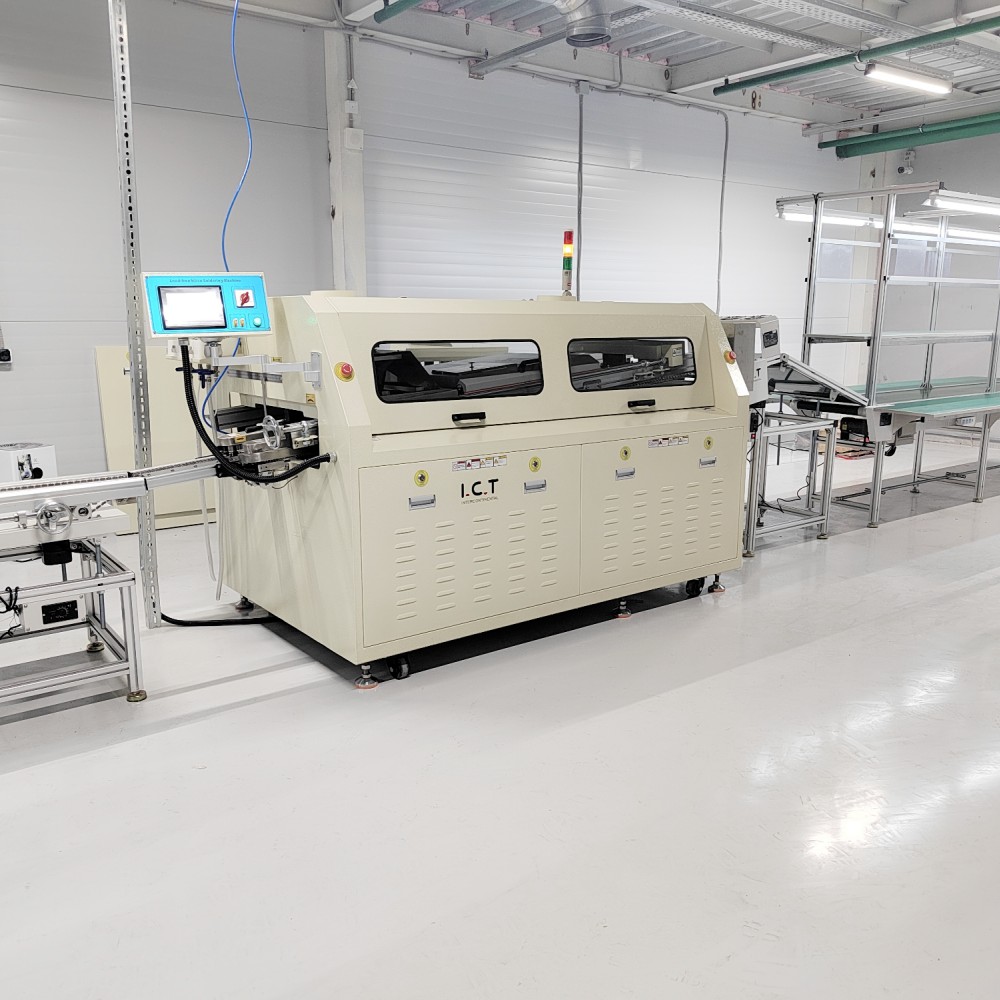

| SMT Dip Soldering PCB Machine – Professional soldering dip PCB machine
I.C.T W-series SMT Dip Soldering PCB Machine is a cost-effective dip soldering machine price solution for THT and DIP lines. This soldering dip PCB machine features Japanese Kuroda precision nozzle for accurate flux placement, independent horizontal heating zones for stable temperature curves, and smart power-saving design that keeps normal operation at only 7kW. Optional nitrogen protection meets lead-free standards perfectly. Widely used in automotive electronics, smart meters and industrial boards, this SMT Dip Soldering PCB Machine offers the best dip soldering machine price performance ratio on the market.
| Feature
Japanese Kuroda nozzle with adjustable atomizing area and pyramid filter create thin, even flux layer on every board. Digital flow meter and stable pressure tank cut flux usage by half and keep the chamber clean – a real daily saving for soldering dip PCB machine in high-volume THT production.
Third-party over-temperature protection and PLC+PID closed-loop control build solid safety barriers. Real-time monitoring and instant shutdown protect operators and the whole SMT Dip Soldering PCB Machine during full-day operation.
Independent horizontal heating zones with closed hot-air path and rectifier plates deliver perfectly balanced temperature on the entire board. Warm-up needs only about 15 minutes and normal power remains at 7kW – the smartest heating among similar dip soldering machine price options.
| DIP Line Equipment List
| Model | W4 | W3 | W2 |
| Dimension:(mm) | 4200X1250X1500 | 3600X1250X1500 | 2900X1160X1500 |
| Weight(kg) | Approx.1500kg | Approx.1200kg | Approx.790kg |
| Power Supply | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz |
| Startup Power | 32kw | 24kw | 16kw |
| Operation Power | 12kw | 9kw | 7kw |
| Control System | PLC | ||
| Spray System | |||
| Transmission Method | Step motor | ||
| Spray Pressure | 0.25Mpa--0.4Mpa | ||
| lux flow | 10--100ml/min | ||
| Exhaust Diameter | Φ200mm | ||
| Exhaust Capacity | 25m3/min | ||
| Preheating System | |||
| Preheating Mode | Hot air | ||
| Control Mode | PID + SSR | ||
| Preheating Zone | 4 | 3 | 2 |
| Preheating Length | 1800mm | 1600mm | 1200mm |
| Preheating Temp. | (Room Temperature)-250°C | ||
| Warm-up Time(min) | Approx.15min (setting 150°C) | ||
| Conveyor System | |||
| PCB Size:LxW(mm) | Min:80x60mm; Max:400x300mm | ||
| Conveyor Speed | 0-2000(mm/min) | ||
| Conveyor Height | 750+/-20 (mm) | ||
| Finger | Double hook claw (Standard) | ||
| Conveyor width control | Manually | ||
| Conveyor Angle | 4~7degree | ||
| Soldering System | |||
| Solder Pot style | Mechanical Motor drive | ||
| Solder Pot Material | Full Titanium (Standard FT) | ||
| Solder pot temperature | 300°C | ||
| Solder pot capacity | Lead-free 350kg | Lead-free 300kg | Lead-free 250kg |
| Other | |||
| Finger cleaning system | Brush | ||
| DIP Line Equipment List
Our DIP production line offers advanced tools for efficient and precise PCB assembly. The fully automated DIP line includes a DIP insertion line for accurate component placement, a wave loader for smooth PCB entry, a wave unloader for safe exit, and an assembly belt line for final checks. This high-quality PCB DIP production line ensures stable operation, reliable THT insertion, and cost-effective assembly, meeting diverse industry needs. With modular designs and global support from I.C.T, it boosts productivity for through-hole tasks.
| Customer Success Video

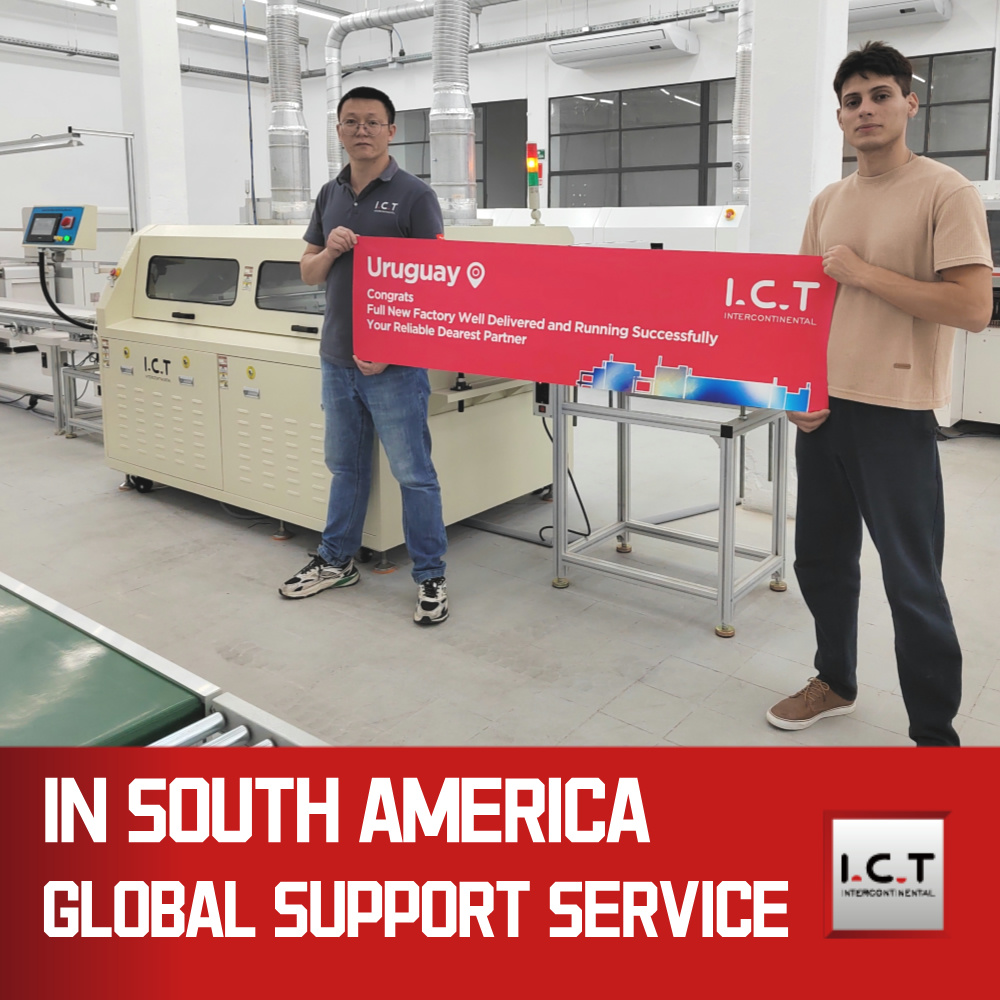

A smart meter factory in Uruguay chose our SMT Dip Soldering PCB Machine to upgrade their DIP line. The customer needed stable lead-free soldering for complex boards with large components. Our engineers arrived on site, completed installation and training in one week, and the machine started full production with only 7kW power and zero defects. The factory manager recorded a short video showing the soldering dip PCB machine running perfectly, highlighting the low energy consumption and fast return on investment. This project has become a benchmark for many South American electronics manufacturers.
| Expert Services and Training
From the first factory survey to long-term spare parts supply, I.C.T offers complete partnership. Our engineers can reach any country within 48 hours, provide on-site line optimization, free software upgrades and customized training programs – ensuring your SMT Dip Soldering PCB Machine achieves maximum output from day one.
| Customer Praise
Factories praise our SMT Dip Soldering PCB Machine for its unbeatable dip soldering machine price, ultra-low electricity bill and rock-solid daily performance. They especially mention the strong wooden export packing that survives long sea transport, the quick video-call troubleshooting, and how easily the machine connects with existing SMT lines.
| Quality Certifications
All I.C.T soldering dip PCB machine models hold CE, CCC, UL, RoHS and ISO9001 certifications, plus multiple invention patents on energy-saving heating and flux systems – giving customers full confidence in quality and compliance.
| About I.C.T Company and Factory
Founded in 2012 and headquartered in Dongguan, China, I.C.T owns a 12,000㎡ modern industrial park and 8 overseas warehouses. With 89 dedicated staff (including 20 senior engineers) and $30 million registered capital, we independently develop, produce and test every SMT Dip Soldering PCB Machine from sheet metal to final commissioning.
Serving more than 1600 active customers in 72 countries, we have built complete localized service teams – engineers can reach most sites worldwide within 48 hours. From SMT reflow ovens to DIP wave soldering lines, from single machine to turn-key projects, I.C.T delivers the most competitive SMT Dip Soldering PCB Machine Price with lifetime technical support and zero-risk after-sales guarantee.
