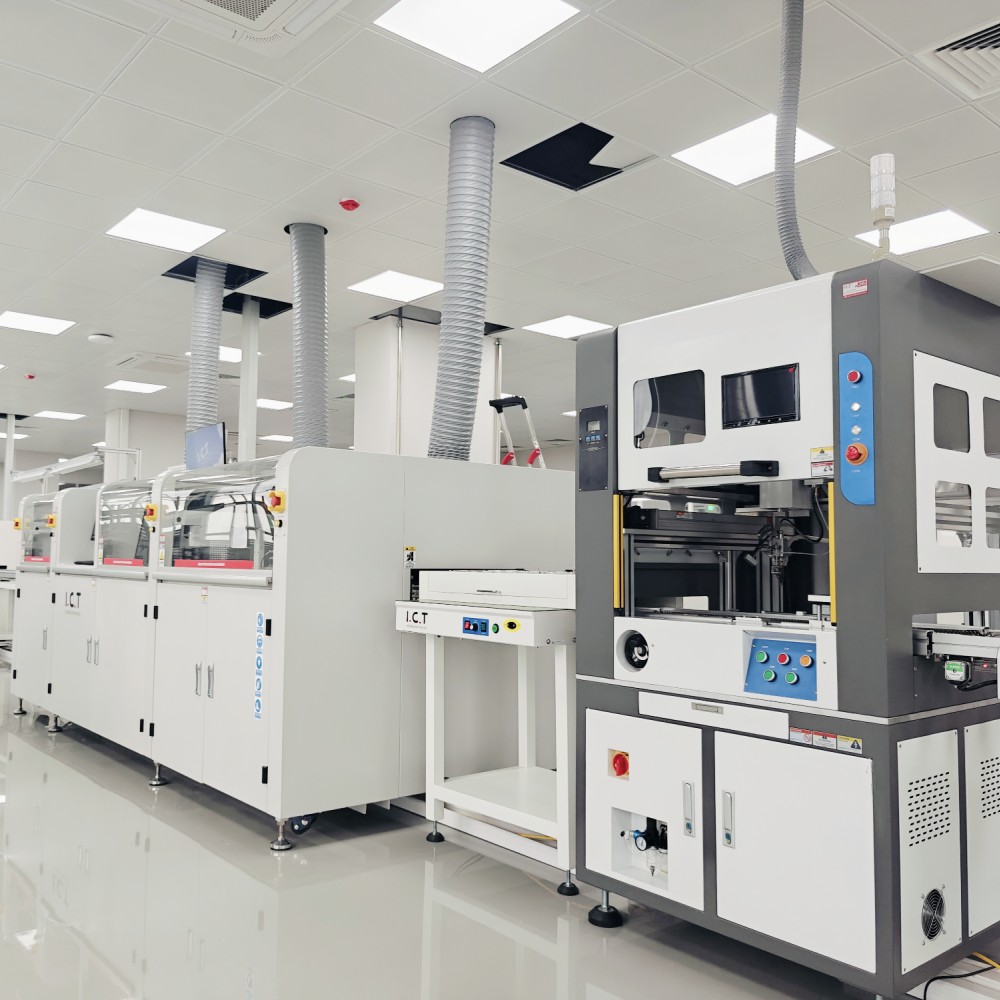

I.C.T selective solder | automatic selective wave soldering machine for PCB Cost Effective

I.C.T selective solder | automatic selective wave soldering machine for PCB Cost Effective

Overview

Selective wave soldering is a special form of wave soldering used for soldering through-hole components in high-end electronic products. I.C.T online selective wave soldering is a high-performance equipment developed and assembled in China. It offers higher flexibility and the option for multiwave soldering for high-volume processes. It allows for parallel processing and can operate with up to two spray heads and up to five lower preheating with upper convection heating. It is perfect for connecting to assembly stands and periphery, as well as for connecting to traceability systems for process control.

I.C.T-SS550P1

I.C.T-SS550P2

1. PCB plate fixed, spray and soldering platform moving;

2. High soldering quality, greatly improve the pass rate of soldering;

3. Modular design of SMEMA online transportation, support customers for flexible line formation;

4. Full PC control. All parameters can set in PC and saved to PCB menu, like moving path, solder temperature, flux type, solder type, N2 temperature etc, best trace-ability and easy to get repeat soldering quality;

5. Auto wave height calibration function, to check & calibrate wave’s height after every certain PCB, so to keep a very good stability of wave;

6. CCD Mark positioning function, to check PCB’s mark point after every certain PCB;

7. Self design motion table with cast aluminum, lighter weight with quick motion speed;

8. Panasonic servo motor & driver provide stable, with ball screw & linear guild rail, less noise, stable movement;

9. With dust proof plate above motion table, so to avoid flux or solder drop to damage ball screw;

10. The jet valve originated in Germany is selected with small flux dot, please note flux solid content should be less than 10%;

11. Flux is stocked by pressure tank, make sure pressure stable without influenced of amount of flux;

12. Electromagnetic pump coil adopts German imported brand to ensure the stability and reliability of the peak; 13. Solder pot is made of stainless steel with anti-corrosion coating, not leakage, also titanium alloy can be used according to customer requirements;

14. With cast iron heater outside, robust & quick heat up;

15. N2 online heating system, to wet the soldering perfectly and reduce the solder dross; 16. With stainless steel roller for conveyor, not wearable

Features 1 Flux system:

1. German high-frequency pulse injection valve to get precious fluxing result with small flux dot, flux solid content should be less than 10%. The flux nozzle jam detection function is optional.

2. It is configuration with tray under the jet valve to catch the flux residue for easy maintenance.

3. The nozzle is mounted on the XY platform, the accuracy of repetition and positioning can reach 0.02mm.

Features 2 Preheat system：

1. The machine is equipped with bottom IR preheating as standard, and the preheating area can be set; top hot air preheating, infrared heating Conduction is efficient and stable.

2. Design structure for maximizing preheating area.

3. All round high temperature cotton design to ensure temperature stability.

4. Heat-generating and heat-conducting parts and motors adopt top brands.

5. Maintenance plug-in design, tool-free maintenance mode.

Features 3 Soldering system:

1. Electromagnetic pump coil adopts Sweden “PRECIMETER” brand to ensure the stability and reliability of the peak.

2. Solder temperature, N2 temperature, wave height, wave calibration etc all able to set in software.

3. Solder pot is made of stainless steel with anti-corrosion coating, not leakage. With cast iron heater outside, robust & quick heat up.

4. N2 online heating system, to wet the soldering perfectly and reduce the solder dross.

Features 4 Transmission system:

1. Special material profiles ensure stability, and rational design ensures convenience.

2. The transmission module is composed of the roller.

3. PCBA side clamp and top clamp system can ensure the stability of the board.

4. Thickened customized rail, 20KG load.

Features 5 Control system：

1. Keyence KV7500 PLC+Keyence module high-end bus control system, ensure the stability and extensibility of the system.

2. Conform to CE and other standards.

3. Underfloor design of Industry 4.0.

4. Ensure the capacity improvement, add the underlying control of the soldering machine module, and ensure the stability.

Features 6 Operating system：

1. Guided programming mode.

2. CCD fast programming function.

3. Picture programming, make coordinate correction, coordinate intelligent verification.

4. Real time data visualization of interface. One button switching of CCD soldering real-time monitoring interface. 5. Chinese, English, can be switched.

Features 7 Intelligence system:

1. Standards and adaptability of MES, WIFI connection, online software upgrade, remote control, intelligent.

2. Soldering data can be traced to confirm the process of each soldering point.
