I.C.T Smt Aoi Offline Machine Inspection Equipment For Pcb

Name: I.C.T Smt Aoi Offline Machine Inspection Equipment For Pcb
Brand: I.C.T
Rating: 5.0 (85 reviews)

I.C.T Smt Aoi Offline Machine Inspection Equipment For Pcb. Buy it with your trusted partner! I.C.T brings 26 years of experience in the SMT industry.
Highlights: On-site installation and training Available, 24/7 Customer Service. Highly Trained Experts.Accurate and economical. Vision guided DIY kit. Easy To Assemble. Open Source Software.

Model:
I.C.T-V8
Brand:
I.C.T
Code:
aoi inspection

Availability:

Quantity:



Inquire Add to Basket

Pcb Aoi Inspection

Off Line AOI V8 Introduction:

For SMT pre-reflow, post-reflow inline inspection.

Granite platform, greatly improve machine precision and stability.

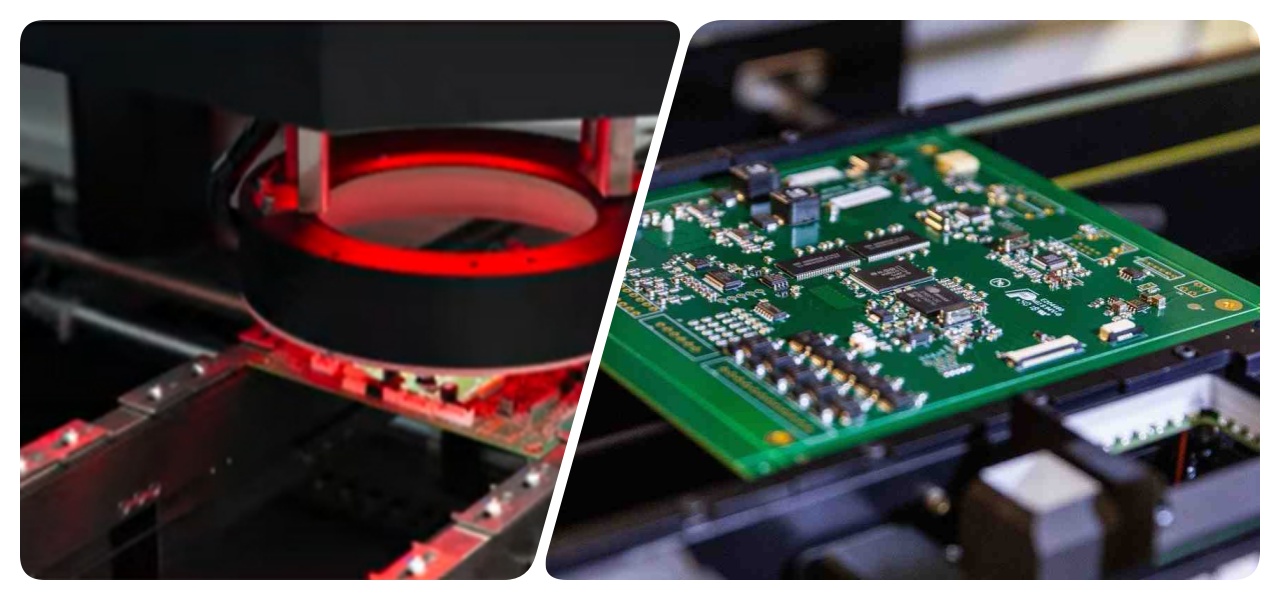

Programmable RGB+W LED lighting source.

Telecentric lens with constant magnification and low distortion response to high compone.

Features:

1. LOG automatic collecting and storage function,NG warning/alarm function, Remote programming&debugging.

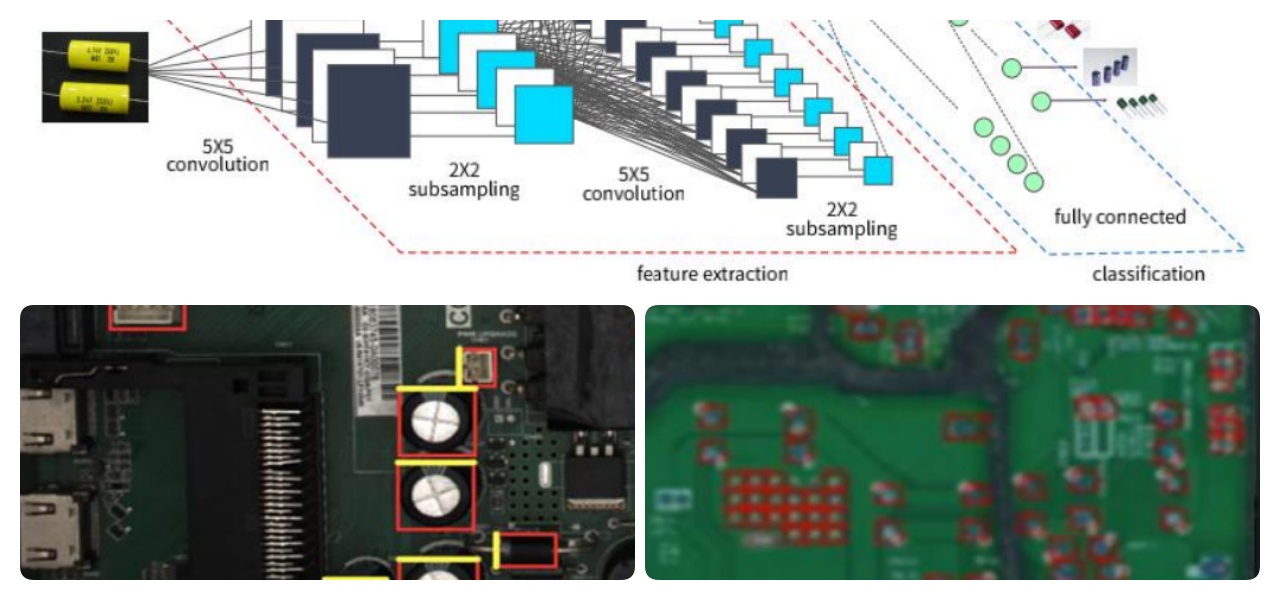

2. Inspection ability:insufficient,short,slodering hole,solder covering pin,contamination,misalignment,missing part,skewed,billboard,mounting

on side,overturn,wrong part,damaged,float,polarity,pseudo soldering,empty solder,excessive glue etc.

3. Perfect SPC collects NG information off line and generates all kinds of production tables automatically.

4. Mature control center function,clear software interface.

5. Good stability(GR&R＜10% ＠6 Sigma,CPK＞1.33(Test deviation accuracy less than ±0.25mm.

6. Camera move,conveyor fixed during test.

7. PCB warpage conpensation:total Mark compensation calibration,conponent position frame compensation.

Granite Platform and Frame

Ensure the stability of the equipment and the consistency of sharing program between machines

Industrial camera+Telecentric lens

The high component solder joint inspection is not affected as no shadow effect in the entire field of view.

Entire FOV Assist Position

High detection ability on no exposed pad components(BGA,etc.)or partially shielded components

3D Aoi Machine

Model	I.C.T-V8	I.C.T-V8XL
FOV	15u(38.4*28.8mm)
Camera	5M pixel intelligent digital industrial camera
Lens	Telecentric lens
Light	4 color ring LED light,RGB+W
Inspection Item	Component test,soldering test
Mini Component	03015chip,0.3pitch IC and Special shaped
Operation System	Windows 7
PCB Size	5050~430330mm	5050~650510mm
PCB Thickness	0.3 ~ 6.0mm
PCB Warpage	±3.0mm
PCB Weight	Max:10Kg
PCB Height	Top:25-60mm,Bottom:25-80mm adjustable
X/Y Driver	AC servo driver,repeat accuracy 0.01mm
Platform	Granite
Power	AC220 50/60Hz,2.5A
Communication	SMEMA
Weight	500Kg	600Kg
Dimension	88011701350mm(excluding the light)	108014701370mm(excluding the light)
