I.C.T-5200
I.C.T

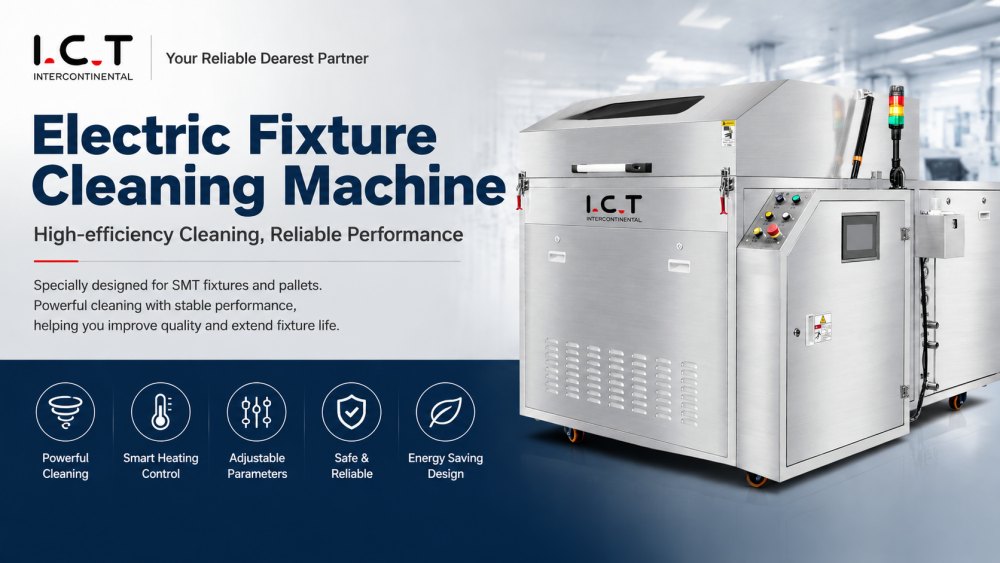

Fixture Cleaning Machine
| Quantity: | |
|---|---|
Our Electric Fixture Cleaning Machine is designed to meet the cleaning needs of SMT fixtures in automated production lines. It effectively removes contaminants like solder paste and flux from fixtures, ensuring precise and uninterrupted operation in the SMT production process. Whether it’s for new setups or ongoing maintenance, this machine plays a vital role in improving efficiency and product quality.
This cleaning machine uses advanced cleaning technology to effectively remove solder, oil, and other contaminants from SMT fixtures, ensuring they remain clean and reducing failure rates during production.
With a high degree of automation, this machine is easy to operate and compatible with a variety of fixtures. It helps reduce labor costs and improve production efficiency by minimizing human intervention and enhancing cleaning effectiveness.
The machine is built using environmentally friendly materials and pollution-free cleaning technology, complying with international environmental standards to ensure no negative impact on the production environment.
| Specification:
| Specification | Details |
|---|---|
| Item | I.C.T-5200 |
| Cleaning Basket Size | Φ1000mm x H 200mm (Special size option) |
| Spray Unit | Upper/lower/front side, 720° all-around spray |
| 3-Level Filter System | 1mm / 50um / 20um filters |
| Clean Tank Capacity | 80L |
| Rinse Tank Capacity | 80L |
| Clean Spray Pressure | 5~6 kg/cm² |
| Clean Time | 5~15 Min |
| Rinse Time | 1~3 Min |
| Dry Time | 10~20 Min |
| Clean Detergent Heat Temp | Room temp~80°C |
| Rinse Water Heat Temp | Room temp~80°C |
| Hot Air Heat Temp | Room temp~90°C |
| Clean Pump Power | 2.2KW |
| Clean Detergent Power | 9KW |
| Hot Air Heat Power | 9KW |
| Air Blower Power | 4.0KW |
| Air Supply | 0.5*0.7MPa |
| Power Supply | 3 P, AC 380V, 50/60HZ, 33KW |
| Machine Size | L1380 x W2100 x H1400 (mm) |
| Machine Weight | 500KG |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice. If different, please follow the new list.
| SMT Line Equipment List
I.C.T complete SMT production line includes all necessary equipment for an automated assembly process, such as board loaders, printers, pick-and-place machines, reflow ovens, cooling conveyors, and more. This comprehensive system ensures seamless operation and improved efficiency in PCB production.
| Product Name | Purpose in SMT Line |
|---|---|
| SMD PCB assembly Line | Turnkey Ful-auto SMT assembly line |
| SMT magazine loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| SMT assembly machine | Mounts components onto PCBs precisely. |
| BGA reflow oven | Melts solder to form solid joints. |
| Customer Success Video
On-Site Technical Support - Germany Project
On April 11, 2026, I.C.T engineers provided on-site technical support to a customer in Germany, including the installation and training for a fully automated SMT production line. The equipment purchased included board loaders, printers, pick-and-place machines, reflow ovens, and cooling conveyors, ensuring smooth and high-quality production from start to finish.
| Service and Training Support
I.C.T offers full installation and training services for all our equipment. Our experienced engineers provide hands-on training to ensure smooth operation and optimal performance of your production line. We offer both remote and on-site training, ensuring customers get the most out of their equipment.
| What Our Customers Say
“I.C.T engineers were highly professional and knowledgeable during the installation process. The training provided was comprehensive, and the equipment operates flawlessly. Their rapid response to our questions ensured that our production line ran smoothly from day one.”
| Certifications and Standards
I.C.T products are certified with CE, RoHS, ISO9001, and other relevant international certifications, ensuring the highest standards of quality, safety, and environmental compliance. We are committed to delivering reliable and efficient equipment that meets the industry's highest standards.
| About I.C.T Company and Factory
Founded in 2012, I.C.T has grown into a leading global provider of SMT, DIP, and coating solutions. We have over 20 engineers and a manufacturing facility covering 12,000 square meters in Dongguan, China. Our factory follows strict quality management systems, and we have successfully served over 1,600 customers in 72 countries. We are dedicated to innovation and providing high-quality solutions to meet the evolving needs of the electronics manufacturing industry.
