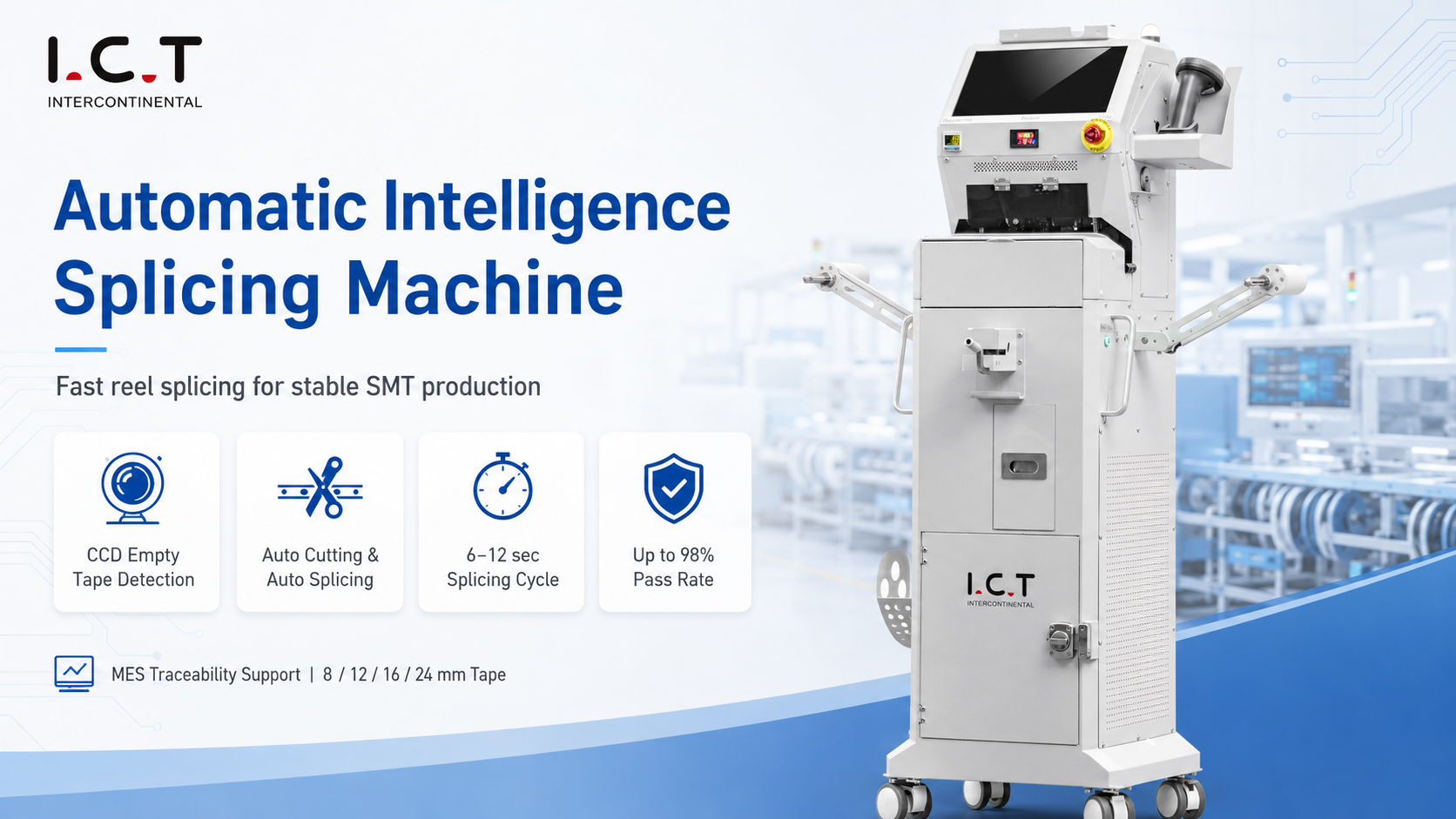

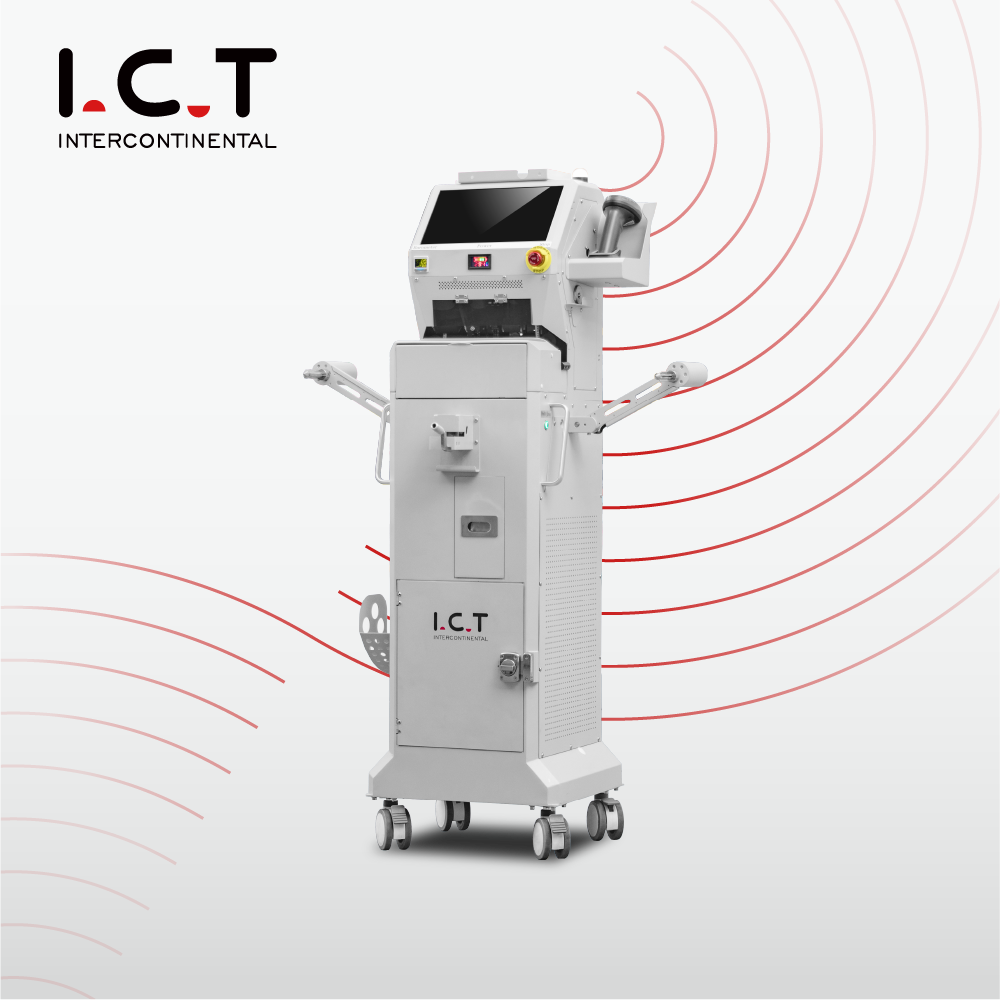

I.C.T | SMT Automatic Intelligence Splicing Machine

I.C.T SMT Automatic Intelligence Splicing Machine.
Buy it with your trusted partner! I.C.T brings 26 years of experience in the SMT industry.
Highlights: On-site installation and training Available, 24/7 Customer Service. Highly Trained Experts.Accurate and economical. Vision guided DIY kit. Easy To Assemble. Open Source Software.
  • I.C.T-ASM08

  • I.C.T

Availability:
Quantity:

I.C.T | SMT Automatic Intelligence Splicing Machine


Overview

Splicing Machine

Introduce:


I.C.T SMT Automatic Splicing Machine is developed to meet the requirements of SMT automatic production line for fast refueling without shutdown.

It can automatically detect the position of empty component, accurately cut and over probability of more than 98% for the head and tail of two rolls of material belts with the same specification.

It can be equipped with RC measurement function to reduce dependence on manpower, reduce management cost, improve detection efficiency, improve the production rate of SMT production line and avoid batch misfeeding, I.C.T smt splicing machine has completed the full coverage of 4-72mm feeder.


Process:

 Intelligence Splicing Machine


Advantages:


1.Simple operation: learn to operate in 5 minutes, everyone can operate, and reduce dependence on personnel.

2.Error proofing: automatic code scanning and error proofing, which can be connected with the customer's MES for double foolproof.

3.Empty components detection: CCD detection can identify the above 01005 .

4.Accurate traceability: connect MES production system to facilitate customer traceability.

5.Increase the production line production rate: increase the production line production rate of SMT with a probability of more than 95%.

6.Determination of measured value: RC measured value function can be selected to avoid batch wrong components.

7. Labor saving: one person operation realize two smt lines.

8. Determination of empty components level and spacing: use CCD optics to automatically detect the presence or absence of components, and

automatically and accurately calibrate the cutting position of components.

9. Recycling: after the components is received successfully, the operator will press the components reel recycling button for a long time to

realize automatic material collection, which is convenient and fast.

10. Accurate and efficient: each time only about 10s to complete.

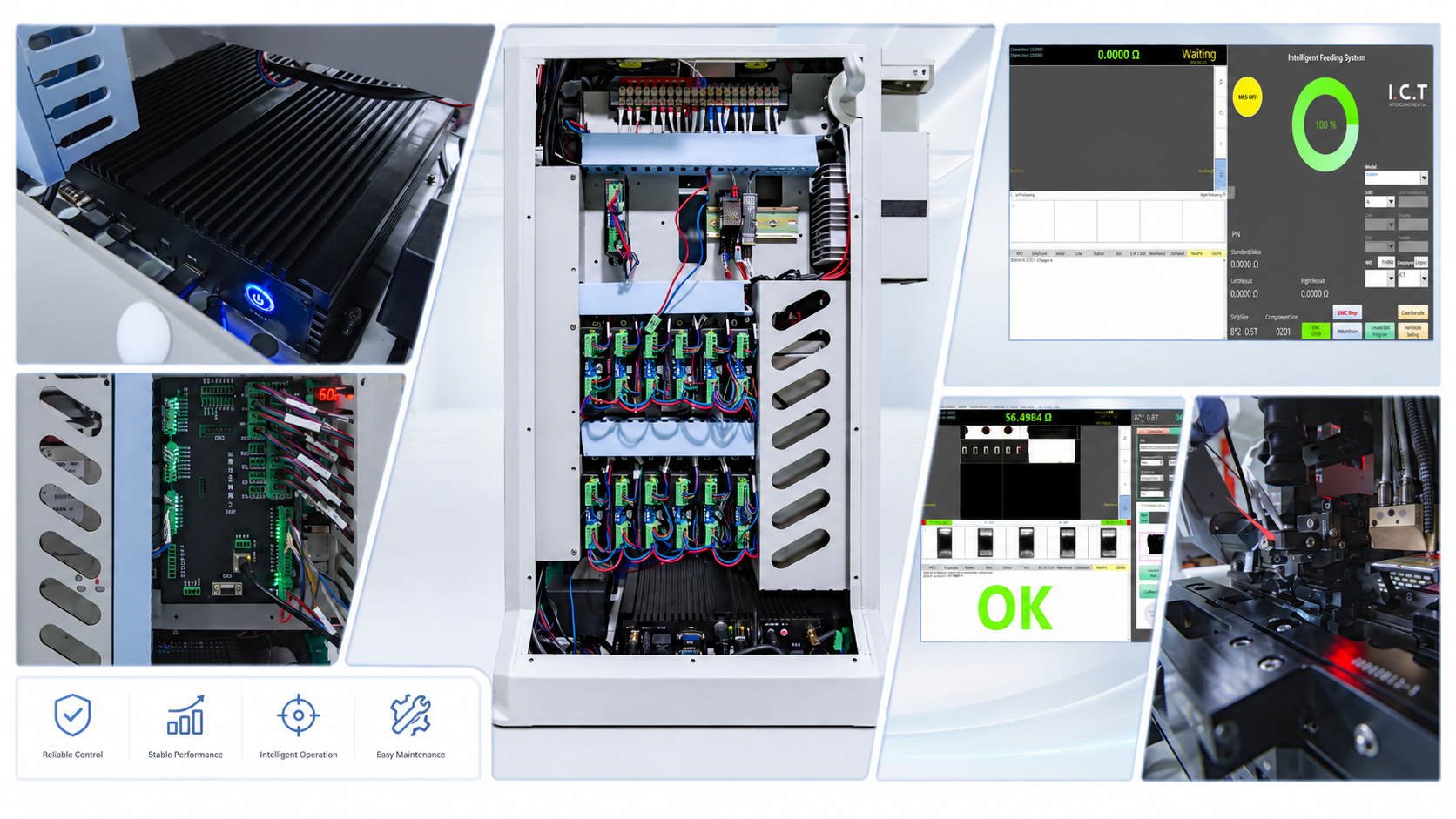

Operating system

Touch screen operation, simple operation, 5 minutes to learn to

operate, barrier free, Chinese and English optional.

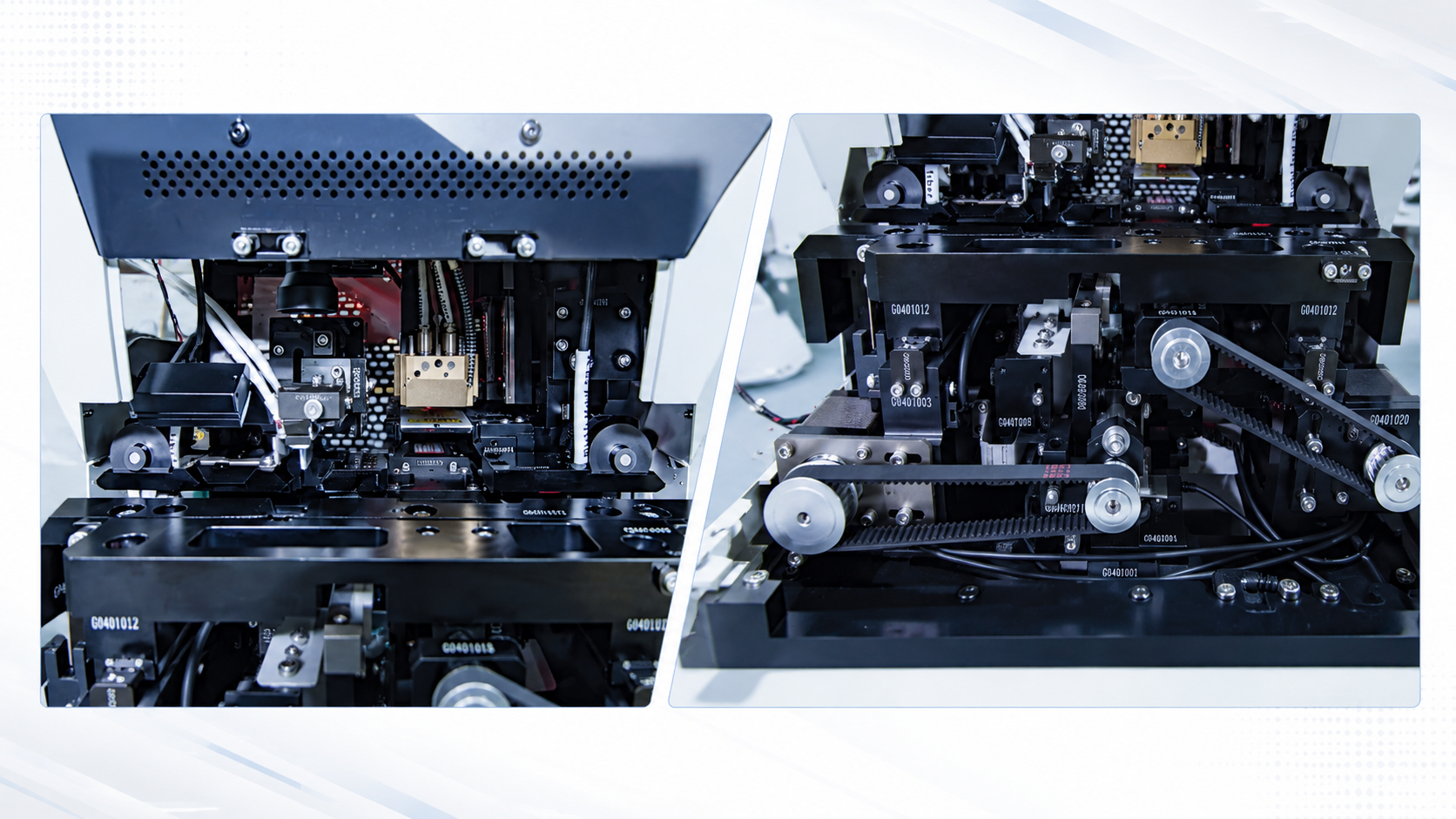

CCD system

Empty components detection: CCD detection can identify the above

01005, and the docking accuracy is ± 0.08.

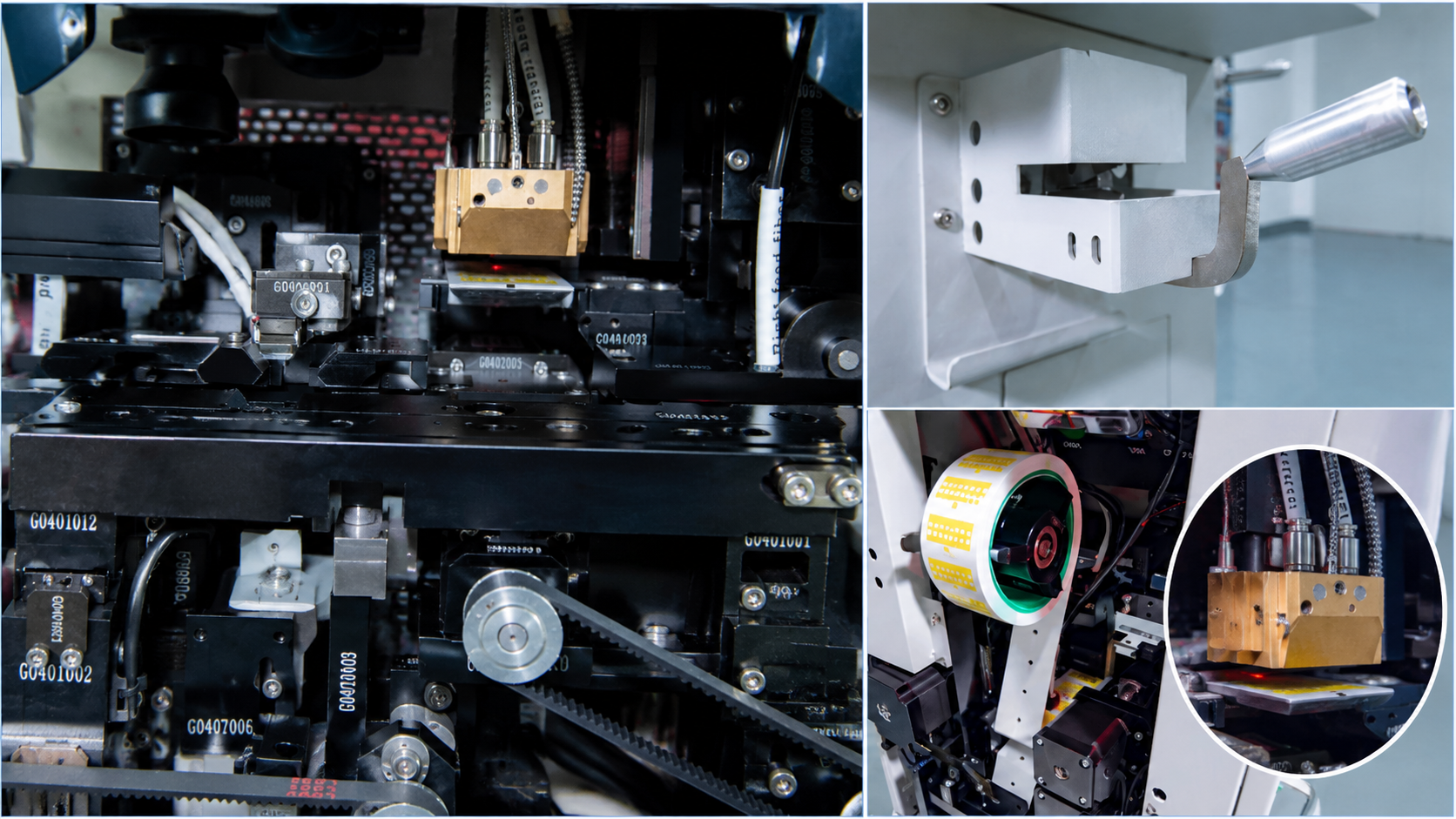

Splicing system


Stepper motor drive, special gear structure. accurate, patented

structure design, success rate 98%.

Feeding system


Mold manufacturing, more than 2000 machines are verified in

the customer's factory, with perfect stability.


Success rate of splicing: 99.19%

Automatic Intelligence Splicing Machine


Specifications:

SMT Automatic Intelligence Splicing Machine
Mode I.C.T-ASM08 I.C.T-AISM08 I.C.T-AISM24 I.C.T-AISM72
Applicable Mounter Full SMT brand
Splicing Mode Auto cutting and Splicing Splice Clip-Frame
Splicing Tape Size 32mm 32mm 32mm*2 45*17mm
Splicing Tape Package Reel
Splicing Cycle Time 6-12sec (excluding manual operation and empty tape detection time)
Passing rate on Mounter 95% 98% 98% 99%
Dimension / mm 550*470*1300 400*470*1400 400*470*1400 400*460*950
Weight Approx: 65KG Approx: 65KG Approx: 75KG Approx: 50KG
