SMT Barcode Inkjet Printer
| Quantity: | |
|---|---|

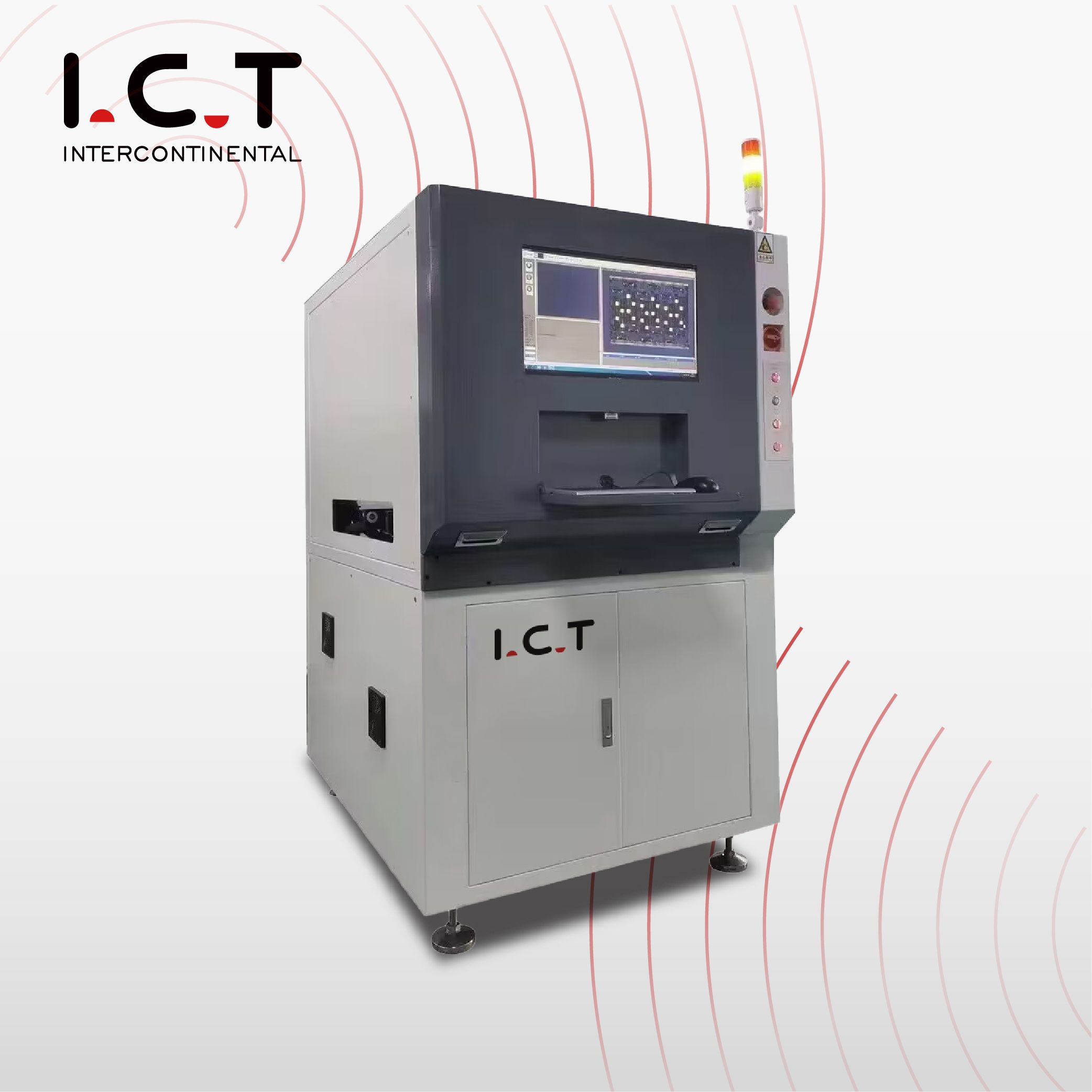

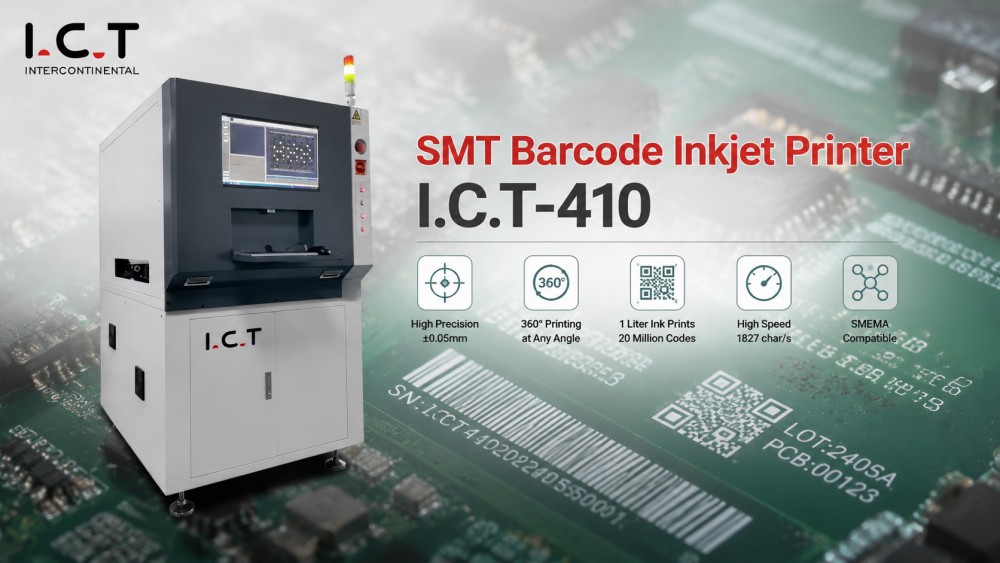

| Qr code inkjet printer machine I.C.T-410
The I.C.T-410 prints QR codes, barcodes, and labels directly on PCBs. It handles boards from 50×50mm to 450×340mm and heights up to 25mm. The printer achieves ±0.05mm precision at high speeds. Operators can use intuitive software to edit jobs, generate codes, and monitor prints. It integrates with ERP and MES systems to track batches, materials, and production numbers automatically. The I.C.T-410 improves efficiency, traceability, and quality control in SMT production lines.
| Feature of SMT Inkjet Barcode Printer
High-Speed, Precise Printing
The I.C.T-410 prints fast and accurate codes. Multi-angle printing ensures coverage on complex PCB layouts. Ink thickness is under 2µm, delivering clear, reliable codes.
Automatic Code Logging
The printer reads two-dimensional codes automatically. It records results and triggers alerts for unreadable codes. This reduces mistakes and strengthens traceability.
Flexible Operation and Integration
X, Y, Z, and R axes move automatically. The printer works with ERP, MES, and SAP systems, retrieving product, batch, and material information for automated coding.
Intuitive Software Interface
Simple interface allows job setup, code editing, and monitoring. Minimal training is required. Operators can manage multiple boards efficiently and reduce production errors.
| SMT Inkjet Barcode Printer Specification
| Item | I.C.T-410 |
|---|---|
| Printer Brand | Hitachi/KGK (Japan) |
| Resolution | 40µm (Option: 50µm, 60µm) |
| Printing Speed | 1827 characters/s |
| Printing Precision | ±0.05mm |
| Printing Angle | 360° |
| Printing Height | 0.6~7.0mm |
| Transport Height | 900 ±20mm |
| Conveyor Speed | 0~100,000 mm/min |
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right |
| 2D Code Size | 3×3 ~ 6×6 mm |
| 2D Code Size Deviation | ±0.2mm |
| Character Pattern | 5, 7, 9, 10, 12, 14, 16, 24, 32 |
| One-time Max Printing Lines | 4 lines |
| Ink Service Life | 1 liter of ink can print 20 million QR codes |
| Ink Thickness | <2µm |
| PCB Size | Min 50×50 mm ~ Max 450×340 mm; Thickness 0.5×6 mm |
| Top Surface Height of PCB | <25mm |
| Bottom Surface Height of PCB | <25mm |
| Power Supply | AC 220V / 50Hz, Total power: 2500W |
| Air Pressure | 0.5~0.6 MPa |
| Dimension | L1050 × W1020 × H1600 mm |
| Weight | 550 kg |
| Position System | CCD + MARK |
| Operation Mode | X, Y, Z, R movement |
| Positioning Function | Support automatic photographing and 2, 3, 4 point positioning |
| Reading Code Function | Automatically read two-dimensional code, save data, record and alarm if unreadable |
| System Access | Interconnected with ERP/MES/SAP, auto obtain work, batch, material info and code |
| Options | OCR character recognition, back code scanning and printing, white ink machine |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
I.C.T offers full SMT line solutions for electronics manufacturers. The system includes PCB loaders, screen printers, pick-and-place machines, SPI, AOI, reflow ovens, conveyors, PCB handling, and cleaning stations. Lines are optimized for efficiency, flexibility, and traceability. ERP/MES integration ensures automatic data collection for every production batch. The global I.C.T team provides installation, training, and support, delivering turnkey solutions for seamless factory operation and consistent high-quality output.
| Customer Success Video
I.C.T supported a large electronics manufacturer in Uzbekistan. The client built a factory producing PCBs, SSDs, and memory modules. From installation to debugging and first production runs, I.C.T engineers guided the integration of SMT and DIP lines. The client praised I.C.T for fast problem-solving, professional guidance, and high equipment reliability. The solution increased traceability, efficiency, and production stability. The team ensured smooth operations and high-quality PCB printing across the entire SMT line.
| Professional Training & Support
I.C.T provides full services, including on-site installation, commissioning, and operator training. Engineers assist with software setup, line integration, and maintenance routines. Training emphasizes safe operation, efficient workflow, and troubleshooting. Clients gain confidence managing the SMT line and Qr code inkjet printer machine, maximizing uptime and product quality. Our global support team is available for immediate response and ongoing guidance.
| Customer Praise
Clients appreciate I.C.T engineers’ professionalism and responsiveness. They value the I.C.T-410 printer’s quality, safe packaging, and easy operation. Quick response to questions and on-site support ensure smooth installation and reliable production. Customers praise I.C.T for reducing downtime and enabling efficient PCB labeling in high-volume manufacturing.
| Our Certification
The I.C.T-410 printer holds CE, RoHS, ISO9001 certifications, and multiple patents. These ensure compliance with international safety, environmental, and quality standards. Clients can trust the printer for reliable, accurate, and high-quality QR code and barcode printing on PCBs.
| About Us and Factory
I.C.T has a large R&D and manufacturing team. The company serves over 1,600 clients in 72+ countries. The factory follows strict inspection and quality control protocols. I.C.T delivers reliable SMT solutions, including the I.C.T-410 printer, with global technical support. Rapid growth and international experience allow I.C.T to provide turnkey factory solutions, ensuring efficient, traceable, and high-quality electronics production worldwide.
