You use AOI in PCB manufacturing to make sure your printed circuit boards are made well and work right. AOI stands for automatic optical inspection. It uses special cameras and computer programs to find problems during checks. Studies show AOI can cut down on mistakes in PCB making by up to 40%. It can also find problems more than 95% of the time. This helps you get better boards, need fewer fixes, and finish work faster. The I.C.T SMT AOI Machine, like the AOI Inspection Machine, is a real example. It shows how AOI helps make better boards and speeds up work on the line.
· AOI uses cameras and software to find problems on printed circuit boards fast. It helps catch mistakes early.
· It makes quality better by finding things like missing parts, bad solder joints, and surface damage. It is right more than 95% of the time.
· Using AOI saves money by cutting down on rework, waste, and labor costs. It often pays for itself in 14 to 18 months.
· AOI makes production faster by checking hundreds or thousands of boards every hour. This is much quicker than checking by hand.
· Following rules like IPC-A-610 with AOI builds trust. It also makes sure boards are always high quality.
· Advanced AOI has features like 3D imaging and machine learning. These help find more problems and handle new challenges.
· AOI works best when used with other tests like X-ray and in-circuit testing. This gives a full check of the board.
· Doing regular maintenance, having clear inspection rules, and training operators make AOI work better and give better results.
You use AOI in pcb manufacturing to check your boards for problems. AOI stands for automated optical inspection. This technology uses cameras and special lights to take clear pictures of your printed circuit boards. The system then uses computer programs to look for mistakes by comparing the images to a perfect example, called a "golden board." AOI systems can spot missing parts, misplaced components, and soldering issues. Some advanced AOI machines, like the I.C.T- AI-5146, use deep learning and high-resolution cameras to find even tiny defects. These machines can also use 3D imaging to check the height of solder joints and components, making sure everything is in the right place.
Here are the main steps AOI follows in pcb manufacturing:
1. The AOI machine shines special lights on the board.
2. Cameras take high-quality pictures of the board’s surface.
3. The system uses software to compare these images to a perfect board.
4. It finds and marks any defects, such as missing parts or bad solder joints.
5. The machine logs the defects and creates a report for you.
AOI in pcb manufacturing helps you catch problems early, so you can fix them before the boards move to the next step.
You use AOI to make sure your boards meet quality standards. The main goal is to find defects that could cause the board to fail. AOI can spot issues like too much or too little solder, solder bridges, and missing or crooked parts. It also checks for scratches, stains, and other surface problems. When AOI finds a defect, it logs the information and can even remove the bad board from the line. This helps you keep track of common problems and improve your process.
AOI in pcb manufacturing gives you feedback right away. You can fix mistakes quickly and avoid making the same error again. This keeps your boards reliable and helps protect your company’s reputation. AOI also supports mass production by making sure every board meets the same high standard. You can trust that your boards will work as expected when you use AOI.
Surface Mount Technology (SMT) is a popular way to build circuit boards. AOI plays a big role in SMT assembly. You use AOI to check that each tiny part is in the right spot and that the solder joints are strong. AOI can find missing, rotated, or misplaced components. It also checks for solder problems like cold joints or bridges. Some AOI systems, such as the I.C.T- AI-5146, use 3D imaging and smart algorithms to inspect boards quickly and accurately.
AOI in pcb manufacturing helps you catch errors during SMT assembly. You get real-time feedback, so you can fix problems right away. This reduces waste and saves money. AOI also helps you keep your production line running smoothly. When you use an automated optical inspection test, you make sure your boards are built right the first time.
Tip: Using AOI in your SMT assembly line can boost your product quality and lower your costs.
You want your printed circuit boards to work well. Automatic optical inspection is a strong tool for checking quality. This technology uses high-resolution cameras and smart software. It checks every board and compares it to a perfect one. AOI can find even small problems. You can see issues like missing parts, solder bridges, or parts that are not in the right place right away.
· AOI uses cameras and computer programs to look at your boards.
· It finds problems like polarity errors, open or short circuits, and missing or wrong parts.
· Automation takes away mistakes people might make and keeps checks the same for each board.
· AOI can check thousands of parts each minute, much faster than people.
· Finding problems early stops them from spreading, so you have less waste and less fixing to do.
Old ways of checking boards use people. People can get tired and miss small problems. AOI gives you steady quality checks and helps you reach high standards for every board. You also get detailed reports, so you can see where problems happen and make things better. This helps you build trust with your customers and keep your good name.
Automatic optical inspection helps you save money in many ways. When you find problems early, you spend less on fixing and waste. AOI systems lower your labor costs because machines work faster and better than people. You also have fewer boards to fix or throw away.
Cost Saving Aspect | Reported Savings / Impact | Explanation / Context |
Rework labor savings | $12,400 monthly | First-pass yield went up from 82% to 96% with AOI and process control |
Rework cost savings on orders | $18,000+ on 1,000-unit orders | Rework rates dropped from 8% to 1.2% using AOI-based quality gates |
ROI timeframe | 14-18 months | Most medium-size companies get their money back in this time using AOI |
Inspection cost per unit reduction | From $0.15 to $0.04 per unit | Automation saves $1,100 each year on 10,000 units |
Production utilization increase | 67% increase | 24/7 automated production makes more boards and faster times |
You see real savings when you use AOI. The automated optical inspection test lowers the cost for each board and helps you get your money back in about a year and a half. You also avoid big losses by finding problems before boards leave your factory. This makes your business stronger and helps you compete.
You need to work fast in electronics manufacturing today. AOI gives you quick checks and keeps your line moving. Automation lets you check more boards in less time. You can check hundreds or thousands of boards every hour.
Before AOI, you might only check 20 to 50 boards each hour by hand. With AOI, you can check hundreds or thousands. The number of missed problems drops by 85%. Your first-pass yield goes up from 92% to 98%. The cost to fix boards goes down by 60%. You can get your money back in as little as eight months.
Automatic optical inspection works well with other machines. You keep your quality high, even when you work faster. New AOI systems use AI to spot parts and problems quickly, so you spend less time setting up and more time making good boards. This helps you meet customer needs and deliver on time.
Tip: When you use AOI, you get faster checks, better quality, and lower costs. This helps you stay ahead in electronics.
When you make electronics, you must follow strict rules. These rules help your products meet high standards. IPC-A-610 is one of the most important rules. People all over the world use this standard for electronic assembly quality. It tells you what to check on your printed circuit boards. IPC-A-610 gives clear rules for coating coverage and thickness. It also says there should be no defects. You use automatic optical inspection to help follow these rules every time.
Automatic optical inspection systems look for problems on your boards. These systems check coating thickness in many places. They also look for overspray and make sure coating does not touch connectors or test points. AOI helps you prove your boards meet IPC-A-610 rules. This is good for quality assurance. It also helps you find and fix problems if they happen.
The IPC group works to make AOI technology better. IPC supports using artificial intelligence in AOI systems. This makes checks faster and more correct. A new IPC white paper explains how AI can help find defects and keep quality high. IPC does not have new AOI rules yet. But it is working on a set of rules for using AI in inspections.
Here are some ways industry standards help you:
· You get clear rules for what makes a board high quality.
· You use AOI to check every board the same way, every time.
· You keep good records for quality assurance and traceability.
· You stay up to date with new technology, like AI in AOI systems.
Note: When you follow rules like IPC-A-610, you build trust with customers. You show you care about quality and use the best tools for checks.
Industry standards help you make better products. When you use automatic optical inspection and follow these rules, your boards are safe, reliable, and ready for the market.
When you know how an aoi system works, you see why it matters in pcb manufacturing. The aoi process uses both hardware and software to find problems fast and well. Let’s look at the main parts and steps.
Cameras are the most important part of every aoi system. They take clear pictures of your printed circuit boards. Some systems have one camera, but others use more for 3D views. The cameras can move to get the best view. Good lenses and careful movement help cameras see tiny things. For example, the I.C.T- AI-5146 has a 12 million pixel camera to spot small defects.
Lighting is very important in aoi. Special lights shine from different sides and in different colors. This helps cameras see all parts of the board. You might use top, side, or coaxial lighting to show different things. Multi-color LED lights, like RGB and white, help you see problems with solder or parts. Good lighting that you can change gives you clear pictures every time.
The software in an aoi system does a lot of work. It runs the cameras and lights, then checks the pictures. The software uses smart programs to compare what it sees to a perfect board. Some systems use pattern matching, feature finding, or even machine learning. The I.C.T- AI-5146 uses a convolutional neural network to find many types of defects. The software also talks to other machines and helps you watch and improve your work.
Tip: Good software makes your aoi system smarter and helps you trust the results.
You begin the aoi process by taking pictures of the pcb. The cameras snap photos with different lights. This step is quick and correct. Clear pictures show every detail, from small solder joints to tiny parts.
After taking pictures, the software starts its job. It checks the new pictures against saved data or design files. The software looks for changes that could mean a problem. You can find missing parts, solder bridges, or scratches. Some systems use machine learning to get better at finding problems over time. The software puts defects into groups, so you can see what went wrong.
When the software finds a problem, it writes it down. The system can mark the board, reject it, or send it for another look. You get reports that show where and what the problems are. These reports help you fix things fast and make your work better. The I.C.T- AI-5146 can even send data to your manufacturing execution system for real-time updates.
Note: Reports from aoi help you see patterns and stop future problems.
Picking the right lighting is very important in aoi. Different checks need different lights. Here’s a quick look at common types:
AOI Type | Lighting and Imaging Approach | Inspection Scenario | Advantages |
2D AOI | Top-down imaging with standard lighting | Early SMT line inspections for surface issues like solder paste misapplication, polarity errors, missing parts | Cost-effective, fast, suitable for simpler inspections |
3D AOI | Structured light and multi-angle cameras with multi-angle lighting | Detects component height, volume, coplanarity; identifies insufficient solder, lifted pins, warpage | Precise depth measurement, better defect detection for complex structures |
You often use more than one lighting type for the best results. Top lighting is good for checking the surface. Side lighting helps you see height and spot 3D problems. Coaxial and ring lights take away shadows and show solder joints. Multi-angle and multi-color LEDs let you change the light for each job. Good, even lighting gives you clear pictures and helps you find more problems.
Callout: The right lighting in your aoi system helps you catch more problems and make better boards.
Automatic optical inspection, or AOI, is very important for finding problems in pcb assemblies. You use AOI to spot many kinds of failures. This helps your boards stay safe and work well. Here are the main types of defects AOI can find.
Soldering problems are common in pcb assemblies. These problems can make your boards stop working or become less strong. AOI helps you find these issues early.
A solder bridge happens when solder joins two pads that should not touch. This makes a short circuit and can break the board. AOI uses sharp cameras and special lights to see these small connections. You can find solder bridges before they cause big trouble.
Insufficient solder means there is not enough solder on a joint. This can make a weak spot or even an open circuit. AOI checks each joint and looks for the right amount of solder. If there is too little, AOI marks it as a problem. You can fix it before the board leaves your factory.
Other soldering problems AOI can find are:
· Lifted pads: Pads pull away from the board, often from too much heat or shaking.
· Webbing and splashes: Small bits of solder land where they should not and cause shorts.
· Sunken joints: These look pressed in and may not connect well.
· Tombstoning: Parts stand up on one end and break the connection.
· Shadowing: Solder does not fully touch the part, so contact is poor.
· Cold solder joints: These look dull or rough and do not stick well.
AOI also helps you find problems with where parts are put. If a part is in the wrong place or missing, the board may not work.
Misaligned parts do not sit right on their pads. AOI scans the board and checks each part’s spot against the design. If a part moves too far, AOI marks it. You can set tight rules, even as small as 0.02 mm, to catch small moves. AOI also finds parts turned the wrong way.
Missing parts are hard to see by eye, but AOI finds them fast. AOI checks every spot where a part should be. If it finds an empty pad, it marks it as a problem. AOI can also find tombstoned parts and wrong parts by checking the board against the design.
Surface problems can hurt your board or make it stop working. AOI checks for these using both 2D and 3D pictures.
Scratches and scrapes can break copper lines or show inside layers. AOI finds these by looking for lines or marks that should not be there. Even small scratches can cause open circuits or other failures.
Stains, like leftover flux or chemical spots, can cause rust or shorts. AOI uses special lights to see these marks. You can clean stains before they cause problems.
Here is a table that shows some surface problems AOI can find:
Surface Defect Type | Description |
Solder Bridges | Unwanted connections that cause shorts |
Pinholes and Voids | Tiny holes in solder joints or metal layers |
Hairline Cracks | Thin breaks in lines or solder joints |
Foreign Particles | Dust, fibers, or dirt that can cause rust or shorts |
Scratches and Abrasions | Damage to the metal paths |
Spurious Copper | Small copper bits from bad etching |
AOI is a strong tool for finding and fixing problems in pcb assemblies. You can trust AOI to catch many kinds of failures, from soldering issues to surface problems. This keeps your boards working well and your customers happy.
You rely on AOI to catch many problems in PCB manufacturing, but this technology still has some limits. Knowing these limits helps you understand when you might need extra checks or tools.
· AOI systems depend on high-quality images. If the lighting is not perfect or if parts have unusual colors or textures, the system might miss a defect or mark a good board as bad.
· AOI works best for surface problems. It cannot see inside the board. Subsurface flaws, like hidden cracks or voids, need other tools such as x-ray inspection.
· You may notice that 2D AOI systems cannot measure the height of parts or solder. They also cannot check if all pins touch the board at the same level. This can lead to more false alarms.
· 3D AOI systems can measure height and volume, but they cost more and work slower. They also have trouble with very tall parts, shadows, or checking colors.
· AOI systems need regular updates and recalibration. When you change your PCB design, you must spend time updating the software and settings.
· You need skilled workers to keep AOI systems running well. Maintenance and training add to your costs.
· Sometimes, you need more than one inspection system to find every type of defect. This makes your process more complex and can raise your expenses.
Here is a table that shows some common AOI system limits:
AOI System Type | Limitations |
2D AOI | Cannot check height or volume; more false alarms |
3D AOI | Higher cost; slower speed; cannot check 2D-only features; height limit (~5mm); shadow problems; no color check |
AOI systems use different methods to spot problems. Some compare your board to a perfect sample, while others use rules or a mix of both. Hybrid systems can be powerful, but they cost more and may slow down your line. Because of these limits, AOI cannot always catch every failure by itself. You may need to use AOI with other inspection tools to make sure your boards are safe and reliable.
Note: Understanding AOI’s limits helps you choose the right mix of inspection tools for your needs.
You see many new features in today’s aoi systems. These features help you find more problems and make your work easier. Here are some of the most important ones:
· Dual-sided aoi lets you check both sides of a board at the same time. You do not need to flip the board, so you save time and keep your inspection process strong.
· Dual-camera systems capture images from different angles. This avoids light problems and helps you work faster on busy lines.
· High-speed cameras, sometimes up to 100 frames per second, give you clear pictures even when boards move quickly.
· Flexible programming lets you use CAD data or a golden board to set up your inspection. You can change programs fast when you build new products.
· Smart lighting uses different colors and angles. This helps you see all parts of the board, even if some parts are tall or shaped oddly.
· AOI systems now connect with MES and Industry 4.0 networks. You can track boards in real time and use data to improve your process.
· Detailed inspection records help you trace problems and make better choices for your factory.
Tip: Advanced aoi features help you catch more defects, work faster, and keep your quality high.
Machine learning changes how you use aoi. In the past, you had to set rules for every defect. Now, deep learning, especially Convolutional Neural Networks (CNNs), lets the system learn from pictures. The aoi machine looks at many images and finds patterns by itself. This means it can spot hard-to-see problems and new types of defects.
You do not need to spend as much time teaching the system. The aoi learns and gets better as you use it. It can handle different products and changing defect types. Some systems use both labeled and unlabeled data, so they keep improving even with less training. This makes your inspection faster and more accurate.
Note: With machine learning, aoi systems adapt to your needs and help you keep up with new challenges in manufacturing.
The I.C.T- AI-5146 SMT Online AOI Inspection Machine shows you what modern aoi can do. This machine uses a 12-megapixel camera and a telecentric lens for sharp, clear images. It checks tiny parts, even down to 01005 chips, and works with many board sizes.
Feature | I.C.T- AI-5146 Specification |
Camera | 12MP intelligent digital industrial camera |
Lighting | Programmable RGB + White LED |
Inspection Speed | 0.23 seconds per field of view |
Algorithms | CNN, color contrast, OCR, template matching |
PCB Size Range | 50x50 mm to 730x460 mm |
Warpage Compensation | ±3.0 mm |
MES Integration | Yes |
You get fast and stable inspection with this aoi system. The CNN algorithm finds many types of defects, like missing parts, solder bridges, and wrong markings. The machine connects to your MES, so you can track boards and improve your process. You can also program it offline or online, making it easy to change for new jobs. The I.C.T- AI-5146 helps you boost your yield, lower your defect rate, and keep your production line running smoothly.
Manual inspection means people look at boards with their eyes. This way is simple, but it has many problems. People can miss small defects because eyes are not perfect. Inspectors get tired and lose focus after a while. This makes mistakes more likely. AOI, which stands for automated optical inspection, works much faster than people. AOI does not get tired or lose focus. It uses cameras and computers to find tiny problems that people might not see.
Here is a table that shows how AOI and manual inspection are different:
Aspect | AOI (Automated Optical Inspection) | Manual Inspection |
Speed/Efficiency | Inspects thousands of components rapidly without fatigue; ideal for high-volume production | Slower due to human pace; inspectors tire over time, reducing speed and potentially missing defects |
Accuracy | High precision and consistency; detects very small defects reliably; >99% accuracy rate | Prone to human error and variability; estimated ~95% accuracy; affected by fatigue and attention span |
Defect Escape | Reduces defect escape rates by up to 90% | Higher defect escape due to inconsistency |
Consistency | Consistent results due to programmed criteria | Variable results depending on inspector's condition |
Flexibility | Less flexible, follows programmed rules | Flexible, can catch complex or unexpected defects |
Suitability | Best for large-scale, high-volume production | Better for specialized or changing inspection needs |
AOI checks boards much faster and finds more problems than people. AOI can finish checking a board in just a minute or two. Manual inspection can take up to an hour for the same job. AOI also finds very small defects, like tiny solder bridges, that people might miss. When you use AOI, you are less likely to miss a problem. This means you save time and money because you do not have to fix as many mistakes later.
Tip: AOI always gives the same results, but manual inspection can change if someone is tired or not paying attention.
X-ray inspection lets you look inside your circuit boards. You use it to find hidden problems that AOI cannot see. For example, X-ray inspection can spot voids under ball grid arrays or solder joints that are not on the surface. This is important for boards with many hidden parts.
But X-ray inspection is slower and costs more than AOI. You need special machines and training to use it. AOI works faster and is better for checking lots of boards. AOI looks for problems you can see, like missing parts or bad solder. X-ray inspection finds problems inside the board, like hidden solder issues or problems in the layers.
Here are some things to remember about X-ray inspection and AOI:
· X-ray inspection finds hidden problems that AOI cannot see, like voids under BGAs.
· AOI is good at finding problems you can see, like wrong parts or bad solder.
· X-ray inspection is slower and costs more to use.
· AOI is faster and cheaper, so it is better for most factories.
· AOI cannot look inside the board, but X-ray inspection can.
· Many factories use both AOI and X-ray inspection to get the best results.
Note: Use X-ray inspection when you need to find hidden problems, but use AOI for quick and reliable surface checks.
In-circuit testing, or ICT, checks if your board works right. ICT uses probes to touch the board and send signals through the circuits. This test finds problems like missing parts, short circuits, open circuits, and bad solder joints by measuring voltage and current.
AOI and ICT do different jobs. AOI uses cameras to look for problems you can see, like misplaced parts or bad solder. AOI does not turn on the board or check if it works. ICT tests the board’s electrical function. It can find problems that AOI cannot, like a resistor with the wrong value or a broken part inside a chip.
You get the best results when you use both AOI and ICT. AOI finds surface problems early, while ICT checks if the board works before you ship it. AOI helps you fix problems before you finish building the board. ICT makes sure the board works as it should.
Callout: AOI checks how the board looks, and ICT checks how it works. Using both helps you make the best boards.
Automatic optical inspection is a great way to check printed circuit boards. AOI gives you many benefits that help you make better products and save money.
· AOI checks boards quickly and gives steady results. It can look at hundreds of boards every hour. This speed helps you keep up with big orders and finish on time.
· AOI finds problems that people might not see. It works well on boards with lots of small parts. People can miss tiny mistakes, but AOI uses cameras and smart programs to catch them.
· AOI finds most surface problems. Most systems spot over 95% of these defects. You can catch missing parts, solder bridges, and crooked pieces before boards leave your factory.
· AOI cuts down on mistakes from people. People get tired or lose focus, but AOI always checks the same way. This makes your quality checks more trustworthy.
· AOI saves you money over time. It may cost more at first, but you need fewer workers for testing. You also spend less fixing mistakes later.
· AOI works at different steps in the SMT process. You can use it to check solder paste, before heating, and after heating. This means you can find problems early and often.
· AOI software is simple to use. Many machines have easy menus and clear steps. You can teach new workers fast, so they spend more time testing.
· AOI costs less than some other tools, like X-ray inspection. X-ray machines cost more to buy and use. AOI gives you good results without costing too much.
· AOI works with many board sizes and shapes. The system can change to fit your needs, so it is good for many kinds of electronics.
Tip: AOI gives you detailed reports to help you improve your process. You can see where problems happen most and make changes to fix them.
Using AOI makes your testing faster, more correct, and more steady. You also spend less money and make better products. AOI gives you what you need to do well in electronics manufacturing today.
When you begin learning about AOI in PCB manufacturing, you will see many new words. Knowing these important words helps you understand how AOI works and why it is needed.
· AOI (Automated Optical Inspection): This is a way to use cameras and lights to check your printed circuit boards for problems. AOI finds things like missing parts, wrong parts, or bad solder joints.
· Defects Detected: AOI can find many problems. These include scratches, stains, open circuits, short circuits, too much or too little solder, missing or wrong components, and polarity errors.
· Golden Board Method: You use a perfect board as a guide. The AOI system checks every new board against this golden board to find differences.
· Algorithm-Based Programming: You set up the AOI machine with data from your product. The system uses this information to know what to look for during inspection.
· Template Matching: The AOI system checks your board by comparing it to a saved image or template of a good board.
· Pattern Matching: The system looks for patterns in the pictures to find problems. It can spot things that do not match the right pattern.
· Positional Accuracy: This means how well the AOI system can find small moves or shifts in parts on your board. High accuracy is important for tiny parts.
· Programmable Lighting: AOI machines use special lights that you can change. This helps the cameras see problems better, even on boards with different colors or shapes.

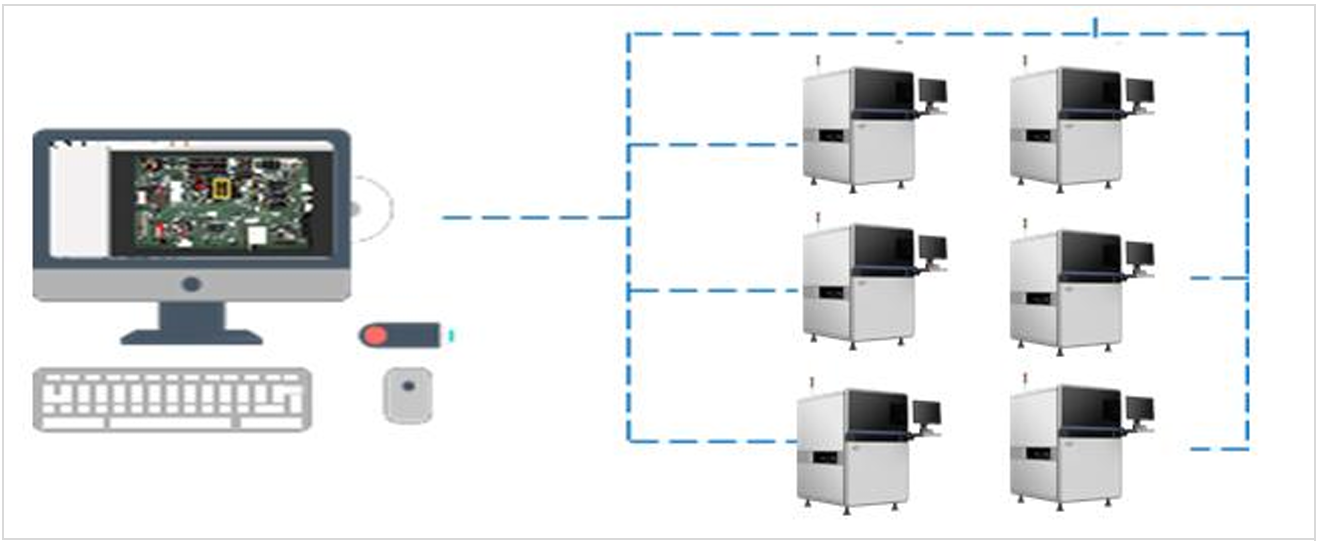

· Network Capable Software: The AOI system can save and share inspection data. You can look at reports and keep track of problems over time.
· Multiple Inspection Objects: AOI checks both empty boards and boards with parts on them. It looks for many types of problems, from surface scratches to missing parts.
· Flexibility: You can use AOI at different steps when making your boards. This lets you fix problems right away and change your process if you need to.
Tip: AOI is very important for today’s PCB manufacturing. Manual inspection cannot keep up with the speed and complexity of modern boards. AOI helps you find problems early, save money, and make better products.
By learning these words, you will feel more sure when you use AOI systems. You will also understand reports and talk with your team about inspection results.
Starting with AOI in PCB manufacturing can feel overwhelming, but you can make the process easier by following some proven tips. These steps help you get the most from your AOI system and improve your board quality.
1. Set Clear Inspection Criteria
You should define what counts as a defect before you begin. Use industry standards like IPC-A-610 and listen to your customers’ needs. Clear rules help your AOI system find the right problems every time.
2. Use Proper Lighting and Magnification
Good lighting helps your AOI system see every detail. If you do any manual checks, use magnifiers and bright lights. This makes it easier to spot small issues.
3. Leverage AOI for Fast, Consistent Checks
AOI systems work quickly and do not get tired. Use them to check every board for missing parts, bad solder, or wrong placement. You get the same results every time.
4. Calibrate and Maintain Equipment Regularly
AOI machines need regular care. Clean the cameras and check the lights often. Calibration keeps your system accurate and reliable.
5. Fine-Tune Inspection Settings
Adjust your AOI system’s settings to match your boards. Change the sensitivity and defect limits as needed. This helps you catch real problems and avoid false alarms.
6. Use Multiple Angles and Lighting Conditions
Try different camera angles and light colors. This helps your AOI system find hidden defects and reduces mistakes.
7. Update Defect Libraries Often
Add new examples of defects to your system’s library. This helps the AOI machine learn and spot new problems faster.
8. Train Your Operators
Teach your team how to use the AOI system. Show them how to read reports and fix common issues. Ongoing training keeps everyone sharp.
9. Inspect at Different Stages
Do not wait until the end to check your boards. Use AOI at several points: before assembly, during production, and after finishing. Early checks catch problems sooner.
10. Keep Good Records
Write down your inspection rules, test results, and any problems you find. Good records help you track trends and improve your process.
11. Always Look for Ways to Improve
Study your defect data and review your inspection steps. Stay up to date with new AOI technology, like AI and 3D systems. Improvement keeps your boards top quality.
Tip: Start simple and build your skills over time. Each step you take with AOI makes your boards better and your process stronger.
You play a key role in making sure your boards meet high quality standards. AOI helps you spot problems early and keeps your production line running smoothly. You save money and improve quality with fast, accurate checks. Try advanced AOI solutions like the I.C.T- AI-5146 to boost your results. Start learning more about AOI systems or talk to an expert to bring better quality to your PCB production.
AOI stands for Automated Optical Inspection. You use AOI to check printed circuit boards for defects using cameras and smart software.
AOI works faster and finds more problems than people. You get more accurate results and reduce mistakes. AOI helps you keep your boards high quality.
AOI finds most surface defects, like missing parts or bad solder. You need other tools, like X-ray, to find hidden problems inside the board.
You should calibrate your AOI machine regularly. Most factories do this once a week or after any major change in production.
2D AOI checks the surface of your board. 3D AOI measures height and volume, so you can find more types of defects, like lifted leads or extra solder.
Yes! You can use AOI after solder paste printing, after placing parts, and after soldering. This helps you catch problems early.
Most AOI machines, like the I.C.T- AI-5146, support many board sizes. You can inspect small and large boards by adjusting the settings.
AOI finds defects early. You fix problems before boards leave your factory. This reduces waste, saves time, and lowers repair costs.
Tip: If you have more questions about AOI, ask your equipment provider or check your machine’s manual.
