You have many problems in surface mount technology. SMT defects are a big issue. AOI inspection equipment helps you find soldering problems. These include not enough solder, solder bridges, and open joints. AOI machines also find smt component mistakes. These mistakes are missing, wrong, extra, or crooked parts. You use aoi to check for surface defects. It also checks for polarity or orientation problems in smt. Automated optical inspection helps with quality checks in every smt step. AOI machines help smt yield by finding defects early. You trust an aoi inspection equipment system for smt quality. The inspection system and optical inspection system make your smt production better with aoi machines.
· AOI machines can spot SMT defects fast. They find things like solder bridges, missing parts, and wrong placement. This helps make the boards better.
· You can stop many defects before inspection. Control solder paste printing, part placement, and reflow settings.
· Keep AOI equipment clean and check it often. This makes sure inspections are right and fewer defects are missed.
· Change AOI sensitivity to get fewer false alarms. This helps workers focus on real problems and saves time.
· Use AOI after reflow to find hidden defects early. This stops bad boards from going to customers.

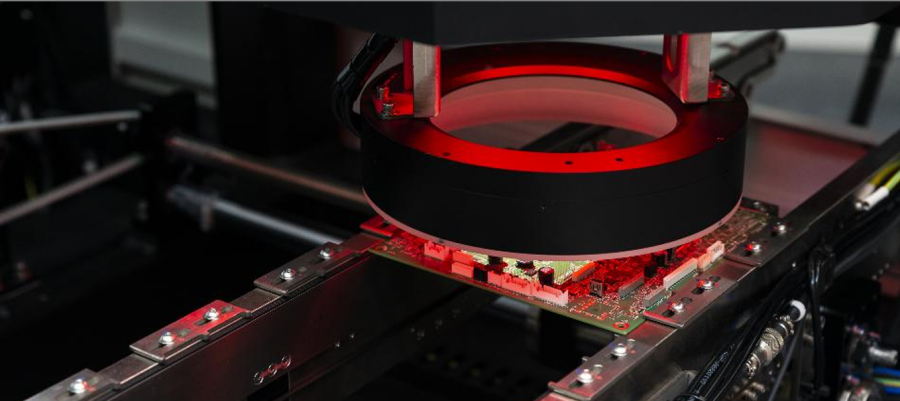

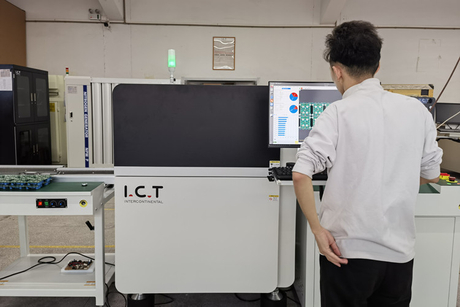

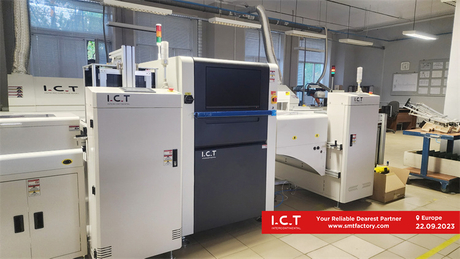

Automated optical inspection is very important in surface mount technology. You use aoi machines to find problems early in the smt process. AOI inspection equipment has cameras and smart software to spot defects. This helps you fix problems before they hurt quality or yield. Here are the main types of defects aoi machines can find.
Soldering defects are common in surface mount technology. You often see these during solder joint inspection. AOI machines help you find them fast. Here are the main soldering defects:
· Solder Bridging: This happens when solder joins two or more pads. Bridging can make short circuits. AOI inspection equipment finds bridging by checking spaces between leads and pads.
· Insufficient Solder Joints: This defect means there is not enough solder on a joint. It can make weak connections. AOI machines look at the amount and shape of the solder to find this.
· Non-Wetting: This means the solder does not stick to the pad or lead. You might see dull or rough spots. Automated optical inspection shows these by checking for good solder coverage.
· Tombstoning: This happens when one end of a part lifts off the pad during reflow. AOI machines find tombstoning by looking at the height and place of each part.
· Solder Balling: Small balls of solder show up near joints. These can cause bridging or other problems. AOI systems find solder balls by looking around each pad.
Tip: You can lower soldering defects by controlling solder paste printing and reflow settings.
Component placement defects can hurt smt quality and cause problems. AOI machines use clear cameras to find these defects. You can see these problems right after parts are placed.
· Missing Components: Sometimes, a part is not put on the board. AOI inspection equipment checks every spot to make sure all parts are there.
· Misplacement: This means a part is not in the right place. Even a small move can cause trouble. AOI machines check real positions against the design.
· Wrong Component: You might see a part with the wrong value or type. Automated optical inspection reads labels and checks the bill of materials.
· Extra Components: Sometimes, extra parts get put on the board. AOI systems find these by matching the layout to the design.
· Skewed or Rotated Parts: Parts may be crooked or turned. AOI machines check angles and lines to find these problems.
Note: Good placement helps you stop bridging and other later defects.
Surface defects and size problems can hurt how things work and look. AOI machines are great at finding these in smt.
· Surface Defects: You might see scratches, stains, or things that should not be on the board. AOI inspection equipment looks for anything odd on the surface.
· Pad Damage: Pads that are broken or lifted can make open circuits. AOI systems check pad shape and height.
· Solder Splashes: Small drops of solder can land on the board. These can cause bridging or short circuits. AOI machines find these by looking for shiny spots outside the solder joints.
· Dimensional Errors: Wrong spacing or pad size can cause problems when building. AOI machines measure distances and check them with the design.
Surface Defect Type | Example | AOI Detection Method |
Scratch | Mark on PCB | Visual scan for lines |
Solder Splash | Tiny solder drop | Reflectivity check |
Pad Damage | Lifted pad | Height measurement |
Surface defects can hurt both how well things work and how they look. You should fix them early.
Polarity and orientation issues can cause big problems in surface mount technology. AOI machines help you avoid these mistakes.
· Polarity Errors: Some parts, like diodes and capacitors, must face a certain way. AOI inspection equipment checks for right markings and direction.
· Incorrect Orientation: If a part is turned or flipped, it might not work. AOI machines check the real direction against the design.
· Tombstoning: This defect also fits here because it changes the part’s place and direction. AOI systems find tombstoning by checking for lifted ends.
· Bridging Due to Orientation: Wrong direction can make leads touch, causing bridging. AOI machines find these by checking lead positions.
Automated finding of polarity and orientation issues helps you keep smt quality high.
You can use aoi inspection equipment to find and study defects at every step. AOI machines give you quick, trusted checks and help you catch problems before they reach customers. By using aoi, you make your system better and raise the quality of your surface mount technology process.
You must control the process during solder paste printing. If the stencil is not lined up, you can get defects. Using the wrong paste thickness can also cause problems. These problems include bridging, not enough solder, or open joints. AOI machines help you find these problems early. You should keep the stencil clean and use the right pressure. Check the paste often with AOI to keep quality high. A steady room and watching humidity help lower defects.
Tip: Always check the amount and shape of solder paste with AOI machines to stop defects.
Placing parts in the right spot stops many problems. If you put parts in the wrong place, you can get tombstoning or bridging. You might also miss parts. AOI machines check if parts are in the right place before reflow. You should often check pick-and-place machines. Use AOI after placing parts to make sure they match the design. Good control here makes your system work better.
· Use fiducial marks to help place parts right.
· Teach workers to handle parts with care.
If you do not control heat during reflow, you can get defects. Too much heat can make solder balls or hurt pads. Not enough heat can cause non-wetting or cold joints. AOI machines check solder joints after reflow and help you find these problems. Set the right heat for each board type. Check and change settings often to keep quality high and stop defects.
Defect Type | Cause | Preventive Action |
Solder Balling | Too much heat | Change reflow settings |
Non-Wetting | Not enough heat | Watch oven temperature |
You need to keep your PCB and AOI machines clean and working well. Dirty boards or old AOI cameras can miss problems. Clean and check them often to find more defects. Plan to check and fix AOI machines on a schedule. This keeps your checks strong and helps you get good quality. Taking care of AOI machines also helps them last longer and keeps your process under control.
Note: Keeping AOI machines in good shape is important for finding and stopping defects.
You must set up automated optical inspection systems carefully. Good programming helps aoi machines find defects quickly and well. You need to show the system what a good board looks like. Use clear pictures and the right data for each part. Calibrate aoi machines often so results stay the same. Check the lights and camera focus before every shift. This helps you catch problems early. If you change your board design, update the aoi program too. This keeps your inspection matching your production.
Tip: Calibrating aoi machines often helps find more defects and keeps your quality high.
False alarms slow down your work and waste time. You want aoi machines to find real problems, not mistakes. Change the sensitivity of automated optical inspection systems for your board type. Use test runs to set the best inspection limits. Look at flagged defects with your team to see what causes false alarms. You can adjust the aoi program to ignore harmless marks or shadows. This helps you focus on real problems and makes your inspection better.
Problem | Solution |
Too many false alarms | Change inspection thresholds |
Missed defects | Make aoi programming better |

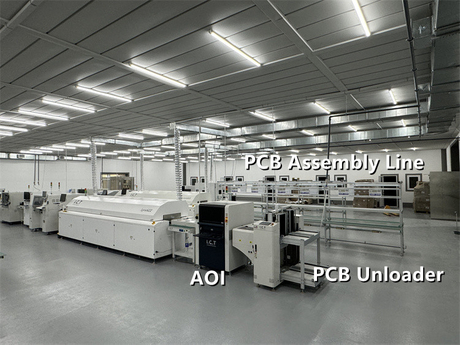

You should always use automated optical inspection after reflow. This lets aoi machines find defects from soldering. Post-reflow inspection checks for solder bridges, tombstoning, and other hidden problems. You can find issues before boards move to the next step. This keeps your quality high and stops bad boards from reaching customers. Use automated optical inspection with manual checks for the best results. AOI machines are fast, but some problems need a human eye.
Note: Automated optical inspection works best when used at important steps in your process.
You must remember that aoi machines have limits. Some problems may not be found. Use other inspection tools, like X-ray or manual checks, to cover all risks. This gives you the best quality and keeps your production strong.
You use aoi machines to find defects in every SMT step. These machines help you see soldering problems like solder bridging and tombstoning. They also find not enough solder and non-wetting. Automated checks and looking at solder joints often make your work better. You should use aoi machines to check for surface defects and misplaced parts. Keep your inspection system and aoi machines working well for good quality.
Stop problems before they start and watch your process. Using aoi machines often helps you get better boards with fewer mistakes.
AOI machines can find many kinds of problems. They spot soldering defects like solder bridging and tombstoning. They also find not enough solder and non-wetting. AOI machines help you see if parts are in the wrong place. They can find surface defects and polarity errors too. Using AOI makes your quality checks better and helps your process.
AOI machines check solder joints very quickly. They help you see solder bridging and not enough solder early. You can also find non-wetting before it causes trouble. AOI lets you fix problems before boards go to customers. This helps you study defects and keep your inspection system working well.
You must keep AOI machines clean and set right. Regular care helps AOI machines find defects the right way. Clean and checked AOI machines do not miss surface defects or misplaced parts. This keeps your quality checks strong and your inspection system working well.
Yes, AOI machines can help lower false alarms. You can change AOI settings for each board type. This helps you see real soldering and surface defects. You save time and make your process better by finding true problems.
AOI machines help you stop problems before they grow. They find defects fast and let you study them right away. AOI helps you control soldering, placement, and surface defects. Good process control means better quality and fewer problems in production.
