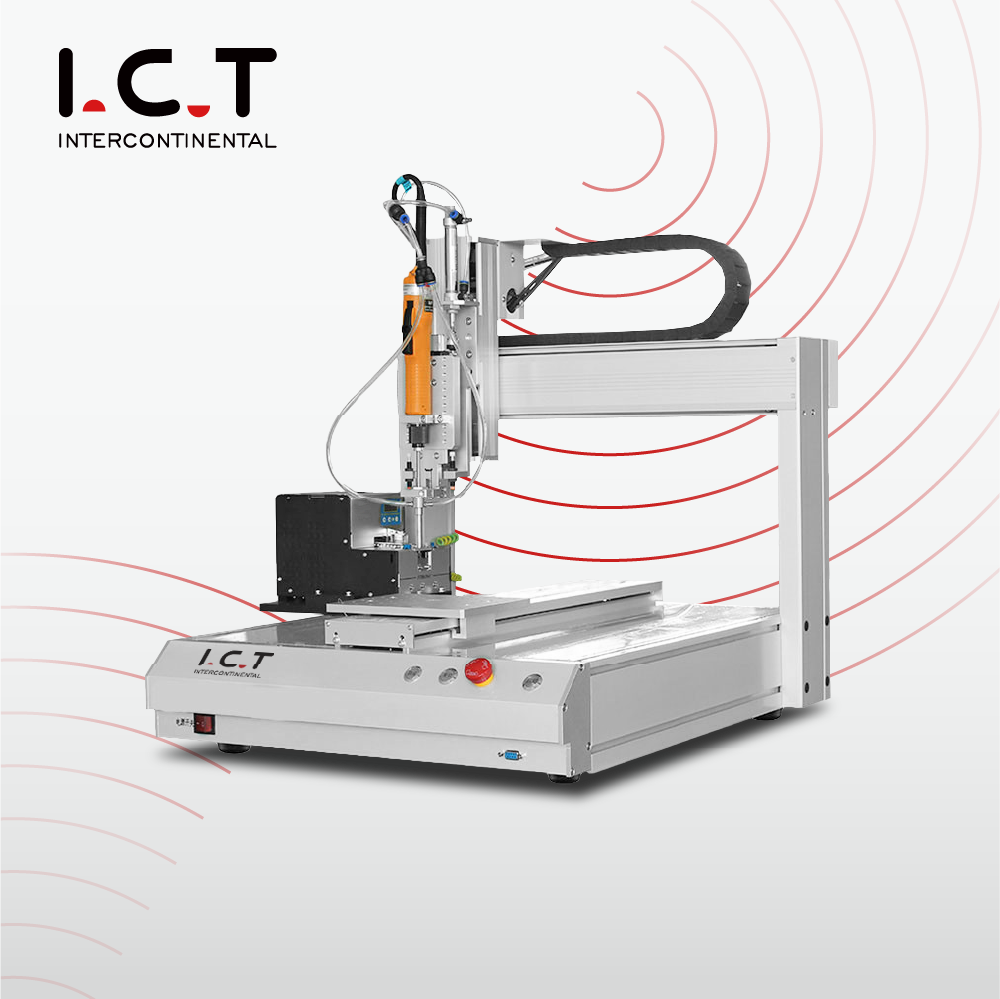

| Desktop Screw Locking for Electronics Products

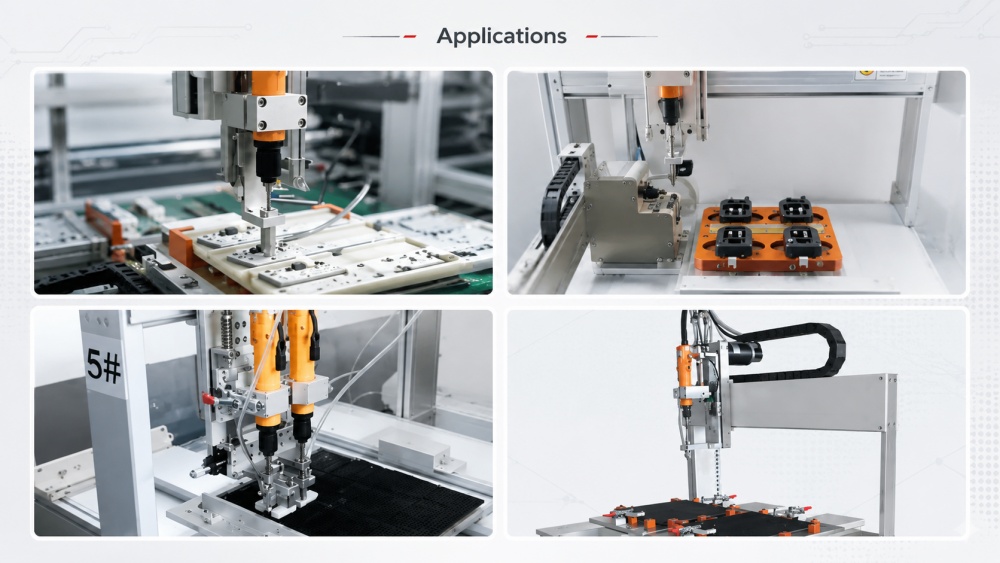

The Desktop fastening automatic fixing screw robot is designed for electronic products that need repeated screw locking in stable positions. The machine includes two main parts: an electric screwdriver and an automatic screw feeder. These two parts work together to send screws and finish fastening without repeated manual picking. When one screw is locked and the screwdriver moves up, the next screw is prepared automatically for the next point. This makes the machine useful for PCBA parts, small housings, electronic modules, control boards, and plastic assemblies with the same screw type and many locking points.
| Feature of Automatic Screwing Robot
Easy Programming
A key value of the Desktop fastening automatic fixing screw robot is its automatic screw feeding process. In manual assembly, workers need to pick screws, place them on the bit, align the screw hole, and then tighten. This takes time and may cause unstable rhythm during long shifts. With automatic feeding, the screw is supplied to the screwdriver continuously after each locking action. The operator only needs to load and unload the fixture in most cases. For a Desktop fastening automatic fixing screw robot Locking Driving Machine, this structure helps reduce hand movement and supports a cleaner assembly station.
The locking process needs stable movement, not just fast speed. This Desktop fastening screw robot uses controlled X, Y, and Z-axis motion to move the screwdriver to each programmed point. With repeat accuracy up to ±0.02 mm, the machine can keep screw positions more consistent during batch production. It can work with screwdriver options such as SD, KILEWS, or HIOS according to the project requirement. For products with repeated screw holes, the Locking Driving Machine helps reduce human error and keeps the fastening process closer to the set path, which is important for small electronic assemblies.

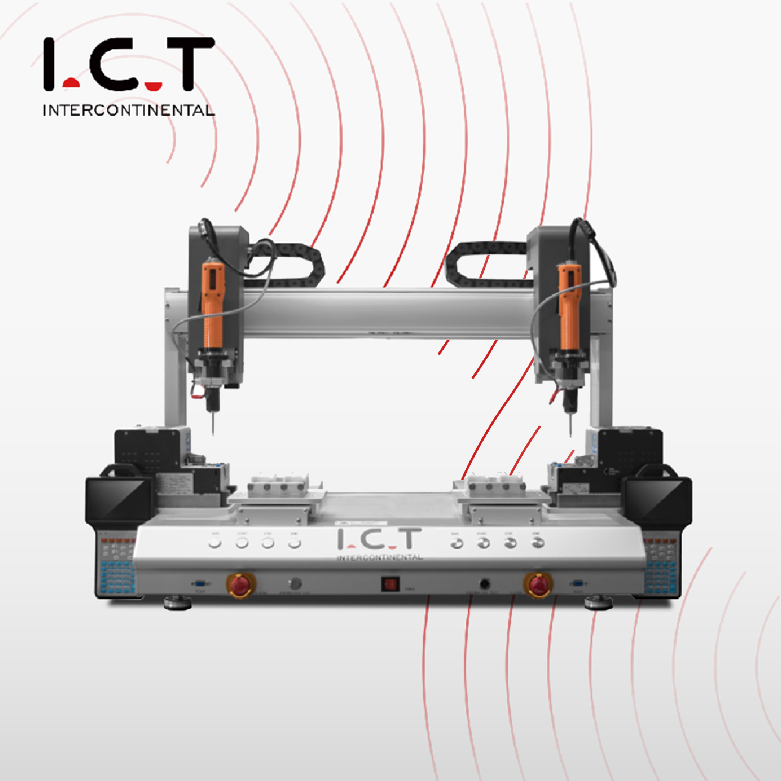

Different products need different fixture designs. Some products use one working platform, while others need two platforms to support faster loading and unloading. The Desktop fastening automatic fixing screw robot can be selected from different models, such as SCR300, SCR540, and SCR640, based on product size, head quantity, and platform needs. If the Customer’s product has more screw points or larger dimensions, I.C.T can review the sample and suggest a suitable structure. This makes the automatic locking screw robot more practical for real factory use, because the machine is matched to the assembly process instead of a fixed standard only.
The Desktop fastening automatic fixing screw robot supports touch panel control and handheld programming. Operators can set screw positions through traction teaching, then save the program for later use. The system can store up to 999 programs, which is helpful when a factory produces different models in small or medium batches. The machine also supports alarm functions, such as stripped screw alarm, so abnormal fastening can be found faster. For teams using an automatic fixing screw robot in daily production, simple programming and clear alarms reduce training pressure and make changeover easier.
| Automatic Screwing Robot Specification
| Item | I.C.T-SCR300 | I.C.T-SCR540 | I.C.T-SCR640 |
|---|---|---|---|
| Max. Range Size | 300 × 300 mm, Z: 80 mm | 500 × 400 mm, Z: 80 mm | 600 × 400 mm, Z: 80 mm |
| Head Number | 1 | 1 | 2 |
| Platform Number | 1 | 2 | 2 |
| Max Move Speed | X/Y axis: 600 mm/s, Z axis: 400 mm/s | X/Y axis: 600 mm/s, Z axis: 400 mm/s | X/Y axis: 600 mm/s, Z axis: 400 mm/s |
| Screwdriver | SD / KILEWS / HIOS | SD / KILEWS / HIOS | SD / KILEWS / HIOS |
| Screw Feeding | Pick and Place, Magnetic | Pick and Place, Magnetic | Pick and Place, Magnetic |
| Alarm System | Stripped Alarm | Stripped Alarm | Stripped Alarm |
| Repeat Accuracy | ±0.02 mm | ±0.02 mm | ±0.02 mm |
| Memory | 999 Programs | 999 Programs | 999 Programs |
| Programming | Traction Teaching Program | Traction Teaching Program | Traction Teaching Program |
| Driving Mode | Closed-loop Motor | Closed-loop Motor | Closed-loop Motor |
| Control Mode | Demonstrator + Touch Panel | Demonstrator + Touch Panel | Demonstrator + Touch Panel |
| Air Pressure | 4.5–6 kg/cm² | 4.5–6 kg/cm² | 4.5–6 kg/cm² |
| Power Supply | AC 220 ±10%, 50/60 Hz; AC 110V optional | AC 220 ±10%, 50/60 Hz; AC 110V optional | AC 220 ±10%, 50/60 Hz; AC 110V optional |
| Dimension | 670 × 540 × 690 mm | 670 × 590 × 690 mm | 1010 × 730 × 690 mm |
| Weight | Approx. 70 kg | Approx. 90 kg | Approx. 130 kg |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| DIP Line Equipment List
The related products for this page are based on the DIP production line. These products can include insertion lines, automatic insertion machines, selective soldering machines, wave soldering machines, DIP AOI, soldering robots, and PCB handling equipment. Screw locking is usually part of the back-end assembly process after soldering, testing, and board handling. A Fixing screw robot can help connect the PCB assembly process with product housing assembly or final module assembly. I.C.T can support Customers with equipment selection, line layout, process order, and factory planning, so the screw locking station fits into a wider production flow instead of standing alone.
| Product Name | Purpose in DIP Line |
|---|---|
| Automatic Insert Machine | Automatically places components onto PCBs with precision for DIP production line. |
Melts solder to form solid joints on PCBs during THT plug-in process. | |
Applies solder selectively to specific areas for accurate THT assembly | |
Inspects solder joints and placement defects on DIP assembled PCB. | |
Board input machine and board output machine | |
| DIP Peripheral | Peripheral products of DIP production line |
