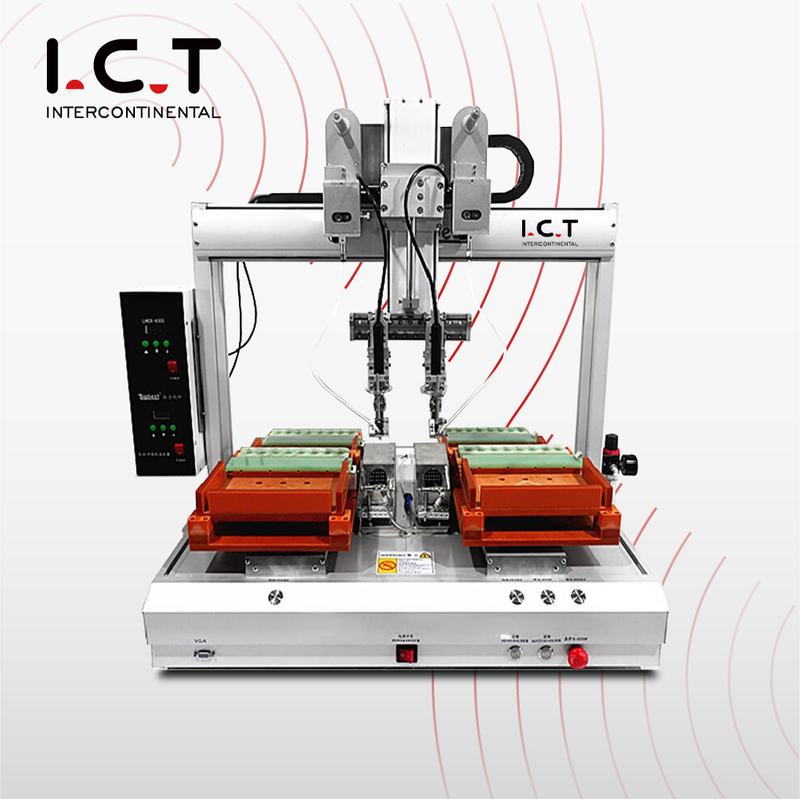

| Two Heads Double Solder Soldering Robot Overview
The two heads double solder soldering robot is designed for high-speed, precise soldering of PCBs and small electronic kits. Dual soldering heads, automated wire feeding, and fast induction heating ensure uniform and repeatable joints. Operators can program solder paths, adjust wire feed, and monitor quality with optional cameras. Compact enough for tabletop setups or integration into full SMT production lines, it improves production efficiency, reduces labor, and guarantees consistent output across multiple PCB assemblies.
| Feature of Automatic Soldering Robot
Easy Programming
Up to 200 solder points per board can be programmed in under 5 minutes. Paths, dwell times, and solder feed rates are adjustable. Ten board programs can be stored for fast switching between different PCB types without production delays.
Stable Heat Reliable Soldering
High-frequency induction heating reaches 500°C in 3 seconds and maintains ±1°C stability. Silver coil elements last over 2,000 hours, supporting 100+ joints per cycle, ensuring consistent soldering for high-density PCBs and electronic kits.
From Manual to Standardized
Teaching programming converts manual soldering into automated, repeatable sequences. Coordinates are stored digitally with ±0.1mm accuracy, reducing human error by over 90%. Batch-to-batch consistency is maintained for all PCB and electronic kit assemblies.
Precise Solder Feed Perfect Joints
Solder wire (0.6–1.2mm) feeds at 1–50mm/s with ±0.02mm precision. Flux residue and burst tin are minimized. Every joint passes inspection, ensuring high yield across PCBs and wire-to-wire connections.
Clean Tip Consistent Quality
Automated tip cleaning occurs every 5 minutes or after 50 joints. Air and steel wire remove oxidation and residue, extending tip life by 50% and maintaining uniform soldering quality during high-volume production.
| Automatic Soldering Robot Specification
| Specification | I.C.T-SR300 | I.C.T-SR530 | I.C.T-SR250D | I.C.T-SR250DD |
|---|---|---|---|---|
| Platform Number | 1 | 1 | 2 | 2 |
| Head Number | 1 | 2 | 1 | 2 |
| Heating Power | 150w | 300w | 150w | 300w |
| Max. PCB Size | 300×300mm | 500×300mm | 250×250mm for each Platform | 250×250mm for each Platform |
| Max Move Speed | X,Y axis: 600-800mm/s, Z axis: 400 mm/s, R axis: 300°/s | X,Y axis: 600-800mm/s, Z axis: 400 mm/s, R axis: 300°/s | X,Y axis: 600-800mm/s, Z axis: 400 mm/s, R axis: 300°/s | X,Y axis: 600-800mm/s, Z axis: 400 mm/s, R axis: 300°/s |
| Soldering Tip Clean | Steel wire and air pressure (Optional: Rotating Brush Clean) | Steel wire and air pressure (Optional: Rotating Brush Clean) | Steel wire and air pressure (Optional: Rotating Brush Clean) | Steel wire and air pressure (Optional: Rotating Brush Clean) |
| Solder Wire | 0.6~1.2mm solder wire | 0.6~1.2mm solder wire | 0.6~1.2mm solder wire | 0.6~1.2mm solder wire |
| Solder Feeding Speed | 1~50mm/s | 1~50mm/s | 1~50mm/s | 1~50mm/s |
| Repeated Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| Temperature Range | Room temperature–500°C | Room temperature–500°C | Room temperature–500°C | Room temperature–500°C |
| Temperature Accuracy | ±1°C | ±1°C | ±1°C | ±1°C |
| Driving Mode | Step Motor | Step Motor | Step Motor | Step Motor |
| Control Mode | Teach Pendant | Teach Pendant | Teach Pendant | Teach Pendant |
| Air Pressure | 4.5~6Kg/cm² | 4.5~6Kg/cm² | 4.5~6Kg/cm² | 4.5~6Kg/cm² |
| Power Supply | AC220V±10%, 50/60HZ | AC220V±10%, 50/60HZ | AC220V±10%, 50/60HZ | AC220V±10%, 50/60HZ |
| Dimension | 750×650×880mm | 780×660×770mm | 930×650×880mm | 1280×750×950mm |
| Weight | Approx 60kg | Approx 70kg | Approx 80kg | Approx 85kg |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| Complete SMT Production Line Machine List
The SMT production line includes PCB loaders and unloaders, printing machines, pick-and-place systems, SPI, AOI, reflow ovens, conveyor stations, and depaneling equipment. All machines are synchronized to ensure smooth workflow, consistent quality, and high efficiency. I.C.T engineers manage installation, calibration, and integration to ensure the line operates as a cohesive production system, maximizing throughput while minimizing manual intervention.
| Customer Success Video
In April 2026, I.C.T engineers installed and trained operators on a full SMT line in Portugal for automotive electronics, including car lighting and control modules. Customers praised smooth setup, efficient workflow, and clear guidance. The two heads double soldering robot integrated into the line delivered precise solder joints for both PCBs and wire-to-wire connections. Feedback highlighted equipment reliability and professional support, enabling Customers to achieve high-quality production quickly.
| Professional Training & Support
I.C.T provides comprehensive support for full SMT production lines. Engineers supervise installation, program calibration, and process alignment. Customers receive hands-on training covering programming, maintenance, and troubleshooting. Remote support and rapid-response channels ensure operational issues are resolved promptly, allowing Customers to operate the line independently and maintain continuous high-quality soldering for PCBs and electronic kits.
| Customer Praise
Customers consistently highlight the integrated SMT line for efficiency and reliability. Engineers provide clear guidance during installation and training. Secure packaging ensures safe delivery. Rapid technical support resolves issues promptly. The full line, including dual-head soldering robots, maintains stable workflow and consistent output, earning strong trust and satisfaction from Customers worldwide.
| Our Certification
All equipment on I.C.T SMT lines, including two heads double solder soldering robots, holds CE, RoHS, and ISO9001 certifications. Patents cover critical innovations across the line. Certifications ensure Customers receive safe, reliable, and compliant solutions for PCB production, guaranteeing high-quality output across all integrated processes.
| About Us and Factory
I.C.T is a global electronics manufacturing solution provider with over 25 years of experience. Serving 1,600+ Customers in 72 countries, we deliver complete SMT, DIP, coating, robotics, assembly, and PCBA solutions. Our team of 20 engineers provides installation, training, process optimization, and full lifecycle support. With multiple factories and branches worldwide, strict quality control, and certified equipment across all SMT lines, I.C.T ensures reliable, efficient, and consistent production solutions for Customers globally.
