The SMT Screen Printer improves efficiency in PCB assembly with fast, precise printing.
a. Ensures high repeat accuracy for consistent prints.
b. Supports glue printing to boost production flexibility.
c. Adjusts squeegee pressure automatically for optimal results.
d. Cleans stencils with dry, wet, and vacuum modes.
e. Offers quick PCB positioning with multi-functional system.
f. Provides expert installation and training by I.C.T engineers.
g. Delivers real-time pressure feedback for better control.
I.C.T-5151
I.C.T
| Quantity: | |
|---|---|
| I.C.T-5151 SMT Screen Printer
The I.C.T-5151 SMT Screen Printer is a top choice for efficient SMT printing, handling PCB sizes from 50x50mm to 510x510mm and stencil frames up to 737x737mm. With a cycle time under 7 seconds, it offers fast production and high repeatability, ideal for electronics like LEDs and LCD TVs. Features include automatic PCB calibration, adjustable squeegee pressure, and multi-method stencil separation for clean, accurate prints. The machine integrates easily with SMEMA standards and includes options like 2D inspection and vacuum systems. I.C.T supports customers with full setup and training, ensuring smooth operation. This SMT Screen Printer enhances productivity and meets diverse needs in modern manufacturing.
| Feature
The I.C.T-5151 SMT Screen Printer boasts a repeat positioning accuracy of ±0.01mm and printing accuracy of ±0.0125mm, ensuring consistent results every time. This precision is vital for high-quality PCB assembly, especially for complex electronics like LEDs and vehicle components. The machine uses advanced motor controls and stable slide rails to maintain accuracy during operation. This feature reduces errors, saving time and costs for manufacturers. Whether for small or large batches, the printer delivers reliable performance, making it a trusted tool in SMT lines.
This SMT Screen Printer features an automatic squeegee pressure adjustment system for perfect prints. The independently developed suspended print head balances pressure in real-time, adapting to different PCB types and solder paste needs. This ensures even application and prevents damage to delicate boards. The system’s feedback mechanism allows quick adjustments, improving efficiency. Ideal for production lines handling diverse products like LCD TVs and STBs, this feature enhances output quality and reduces manual effort.
The I.C.T-5151 offers a versatile cleaning system with dry, wet, and vacuum modes for stencils. Separate cleaning parts and a strong exhaust motor ensure effective removal of residue, maintaining print quality. The unique spray system applies cleaning solution evenly from top to bottom, while software controls alcohol and paper use to save materials. This feature supports continuous operation, crucial for high-volume production of items like family cinema electronics. It keeps the printer in top condition with minimal downtime.
| Specification
| Model | I.C.T-4034 | I.C.T5134 | I.C.T-5151 |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 737*737 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*340 | 50*50 ~ 510*510 |
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right | ||
| Support System | Magnetic Pin/Up-down table adjusted/support block | ||
| Clamping System | Side clamping(vacuum nozzle,Automation retractable Z pressure is option) | ||
| Printer Head | Two independent motorised printhead | ||
| Squeegee Type | Stainless steel(standard),plastic | ||
| Cleaning System | Dry, Wet, Vacuum | ||
| Inspection | 2D Inspection(Standard) | ||
| Power Supply | AC:220±10%,50/60HZ,3Kw | ||
| Control Method | PC Control | ||
| Dimension(mm) | 1220*1355*1500 | 1220*1355*1500 | 1220*1550*1500 |
| Model | I.C.T-6534 | I.C.T-6561 | I.C.T-9060 |
| Frame Size(mm) | 650*400 ~ 850*750 | 650*400 ~ 850*850 | 737*400 ~ 1100*900 |
| PCB Size(mm) | 50*50 ~ 650*340 | 80*50 ~ 650*610 | 80*50 ~ 900*600 |
| Dimension(mm) | 1330*1370*1500 | 1330*15450*1500 | 1580*1545*1500 |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List

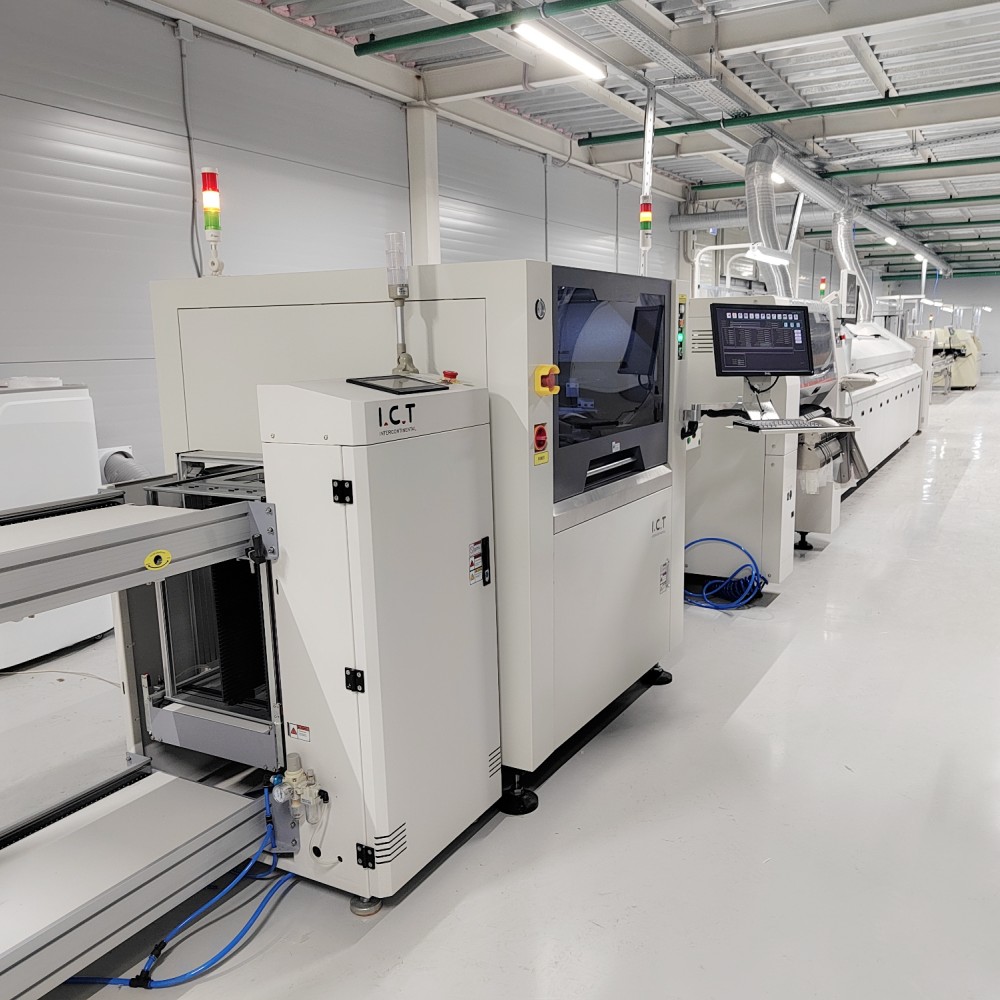

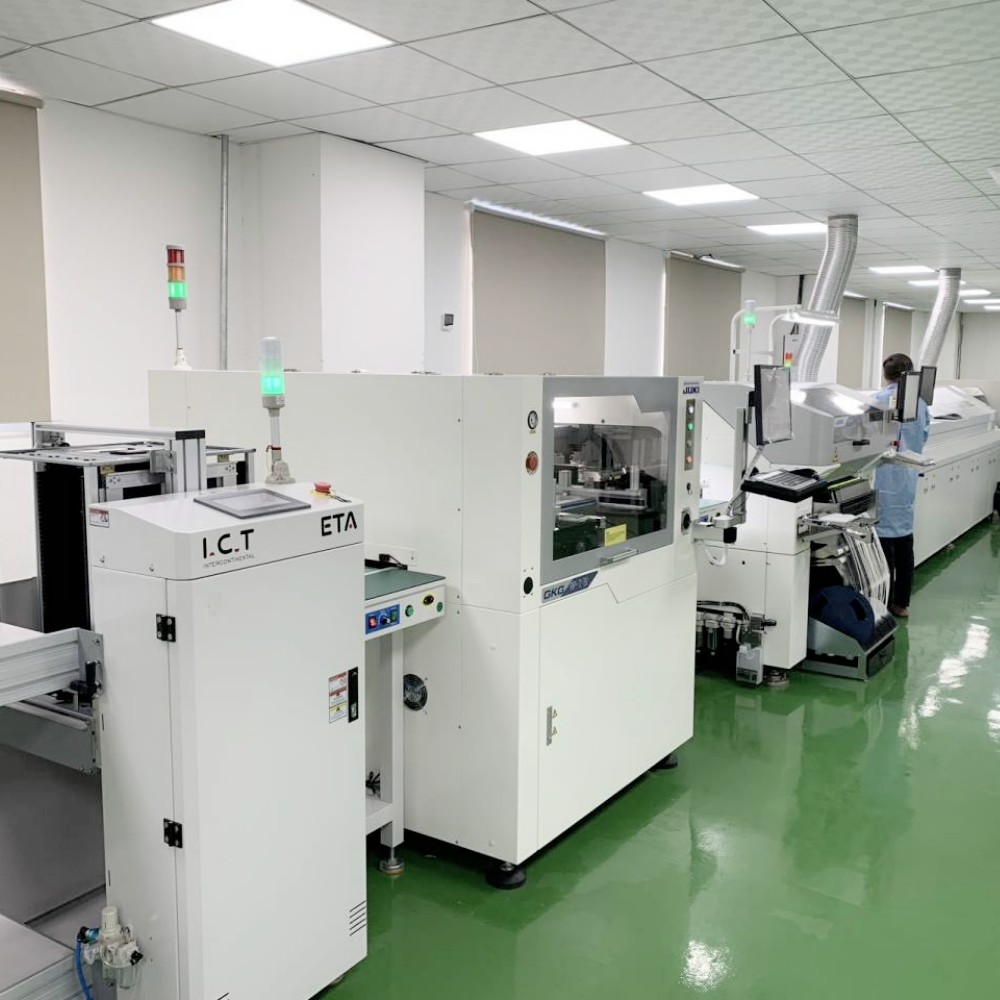

Our High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Product Name | Purpose in SMT Line |
|---|---|
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| AOI Machine | Inspects solder joints and placement defects. |
| SPI Machine | Checks solder paste height and quality. |
| Traceability Equipment | Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer |
| Customer Success Video
In 2025, I.C.T engineers traveled to a client’s factory, a leading manufacturer of home LED lighting, to provide installation and training services. The client needed a full automatic SMT line with 13 machines spanning 29 meters, but their space was limited to 21 meters long and 5 meters wide. I.C.T designed a U-shaped layout, fitting the line into 16 meters long and 2.7 meters wide, meeting the client’s requirements. After two days of installation and debugging, followed by six days of equipment training and technical support, the project was successfully delivered. This solution showcased I.C.T’s ability to customize and optimize production lines, ensuring the client’s LED production ran smoothly with expert guidance.
| Service and Training Support
I.C.T provides comprehensive services and training to ensure your SMT Screen Printer operates at its best. Our expert team offers on-site installation, maintenance, and technical support tailored to your needs. We conduct detailed training sessions, teaching your staff to use and maintain the machine effectively, covering setup, operation, and troubleshooting. With over 25 years of experience, we optimize your production process and adapt to your specific goals. Our global network of 8 branch offices ensures fast response times and ongoing assistance. Trust I.C.T to keep your line running smoothly with professional care and continuous support.
| Customer Praise
Customers love our engineers’ expertise and dedication, praising their clear guidance during setup. They admire the SMT Screen Printer’s precision and reliability, calling it a game-changer for production. Our secure, well-packed shipping earns high marks for protecting equipment during transport. Clients also appreciate our quick responses to issues, solving problems fast to minimize downtime. This trust reflects I.C.T’s commitment to quality service and support.
| Certifications and Standards
I.C.T holds prestigious certifications including CE, RoHS, ISO9001, and multiple patents, ensuring top standards. These credentials reflect our commitment to safety, environmental care, and quality management in manufacturing. The CE mark guarantees compliance with European safety rules, while RoHS ensures eco-friendly production. ISO9001 certification highlights our strict quality control, and patents showcase our innovative designs. Trust I.C.T’s certified excellence for reliable SMT solutions.
| About I.C.T Company and Factory
I.C.T is a leading electronic equipment solution provider with in-house research, development, and production. Founded in 2012, we’ve grown rapidly, employing 89 staff across 12,000m², with 20 engineers and 8 branch offices globally. We serve over 1600 customers in 72 countries, offering tailored SMT solutions. Our factory features strict testing processes and a robust quality management system, ensuring every SMT Screen Printer meets high standards. With a $30 million registered fund, we continue to innovate and expand, delivering reliable products worldwide while maintaining excellent quality control.
