The Pick And Place SMD Machine delivers fast and accurate electronic assembly for modern factories.
a. High speed reaches up to 100,000 parts per hour.
b. Handles tiny components from 0201 size.
c. Supports up to 112 feeders for flexibility.
d. Compact size saves valuable space.
e. Advanced vision ensures precise placement.
f. I.C.T provides full line solutions.
g. Reliable service keeps production running.
RS-1XL
JUKI
| Quantity: | |
|---|---|

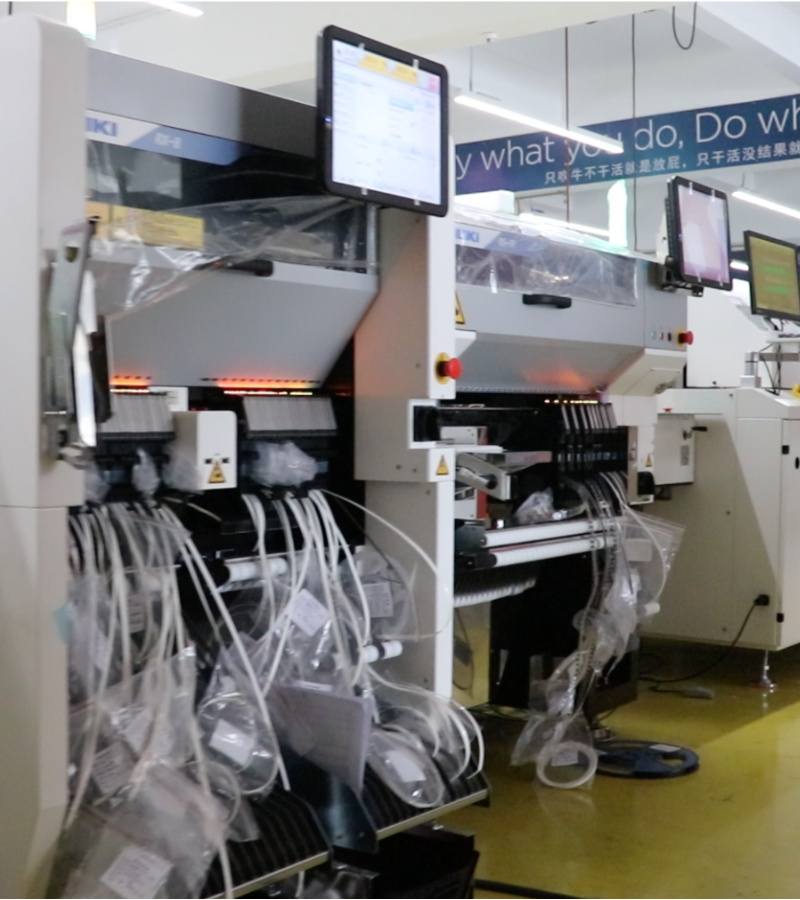

| Juki High-Speed Smart Placement Machine
The Pick And Place SMD Machine series from Juki offers smart, modular solutions for efficient SMT production. These machines place surface mount components quickly and accurately on PCBs. They support a wide range of parts, from small chips to larger ones, with high precision. The compact design fits well in any line, and smart features make setup easy. Users can mix models for best results in high-volume or mixed production. I.C.T supports the full process, from planning to ongoing help, ensuring reliable output for electronics like automotive parts.
| JUKI Pick and Place Machine Model Features
RS-1R / RS-1XL Series Features
The RS-1R and RS-1XL provide flexible, high-speed placement for various needs. The RS-1R reaches 47,000 CPH with accuracy of ±35µm. It handles boards up to 650×370mm single or larger in double clamping. The RS-1XL supports wider boards up to 560mm, ideal for bigger panels like LEDs. Both use smart vision and takumi head for dynamic placement. Up to 112 feeders allow quick changes. Compact size and modular design make them easy to combine in lines for mixed production.
RX-7R / RX-8 Series Features
The RX-7R and RX-8 focus on ultra-high speed in small footprints. The RX-7R delivers 75,000 CPH with parallel heads, handling tiny 03015 chips accurately. Its 998mm width saves space while supporting dual lanes. The RX-8 boosts to 100,000 CPH using innovative P20 head for top productivity per area. Advanced coaxial lighting improves vision for small parts. Both integrate smart monitoring and low-impact placement, perfect for high-volume small component assembly like mobile devices.
| Specification
| Parameter | RS-1R | RS-1XL | RX-7R | RX-8 |
|---|---|---|---|---|
| Placement Speed (Optimum CPH) | 47,000 | 42,000 | 75,000 | 100,000 |
| Maximum Board Size (mm) | 650 × 370 (single/double) | 650 × 560 | 510 × 450 (single lane) | 510 × 450 (approx.) |
| Minimum Board Size (mm) | 50 × 50 | 50 × 50 | 50 × 50 | 50 × 50 |
| Component Height (max mm) | 25 | 25 | 3-10.5 (head dependent) | 3 |
| Smallest Component | 0201 (metric) | 0201 (metric) | 03015 (metric) | 0201 (approx. 0.4×0.2mm) |
| Largest Component (mm) | 74 square / 150×50 | 74 square / 150×50 | 25 square | 5 square |
| Feeder Inputs (max) | 112 | 112 | 76 | 56 (approx.) |
| Placement Accuracy | ±35µm (Cpk ≥1) | ±35µm (Cpk ≥1) | ±40µm (approx.) | High precision (vision) |
| Machine Width (mm) | 1,500 (approx.) | 2,109 | 998 | 998 |
| Head Type | Takumi inline head | Takumi inline head | Parallel rotary heads (P16S) | P20 rotary head |
| SMT Line Equipment List
I.C.T make real High-Quality PCBA Production Line. Vacuum loader give board clean. Auto printer put paste right. Pick And Place SMD Machine set chip true. Many zone reflow solder hard. Good AOI find all bad. Line stay tight. Yield high. Cost low. No play. Make for hard work car health light. Board come ready real world. We back full.
| Product Name | Purpose in SMT Line |
|---|---|
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| AOI Machine | Inspects solder joints and placement defects. |
| SPI Machine | Checks solder paste height and quality. |
| Traceability Equipment | Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer |
| SMT Cleaning Machine | Used for cleaning PCBs, stencils, fixtures, nozzles, etc. |
| Laser PCB Routing Machine | Cut the PCBA into the final product |
| Customer Success Video
In the video, a satisfied customer shares their experience with our full SMT and DIP production lines for automotive power supply products. They highlight the smooth operation of the SMT line, starting from the loader, cleaner, printer, and Juki High-Speed Smart Placement Machine that places components quickly and accurately. It continues through conveyors, reflow oven, cooling buffer, AOI inspection, and unloaders. The DIP line includes wave soldering, flipper, ICT testing, and connections for reliable through-hole assembly. The customer praises how every machine works together seamlessly, with clear footage showing efficient board flow and precise equipment performance, resulting in high-quality output and reduced downtime.
| Service and Training Support
I.C.T offers full service and training for the Pick And Place SMD Machine. Our engineers handle installation and setup on site. We provide clear training on operation, programming, and maintenance. Remote help fixes issues fast. Ongoing plans keep machines at best performance. We guide line optimization and upgrades too. With centers around the world, support reaches customers quickly, ensuring smooth running and high uptime.
| Customer Feedback
Customers praise our engineers for skilled and timely help with setup and fixes. They like the strong performance of the Pick And Place SMD Machine, its speed and reliability. Many note the safe, careful packing during shipping. Quick answers to questions build good trust. In all, users value the quality equipment and great support that make production better.
| Certifications and Standards
Our Pick And Place SMD Machine meets standards like CE for safety, RoHS for green materials, and ISO9001 for quality control. We hold many patents on key technologies too. These marks prove our focus on safe, reliable, and advanced products that follow global rules.
| About I.C.T Company and Factory
I.C.T invests in own research and development for better SMT tools. We produce in large factories with strict checks at every stage. The company grows fast with many staff and offices worldwide. We serve over 1600 customers in more than 72 countries with full electronics solutions. Our quality systems ensure every Pick And Place SMD Machine is strong and performs well.
