DECAN L2
Samsung
| Quantity: | |
|---|---|
| Trusted Samsung SMT Machine
Factories around the world count on the Samsung SMT Machine for steady work in electronics assembly. All models come with handy shared traits like on-the-fly vision that spots parts without pausing, plus the option to mix electric and pneumatic feeders so you can use what you already have and keep expenses down. The software stays user-friendly for quick changes. These machines manage different board sizes and part types while holding tight precision. I.C.T brings these solid Samsung SMT Machines to customers, handling everything from planning the whole line to setup and teaching your team how to run them right.
| Model Introduction
High-Speed Model: SM471Plus
Folks looking for raw speed turn to the SM471Plus, built with one gantry carrying ten spindles per head. It pushes out 78,000 CPH at peak and relies on flying vision to handle small 0402 chips fast. Placement stays accurate at ±40µm for chips and ±50µm for ICs. High-volume plants making phones or consumer gadgets love this model because it keeps the line moving all day. Standard boards up to 510x460mm fit fine, and options go bigger when needed.
Flexible Mid-Speed Model: SM481Plus
The SM481Plus strikes a nice middle ground using one gantry and six spindles per head. It delivers 40,000 CPH yet reaches larger parts up to 42mm tall. Stage vision bumps IC accuracy to ±30µm. Car makers and appliance builders pick this one for jobs that mix part sizes regularly. Single-lane setup takes extra-long boards reaching 1,500mm, giving real flexibility without swapping machines.
Multi-Functional Model: SM482Plus
When unusual shapes show up, the SM482Plus steps in with six spindles on one gantry for 30,000 CPH steady output. It manages big boards up to 1,200x510mm and keeps IC accuracy at ±30µm through stage vision. Lighting companies and industrial electronics shops rely on this Samsung SMT Machine to place tricky components without slowing production. It tackles the tough jobs other models might sidestep.

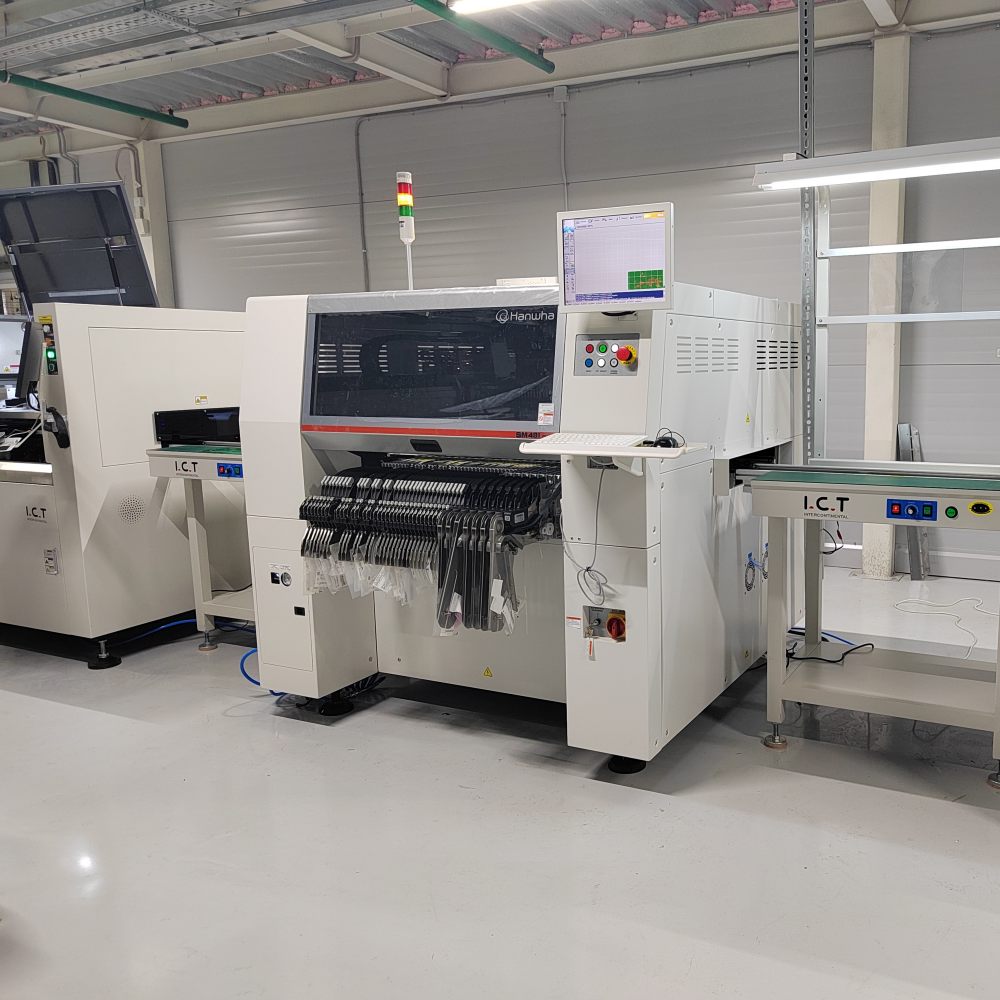

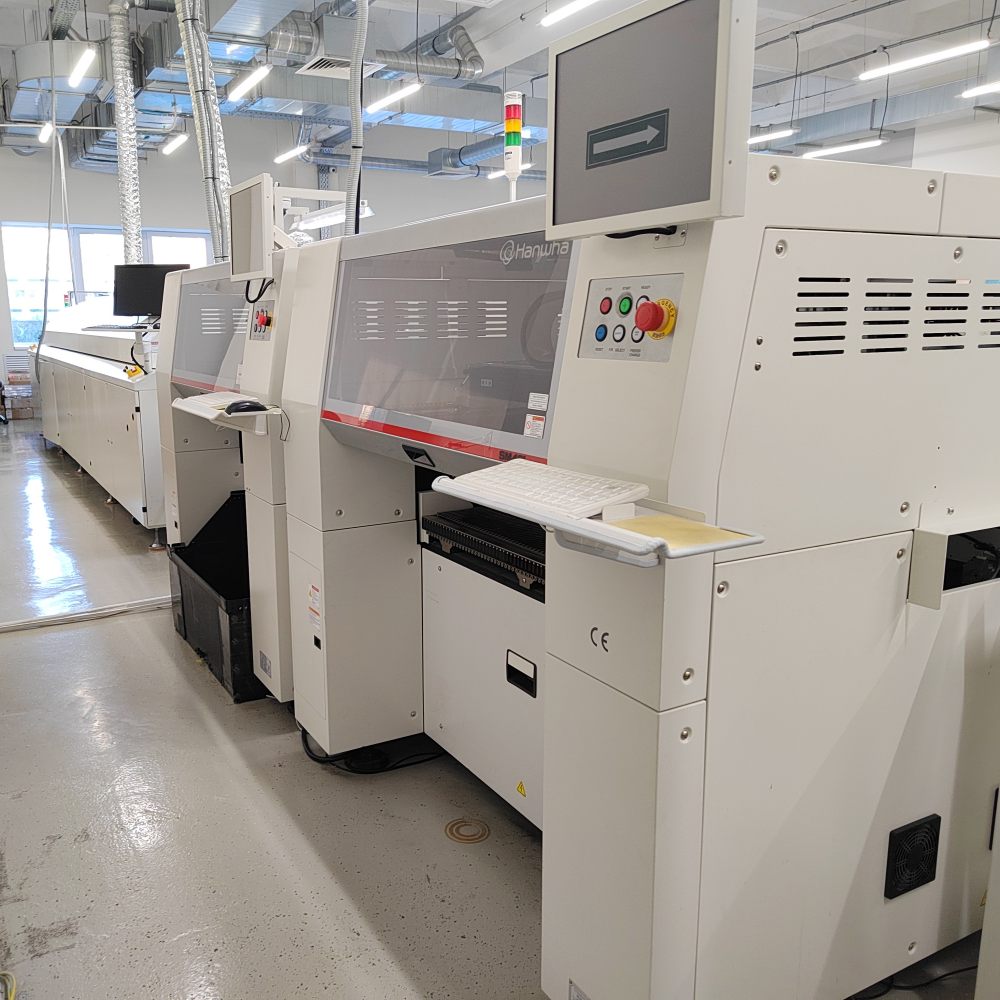

Advanced Flexible Model: DECAN L2
The DECAN L2 doubles up with two gantries, each holding six spindles, to reach 56,000 CPH while covering components up to 55mm. Flying vision holds chip placement to ±28µm tight tolerance. LED makers and large-panel lines choose this setup for dual-lane speed and boards stretching to 1,200mm. It brings serious muscle to high-demand SMT Machine chip mounter work.
| Specification
| Parameter | SM471Plus | SM481Plus | SM482Plus | DECAN L2 |
|---|---|---|---|---|
| Placement Speed (Optimum) | 78,000 CPH | 40,000 CPH | 30,000 CPH | 56,000 CPH |
| Number of Spindles | 10 Spindles/Head (1 Gantry) | 6 Spindles/Head (1 Gantry) | 6 Spindles/Head (1 Gantry) | 6 Spindles/Head (2 Gantries) |
| Placement Accuracy (Chip) | ±40µm (0402) | ±40µm (0402) | ±40µm (0402) | ±28µm (03015) |
| Placement Accuracy (IC) | ±50µm | ±30µm | ±30µm | ±25µm |
| Component Range | 0402 ~ □14mm (H12mm) | 0402 ~ □42mm (H15mm) | 0402 ~ □55mm (H15mm) | 0402 ~ □21mm (H12mm, up to □55mm opt.) |
| Max PCB Size (Standard) | 510 x 460mm | 460 x 400mm | 740 x 460mm | 510 x 460mm |
| Max PCB Size (Option) | 610 x 460mm | 1,500 x 460mm | 1,200 x 510mm | Up to 1,200 x 460mm |
| Feeder Capacity (8mm) | 120ea | 120ea | 120ea | 120ea |
| Vision System | Flying Vision | Stage Vision | Stage Vision | Flying Vision |
| More SMT Related Products
I.C.T puts together entire top-notch SMT lines to go with your Samsung SMT Machine. We include vacuum loaders that keep boards spotless, precise automatic printers for solder paste, multi-zone reflow ovens that lock in solid joints, and sharp AOI units that spot any issue. Everything links up smooth for steady flow. This complete package boosts output, trims expenses, and stands tough in automotive, medical, lighting, and everyday electronics plants. Finished boards roll out ready for the real world, and we handle planning and backup from day one.
| Product Name | Purpose in SMT Line |
|---|---|
| SMT Line | Turkey Fully Automated Traceable High-End SMT Line. |
| PCB Conveyor | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| Inspection Machine | SMT inspection devices like AOI, SPI, X-ray, and stencil inspecter. |
| Traceability Equipment | Records and tracks production data. |
| Customer Success Video
I.C.T sent two engineers all the way to Tajikistan to help an LED factory get rolling. The shipment covered two complete SMT lines loaded with Samsung SMT Machines, plus a DIP line, coating line, dispensing line, and full LED bulb assembly line. Video footage catches safe unloading, careful machine assembly, and step-by-step training for local operators. Soon the lines produced all kinds of LED bulbs perfectly. The customer wrapped it up with honest praise for quick installation and excellent final products.
| Service and Training Support
Every Samsung SMT Machine comes with full I.C.T service and training. We begin by studying your needs and drawing up line plans, then manage delivery, installation, and direct hands-on teaching. Our engineers fly anywhere for fixes or advice. Ongoing help covers tweaks and upgrades so your setup stays sharp and downtime stays low. Customers end up with the skills and backing to keep production strong year after year.
| Client Testimonials
People regularly tell us how much they appreciate I.C.T engineers being skilled yet patient during visits. They count on the Samsung SMT Machine for consistent daily runs. Careful packing keeps gear safe across oceans, and our crew answers calls quickly. Most say the straightforward training gets them producing quality boards fast without wasting parts or time.
| Certifications and Standards
I.C.T carries major worldwide certifications that back up quality and safety. CE approval meets European rules, RoHS keeps materials earth-friendly, and ISO9001 guides steady management. Several patents protect our own fresh ideas in SMT work. All this proves that each Samsung SMT Machine chip mounter and our services follow strict global standards for dependability, safety, and clean production.
| About I.C.T Company and Factory
I.C.T runs its own research, development, and manufacturing sites right here in China. We keep 89 team members on staff, counting 20 trained engineers, and have expanded quickly since opening in 2012. Over 1600 clients in 72 countries now use our full electronics line solutions. Every step in the plant follows tight checks and quality rules, making sure reliable gear reaches customers no matter where they are.
