a. Ensures accurate temperature control for perfect soldering.
b. Features 24 zones for uniform heat distribution.
c. Heats up quickly in under 25 minutes.
d. Uses lead-free hot air for eco-friendly soldering.
e. Offers stable conveyor system for all PCB sizes.
f. Includes remote monitoring for easy management.
g. Provides safety with multiple protection layers.
I.C.T-L24（Customized）
I.C.T
| Quantity: | |
|---|---|
| L Series Lead-Free Reflow Oven Machine Overview
The I.C.T-L24 Customized 24 Zones PCB SMT Reflow Oven Machine is a top-tier solution for PCB reflow soldering. Designed with 24 heating zones, it offers excellent temperature uniformity using advanced hot air systems. This PCB Reflow Oven reaches stable temperatures in under 25 minutes with precision control of ±1°C, ideal for lead-free processes in electronics like automotive, communications, and appliances. Its PC and Siemens PLC control system ensures over 99.99% temperature stability. The machine features a mesh belt and chain transport, handling PCBs up to 500mm wide. With user-friendly Windows software, it supports online editing, fault detection, and process monitoring, boosting SMT line efficiency.
| Feature
The I.C.T-L24 Customized 24 Zones PCB SMT Reflow Oven Machine is a top-tier solution for PCB reflow soldering. Designed with 24 heating zones, it offers excellent temperature uniformity using advanced hot air systems. This PCB Reflow Oven reaches stable temperatures in under 25 minutes with precision control of ±1°C, ideal for lead-free processes in electronics like automotive, communications, and appliances. Its PC and Siemens PLC control system ensures over 99.99% temperature stability. The machine features a mesh belt and chain transport, handling PCBs up to 500mm wide. With user-friendly Windows software, it supports online editing, fault detection, and process monitoring, boosting SMT line efficiency.
With first-class heating modules, the I.C.T-L24 offers rapid warm-up and optimal heat distribution. Long-life heaters with high sensitivity reduce thermal inertia. The efficient air duct design boosts circulation, ensuring even heating across PCBs. As a Lead-Free Hot Air Reflow Soldering system, it minimizes energy use while maintaining performance, ideal for high-volume production.
The Windows interface supports Chinese and English, making it simple to use. It includes fault diagnosis, process monitoring, and data recording. This helps operators manage the oven easily, reducing training time and maintaining high standards.

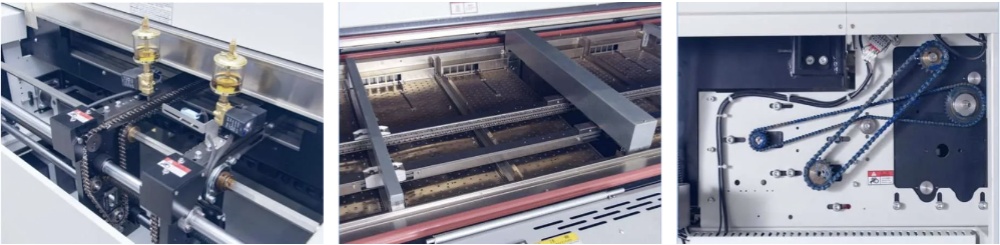

Stable Transport System
| Reflow Oven Specification
Model | L8 | L10 |
Dimension (L*W*H)mm | 5000x1300x1530 | 5800x1300x1530 |
Weight | Approx. 2100KG | Approx. 2315KG |
Number Of Heating Zones | Up8/Bottom8 | Up10/Bottom10 |
Length Of Heating Zones | 3110mm | 3892mm |
Rail Width Adjustment | Manual adjustment (Option: Automatic) | |
Exhaust Volume | 10M3/min*2 Exhausts | |
Control System | PLC+Computer | |
Temperature Control Method | PID + SSR | |
Transmission Agent | Chain + Mesh | |
Electric Supply Required | 5 Wire System 3P, N, PE 380 VAC ± 5%, 50 Hz. Other voltages upon request | |
Power For Warm Up | 64KW | 80KW |
Power Consumption | 10KW | 12KW |
Warming Time | Approx.25 minute | |
Temp. Setting Range | Room Temp.-- 300°C | |
Conveyor Height | 900+/-20mm | |
Conveyor Speed Range | 300~2000mm/mi | |
Fixed Rail Side | Front Fixed (Option:Rear Fixed) | |
Cooling Method | Forced-Air Motor and fan (Standard) | |
| SMT Line Equipment List
The Windows Our High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Customer Success Video
In a recent project in Uzbekistan, I.C.T engineers installed the I.C.T-L24 at a client’s factory. The video shows the setup of the 24-zone system, highlighting its customized design for the client’s SMT line. Engineers demonstrated the efficient heating and cooling, with the interface showing real-time temperature curves. The client praised the quick 25-minute warm-up and how the machine integrated with their MES for data tracking. This case shows how I.C.T-L24 improves soldering precision and production speed, supported by on-site training for the client’s team.
| Service and Training
I.C.T offers full support for Reflow Oven Machines, including installation, maintenance, and remote assistance. Training covers operation, programming, and troubleshooting, available on-site or online. Our team ensures fast responses to issues, helping your staff master the system quickly. This support minimizes downtime and maximizes efficiency.
| Customer Testimonials
Clients love our Reflow Oven Machines for their precision and durability. They commend our engineers for expert installations and quick fixes. Secure packaging and timely delivery prevent damage, while fast responses to questions build strong trust with customers.
| Our Certification
I.C.T holds CE, CCC, UL, and other certifications, ensuring safety and quality standards. These confirm our Reflow Oven Machines meet global regulations, offering reliable performance for lead-free soldering.
| About Us and Factory
I.C.T leads in electronics manufacturing with in-house R&D and production. Our team of over 89 staff, including 20 engineers, has grown rapidly over 12 years. Serving 1600 customers in 72 countries, we provide full SMT solutions. Our 12,000m² factory uses strict testing and ISO9001 systems to ensure high-quality products like the I.C.T-L24.
