| SMT Fully Automatic Stencil Printer Introduction
The SMT Fully Automatic Stencil Printer by I.C.T is a top choice for modern PCB assembly. This machine offers high precision and speed, with a 7-second printing cycle and accuracy of ±0.025mm. It automates solder paste application, reducing manual errors and waste while improving quality. Designed for industries like consumer electronics, LED, and automotive, it features automatic PCB calibration, adjustable squeegee pressure, and stencil cleaning. I.C.T integrates Industry 4.0 and MES systems for smart factory solutions. With easy operation on Windows 10 and durable materials from top brands, it ensures long-term reliability. This printer helps factories increase productivity and meet diverse needs with efficient, stable performance.
| Feature

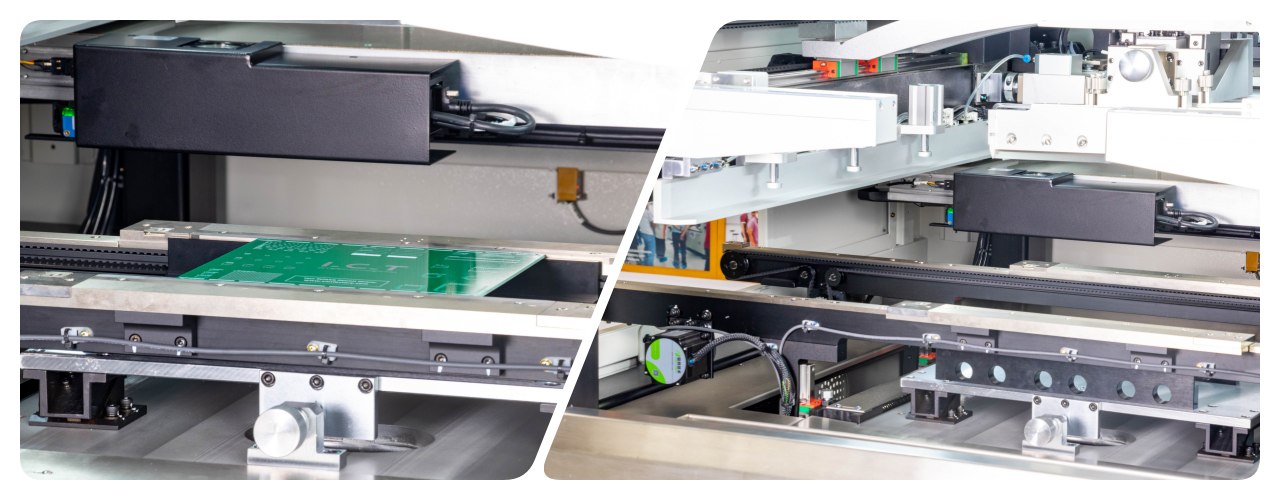

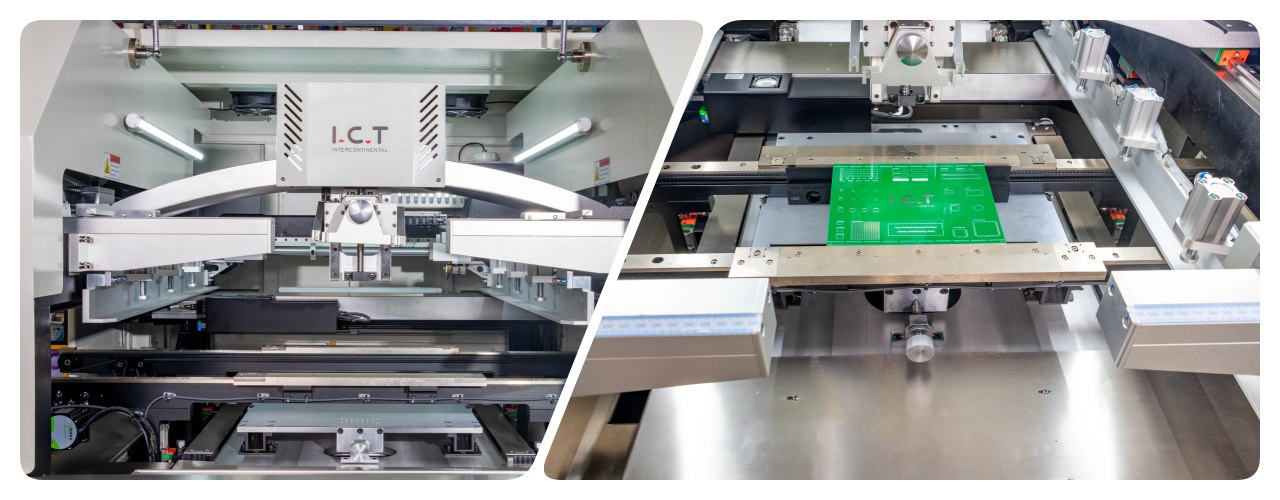

The PCB Printer delivers high precision with a repeated positioning accuracy of ±0.01mm and printing accuracy of ±0.025mm. This ensures every solder paste layer is applied perfectly, reducing errors in PCB assembly. The advanced vision system uses uniform ring light and coaxial light sources to identify various PCB types, including tin plating and FPC. This precision is ideal for fine-pitch PCBs, making it suitable for LED and automotive electronics where quality is critical.
With a 7-second printing cycle, this printer speeds up production lines significantly. The fast line change settings allow quick adjustments, minimizing downtime. This feature is perfect for factories needing to handle large orders efficiently. The automatic control system adjusts separation speed and distance, ensuring consistent results. This speed, combined with high repeatability, helps meet tight deadlines while maintaining top-quality output.

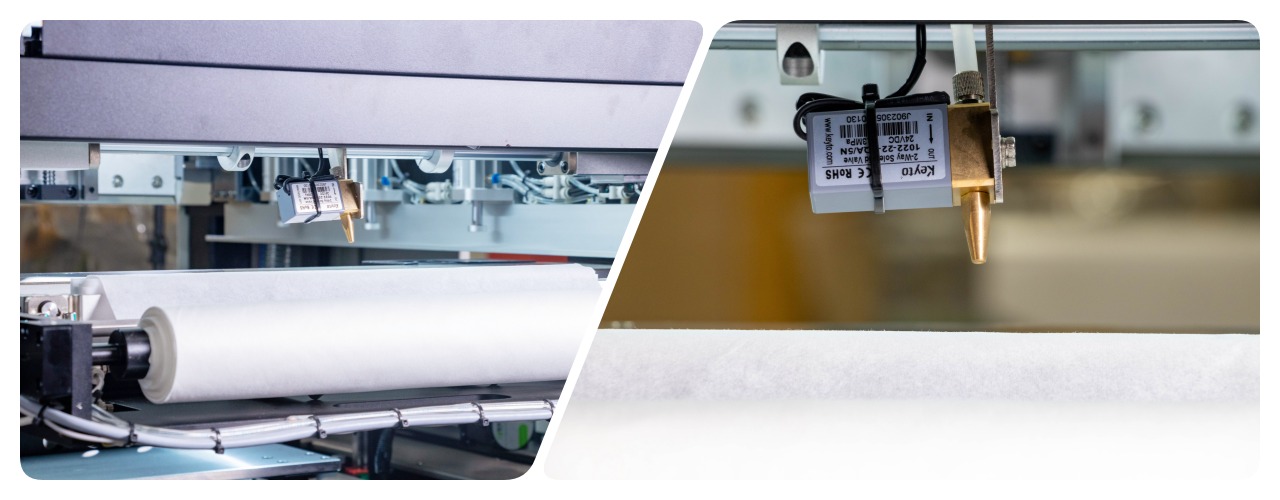

The printer includes an automatic cleaning system with dry, wet, and vacuum options. This feature removes solder paste from both sides of the stencil, ensuring clean prints every time. The unique spray system uses software to control alcohol and paper use, saving materials. This automation reduces manual effort and maintains high-quality printing, making it a cost-effective choice for busy production environments.
| Specification
| Model | I.C.T-4034 | I.C.T5134 | I.C.T-5151 |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 737*737 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*340 | 50*50 ~ 510*510 |
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right | ||
| Support System | Magnetic Pin/Up-down table adjusted/support block | ||
| Clamping System | Side clamping(vacuum nozzle,Automation retractable Z pressure is option) | ||
| Printer Head | Two independent motorised printhead | ||
| Squeegee Type | Stainless steel(standard),plastic | ||
| Cleaning System | Dry, Wet, Vacuum | ||
| Inspection | 2D Inspection(Standard) | ||
| Power Supply | AC:220±10%,50/60HZ,3Kw | ||
| Control Method | PC Control | ||
| Dimension(mm) | 1220*1355*1500 | 1220*1355*1500 | 1220*1550*1500 |
| Model | I.C.T-6534 | I.C.T-6561 | I.C.T-9060 |
| Frame Size(mm) | 650*400 ~ 850*750 | 650*400 ~ 850*850 | 737*400 ~ 1100*900 |
| PCB Size(mm) | 50*50 ~ 650*340 | 80*50 ~ 650*610 | 80*50 ~ 900*600 |
| Dimension(mm) | 1330*1370*1500 | 1330*15450*1500 | 1580*1545*1500 |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List

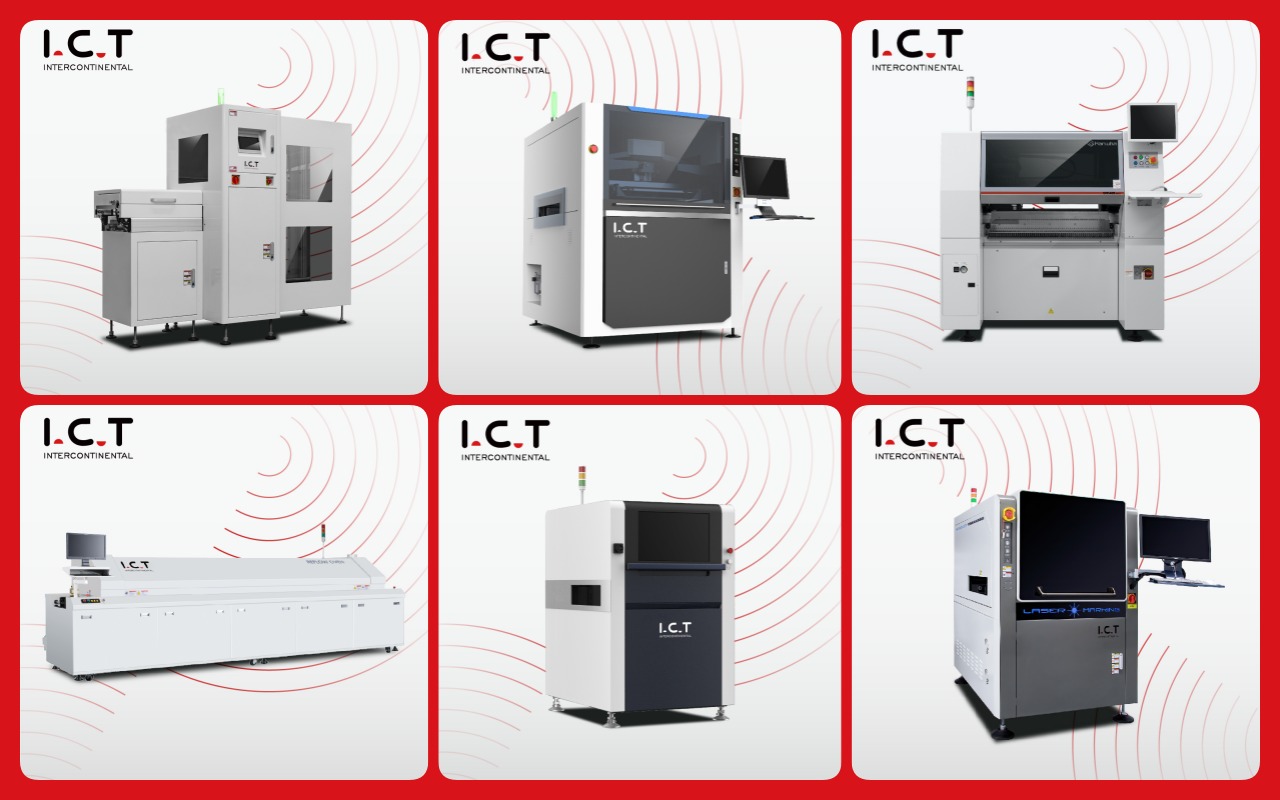

Our High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Product Name | Purpose in SMT Line |
|---|---|
| PCB Loader | Automatically loads bare PCBs to the line. |
| Solder Paste Printer | Prints solder paste on PCB pads accurately. |
| Pick and Place Machine | Mounts components onto PCBs precisely. |
| Reflow Oven | Melts solder to form solid joints. |
| AOI Machine | Inspects solder joints and placement defects. |
| SPI Machine | Checks solder paste height and quality. |
| Traceability Equipment | Records and tracks production data: Laser Marking Machine/Label Mounter/Inkjet Printer |
