I.C.T PCB Shuttle Conveyor moves boards sideways fast and keeps your SMT line flowing non-stop.
a. High-speed servo traverse in just 8-10 seconds
b. One-button width adjustment same as the whole line
c. Smooth 2-5 lane shifting without scratching boards
d. Full SMEMA handshake on every lane
e. Bright three-color tower lights + alarm buzzer
f. 7-inch touch screen + PLC super simple control
g. Free global on-site installation and training
I.C.T
| Quantity: | |
|---|---|

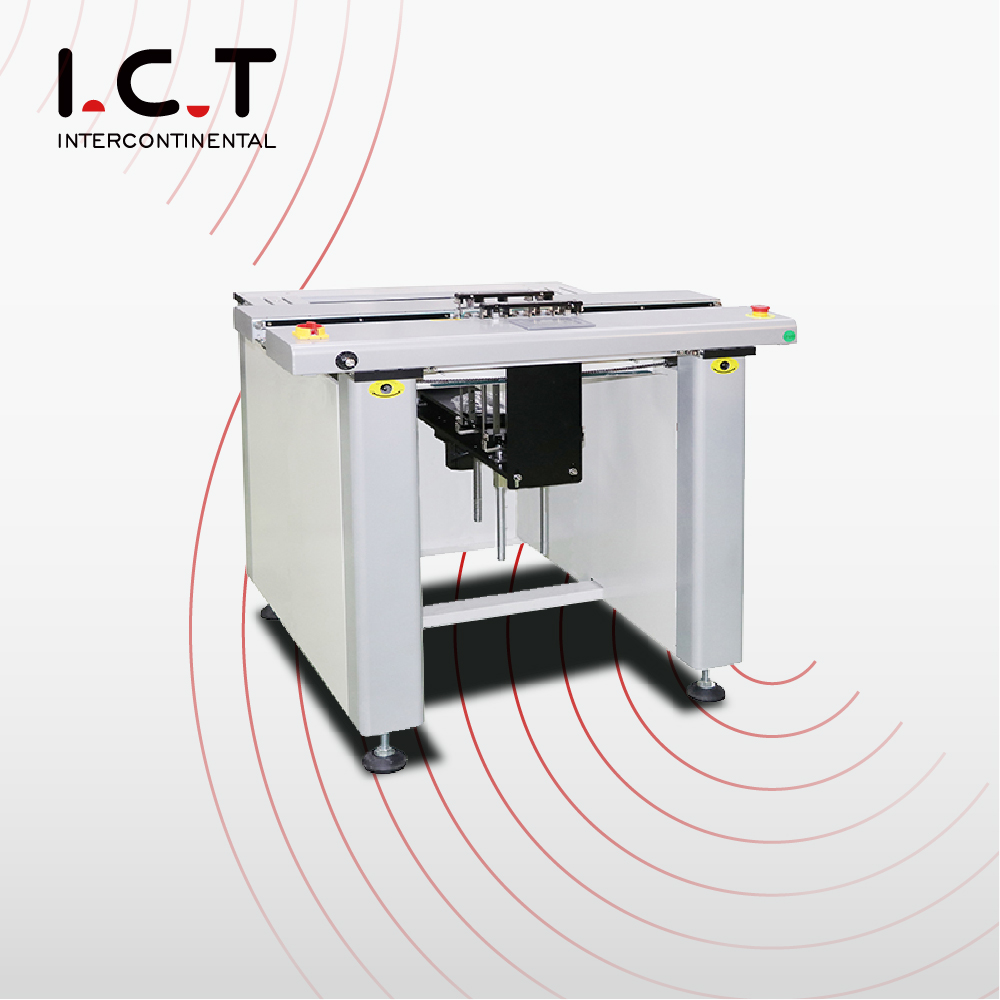

| High-Speed PCB Shuttle Conveyor for Flexible Multi-Lane SMT Lines
The I.C.T PCB Shuttle Conveyor is the smartest Smt Line Automatic Pcb Shuttle Conveyor when you need to redirect boards to different lanes instantly. Powered by a high-precision servo motor, the entire conveyor section slides left or right in seconds while keeping perfect PCB alignment. Aviation-grade aluminum frame, top-brand sensors and Industry 4.0-ready PLC deliver rock-solid accuracy 24/7. One-button width sync, full CE protection and seamless SMEMA communication make every PCB Shuttle Conveyor a must-have for high-mix, high-volume electronics factories worldwide.
| Complete Conveyor Family with Smart Traverser Solutions
I.C.T supplies over ten conveyor types so every layout runs perfectly. Standard linking conveyors simply transfer boards. Inspection and cooling models handle quality steps. The powerful PCB Shuttle Conveyor comes in 2-lane, 3-lane, 4-lane or 5-lane versions, fixed or programmable positions, plus optional buffering on each lane. Telescopic gates and NG reject units are also available. Every Smt Line Automatic Pcb Shuttle Conveyor can be fully customized in length, lane count, travel distance and smart protocol to match your exact production flow.
| Detailed Product Features
High-torque Panasonic servo motor and precision linear rails move the whole conveyor section smoothly at 1000 mm/s with ±0.1 mm repeatability. Hardened steel guide wheels and anti-vibration design eliminate shaking even at maximum speed. All mechanical parts meet strict ISO and CE standards, giving the PCB Shuttle Conveyor decades of perfect lane switching.
Multiple photoelectric sensors detect boards and obstacles instantly. Bright three-color tower lights and loud buzzer warn operators clearly. Oversized emergency buttons and full light curtains meet CE Cat.4 level. Anti-collision software stops movement automatically if anything is wrong.
7-inch full-color touch screen plus reliable PLC lets operators set lane positions and speed in seconds. Optional Industry 4.0 module supports Hermes, CFX and all major MES protocols. Software updates and remote diagnostics are completely free for life.
Standard 3 mm ESD flat belt runs whisper-quiet and clean. For heavier boards choose stainless-steel chain drive that never slips and handles higher loads perfectly. Both systems work flawlessly while the PCB Shuttle Conveyor moves sideways without dropping or scratching boards.
| Reflow Oven Specification
| Parameter | Specification |
|---|---|
| PCB Width | 50–400 mm (500 mm optional) |
| Conveyor Height | 900 ± 20 mm |
| Transfer Speed | 0.5–20 m/min adjustable |
| Power Supply | AC 220 V 50/60 Hz |
| Power Consumption | 50–150 W |
| Direction | Left to Right (Right to Left optional) |
| Belt Material | 3 mm ESD flat belt or chain |
| Control Mode | PLC + Touch Screen |
| One-button Width Adjust | Optional (whole line sync) |
| CE Safety Standard | Full cover + sensor protection |
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
Our High Quality PCBA Production Line features advanced equipment for efficient and precise PCB assembly. The fully automated SMT line includes a loader, an auto printer for accurate solder paste application, a pick-and-place machine for precise component placement, a reflow oven for reliable soldering, and an AOI system for thorough defect inspection. This High Quality PCBA Production Line ensures smooth operation, high reliability, and low-cost SMT assembly, meeting diverse industry requirements.
| Customer Success Story
Two senior I.C.T engineers flew to Uruguay to launch a complete high-mix line for a leading smart electric-meter manufacturer. The package included magazine loaders, printers 471 & 481, Lyra622 mounter, AOI, reflow oven W2, multiple PCB Shuttle Conveyors, roller lines and workstations. Within seven days our team completed installation, lane mapping and full operator training. Now the factory switches products between four lanes in seconds with zero mixing, and daily output has increased 40%.
| Professional Training & Support
From line design to daily mass production, I.C.T never leaves your side. We offer free online and on-site training, lifetime free software upgrades, and 7×24 remote support. When needed, our engineers arrive within 48 hours anywhere in the world. Spare parts ship same-day from eight global warehouses — your production never stops.
| Customer Praise
“The SMT Conveyor quality is outstanding and the one-button width change saves us hours every shift.”
“Packing is super strong — machines arrived perfect after two months at sea.”
“Engineers are patient, professional and solved every question in minutes.”
“Response time is lightning fast — even on weekends!”
“Best after-sales team I’ve ever worked with.”
| Our Certification
Every I.C.T machine carries CE, RoHS and ISO9001 certificates plus dozens of invention patents. Each PCB Shuttle Conveyor passes a strict 48-hour full-load aging test before delivery. Quality is built in every single day — that’s why customers trust us year after year.
| About Us and Factory
Founded in 2012 in Dongguan, China, I.C.T has grown rapidly into a leading global SMT solution provider with nearly 90 passionate employees and a modern 12,000 m² factory. We design and manufacture all core components in-house under strict quality systems. More than 1,600 customers from 72 countries run our equipment every day. With eight overseas offices and continuous fast growth, I.C.T keeps delivering reliable PCB Shuttle Conveyor and world-class service to electronics manufacturers worldwide.
