PCB Laser Marking
| Quantity: | |
|---|---|

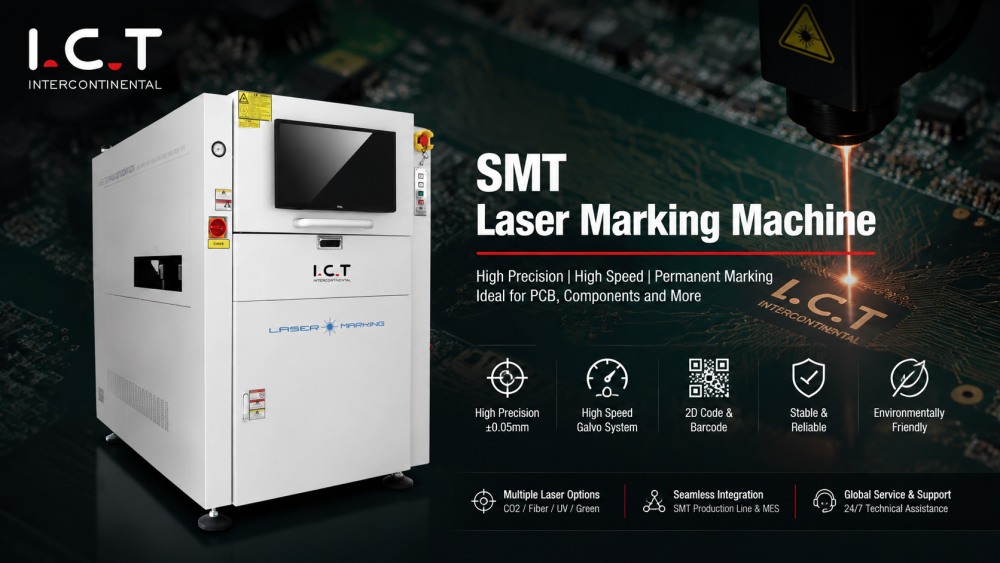

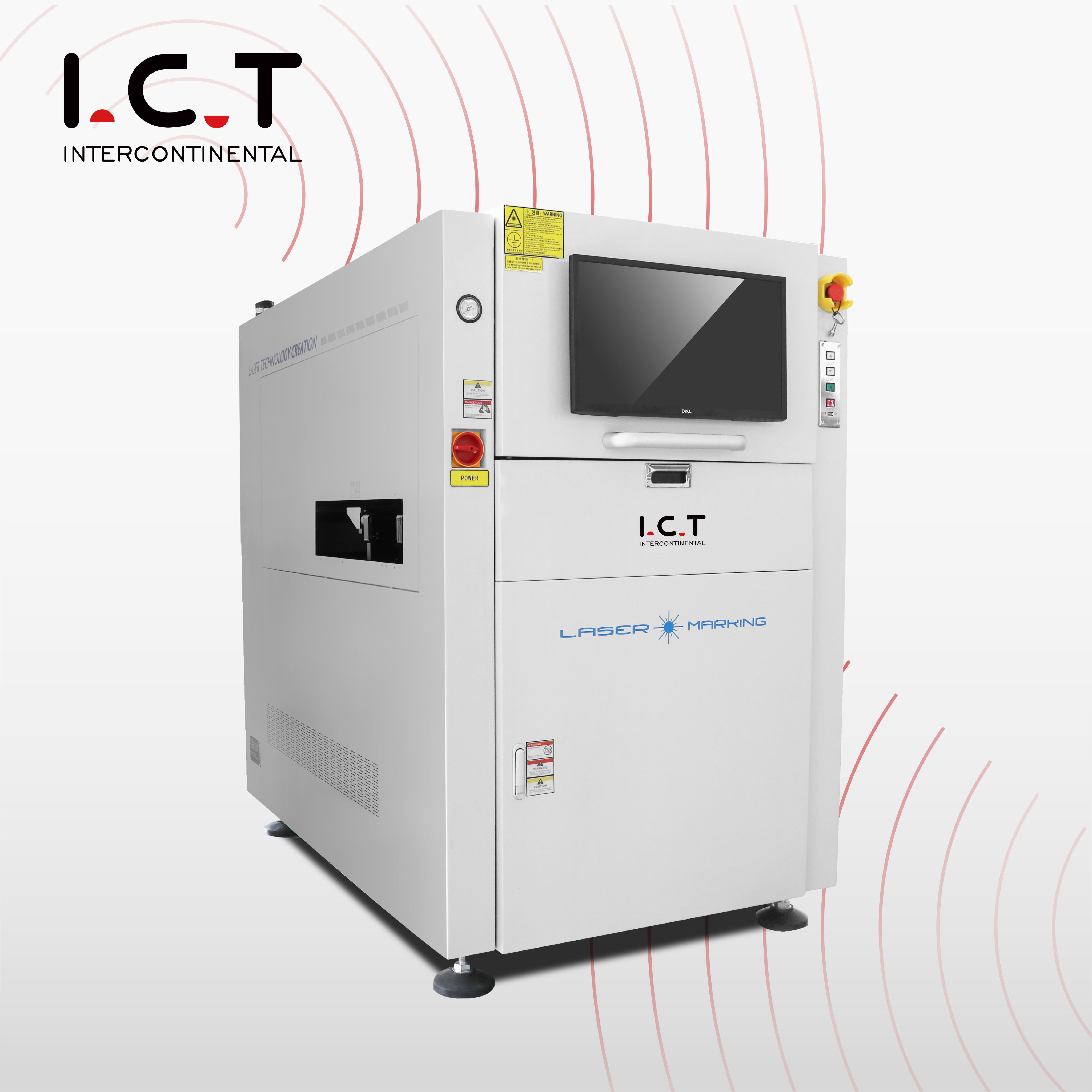

| Laser Expiry Date Printing Machine I.C.T Series
The I.C.T laser expiry date printing machine is designed for SMT and laptop PCB production. It can print expiration dates, batch codes, and barcodes with high precision and speed. Software allows quick job setup, automatic code reading, and alarm notifications for unreadable marks. MES and ERP integration enables real-time recording of production and batch data. This machine ensures reliable, fast, and traceable printing across electronic manufacturing lines.

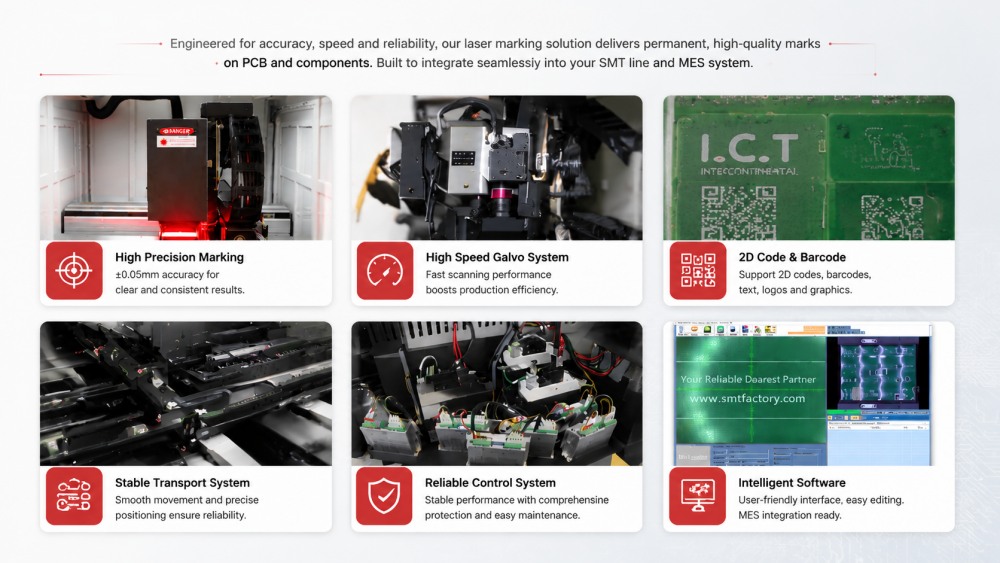

| Feature of SMT Laser Marking Machine
Multi-Laser Capability
Supports CO2, fiber, UV, and green lasers. Automatic Z-axis adjustment ensures accurate marks across various PCB and laptop surfaces.
High-Speed and Accurate Printing
Equipped with a vibrating mirror and CCD positioning system, it maintains ±0.05mm accuracy for dates, codes, and logos. Each mark is clear and reliable.
Integrated Software and Automation
The intuitive interface allows editing, multi-point positioning, and MES/ERP connectivity. Automatic reading and error alerts reduce mistakes and enhance traceability.
Eco-Friendly Operation
No consumables, maintenance-free, and environmentally safe. Anti-reprinting functions prevent duplicate markings. Both offline and online modes are supported for flexible production.
| SMT Laser Marking Machine Specification
| Item | I.C.T-400 | I.C.T-460 | I.C.T-510 | I.C.T-510L |
|---|---|---|---|---|
| PCB Flip Function | Inside PCB Flipper | Inside PCB Flipper | N/A | N/A |
| Max PCB Size | L380×W380mm | L510×W450mm | L510×W400mm | L510×W460mm |
| Marking Range | 280×380mm | 460×450mm | 430×400mm | 510×460mm |
| Dimension | 835×1488×1566mm | 974×1528×1616mm | 1054×1568×1523mm | 1054×1470×1523mm |
| Weight | 700Kg | 800Kg | 750Kg | 800Kg |
| PCB Thickness | 0.5–5mm | 0.5–10mm | 0.5–5mm | 0.5–10mm |
| Marking Speed | <7000mm/s | <7000mm/s | <6000mm/s | <6000mm/s |
| Laser Type | UV laser, Green laser, Fiber laser, CO2 laser | |||
| Laser Wave Length | UV: 355nm, Green: 532nm, Fiber: 1064nm, CO2: 10600nm | |||
| Laser Power | UV: 3W (5/10W Option), Green: 10W, Fiber: 20W, CO2: 30W | |||
| Laser Z-axis Lifting | Automatic | |||
| Marking Precision | ±0.05mm | |||
| PCB Safety Height | Top <25mm; Bottom <20mm | |||
| Applicable Product | QR code, PCB ink, green/blue ink, copper, aluminum, etc. | |||
| Position System | CCD+MARK | |||
| Operation Mode | Laser X/Y Movement | |||
| Character Type | TrueType, JSF, SHX, DMF fonts | |||
| Minimum Character Height | 0.1–0.4mm | |||
| Conveyor Speed | 0–4500mm/min | |||
| Power | AC220V, 50/60Hz, Total 3000W | |||
| Air Pressure | 0.5–0.6Mpa | |||
| Standard | Smoke Purifier | |||
* I.C.T keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| SMT Line Equipment List
I.C.T provides turnkey production lines, combining PCB loaders and unloaders, screen printing, SMT pick-and-place, SPI and AOI inspection, reflow ovens, wave soldering, coating, dispensing, conveyors, and cleaning stations. Lines are optimized for efficiency, traceability, and product quality. MES/ERP integration automatically tracks work, batch, and material information. Global support ensures smooth installation, training, and ongoing operations, delivering consistent high-quality output across electronics factories.
| Customer Success Video
I.C.T assisted a major electronics manufacturer in Uzbekistan. The client built a facility producing PCBs, SSDs, and memory modules. From setup to production, I.C.T engineers guided SMT, DIP, and coating line integration, including expiry date printing, placement, SPI, AOI, and reflow processes. The client praised fast problem-solving, engineer expertise, and secure packaging. The solution improved traceability, operational efficiency, and overall line reliability, producing high-quality, traceable PCBs consistently.
| Professional Training & Support
I.C.T provides on-site installation, commissioning, and operator training. Engineers teach software operation, line integration, and maintenance. Training ensures efficient, safe, and traceable production. Clients gain confidence managing full SMT, DIP, and coating lines, with 24/7 global support for troubleshooting and process optimization.
| Customer Praise
Clients praise I.C.T engineers for professionalism, responsiveness, and clear guidance. Laser machines are appreciated for accuracy, reliability, and easy integration. Secure packaging and rapid problem-solving ensure smooth production startup. Customers report improved traceability, production speed, and overall PCB quality.
| Our Certification
The I.C.T laser expiry date printing machine holds CE, RoHS, ISO9001 certifications and multiple patents. Compliance guarantees safety, reliability, and high performance for integration into SMT, DIP, and coating lines.
| About Us and Factory
I.C.T has a large R&D and manufacturing team serving 1,600+ clients in over 70 countries. Strict quality control ensures high-performance machines. Global technical support provides fast response and lifecycle management. I.C.T delivers turnkey SMT, DIP, and coating solutions, enabling efficient, traceable, and high-quality electronics production worldwide.
