| PCBA Small Benchtop Conformal Selective Coating Machine for PCB

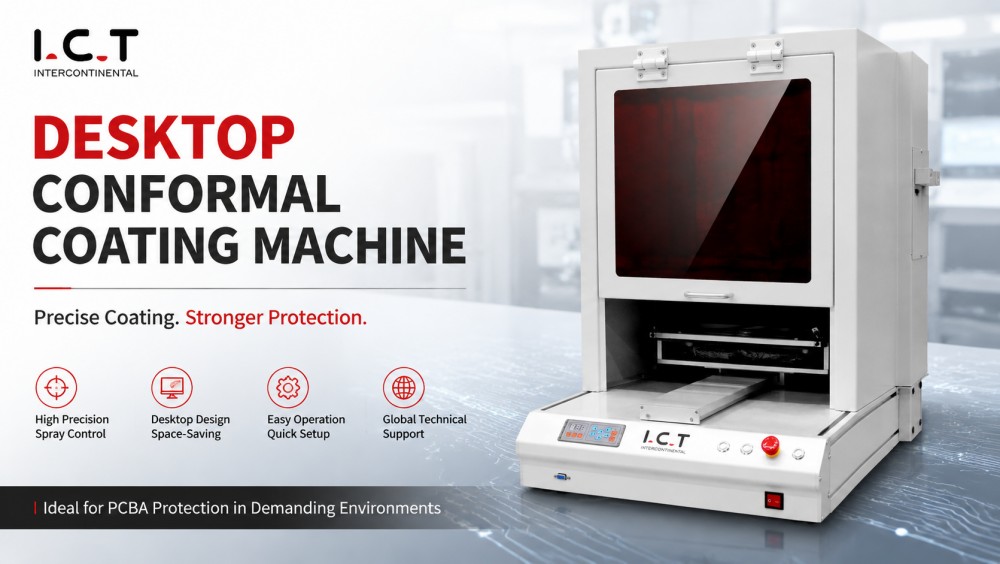

The PCBA Benchtop Coating Machine is ideal for precise, selective offline coating of PCBs in SMT and DIP workflows. Three-axis motion delivers exact placement of adhesives, conformal coatings, and protective layers. It accommodates board sizes from 50×50 to 400×400mm and heights up to 80mm. The system includes 10L material and 2L cleaning tanks, adjustable spray valves, and teaching box programming for points, lines, circles, arcs, and complex curves. Quick product change and compact design enable easy integration into labs, pilot lines, or small-batch PCBA production setups, providing repeatable, high-quality coating.

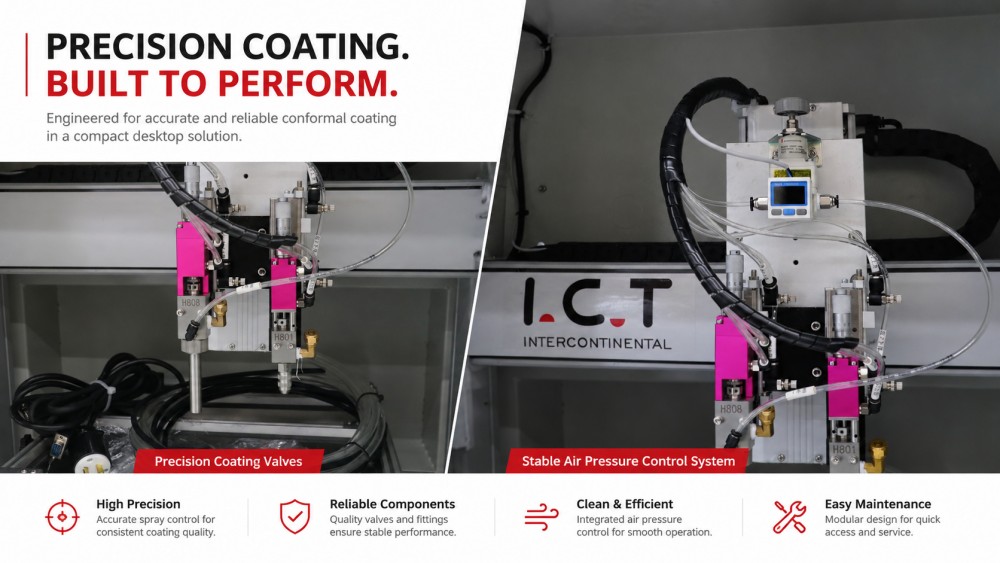

Three-axis robots apply coatings consistently on complex PCBs. Adjustable spray valves allow for different viscosities, including UV and epoxy adhesives. Height detection ensures layer uniformity, and edge recognition prevents overspray. Supports single- or double-sided boards. The system is ideal for prototyping, small-batch production, and desktop PCBA assembly, ensuring reproducible, precise coating with minimal material waste.
The desktop machine has a compact conveyor and PCB holder system. Boards up to 400×400mm and 80mm height are supported. Stepper motor drives guarantee precise motion. Push and buffer mechanisms stabilize boards during coating, preventing misalignment. Quick-change fixtures and anti-block design reduce downtime. This setup ensures high-quality coating in small spaces, ideal for engineering labs, pilot runs, or desktop PCBA production.
The system uses 10L glue tanks and 2L cleaning tanks with 4.5–6 Kg/cm² air pressure. Operators program coating paths and volumes with the teaching box. Independent cleaning cycles minimize contamination. The controlled flow ensures consistent coating thickness. Flexible programming allows rapid adjustment for different PCB layouts or materials. The desktop machine provides reliable, repeatable coating for low-volume PCBA production or pilot testing.
| Item | I.C.T-T420 |
|---|---|
| Valves Number | Atomizing valve 1pcs, precision valve 1pcs |
| Axis Number | 3-Axis (X, Y, Z) |
| PCB Size | 50×50 ~ 400×400 mm |
| PCB Thickness | 0.4 ~ 6 mm |
| PCB Warpage | <1% |
| Driver System | Stepper motor |
| Material Volume | 1×10L glue bucket + 1×2L cleaning bucket |
| Max. Speed | 400 mm/sec |
| Max. Component Height | 80 mm |
| Fan Shape Spray Width | 5 ~ 8 mm |
| Smallest Spray Diameter | 5 mm |
| Repeated Accuracy | ±0.1 mm |
| Product Changeover | <8 Minutes |
| Inspect Light | UV Light |
| Air Pressure | 4.5 ~ 6 Kg/cm² |
| Power Supply | AC220V±10%, 50/60Hz, 500W (Option: 110V) |
| Control Method | Control handle |
| Dimension (L×W×H) | 800×900×900 mm |
| Weight | Approx. 50 kg |
*I.C.Tkeepsworkingonqualityandperformance,specificationsandappearancemaybeupdatedwithoutparticularnotice.
The PCBA Benchtop Coating Machine can be combined with I.C.T’s full SMT and DIP production equipment, including pick-and-place, selective soldering, jet dispensers, AOI, and depaneling systems. Integration ensures smooth workflow from component placement to selective coating. CCD vision monitors coating uniformity inline. Combined systems improve throughput, reduce rework, and deliver repeatable, high-quality coatings in low- to medium-volume PCBA production or lab setups.
