| Fully Automatic Wave Soldering Machine
– Top wave solder machine for sale
I.C.T W-series fully automatic wave soldering machine is a high-performance lead-free solution designed for modern DIP and THT lines. This fully automatic wave soldering machine features Japanese Kuroda precision nozzle, completely independent horizontal heating zones and advanced energy-saving system to run at only 7kW while delivering perfect dual-wave soldering. The smooth wave soldering machine input conveyor connects easily with upstream equipment and optional nitrogen protection gives oxide-free joints. After years of successful operation in thousands of factories worldwide, this fully automatic wave soldering machine has become the first choice for customers looking for reliable wave solder machine for sale.
| Feature
Japanese Kuroda nozzle with adjustable atomizing area and pyramid filter produce tiny, uniform flux dots every cycle. Digital flow meter and pressure tank keep flux stable without influence from remaining amount – perfect for fully automatic wave soldering machine in non-stop THT production.
Third-party independent over-temperature protection plus PLC+PID closed-loop control create complete safety net. Real-time monitoring and instant emergency stop protect operators and equipment even when temperature reaches 1.0 settings during 24-hour running.
Fully independent horizontal heating zones with closed hot-air path and rectifier plates deliver perfectly even temperature across every board. Warm-up takes only about 15 minutes and normal power stays at 7kW – the most efficient heating for fully automatic wave soldering machine.
| DIP Line Equipment List
| Model | W4 | W3 | W2 |
| Dimension:(mm) | 4200X1250X1500 | 3600X1250X1500 | 2900X1160X1500 |
| Weight(kg) | Approx.1500kg | Approx.1200kg | Approx.790kg |
| Power Supply | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz | 3P5W,380/220V 50Hz |
| Startup Power | 32kw | 24kw | 16kw |
| Operation Power | 12kw | 9kw | 7kw |
| Control System | PLC | ||
| Spray System | |||
| Transmission Method | Step motor | ||
| Spray Pressure | 0.25Mpa--0.4Mpa | ||
| lux flow | 10--100ml/min | ||
| Exhaust Diameter | Φ200mm | ||
| Exhaust Capacity | 25m3/min | ||
| Preheating System | |||
| Preheating Mode | Hot air | ||
| Control Mode | PID + SSR | ||
| Preheating Zone | 4 | 3 | 2 |
| Preheating Length | 1800mm | 1600mm | 1200mm |
| Preheating Temp. | (Room Temperature)-250°C | ||
| Warm-up Time(min) | Approx.15min (setting 150°C) | ||
| Conveyor System | |||
| PCB Size:LxW(mm) | Min:80x60mm; Max:400x300mm | ||
| Conveyor Speed | 0-2000(mm/min) | ||
| Conveyor Height | 750+/-20 (mm) | ||
| Finger | Double hook claw (Standard) | ||
| Conveyor width control | Manually | ||
| Conveyor Angle | 4~7degree | ||
| Soldering System | |||
| Solder Pot style | Mechanical Motor drive | ||
| Solder Pot Material | Full Titanium (Standard FT) | ||
| Solder pot temperature | 300°C | ||
| Solder pot capacity | Lead-free 350kg | Lead-free 300kg | Lead-free 250kg |
| Other | |||
| Finger cleaning system | Brush | ||
| DIP Line Equipment List

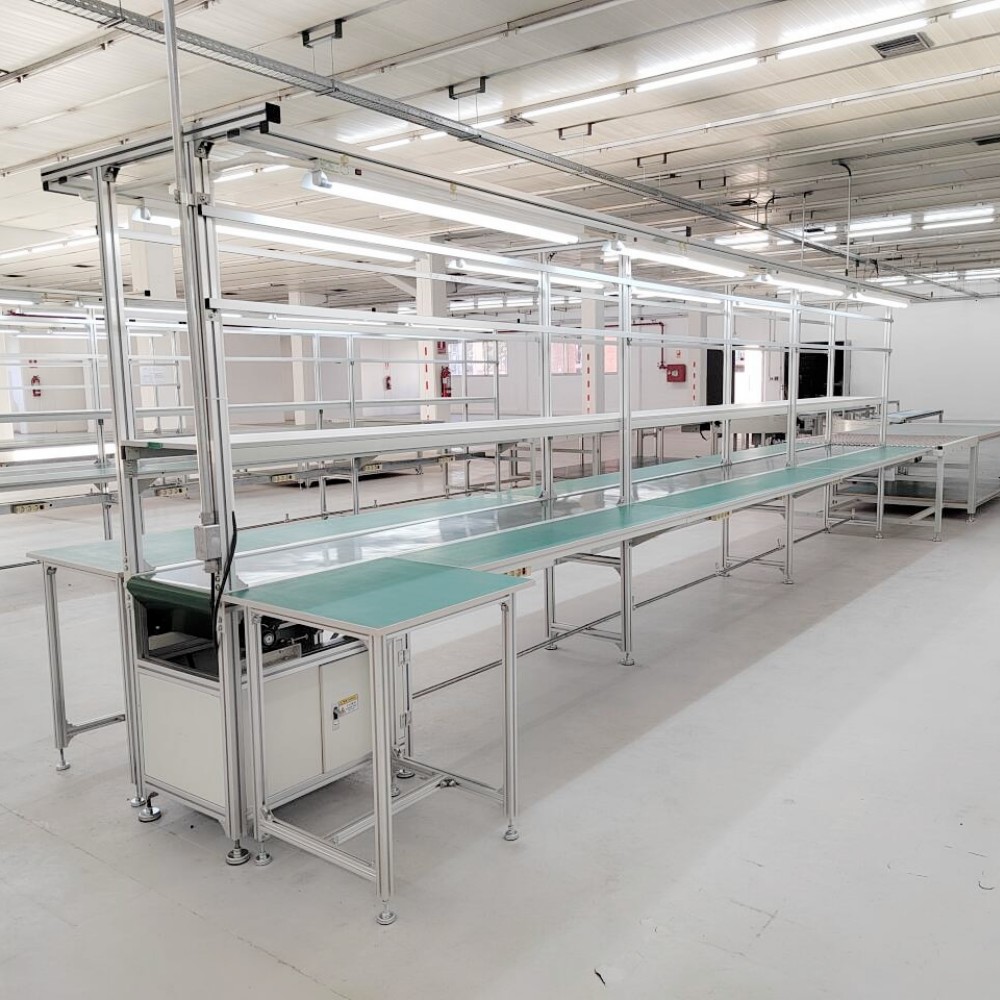

Our DIP production line offers advanced tools for efficient and precise PCB assembly. The fully automated DIP line includes a DIP insertion line for accurate component placement, a wave loader for smooth PCB entry, a wave unloader for safe exit, and an assembly belt line for final checks. This high-quality PCB DIP production line ensures stable operation, reliable THT insertion, and cost-effective assembly, meeting diverse industry needs. With modular designs and global support from I.C.T, it boosts productivity for through-hole tasks.
| Customer Success Video

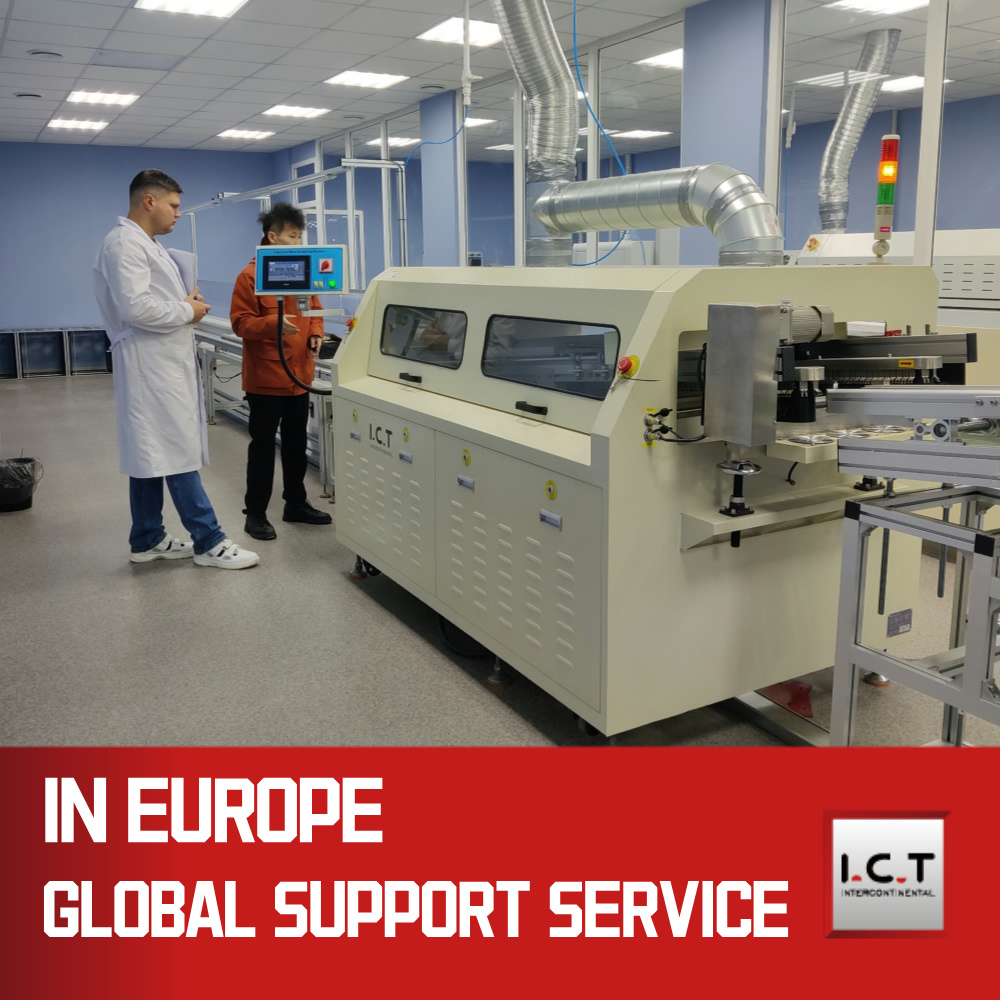

I.C.T engineers went to Uruguay to install and commission the W-series fully automatic wave soldering machine for a smart meter manufacturer. The customer runs a high-volume DIP production line and needed stable lead-free soldering for complex PCBs with large parts. After our team completed the setup and operator training, the machine reached full speed with only 7kW running power and perfect joint quality. The customer shared a video showing the fully automatic wave soldering machine running smoothly in their THT assembly line, praising the low energy cost, easy maintenance and excellent after-sales support. This Uruguay smart meter project has become a successful reference for many Latin American DIP lines.
| Expert Services and Training
I.C.T provides total lifecycle support for every fully automatic wave soldering machine – from line layout design and professional installation to operator training and 7×24 global technical service. Our experienced team ensures your wave solder machine for sale investment delivers maximum output with zero downtime.
| Customer Praise
Customers worldwide praise our fully automatic wave soldering machine for outstanding stability, extremely low running cost and perfect soldering quality. They especially love the smooth wave soldering machine input conveyor, fast global response and excellent value among similar wave solder machine for sale.
| Quality Certifications
Every I.C.T fully automatic wave soldering machine carries CE, CCC, UL, RoHS and ISO9001 certifications plus multiple invention patents, fully meeting the strictest international safety and environmental standards for modern DIP production lines.
| About I.C.T Company and Factory
I.C.T is a professional one-stop solution provider for SMT and DIP production lines with over 25 years of experience. Our 12,000㎡ factory in Dongguan employs 89 staff including 20 engineers. We design and manufacture all core equipment in-house and serve over 1600 customers across 72 countries. Strict quality management and continuous innovation make us the most trusted partner for high-performance wave solder machine for sale worldwide.
